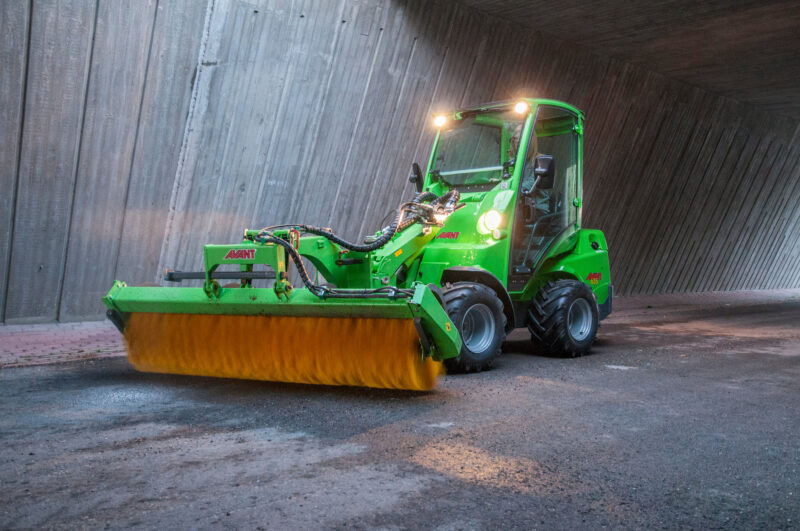

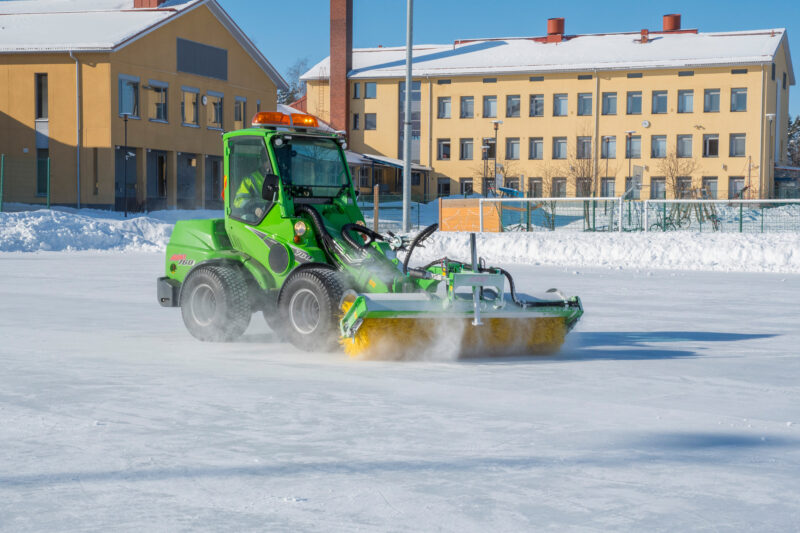

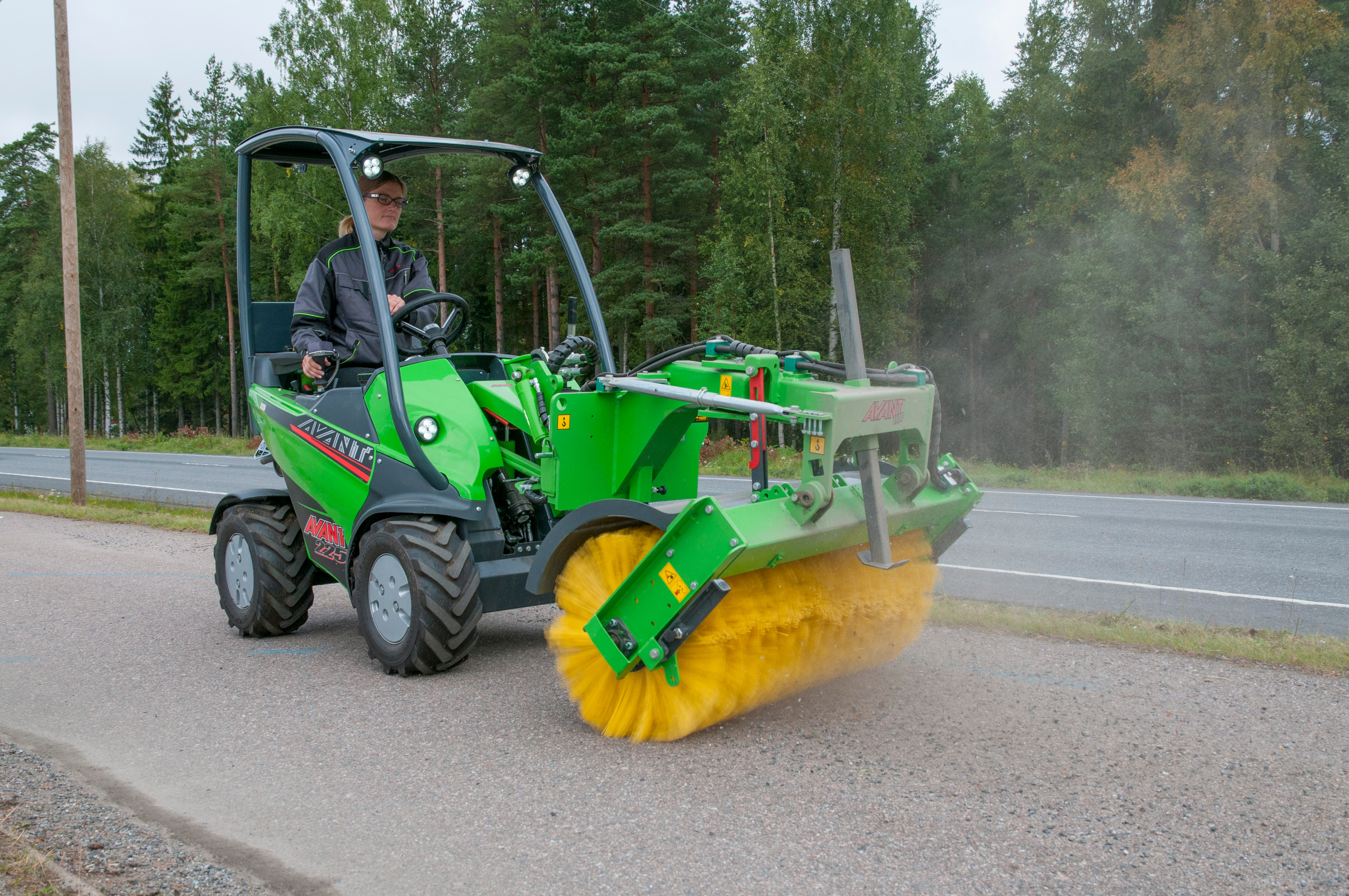

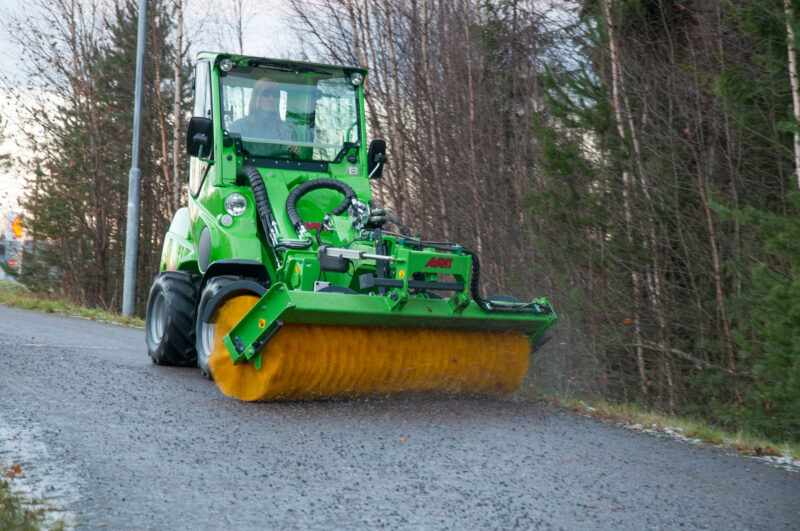

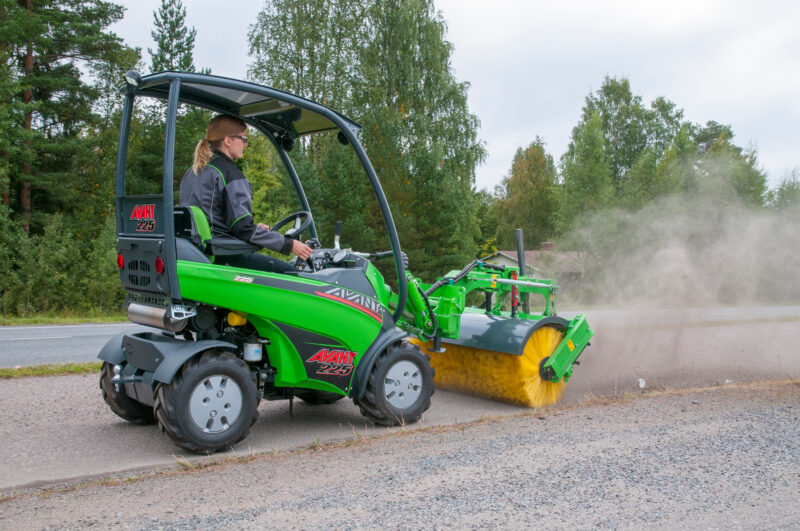

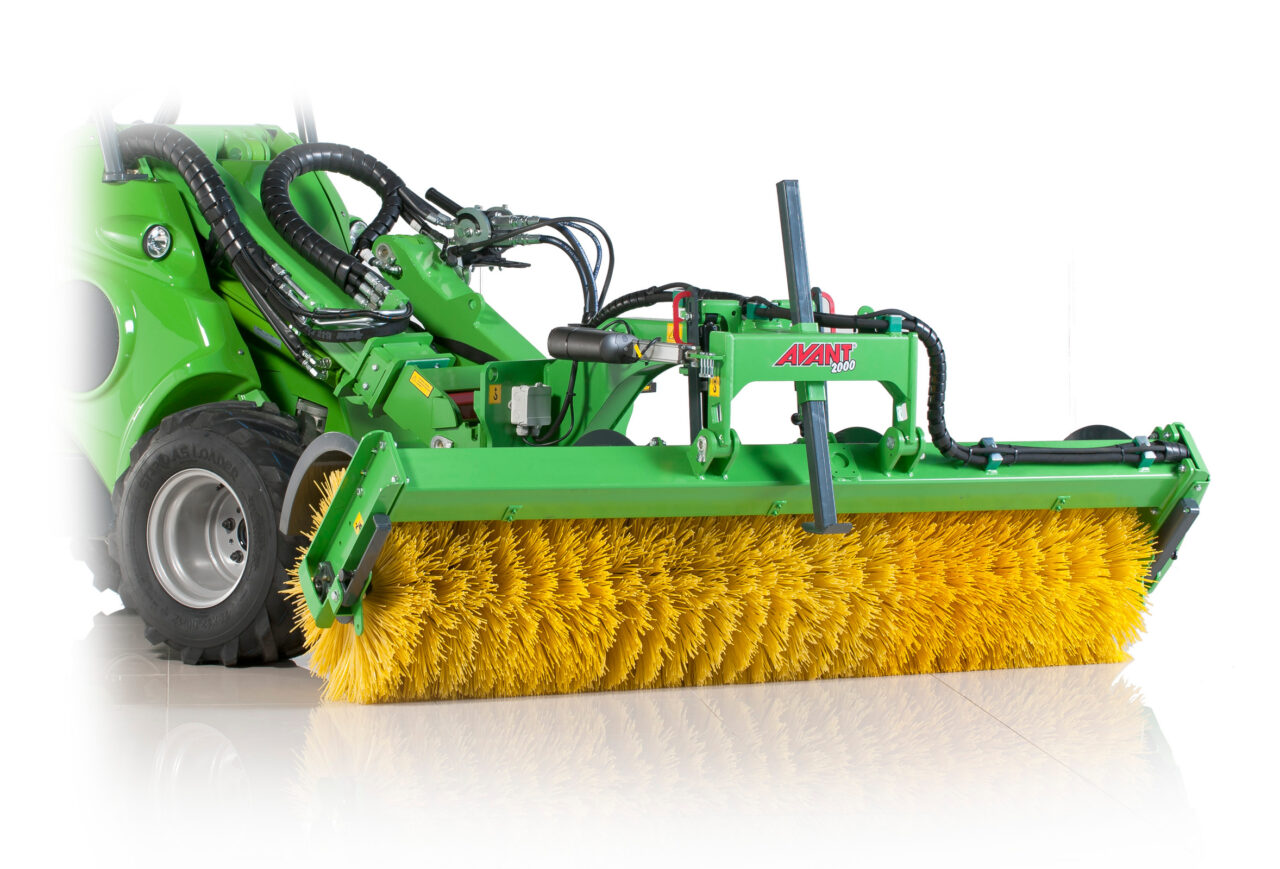

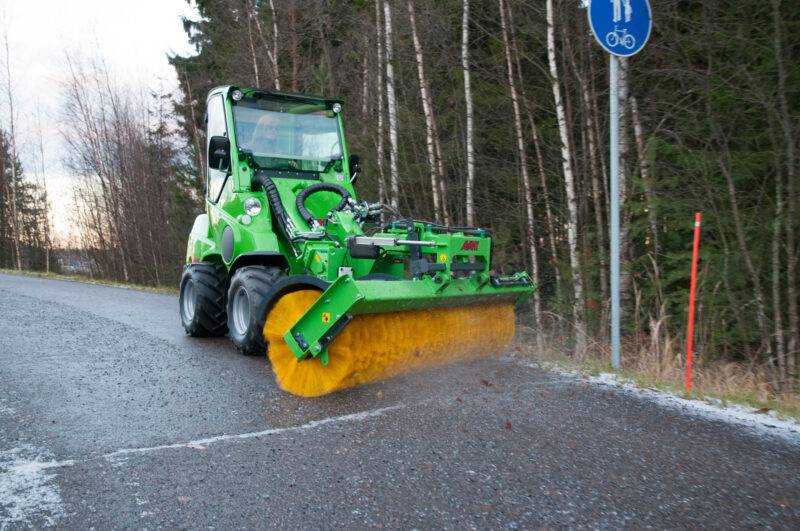

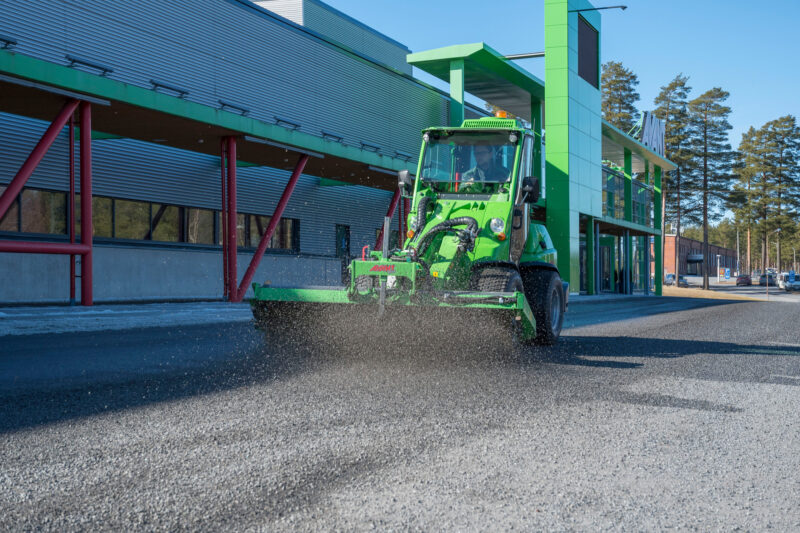

ROTARY BROOM

With three working models available, 1100, 1500 and 2000. The 1500 and 2000 brooms are equipped standard with power angling by electric actuator motor. This means angling of the broom is easily and comfortably operated with a switch from the driver’s seat.

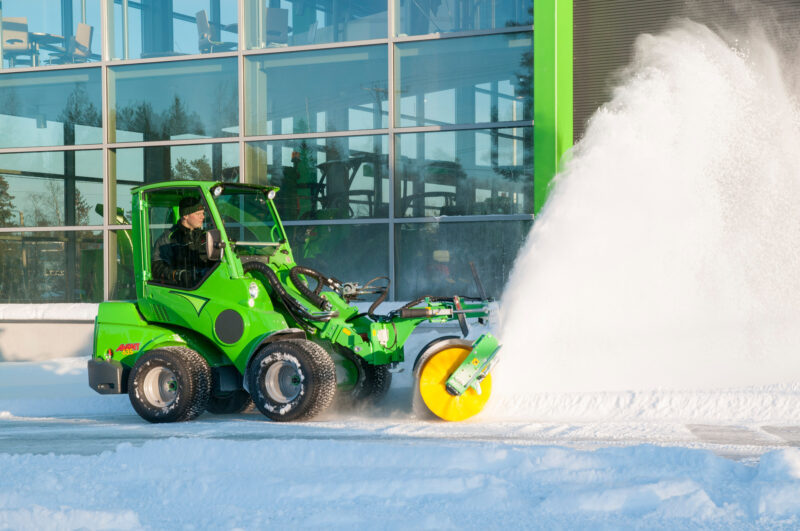

With a floating mechanism the brush is resting on its bristles and the whole brush axle is floating freely. Support wheels are available as an option, for working on sensitive surfaces. The optional rubber lip is intended for snow removal: it limits and directs the snow spray. The broom is equipped with supports which can be extended when the broom is not in use, so that the broom rests on the supports and the nylon brush doesn’t get damaged during storage.

  • Professional sweeper with manual or electric turning
  • Free floating broom allows big vertical movement and guarantees excellent sweeping result
  • Equipped with extendable supports for storage: nylon brush doesn’t get damaged during storing

TECHNICAL INFORMATION

Model 1100 1500 2000
Broom width 43.3 in 59.0 in 79.0 in
Total width 53.9 in 70 in 90 in
Boom diameter 21.7 in 21.7 in 21.7 in
Turning manual electric electric
Turning angle +/- 25 ° +/- 25 ° +/- 25 °
Weight 375 lb 440 lb 575 lb
Product no A36067 A35284 A35583



The optional attachment control switch pack is recommended on the loader.



Option:
Electric turning for rotary broom 1100 A36112
Poly replacement brush sections 64716
Wire replacement brush sections 65888
Support wheels for rotary broom A35760
Rubber lip, rotary broom 1100 A438900
Rubber lip, rotary broom 1500 A438874
Rubber lip, rotary broom 2000 A438914



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
1100
1500
2000
