DOZER BLADE 1400

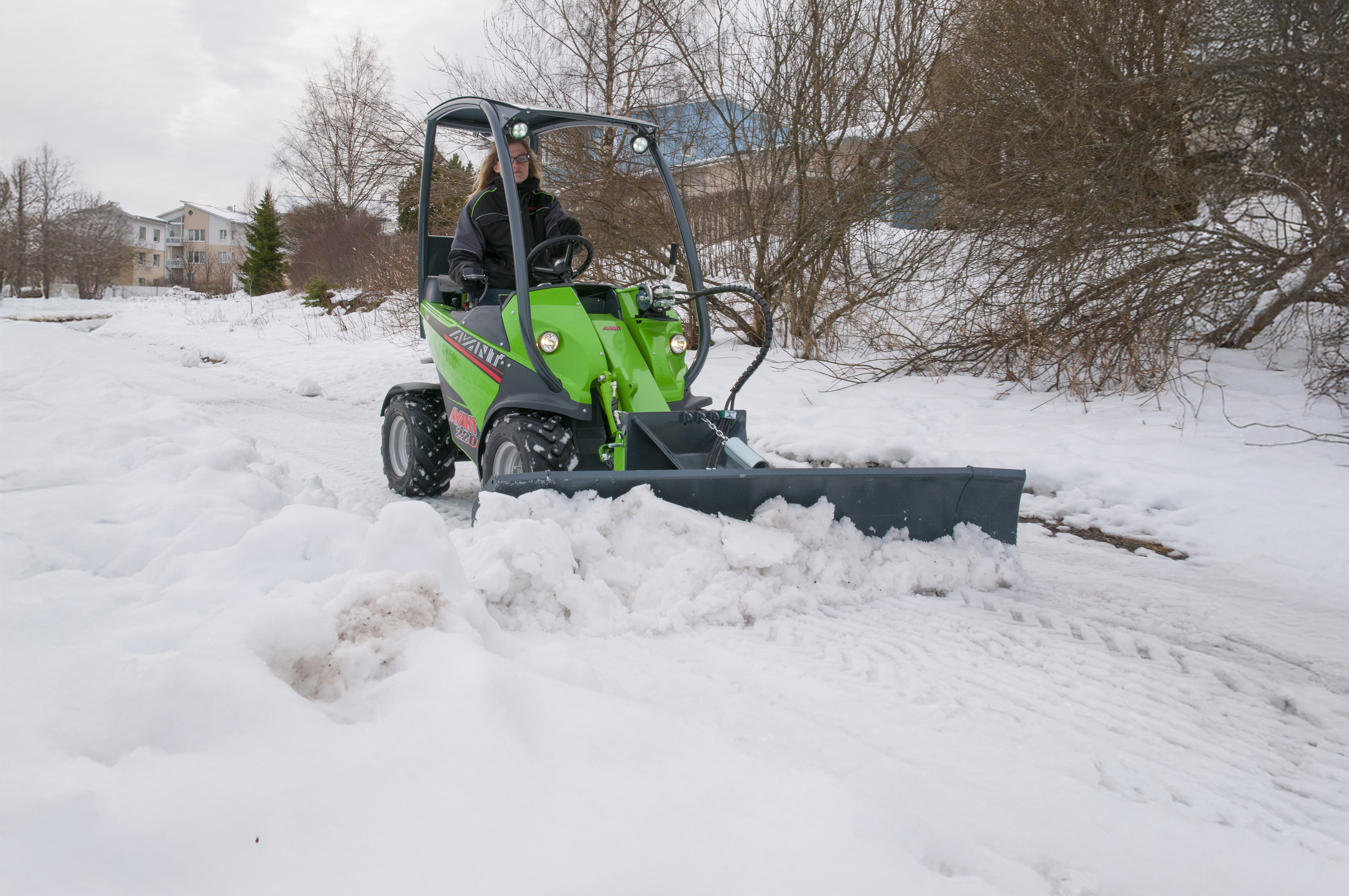

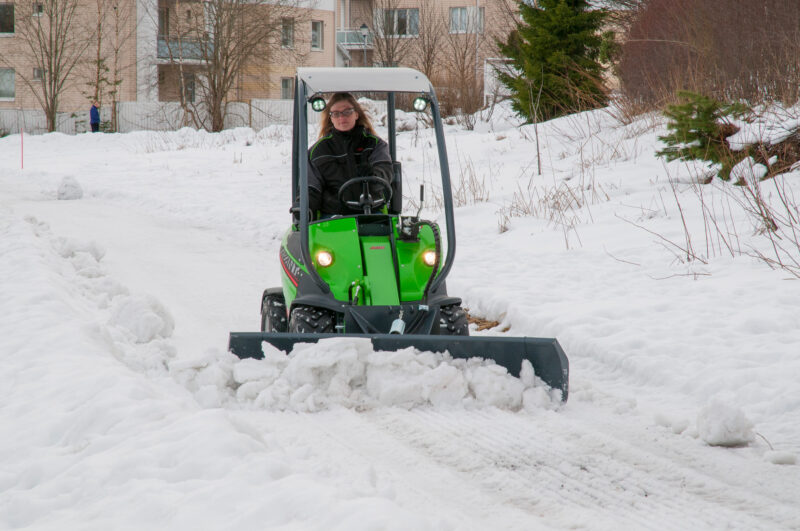

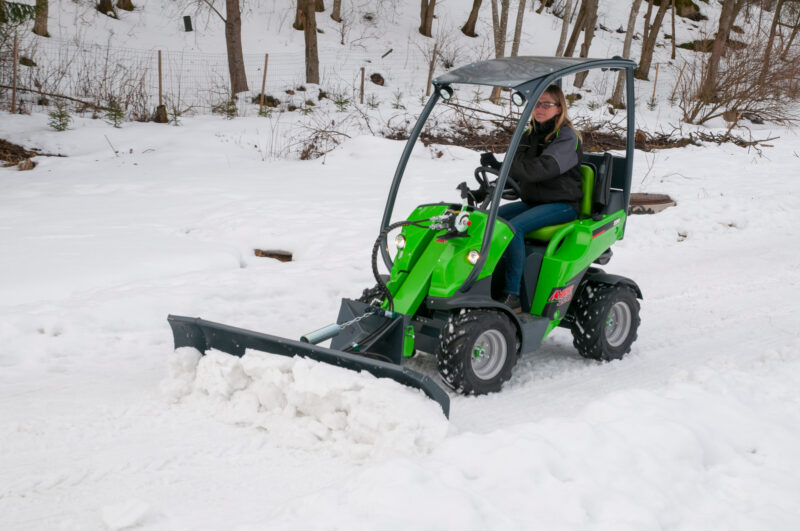

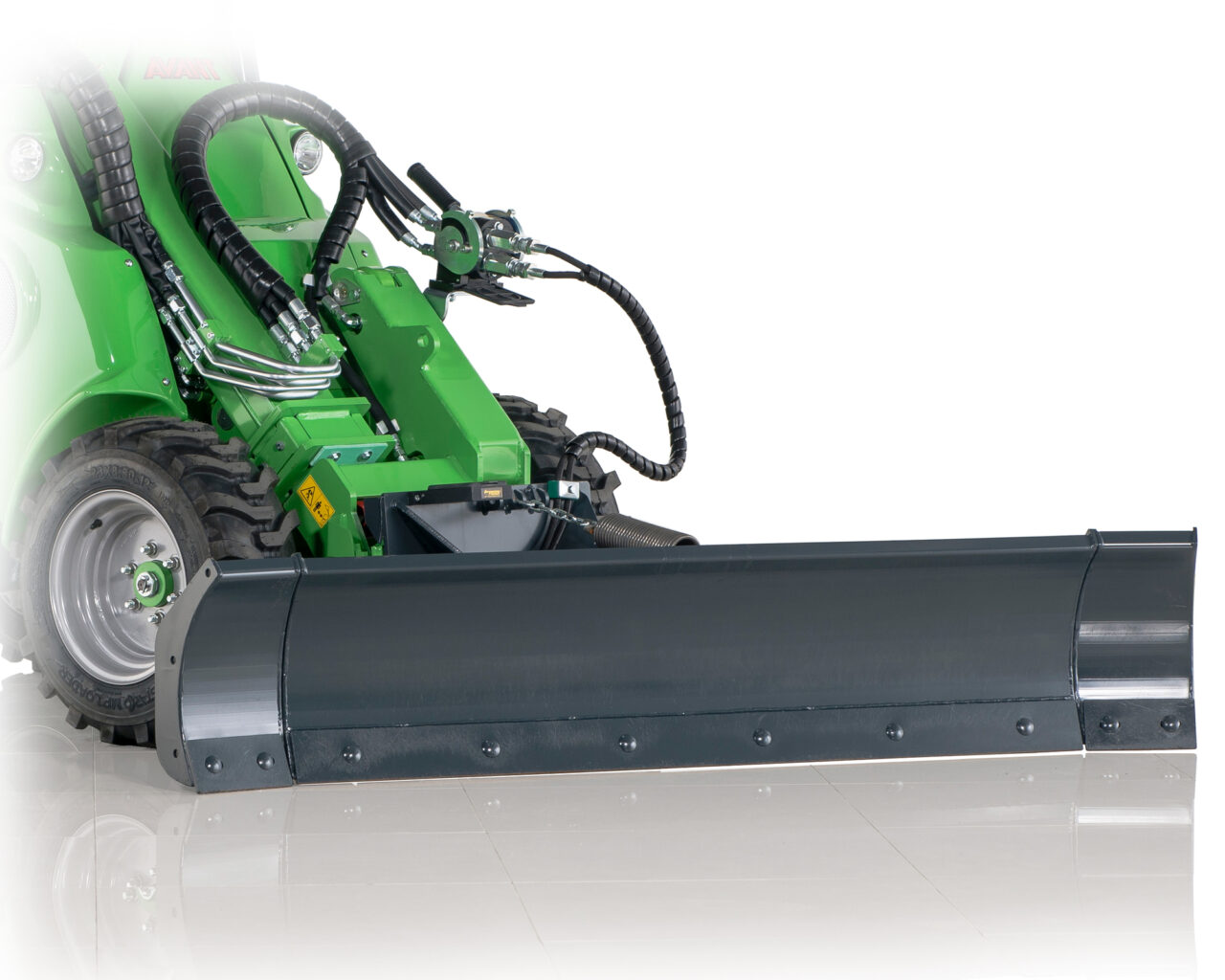

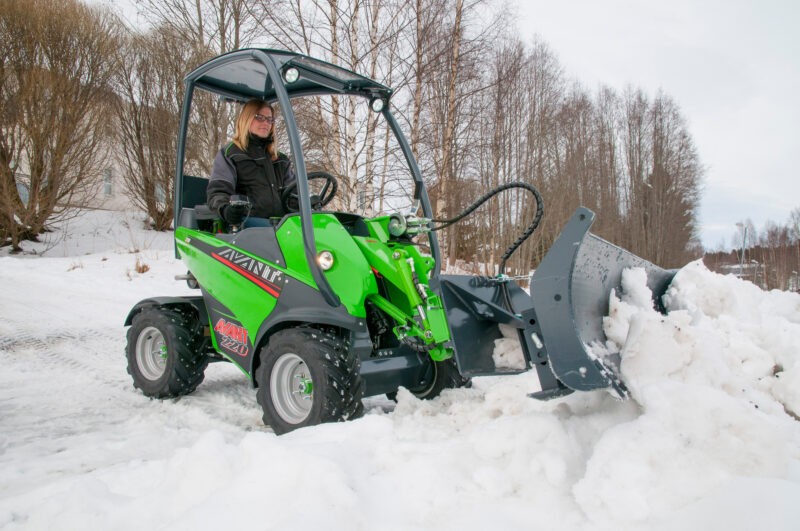

Equipped with hydraulic blade rotation,  Avant dozer blade is the ideal tool for snow removal, earthmoving and similar jobs where the materials must be dozed away. The blade is equipped with spring release mechanism which protects the blade and driver in the event that it hits an obstacle.



  • Economical dozer blade, well suited for snow removal
  • Spring release mechanism for improved safety
  • Two solid skid shoes as standard - reduce blade wear and improve maneuverability
  • Ice cutting edge and rubber edge available as an option

TECHNICAL INFORMATION

blade width 55 in
Slewing angle ±30 º
Weight 275 lb
Blade height 15 in
Product no A36649

OPTIONS

Rubber edge 55 in A32383
Ice cutting edge 55 in A32315
* Extensions 2 x 7 inches A36651
Rubber edge 7 in on extension A48870
Ice cutting edge 7 in on extension A413823
** Stopper plates, kit A443915

* can be mounted straight or in collecting position

** locking of blade’s spring release

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
