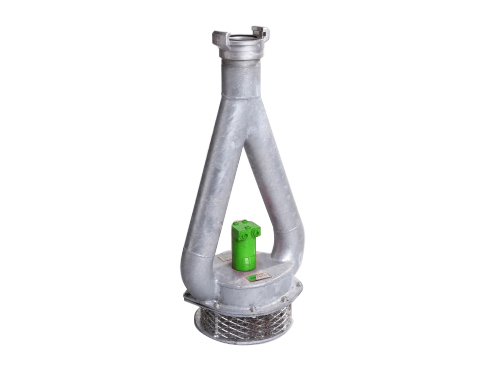

SUBMERSIBLE PUMP

The submersible pump is a very useful attachment for situations where larger amounts of water or other fluids need to be drained from trenches, pits, wells, etc. Pumping capacity is as high as 2000 l/min and fluid can be taken up from max. 20 m depth. The pump is equipped with a 16,5 m long discharge hose. The 10 m long hydraulic hose kit is the same as for handheld tools.

  • Efficient pump for draining of water or other fluids from trenches, pits, wells, etc.
  • Fluid can be taken up from max. 20 m depth
  • Equipped with 16,5 m long discharge hose

Option:
Hydraulic hose kit, 10 m, with multi connector A36707







TECHNICAL INFORMATION

Pumping capacity max. 2000 l/min
Pumping depth max. 20 m
Aux. hydr. oil flow max. 40 l/min
Width 350 mm
Height 700 mm
Weight 20 kg
Product no. A36708



COMPATIBLE MODELS

Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
Very compatible
Compatible
Incompatible
