Forestry

WINCH

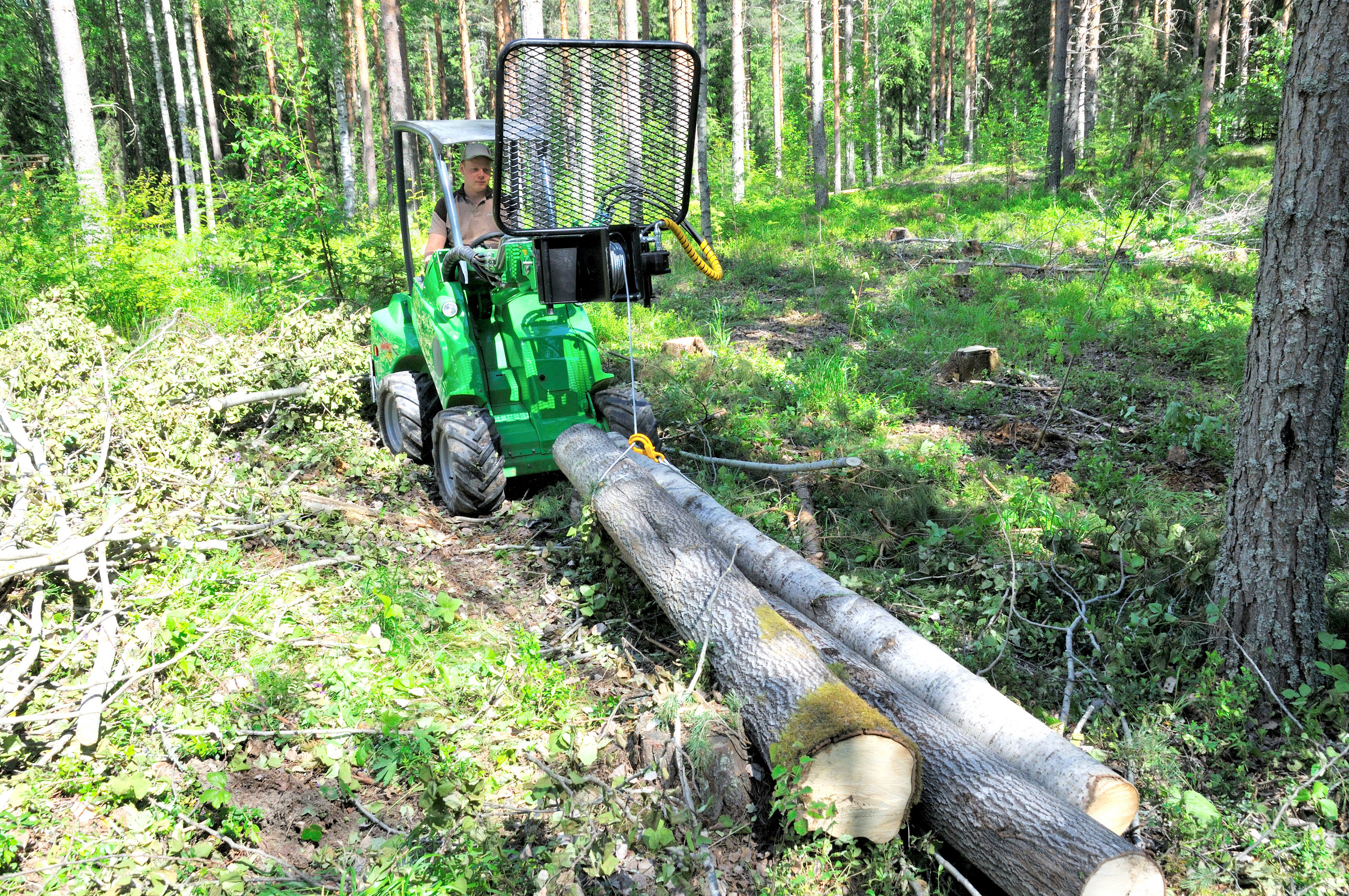

The Avant hydraulic winch enables towing of all kinds of objects (e.g. logs, poles, boats) from places where you cannot drive with the machine.

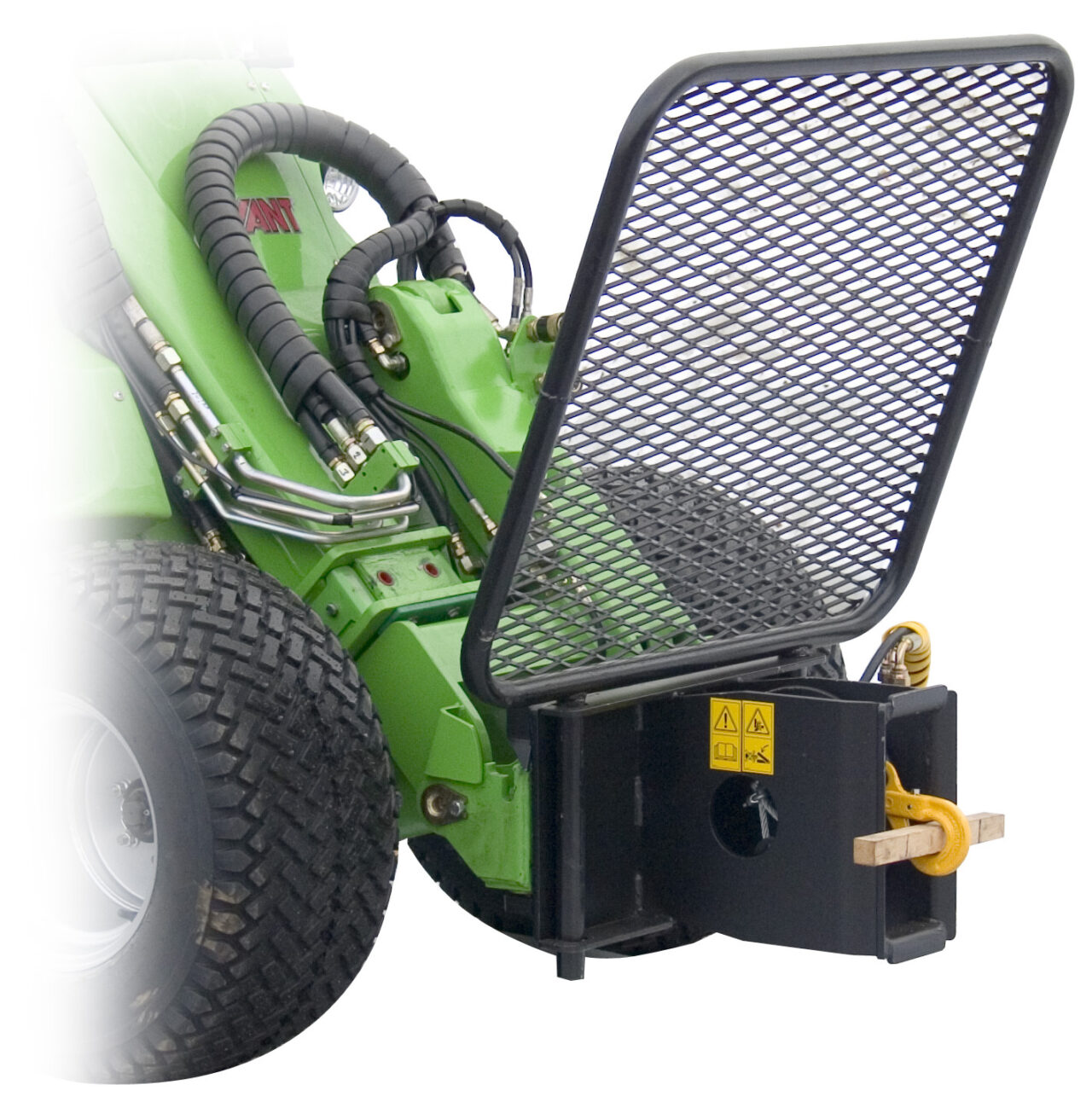

The winch is equipped with a safety net, 30 m of wire rope and a towing hitch. It is powered by a powerful hydraulic motor and mounts on Avant’s quick attach plate. Use of the winch is simple, one person can easily handle it. Auxiliary hydraulics control lever is switched to continuous flow (locking position) from the driver’s seat, which releases the wire drum so that the wire can be pulled out by hand. When the wire is attached to the desired object, the operator returns to the driver’s seat and turns the auxiliary hydraulics lever to the opposite direction and the winch begins to reel in the rope. The winch stops as soon as the auxiliary hydraulics control lever is released.

  • Powerful and compact hydraulic winch for various tasks
  • The winch is mounted directly on Avant’s quick attach plate, so you are also able to use the boom for lifting materials with the winch.
  • Equipped with wire rope guiding rollers



TECHNICAL INFORMATION

TECHNICAL INFORMATION

Max. pulling force

1000 kp

Max. reeling speed

0,5 m/s @ 20 l/min (recommended oil flow)

Wire length

30 m

Weight

105 kg

Product no

A36960

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
