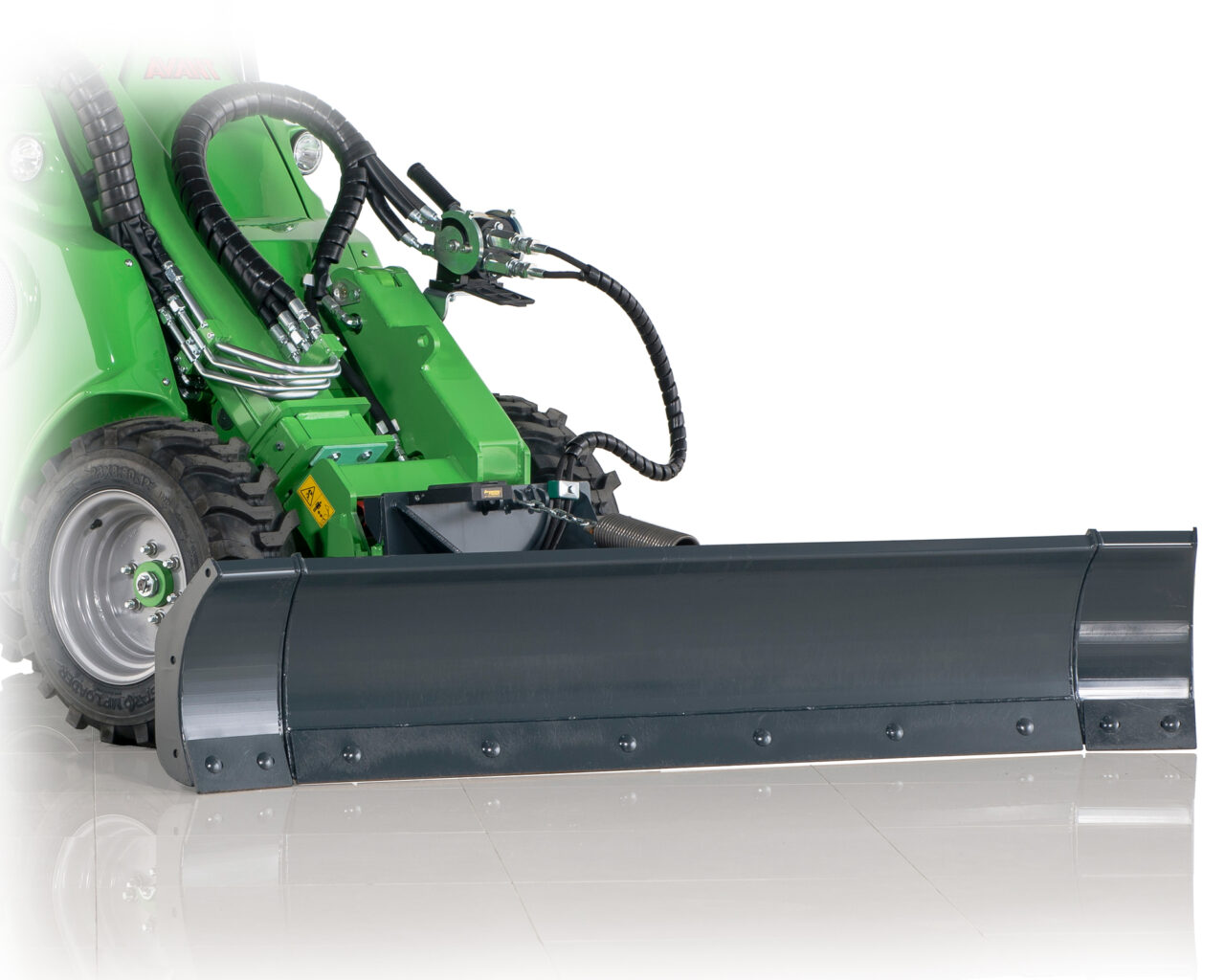

DOZER BLADE 1400

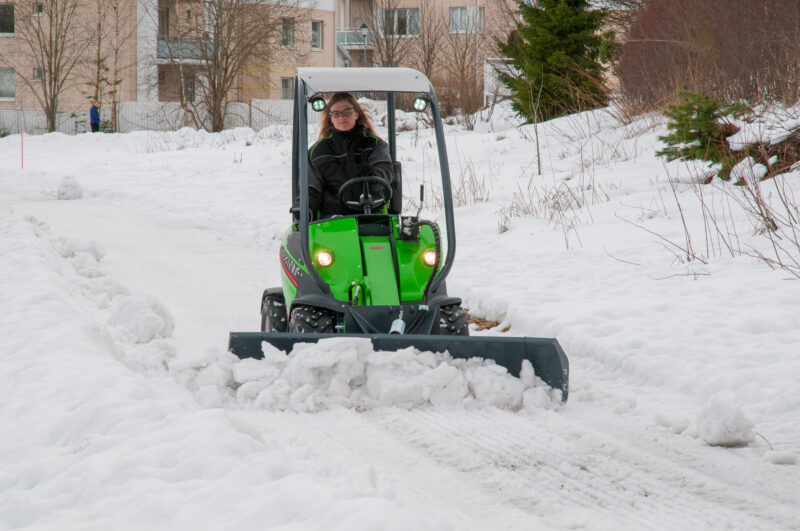

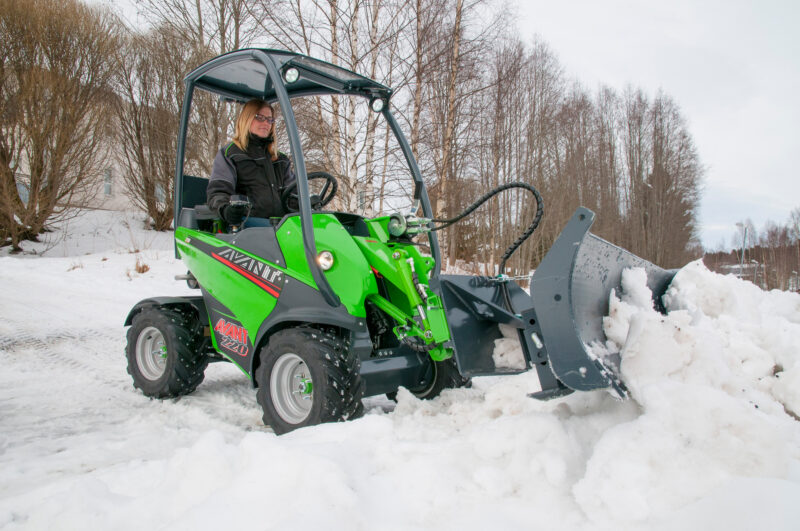

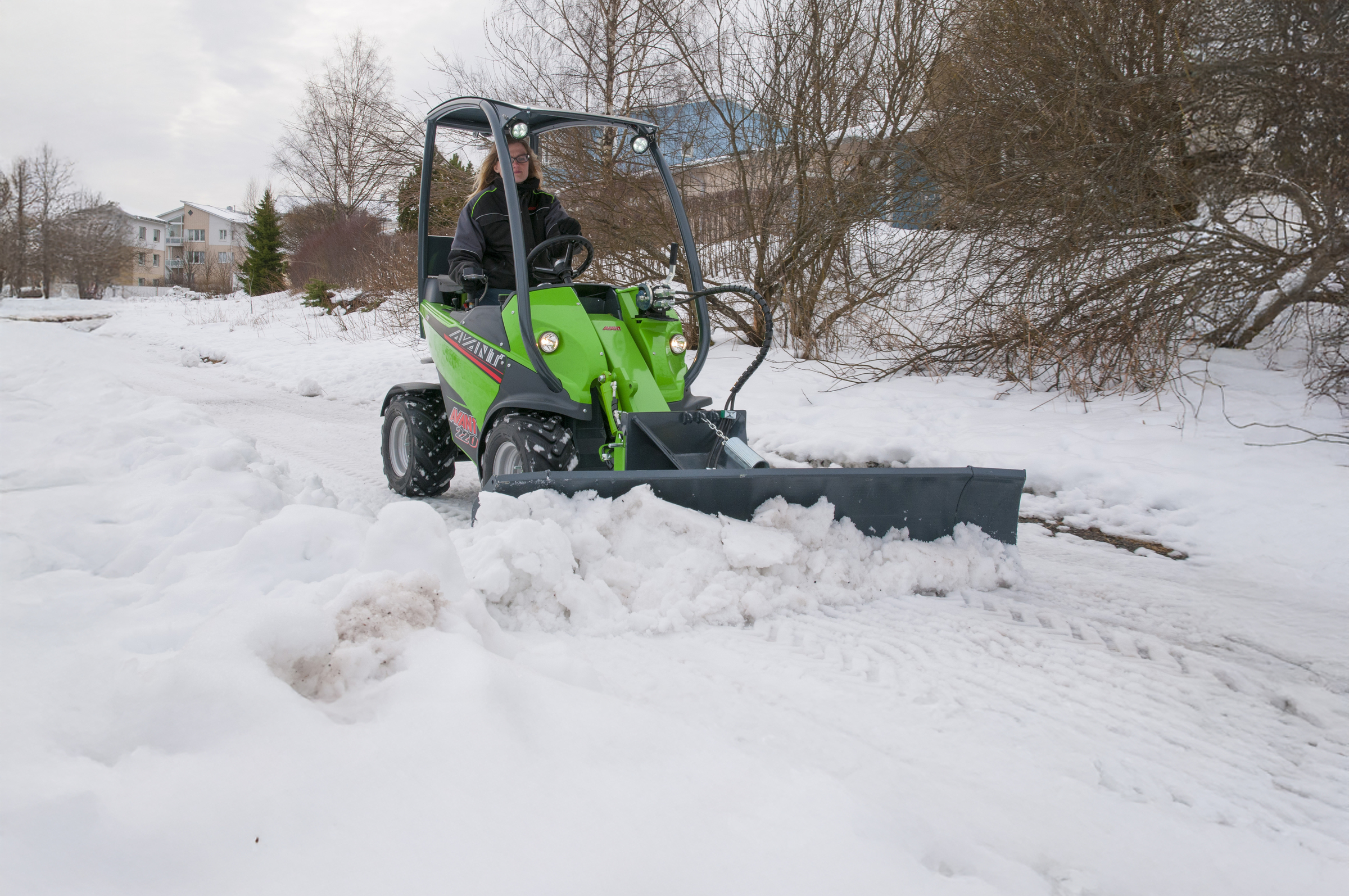

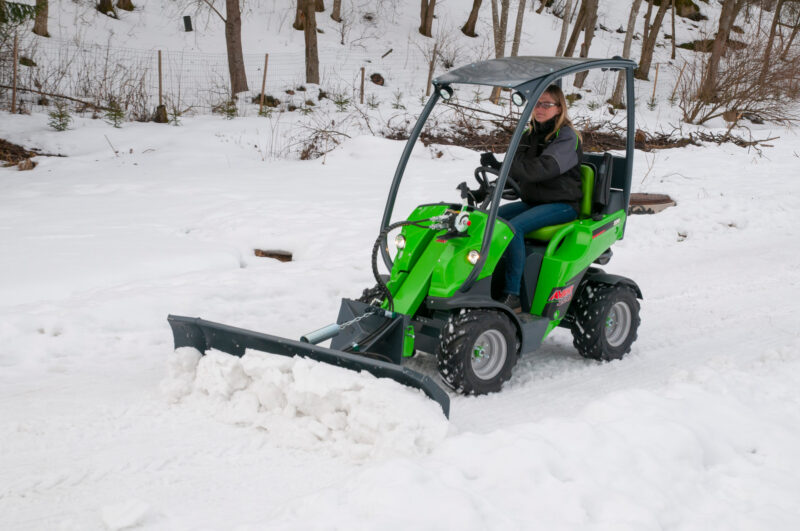

Equipped with hydraulic blade turning, Avant dozer blade is the ideal tool for snow removal, earthmoving and similar jobs where the materials must be dozed away quickly.

Thanks to the more curved blade than on the previous model the new dozer blade 1400 moves material more effficiently to the side. Blade height is the same as before, as well as the extensions and cutting edges. Hydraulic slewing and spring release are standard features also. The new spring release system is equipped with a single spring.

  • Economical dozer blade, well suited for snow removal
  • Spring release mechanism for improved safety
  • Two solid skid shoes as standard - reduce blade wear and improve maneuverability
  • Ice cutting edge and rubber edge available as an option

TECHNICAL INFORMATION

Blade width 1400 mm
Slewing angle ± 30 degrees
Weight 125 kg
Blade height 380 mm
Product no. A36649

OPTIONS

Rubber edge 1400 mm A32383
Ice cutting edge 1400 mm A32315
Extensions 2 x 180 mm *) A36651
Rubber edge 180 mm A48870
on extension
Ice cutting edge 180 mm A413823
on extension

*) Can be mounted straight or in collecting position

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
