Stone grab

More images

plus

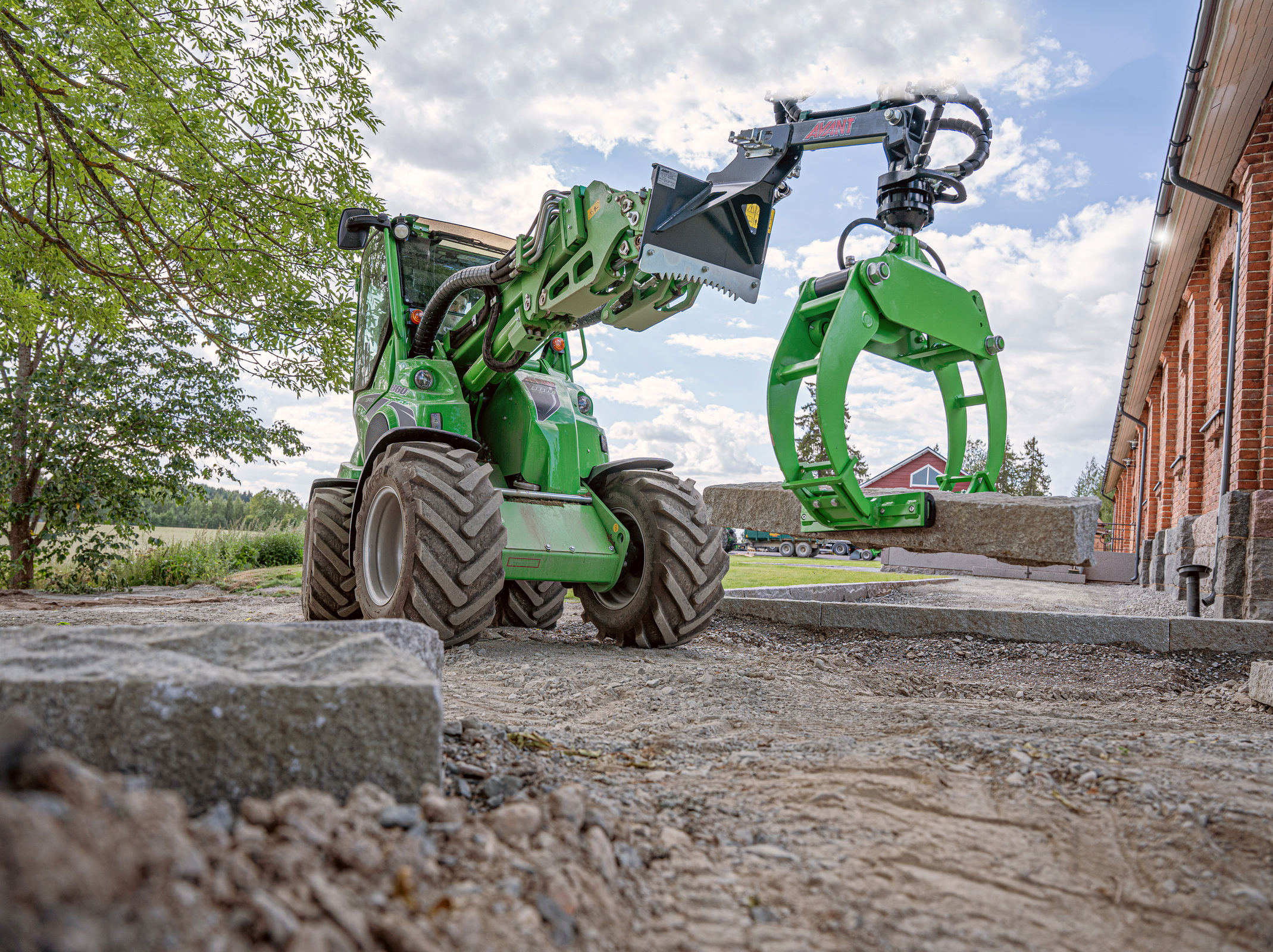

The stone grab, equipped with rotator, allows grabbing, transporting and loading of different types of stones both lengthwise and crosswise. This makes it possible to pass through narrow places also with long kerb stones and enables loading in any direction.

The grab is available either with a hydraulic rotator or as freely rotating version. Padded stone grabbers are available as an option. They allow grabbing the stone by pressing it. Stone grabbers come with a lock valve which prevents unintentional opening of the grab. If the loader is equipped with the 6 or 8 function joystick, all functions of the grab with hydraulic rotator (grab opening/closing, rotation) can be operated with the switches on the optional Opticontrol switch pack.

  • Available with hydraulic rotator or as freely rotating version

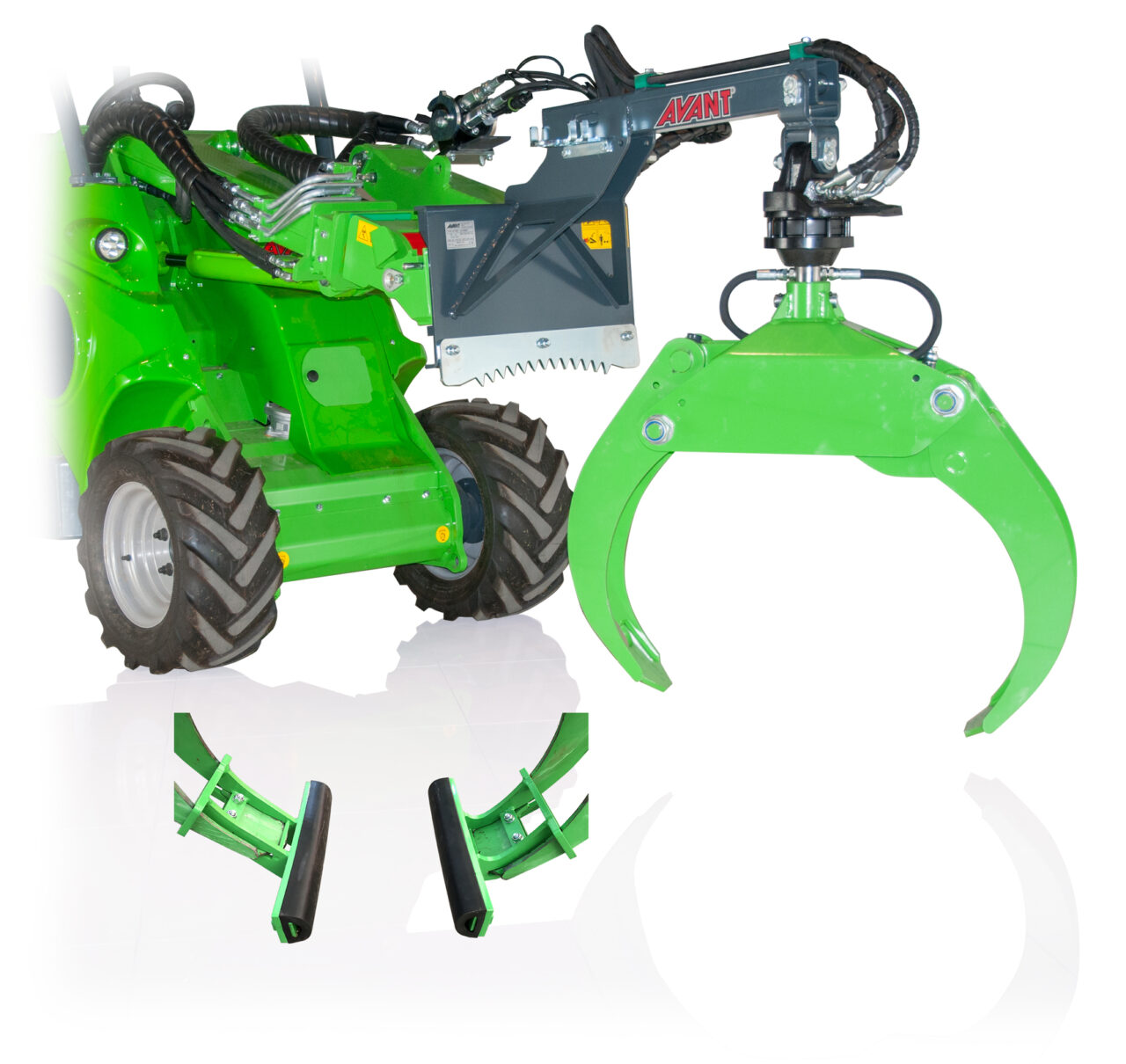

  • Can be equipped with padded stone grabbers

TECHNICAL INFORMATION

Rotation type Freely rotating Hydraulic rotation
Grapple opening diameter 1223 mm 1223 mm
Weight 116 kg 136 kg
Product no. A37457 A37456

The optional Opticontrol is recommended with grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).

Options

Lock valve, mounting kit, on grab cylinder A436627
Padded stone grabbers (kit includes lock valve) A429742

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
