TECHNICAL FEATURES - LEGUAN 190
MAX. WORKING HEIGHT
62 ft
MAX. SIDE REACH
32 ft
MAX. LIFT CAPACITY
507 lbs
MAX. PLATFORM HEIGHT
56 ft
Robust and steady spider lift with all-terrain capabilities.
LEGUAN 190 is an access platform designed for heavy duty professional and rental use. In the design of the spider lift, special attention has been paid to durability, excellent up-and-over clearance and user-friendly interface. Leguan 190 is the right choice for tree care, painters, construction work and facility maintenance.
High ground clearance and steady, protected tracked (or 4WD) base provide fast and smooth access on rough terrain. All Leguans are designed to be driven safely while standing in the basket to increase efficiency while transitioning on site. Many leading features such as the automatic leveling is standard, but operators can also opt for many optional features such as the extra speed for the fastest driving speed in the market.
TECHNICAL FEATURES
| Max. lift capacity | 507 lbs (2 persons) |
| Max. working height | 62’ 4” |
| Max. platform height | 55’ 9” |
| Max. outreach | 26‘ 7” (507 lbs) – 32’ 2” (265 lbs) |
| Transport dimensions, L x W x H | 16‘ 9“ x 4‘ 4“ x 6‘ 11“ |
| Platform dimensions | 4‘ 4“ x 2’ 6” |
| Rotation of basket | 90º (±45º) |
| Slewing | 360º |
| Gradeability *) | 40% (22º) |
| Dimensions w/o platform, L x W | 14’ 7” x 4’ 1” |
| Outrigger support dimensions | 11’ 10” x 12’ 1” |
| Max. slope for outriggers | 21% (12º) |
| weight | 5,865 lbs |
| Engine | Kubota 14 hp diesel or 110 V / 2.2 kW electric |
| Drive system: hydraulic | 4WD / tracks |
| Max. Drive speed | 1.6 mph or 3.2 mph |
*) Operator in basket
Standard features
- 14 hp Kubota diesel
- Automatic engine RPM control
- Automatic levelling of the outriggers
- Proportional outreach monitoring system
- Electric rotation of the platform
- JIB-boom with 120 degree operating range
- 12 V power outlet on platform
- Electric and hand pump powered emergency lowering
- Controls on the ground with integrated service display
- 12 V booster points
- Signal horn
Optional features
- 110 V electric motor + 110 V power outlet on platform
- Extra drive speed (max. 3.2 mph)
- Remote control for driving and outriggers
- LED spot lights for platform
- Tool trays on platform
- Outrigger beacons
- Hose to platform (air/water)
- Signal horn
- Engine heater
- Larger plates for outriggers
- Non-marking tracks / tires
- Narrow single person platform
- Leguan special trailer

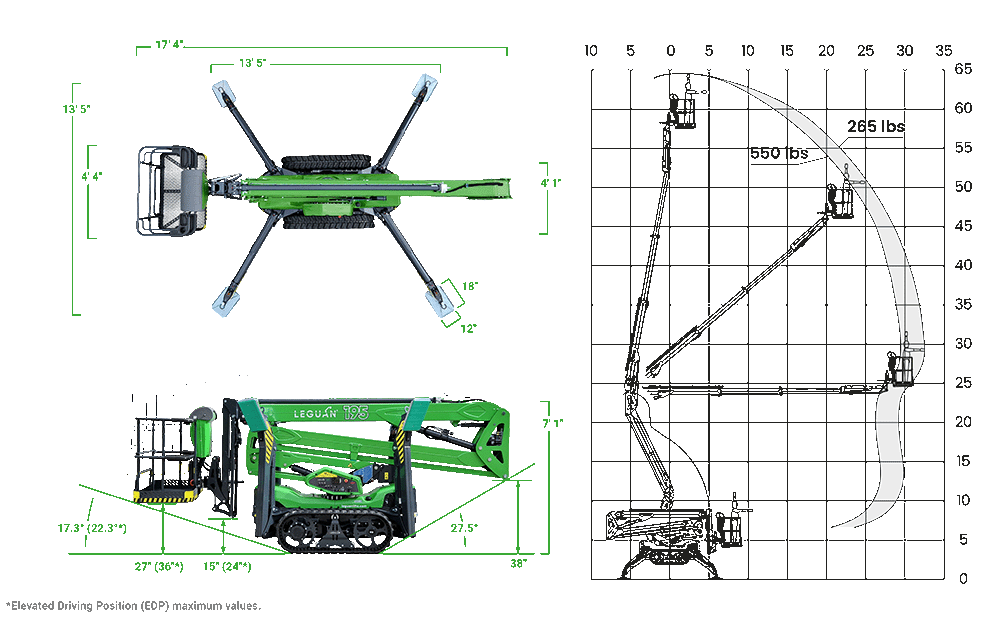

Measurements
