Avant U plow

More images

plus

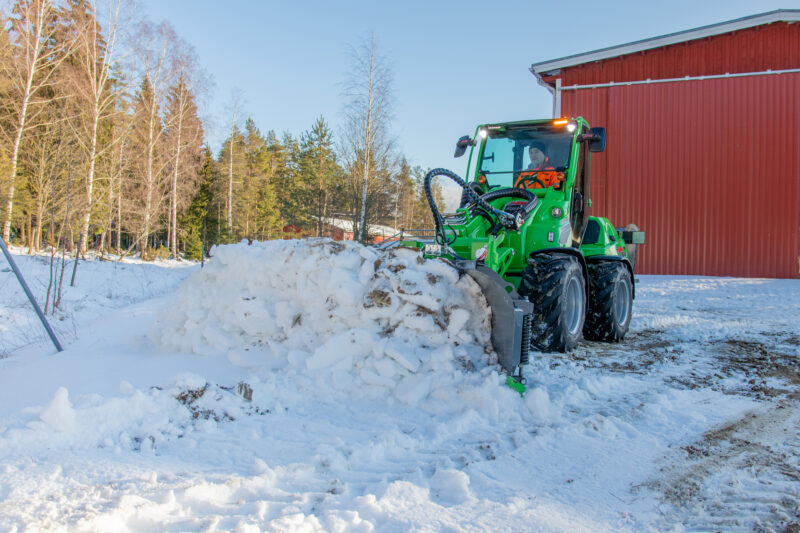

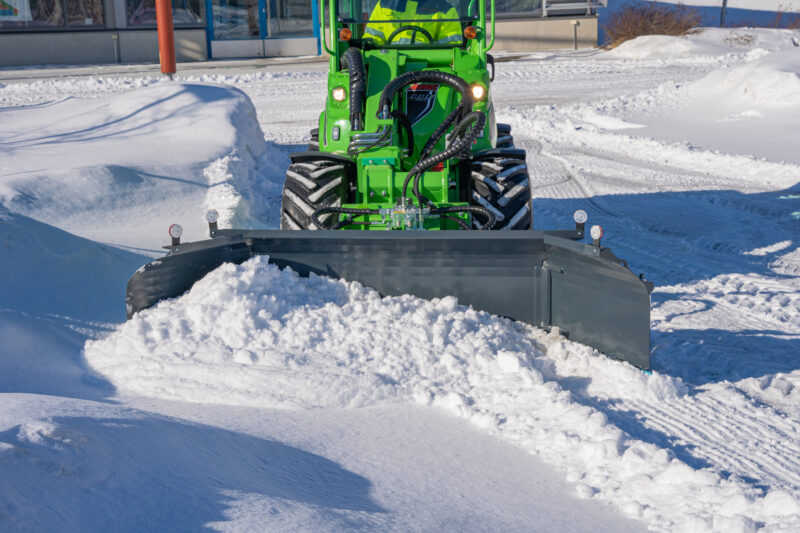

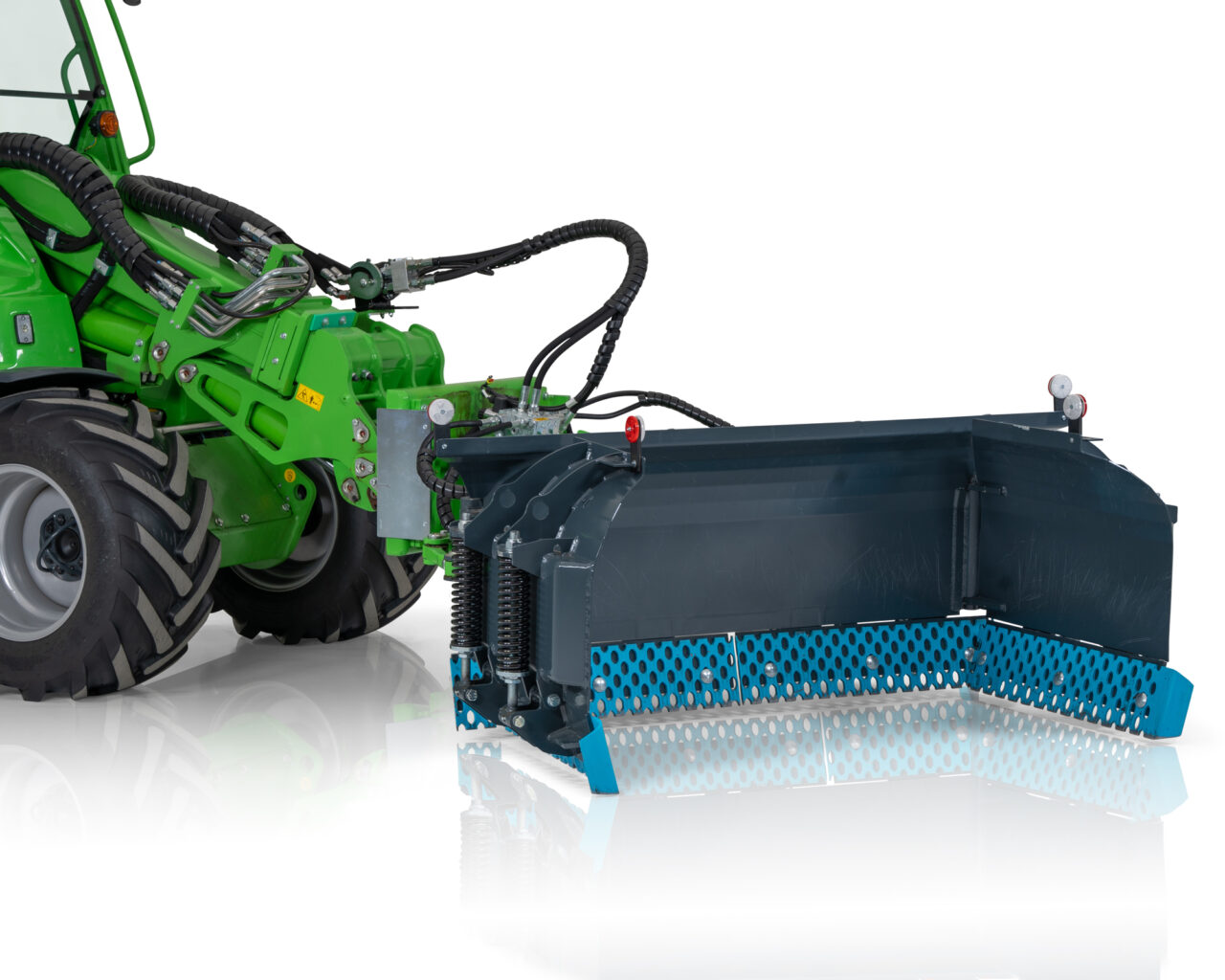

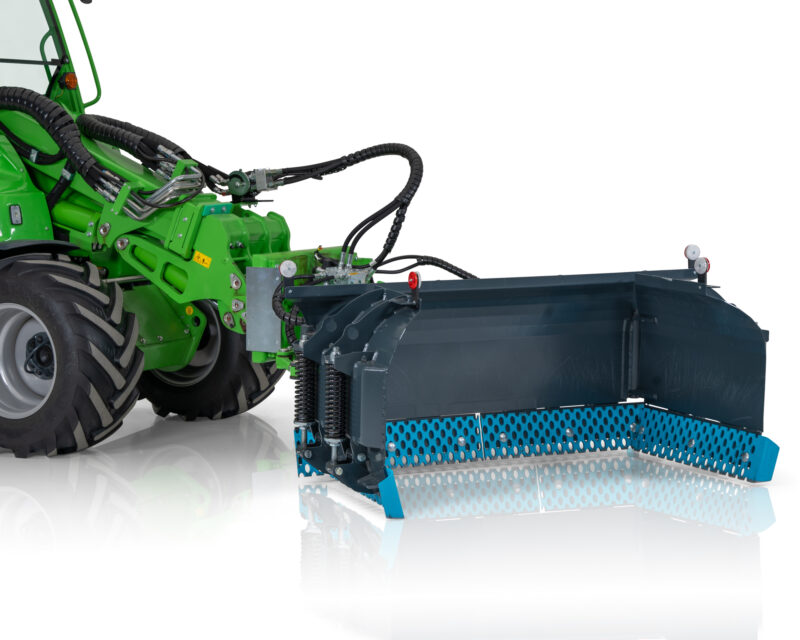

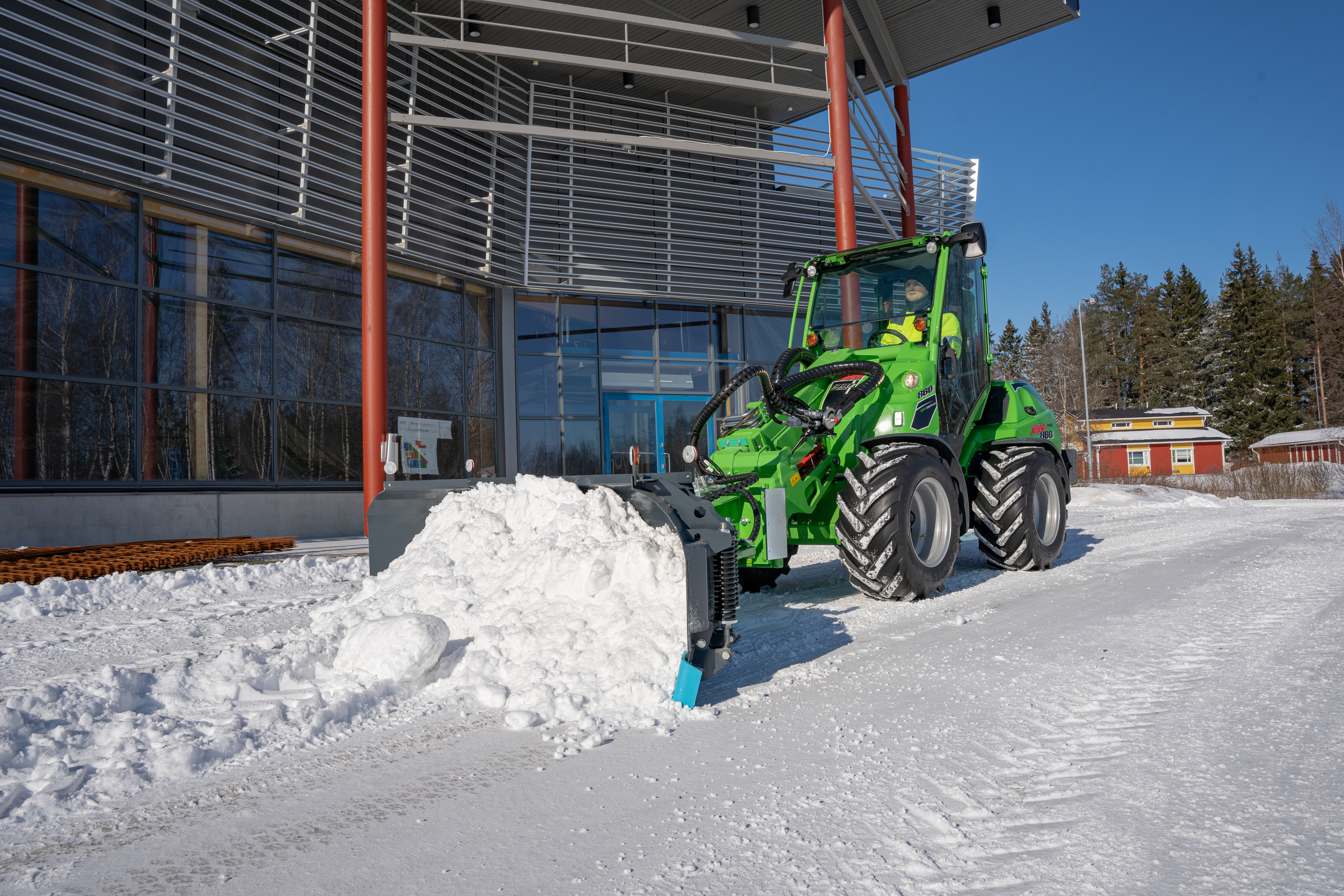

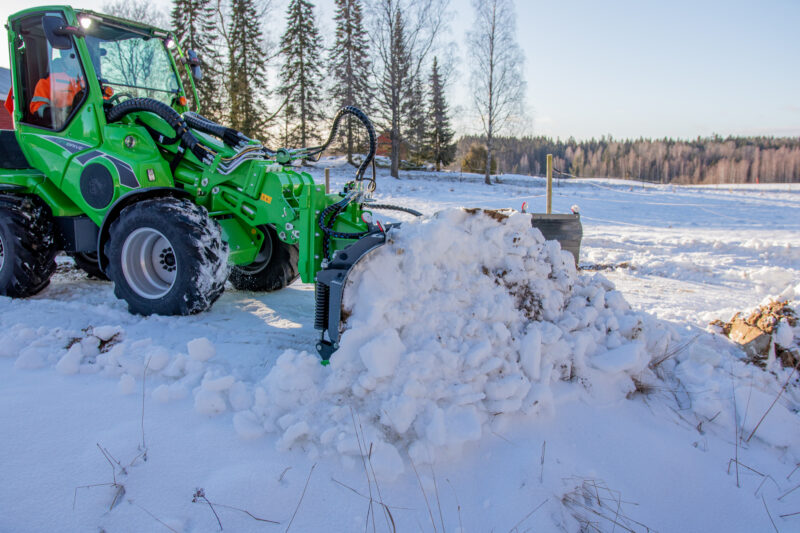

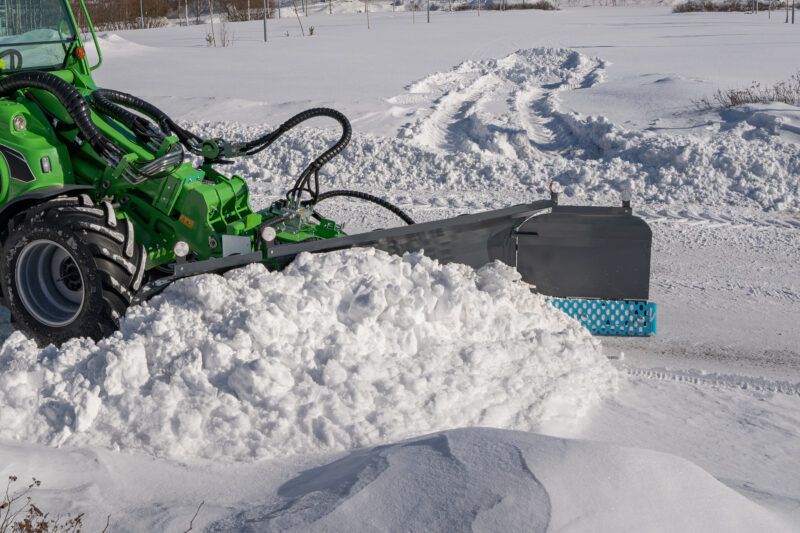

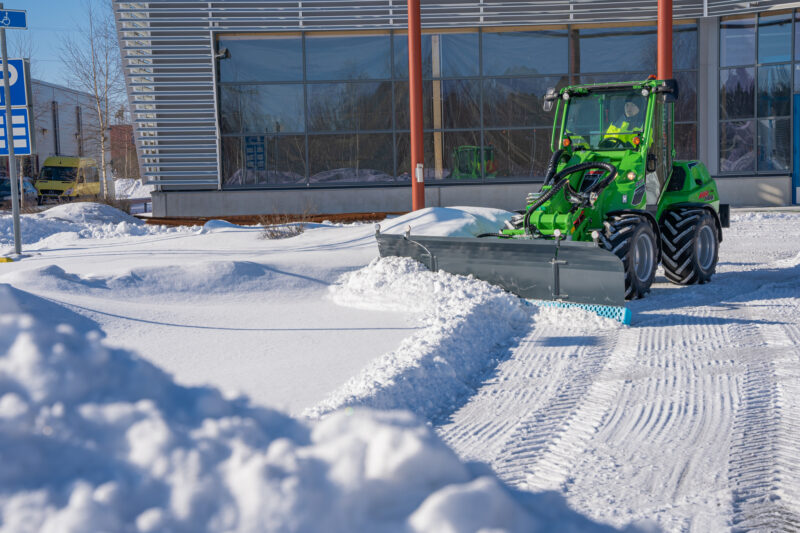

U plow is a professional tool for fast and efficient snow removal. It consists of a 72.0 in wide main blade and two side blades which can be turned  ± 85° hydraulically. This allows access through narrow gates and yards, and on the other hand the max. 118.1 in working width with the side blades extended guarantees fast cleaning of larger areas. Collecting and pushing of large amounts of snow is also easy with the side blades turned into ”U” position.

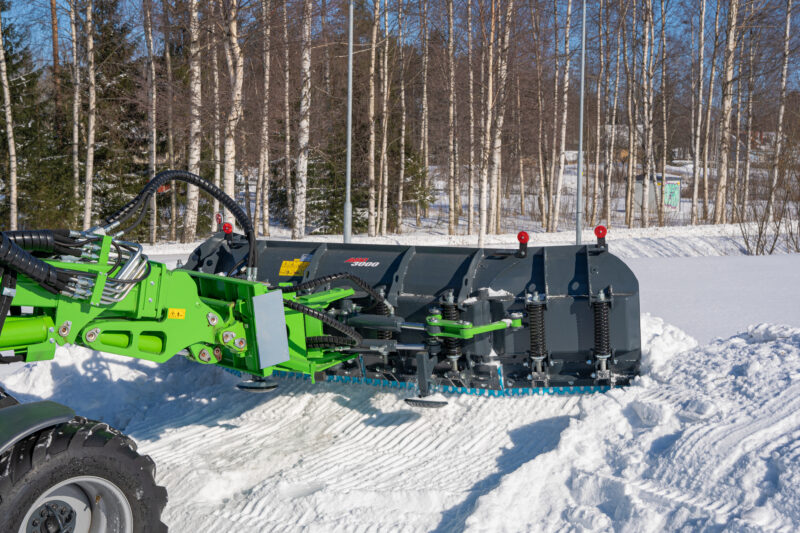

The plow is equipped with strong springs which allow the blade to give in backward in case it hits and obstacle, like a lid of well. In this case the plow jumps over the obstacle and the spring returns the blade back to plowing position. The plow is also equipped with ±7,5° horizontal floating and two skid shoes as standard. There are also four round reflectors  on the edges of the main blade and the side blades.

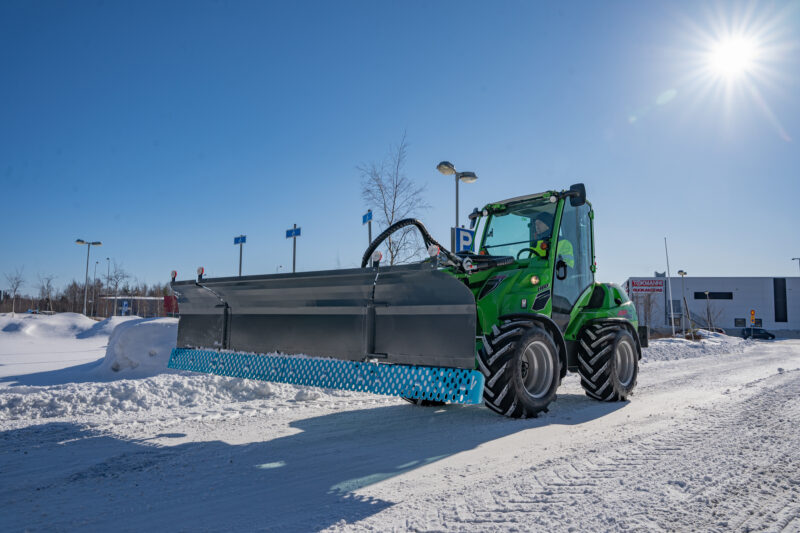

Minimum working width is 63.0 in with the side blades turned completely to the back, and max. 118.1 in with side blades straight. Turning of the plow happens with two hydraulic cylinders; turning angle is  ± 35°. Side blades can be turned independently or simultaneously with the switches of the optional Opticontrol® attachment control switch pack. The plow is equipped with an ice scraper cutting edge as standard, straight cutting edge is available as an option. In addition, an outline marker lamp kit (4 pcs lamps on the edges of the main blade and the side blades) is available as on option instead of the standard round reflectors.



  • Versatile snow plow for professional use
  • Equipped with two side blades with  ± 85° hydraulic turning

  • Spring loaded blade gives in and the plow jumps over an obstacle in case of contact

  • Variable working width 63.0 - 118.1 in allows working also on narrow driveways, yards etc.

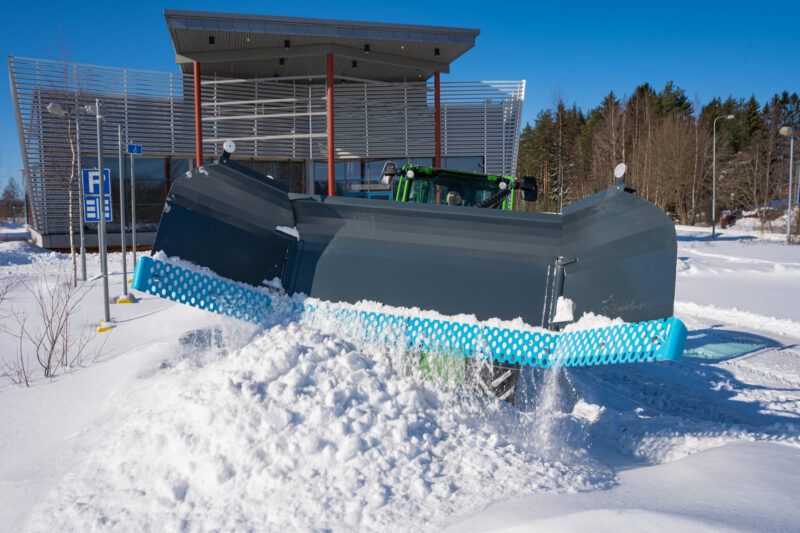

  • Ice scraper cutting edge as standard, straight edge available as an option



TECHNICAL INFORMATION

Working width 63.0 in – 118.1 in
TOTAL width 122.3 in
length 44.6 in
Blade height     29.5 in
Weight 1300 lb
Plow turning angle ± 35°
Side blade turning angle ± 85°
Standard cutting edge ice scraper edge
Product no. A438439

Requires the optional Opticontrol® attachment control switch pack on the loader.



OPTIONS

Straight cutting edge, kit A442738
Outline marker lamps, kit A442768



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
