TRENCHER

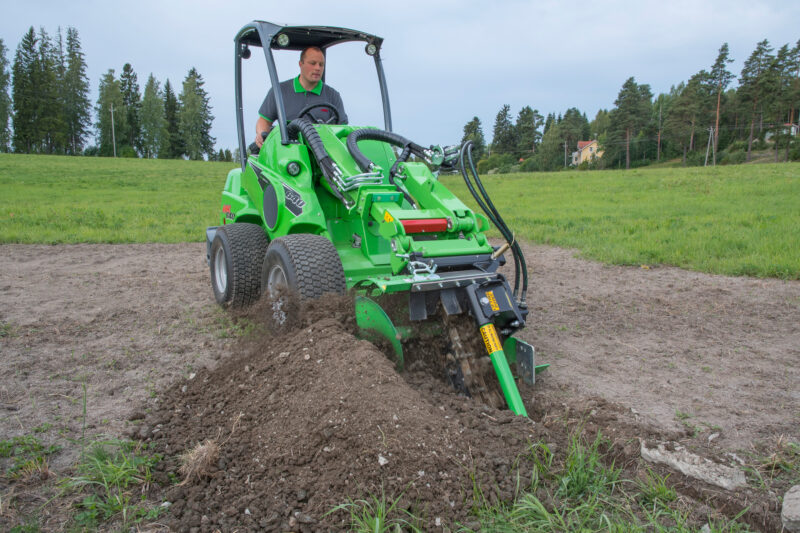

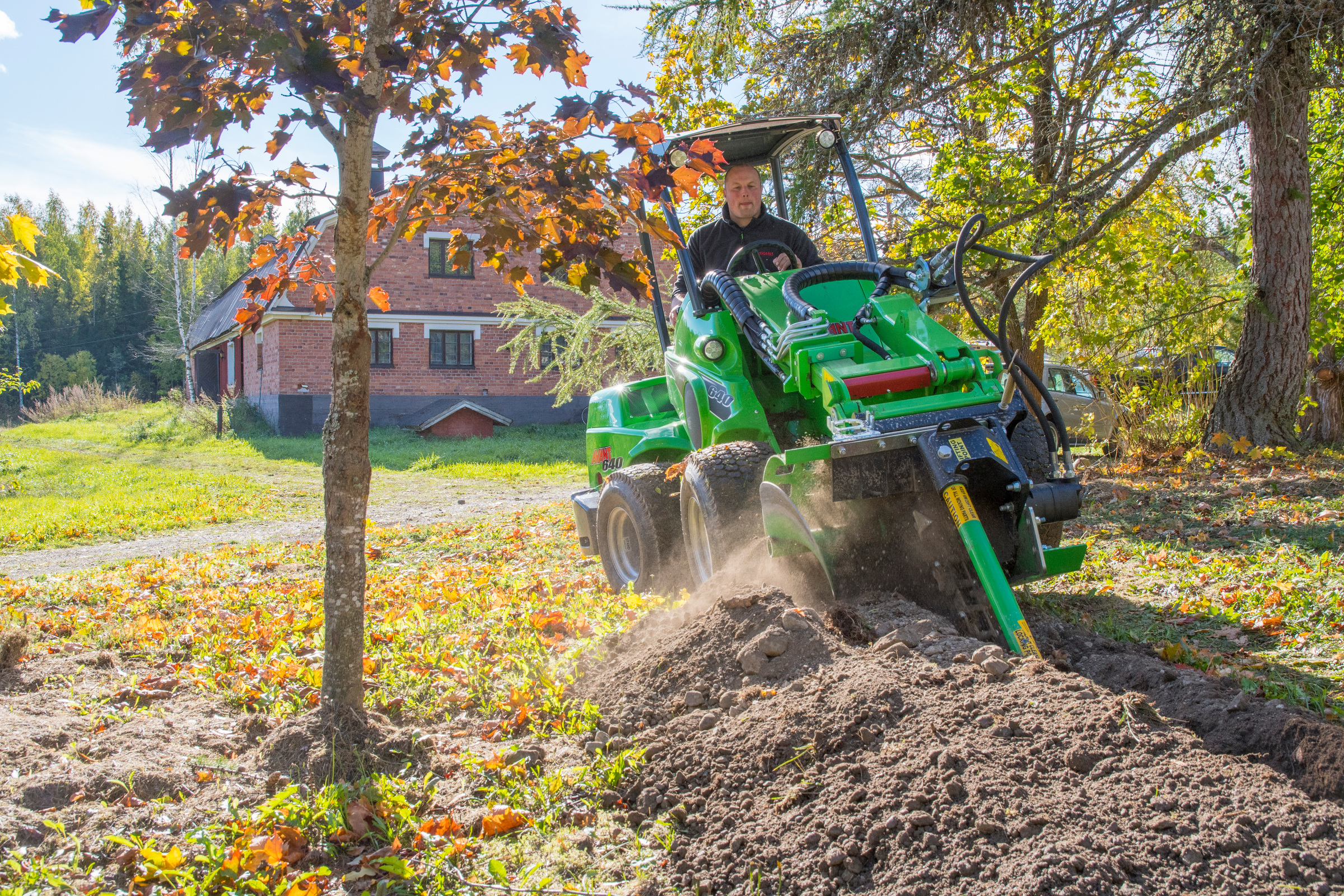

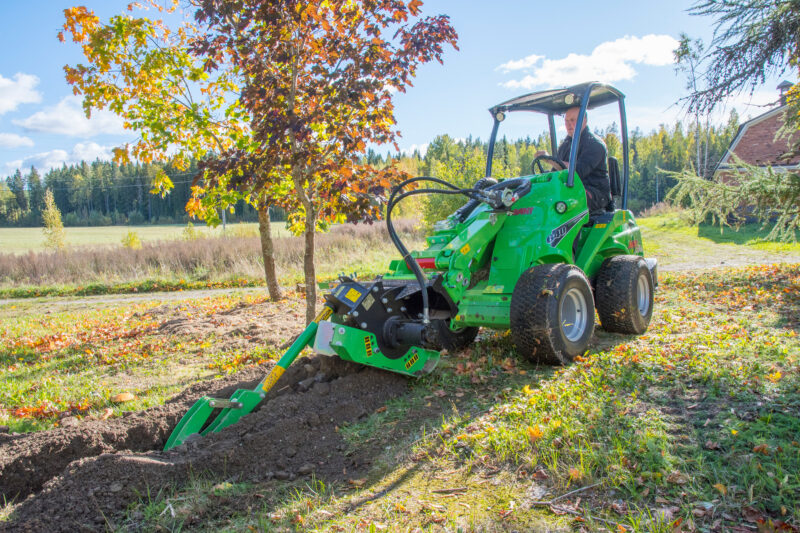

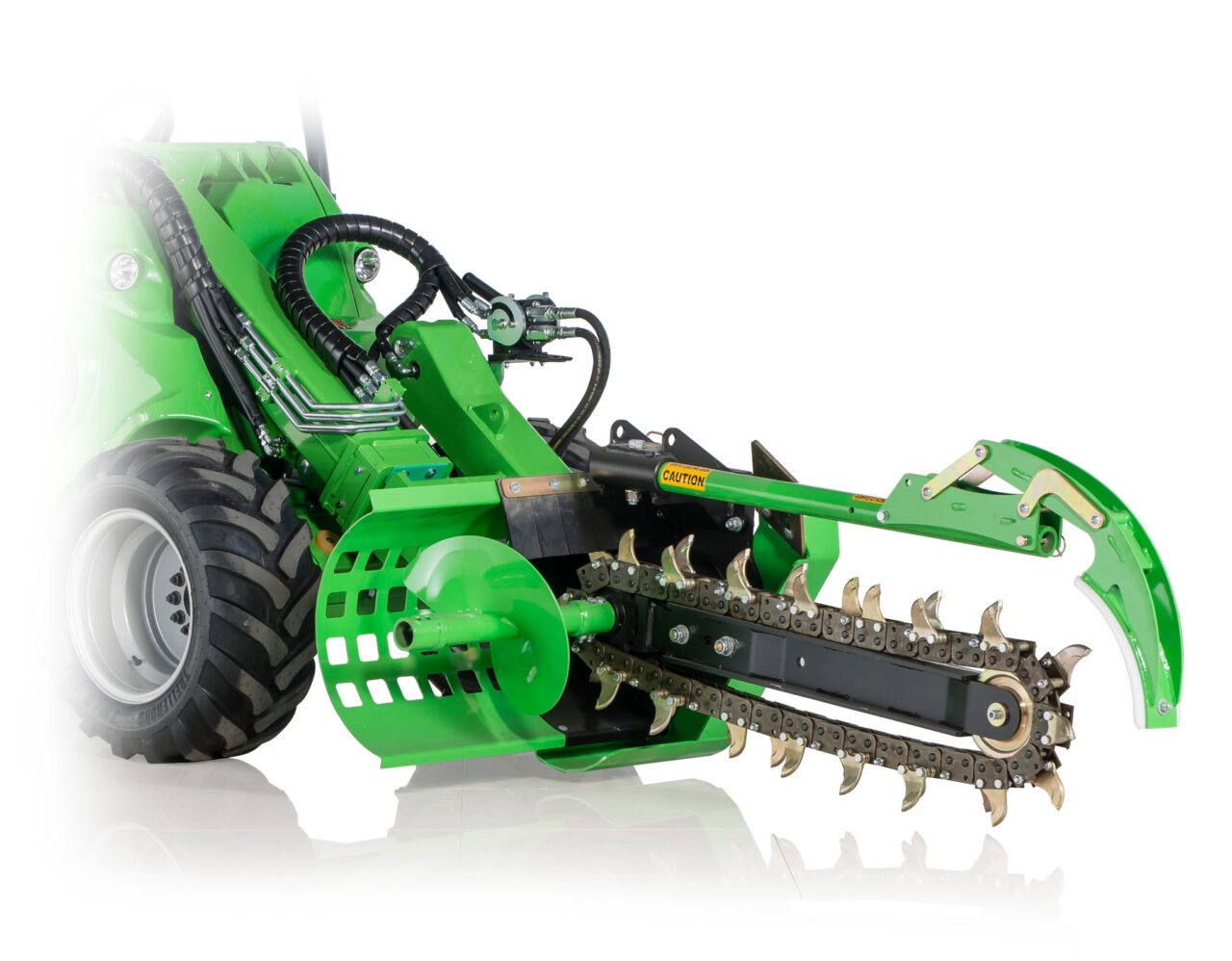

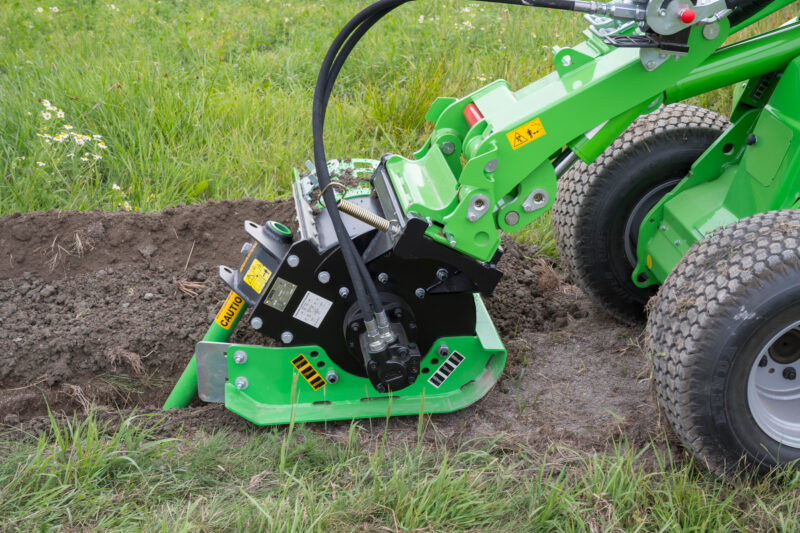

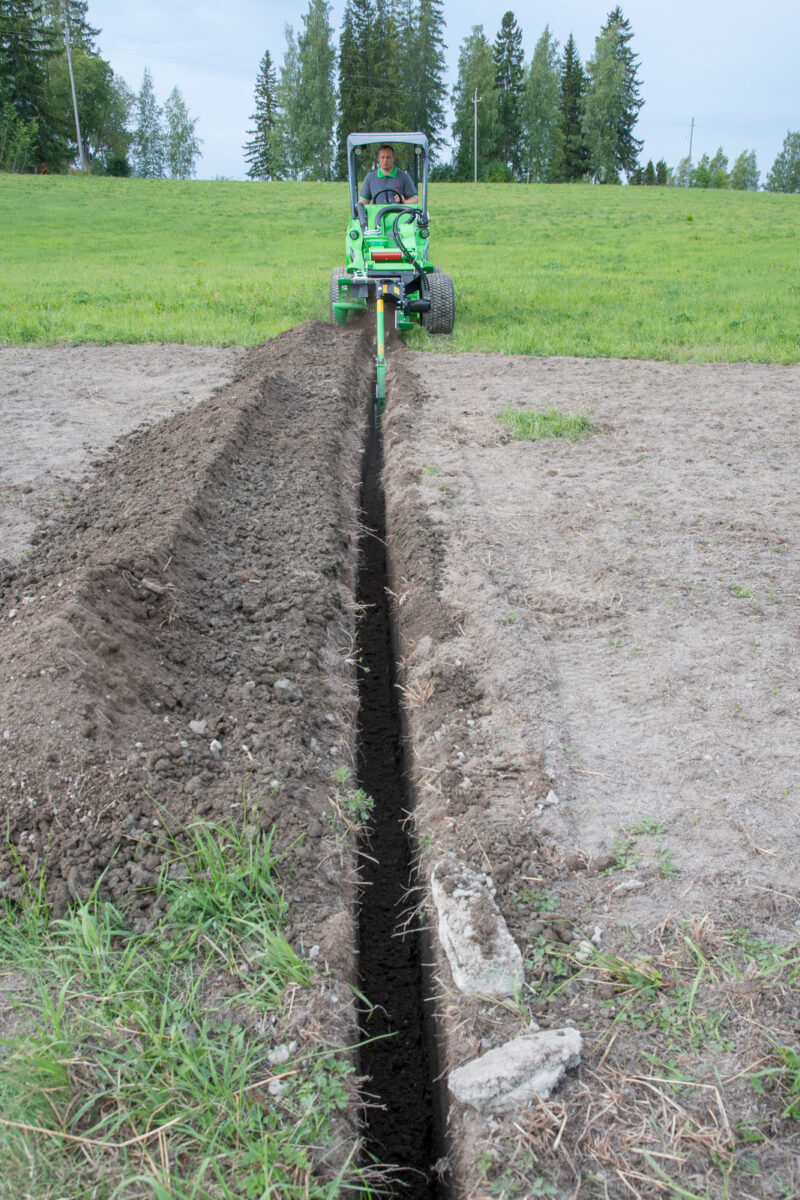

The Avant trencher is a compact yet powerful tool. It features an adjustable depth control foot which ensures the operator digs at a set depth (up to 36 in) at all times and efficient soil removal for effective compaction back into the trench. Three different chain types and three chain widths are available for trenching in different ground conditions from general earth, to rocky ground, and even frozen ground.

The Avant DG90 Trenchers are ideal for laying pipe for irrigation, underground power and communications, road repairs and general construction.

TECHNICAL INFORMATION

model DIGGING WIDTH ChaIN TYPE motor disp.
DG904EA 4 in Earth 6.2 cu in
DG904CA 4 in Combo 6.2 cu in
DG904SA 4 in Shark Tooth 6.2 cu in
DG906EA 6 in Earth 6.2 cu in
DG906CA 6 in Combo 6.2 cu in
DG906SA 6 in Shark Tooth 6.2 cu in
DG908EA 8 in Earth 6.2 cu in
DG908CA 8 in Combo 6.2 cu in
DG908SA 8 in Shark Tooth 6.2 cu in
DG904ED 4 in Earth 8.0 cu in
DG904CD 4 in Combo 8.0 cu in
DG904SD 4 in Shark Tooth 8.0 cu in
DG906ED 6 in Earth 8.0 cu in
DG906CD 6 in Combo 8.0 cu in
DG906SD 6 in  Shark Tooth 8.0 cu in
DG908ED 8 in Earth 8.0 cu in
DG908CD 8 in Combo 8.0 cu in
DG908SD 8 in Shark Tooth  8.0 cu in



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
