TELESCOPING JIB BOOM

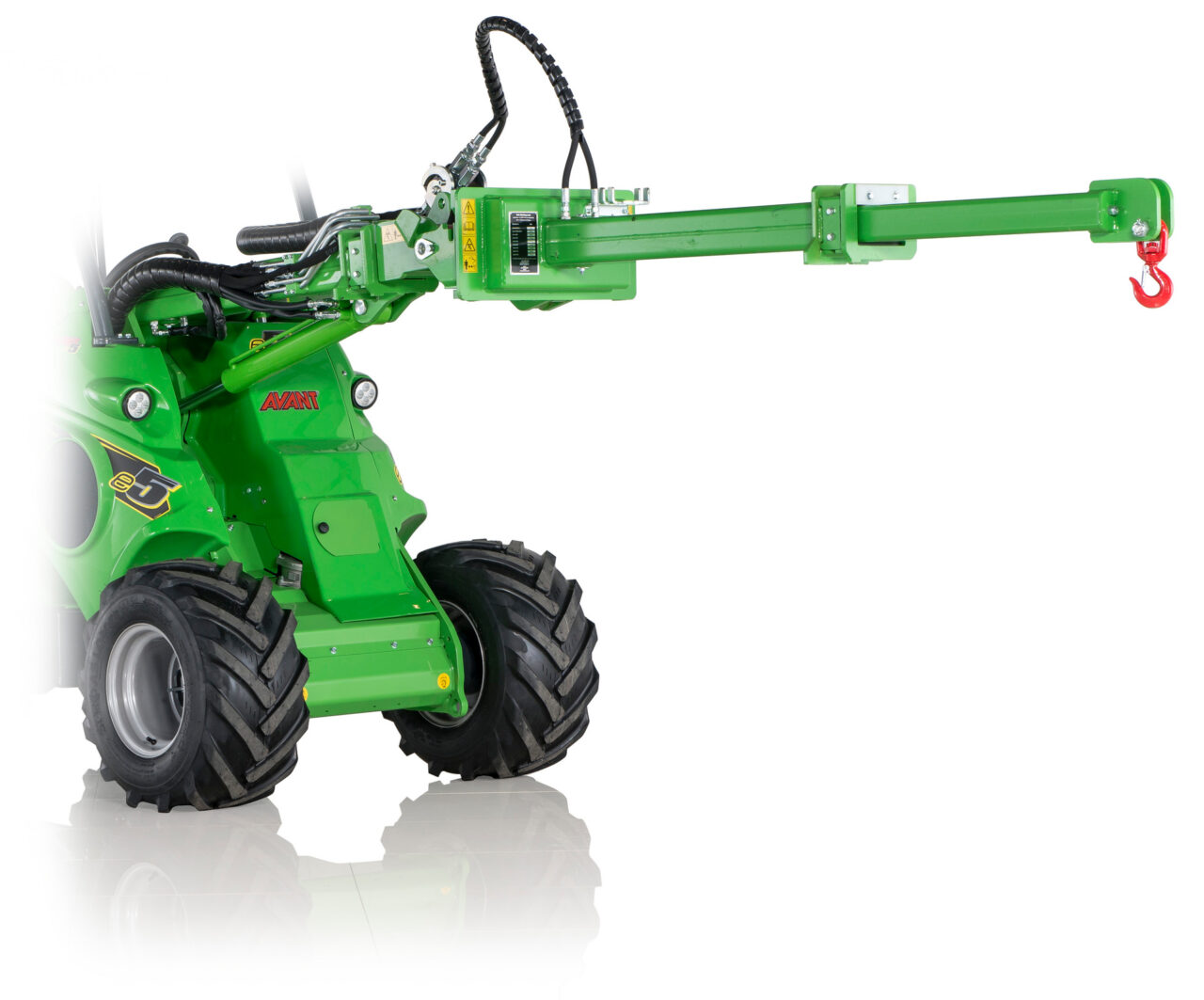

The hydraulically telescoping jib boom is a very efficient and versatile tool for all lifting jobs on the work site. The steplessly extending and retracting boom allows lifting to places that would otherwise be very hard to reach. Compact design with telescoping cylinder inside the boom makes work safe and easy.

The jib boom is equipped with a rotating lifting hook and durable wear pads on the outer boom.

Excellent outreach, as much as 134” from the front wheels
Max. lift height with 800 series as high as 205”
Versatile lifting attachment for various load handling jobs

TECHNICAL INFORMATION

Max. boom length	74.8 in
Min. boom length	51.2 in
Lifting height*	205 in
max load avant 800 ser*	1102 lb
Max load Avant 700 ser*	880 lb
Max load Avant 600 ser*	660 lb
Max load Avant 500 ser*	550 lb
Max. outreach*	134 in
Weight	243 lb
Product no	A21342

* Both the telescopic boom of the loader and the jib boom extended to maximum outreach.

COMPATIBLE MODELS

Very compatible

Compatible

Incompatible

Model

220

225

225LPG

313S

320S

420 & 423

520

523

525LPG

528

530

R20

R28

R35

630

635

640

735

745

750

755i

760i

850

860i
