Side shift adapters

plus

HYDRAULIC SIDE SHIFT ADAPTER

The hydraulic side shift adapter offers easy, seamless side shift of attachment, operated from the driver’s seat. The solid and robust design features strong sliding guides which can also be lubricated. The quick attach plate on the adapter can be mounted in three different positions: on the left or on the right or in the middle of the adapter. This gives three different side shift options: 19.7 in side shift to the right or to the left, or 9.8 in side shift in both directions.

If a hydraulic attachment – 4 in 1 bucket, flail mower, cold planer etc. – is mounted on the side shift adapter, the loader must be equipped with the optional second auxiliary hydraulics outlet in the front, so that the attachment hoses are mounted on the multi connector and the side shift adapter hoses on the optional second outlet.

  • Easy, seamless hydraulic side shift of the attachment, operated from the driver’s seat

  • Side shift max. 19.7 in to the right or the left, or 9.8 in in both directions, depending on the mounting of the adapter’s attachment plate

  • Max. load 2200 lb

TECHNICAL INFORMATION

Width 50 in
Height 17.1 in
Length 8.6 in
Weight 255 lb
Product no A37235

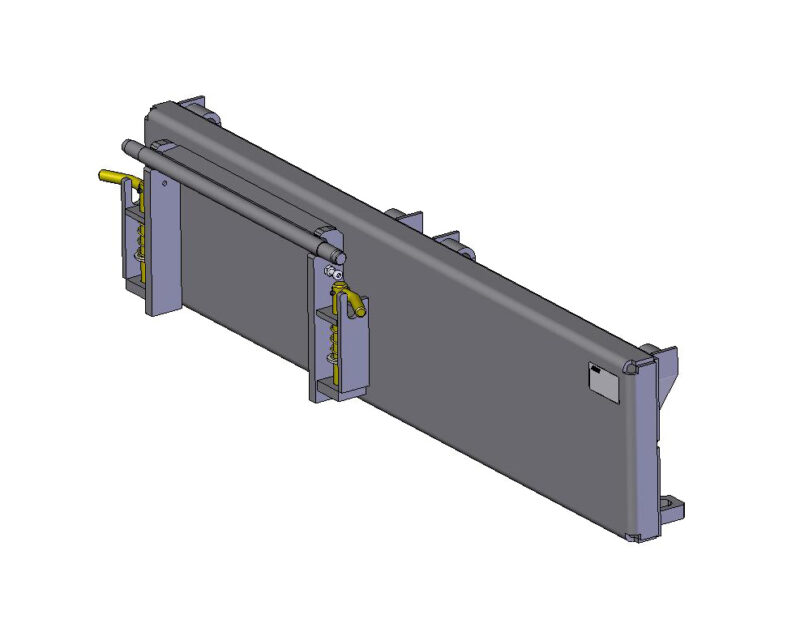

SIDE SHIFT ADAPTER

Side shift adapter is a rigid adapter plate which mounts on the loader’s attachment coupling plate. It is equipped with two quick attach brackets, side by side, for mounting the attachment. This means that the attachment can be mounted on the adapter in two different positions:

- with side shift: the attachment is 23.6 in to the side from the centerline of the loader’s attachment coupling plate

- without side shift: the attachment is mounted on the brackets which are against the loader’s attachment coupling plate

  • Moves attachment 23.6 in to the side from centerline
  • Two models available: 23.6 in side shift to the right or to the left

TECHNICAL INFORMATION

side shift adapter

23.6 in,

right

23.6 in,

left

Width 45.3 in 45.3 in
Height 10.4 in 10.4 in
Length 6.2 in 6.2 in
Weight 100 lb 100 lb
Product no A37097 A37166



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
A37097
A37166
A37235
