GRAPPLE BUCKET

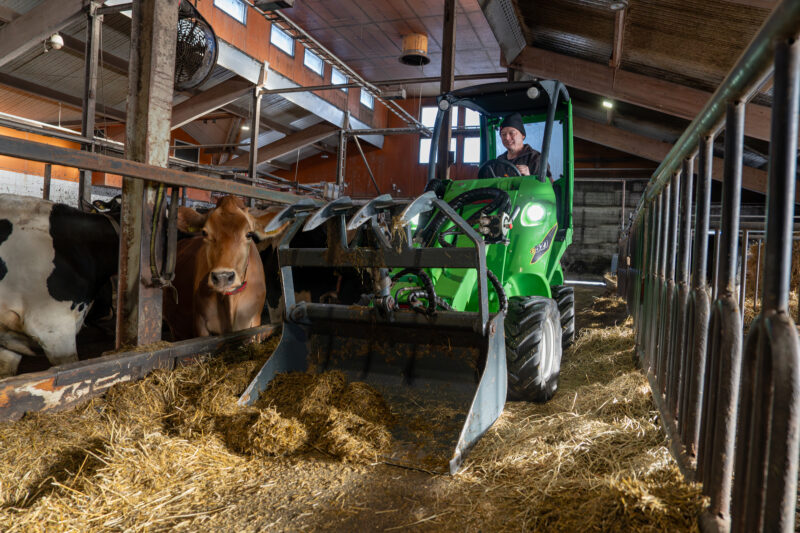

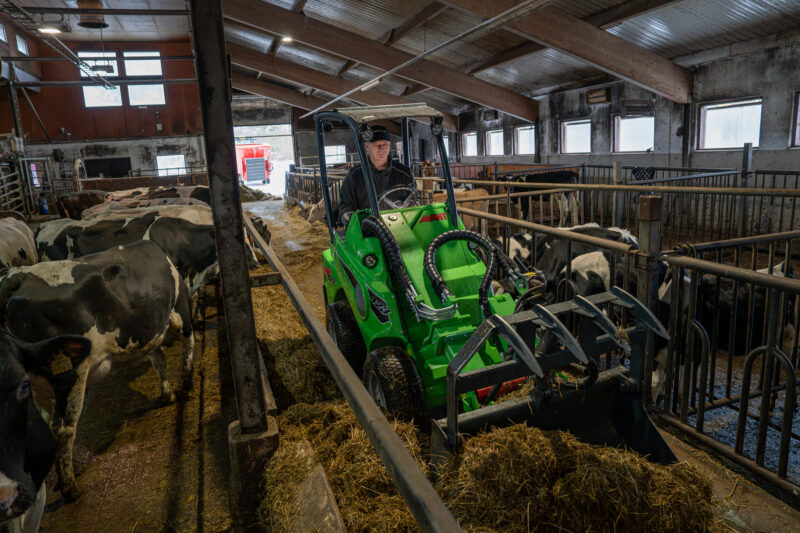

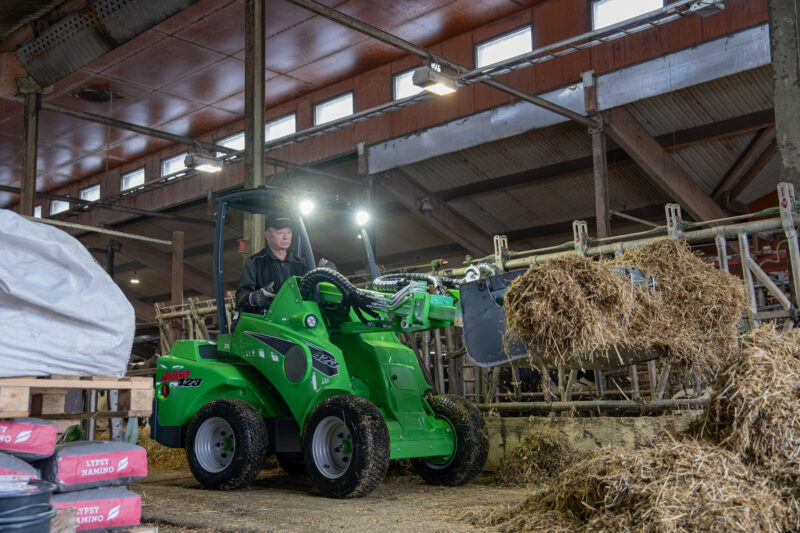

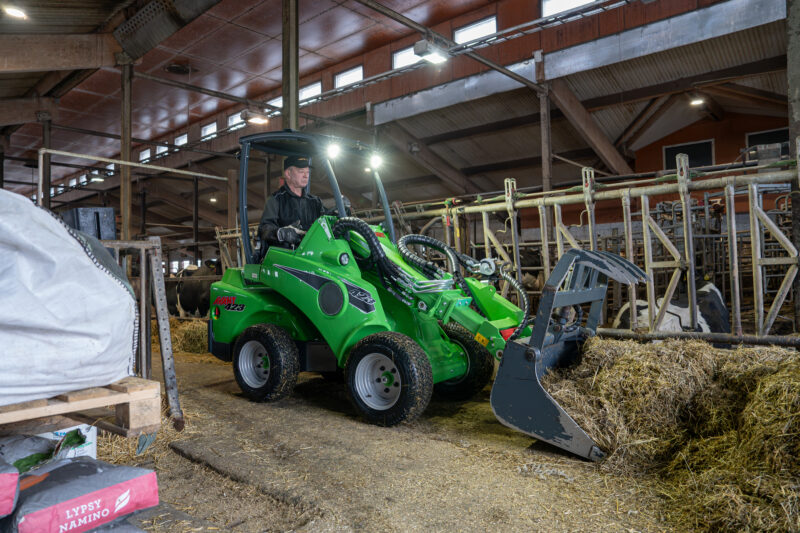

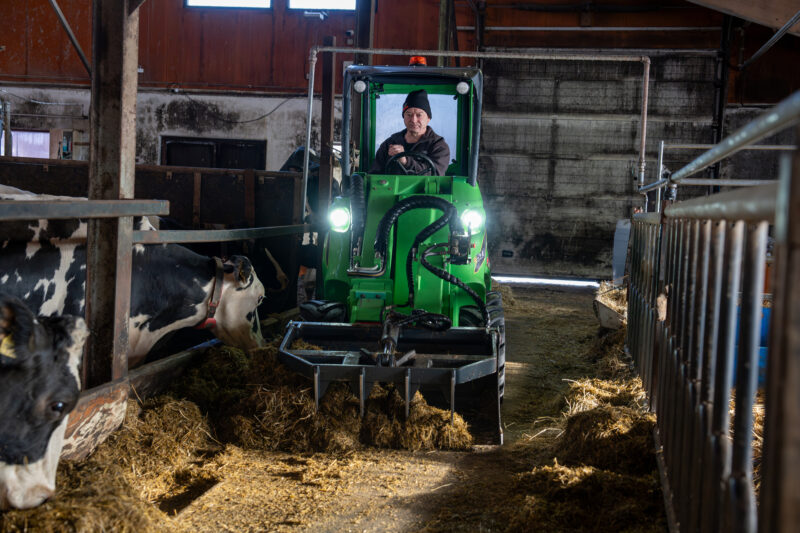

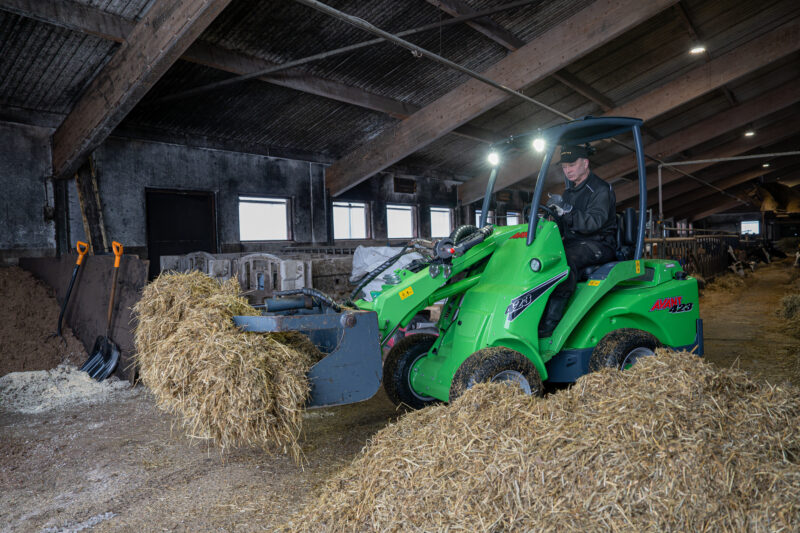

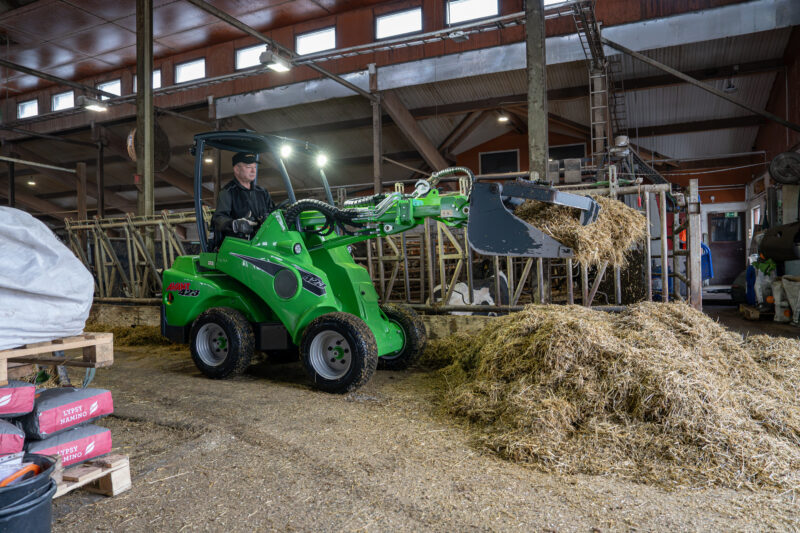

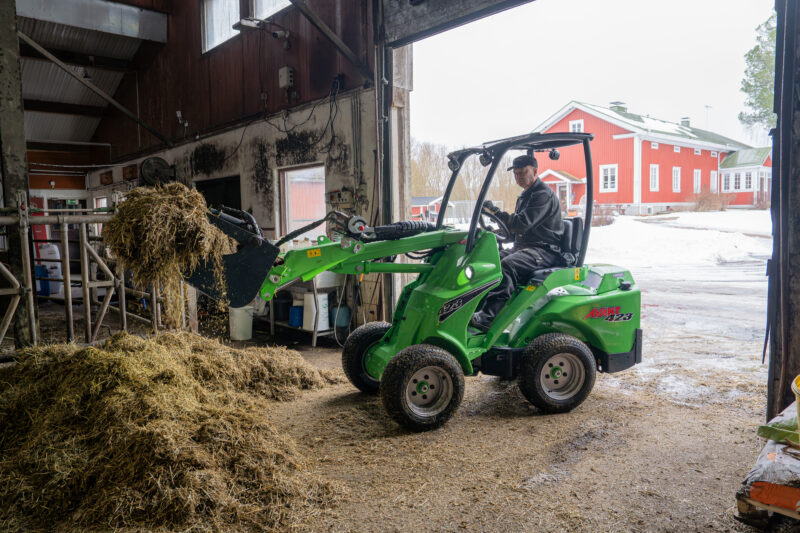

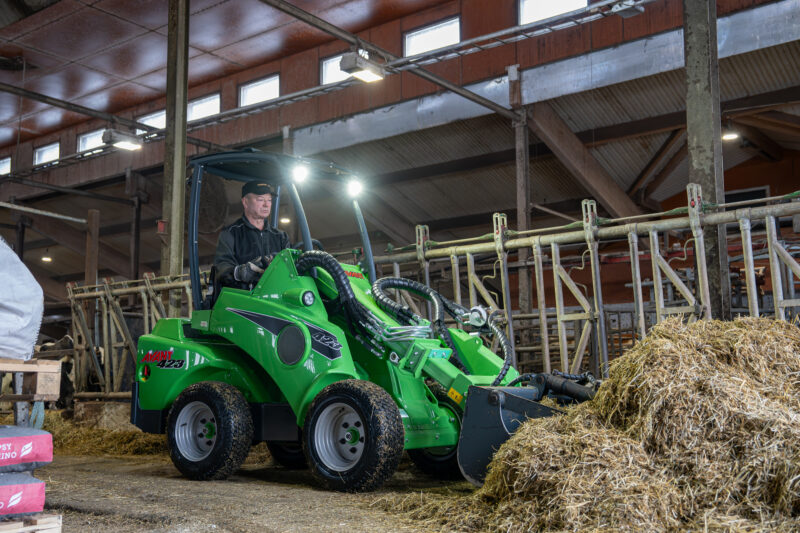

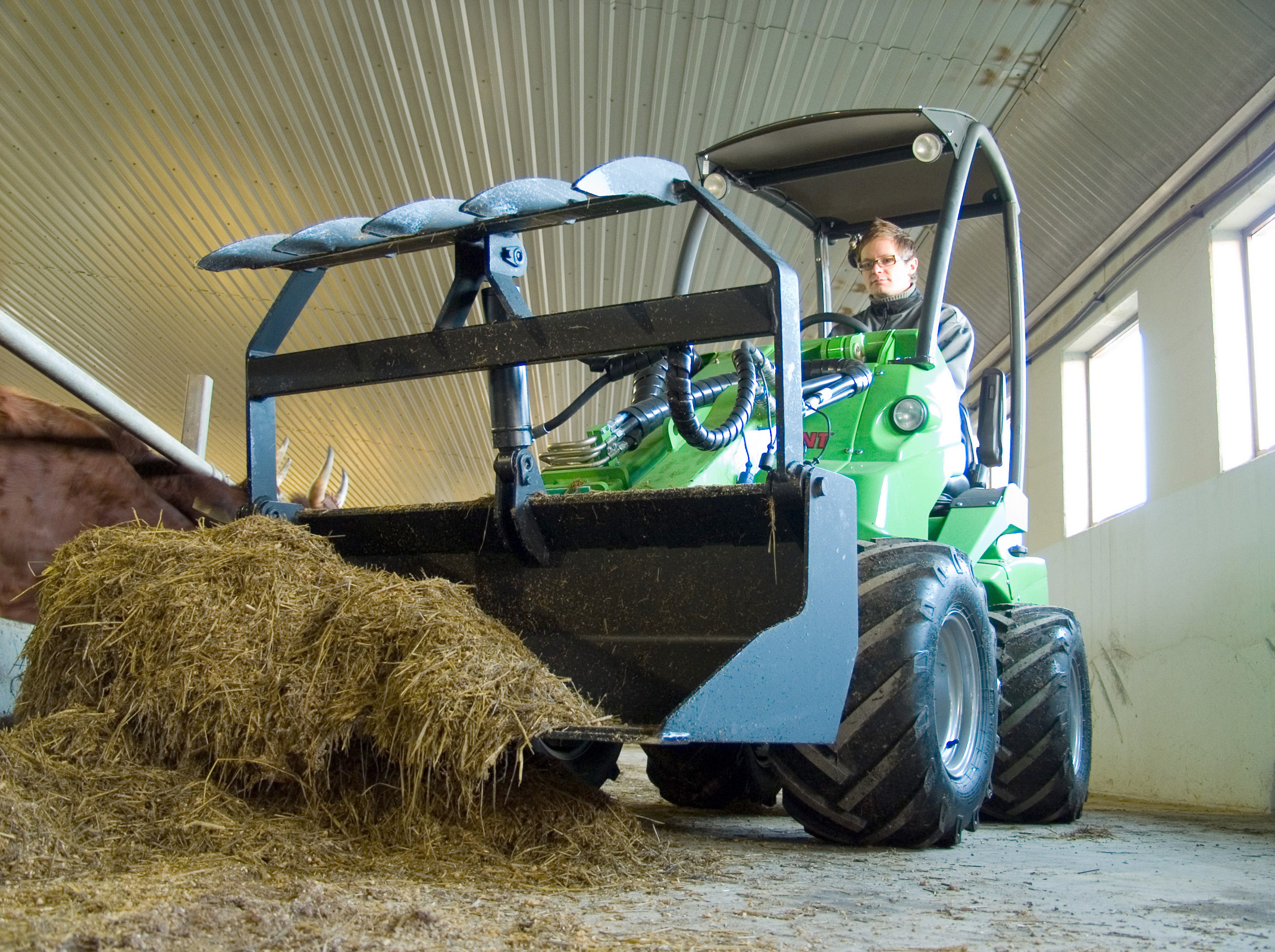

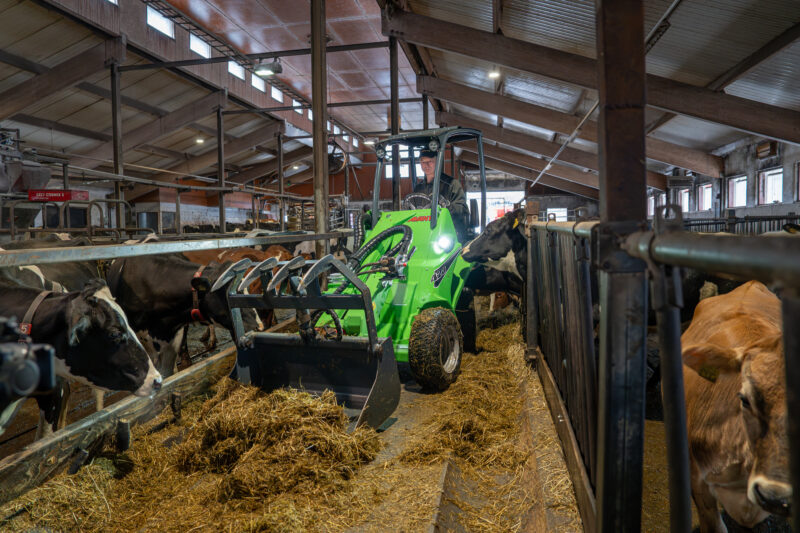

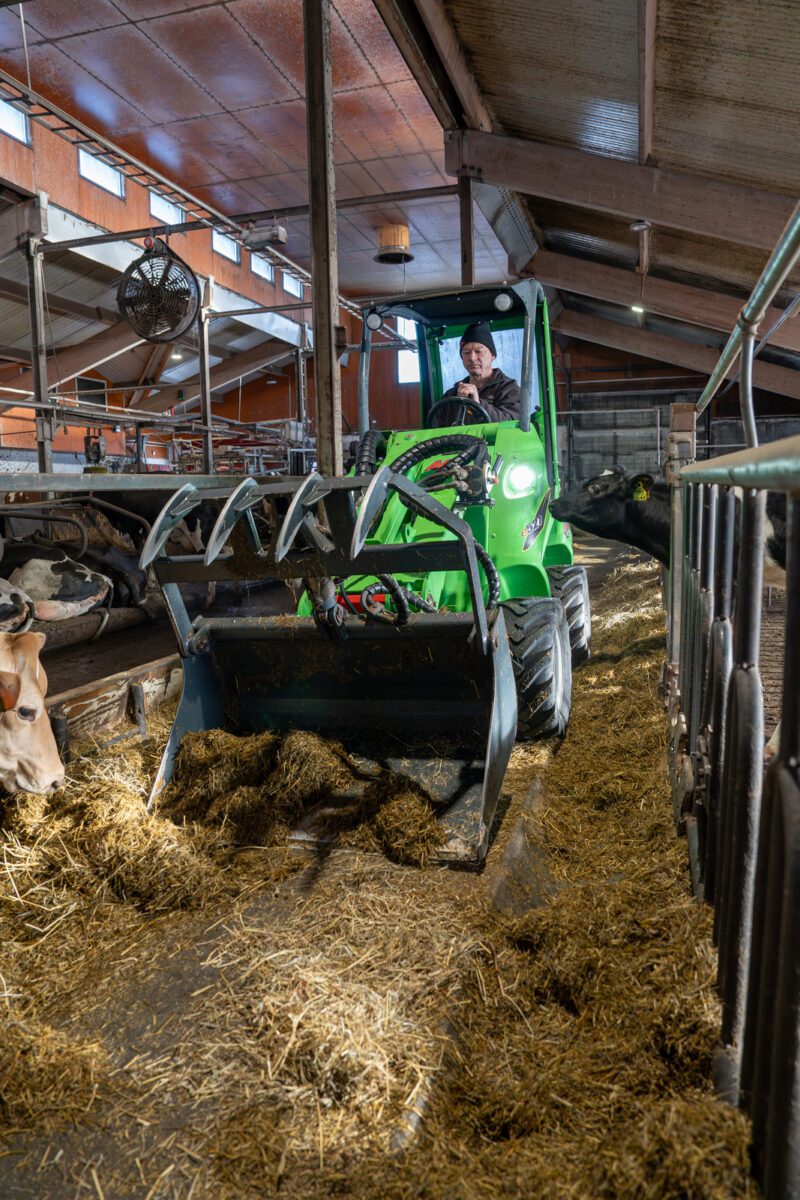

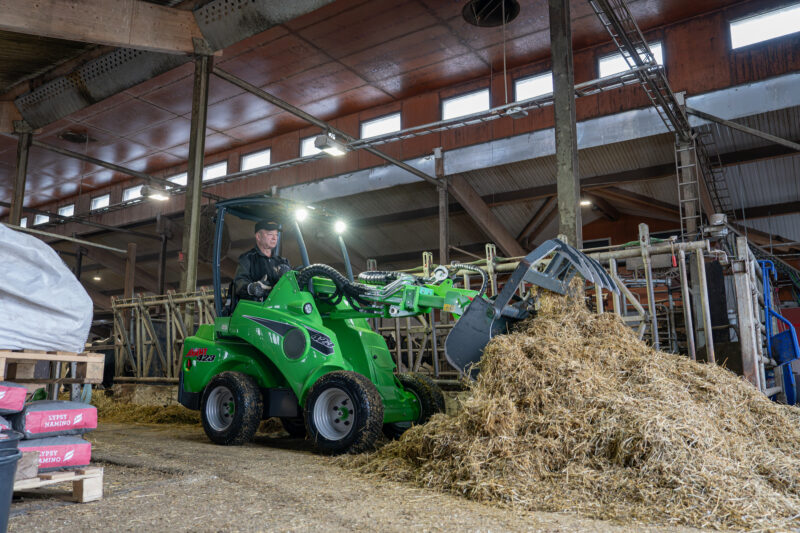

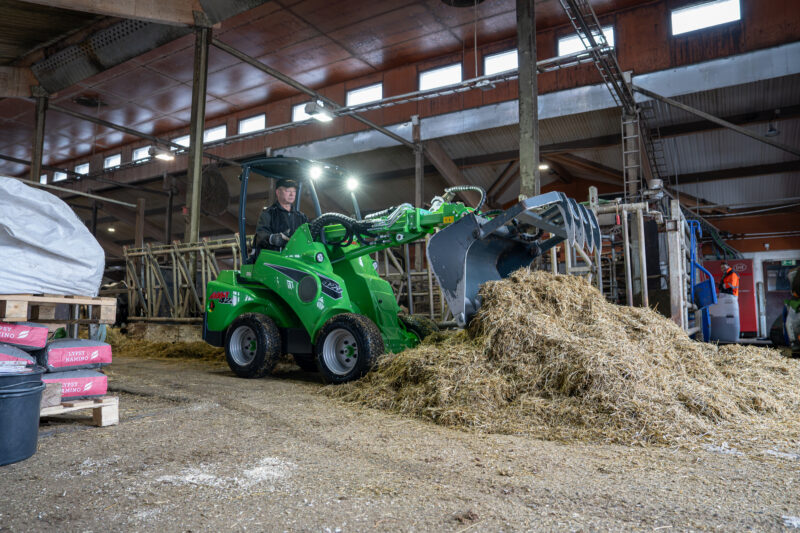

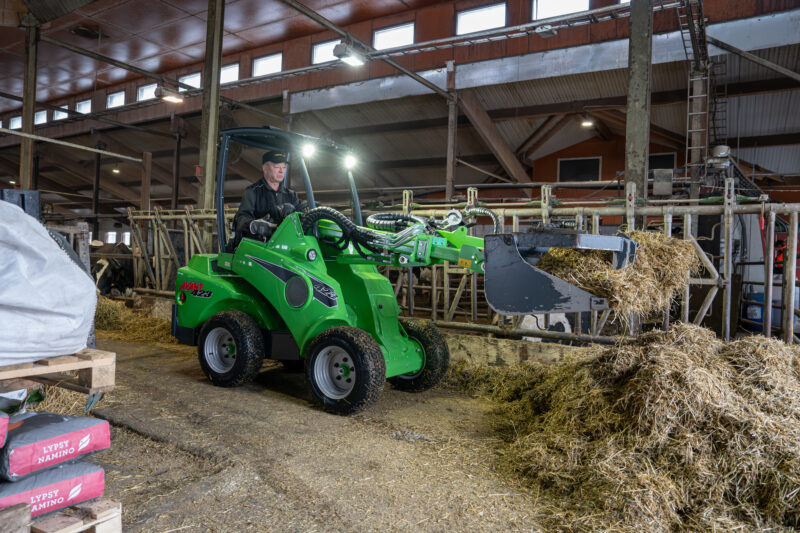

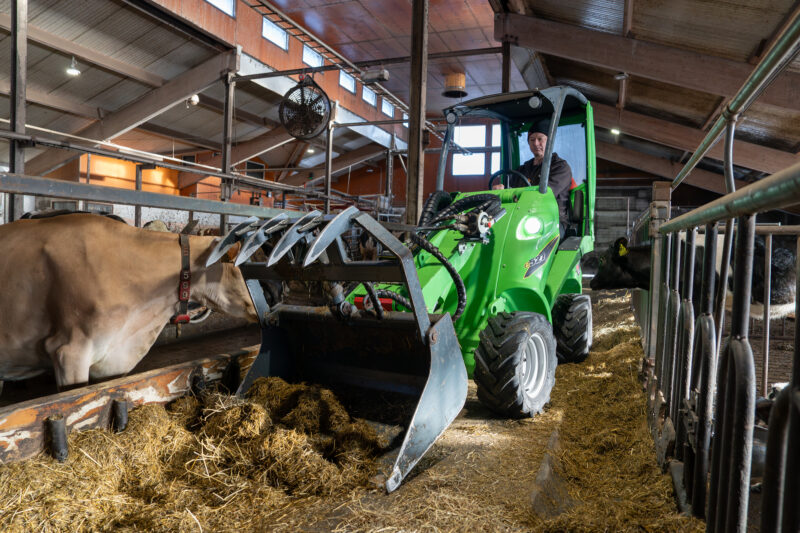

Grapple bucket combines a normal bucket and a grapple and is therefore suitable for a multitude of jobs. It can be used for transporting and loading of branches, wood chips, compost, straw, manure, construction waste etc. It can also be used as a normal bucket with the grapple in the upright position.

  • Versatile bucket for handling of loose materials

  • Larger XL models with two cylinders intended especially for 700 and 800 series

TECHNICAL INFORMATION

Width Weight Product no
35.4 in 287 lb A36304
41.3 in 322 lb A36316
51.2 in 370 lb A36323

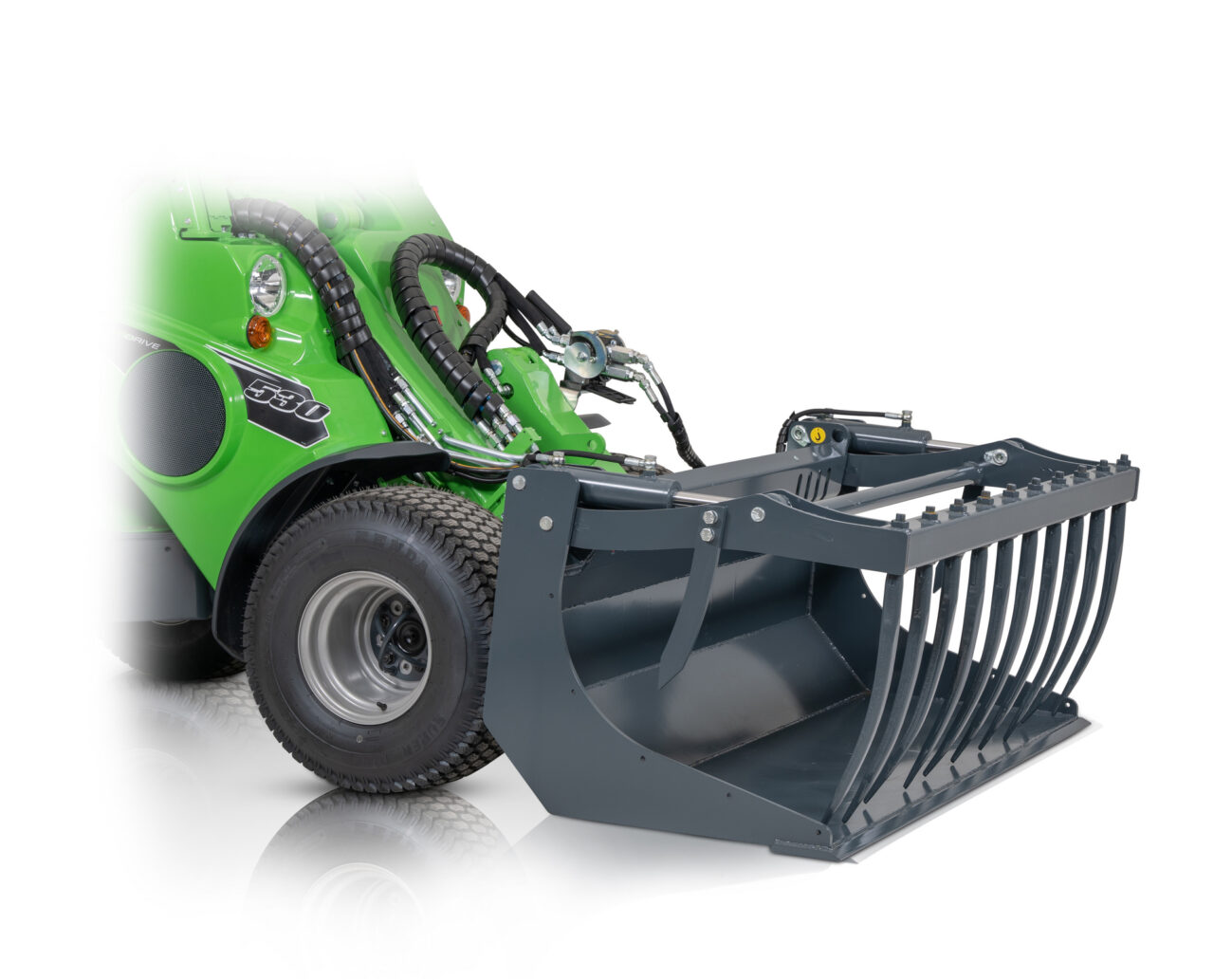

XL grapple bucket for 700 and 800 series:

width weight product no
51.2 in 595 lb A441963
57.0 in 635 lb A441946
63.0 in 672 lb A439086



OPTIONS:

Side plates, kit, for XL grapple buckets A439112

XL grapple bucket:

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
