CONCRETE MIXING BUCKET

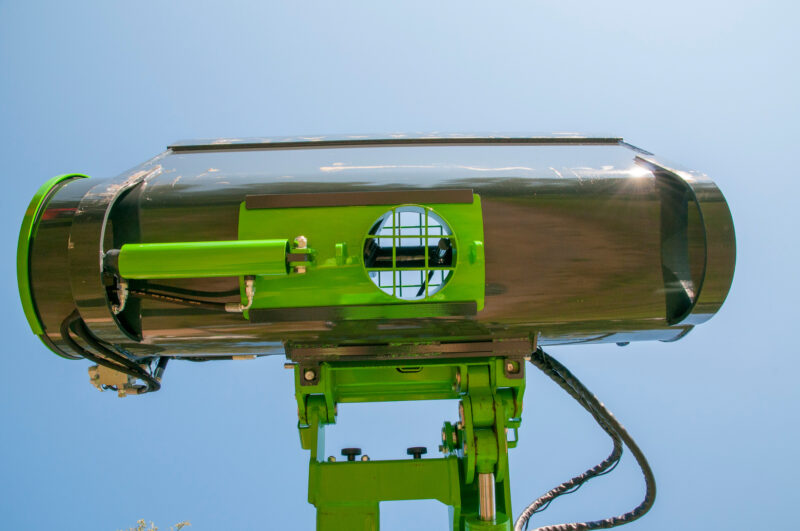

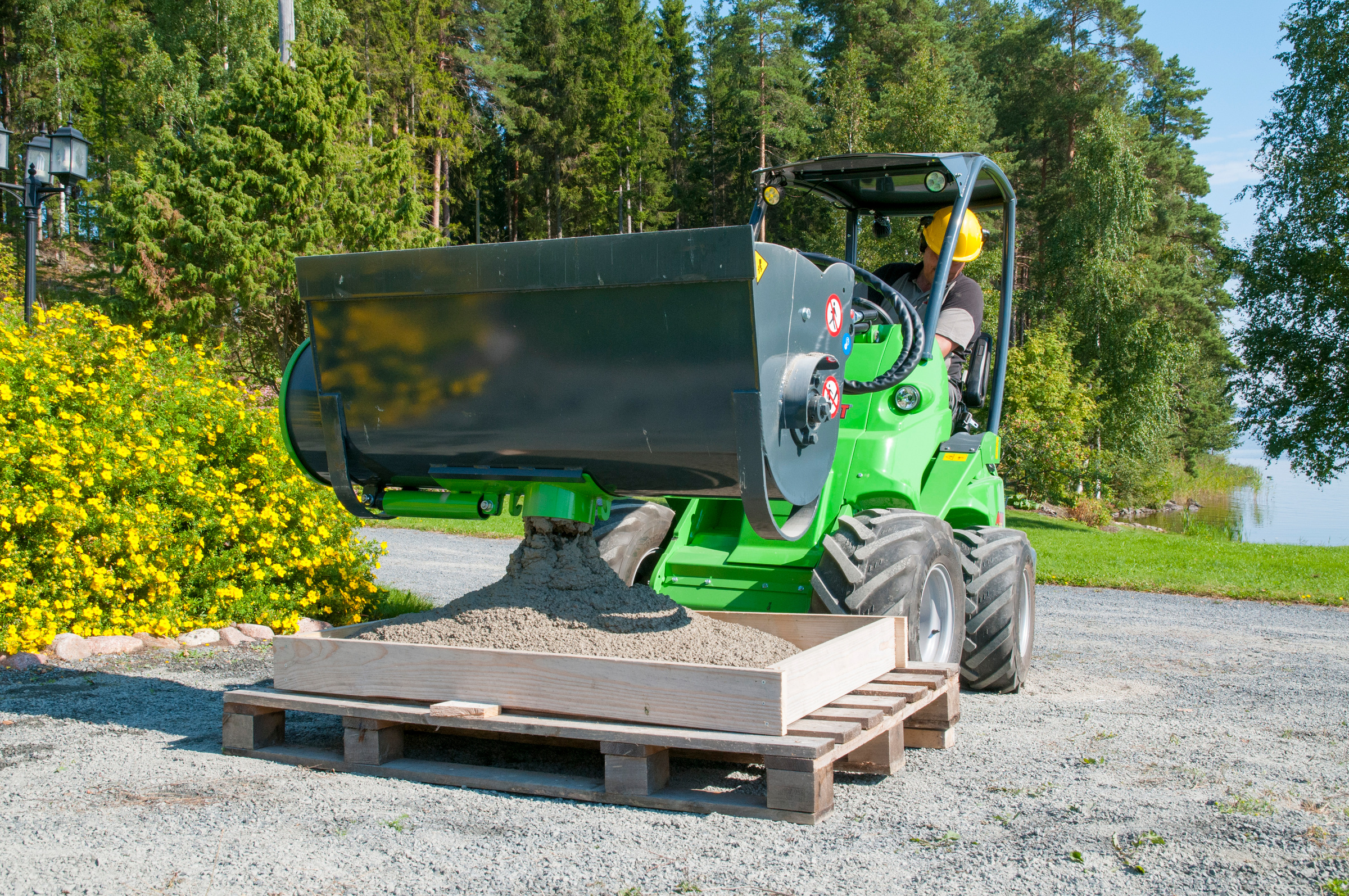

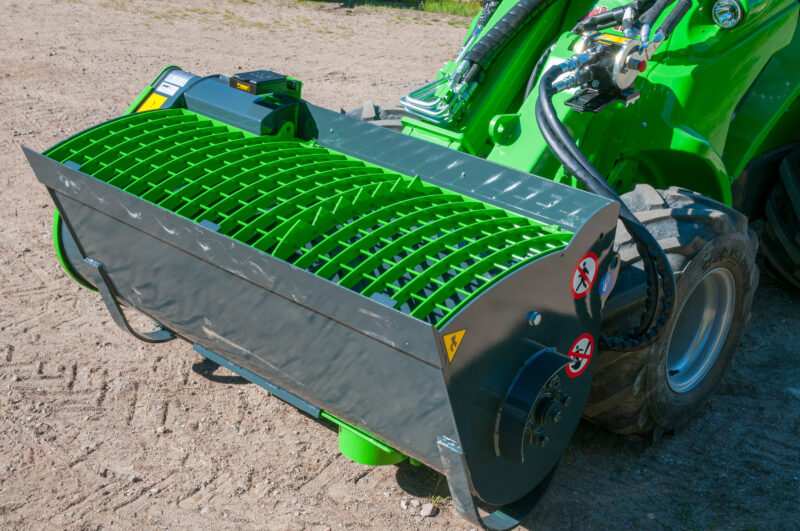

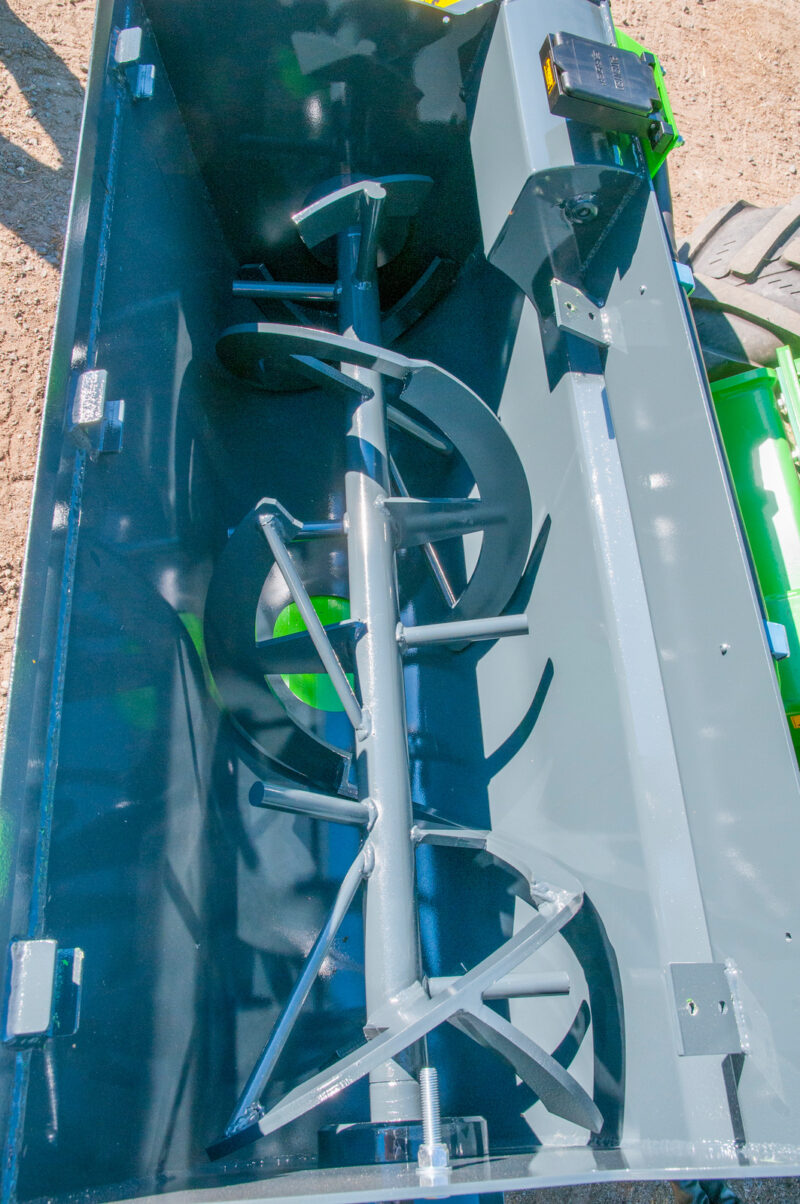

Concrete mixing bucket is a handy tool when you need to make concrete without electricity or when you need to transport or lift the concrete to a place hard to access. The new model is equipped with a 15.7 in screw shaft and a guard grill on the bucket. The bucket is emptied from the bottom hatch in the middle of the bucket or in the other model on the left side of the bucket. Hatch opening is powered by a hydraulic cylinder controlled with an electric directional valve, operation from driver's seat with an electric switch. The bucket is also equipped with a flexible emptying tube which mounts on the bottom hatch. This enables pouring of the concrete further away from the bucket.

  • Easy and efficient way to make concrete in places where electricity is not available

  • The mixed concrete is easy and effortless to transport and pour into desired place

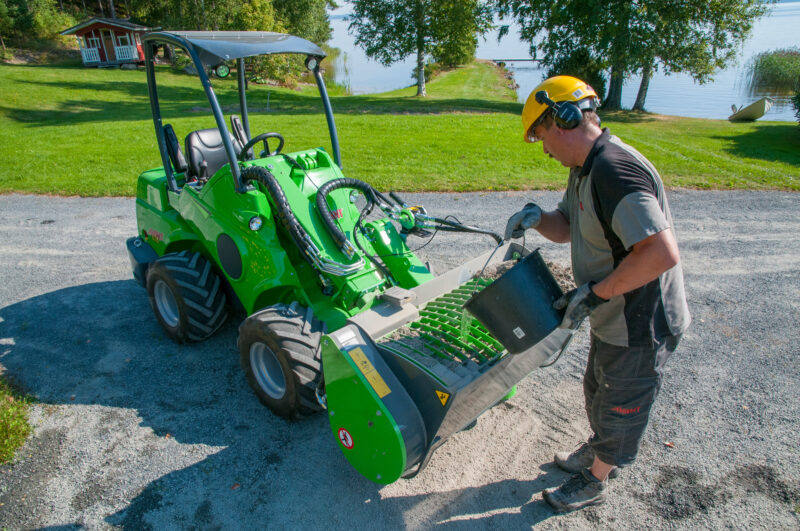

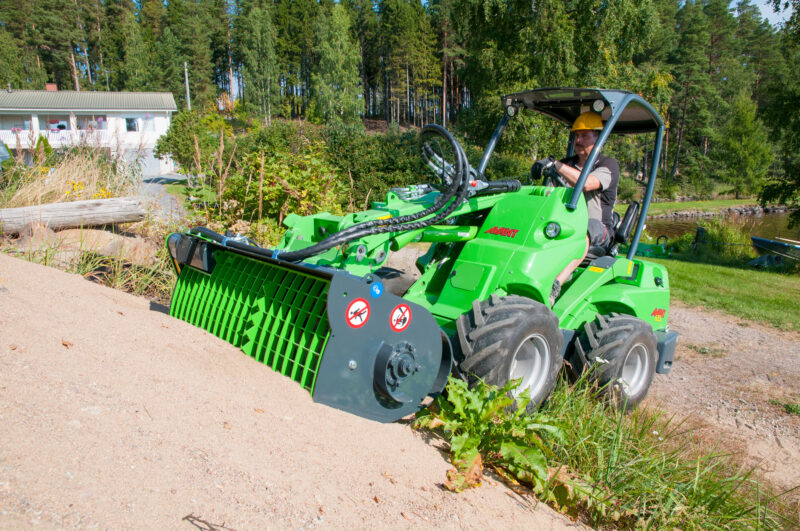

  • Sand can be taken in the bucket directly from the ground
  • Concrete can be poured up to 6 feet in height.

TECHNICAL INFORMATION

Total width 58.7 in
Screw shaft diameter 15.7 in
Volume 7.4 cu ft
Empty weight 660 lb
Weight at max. capacity 1750 lb
Unloading hatch diameter 7.1 in
Emptying tube length 53.1 in
Product no, discharge in the middle A36473
Product no, discharge on the left A37241







COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
