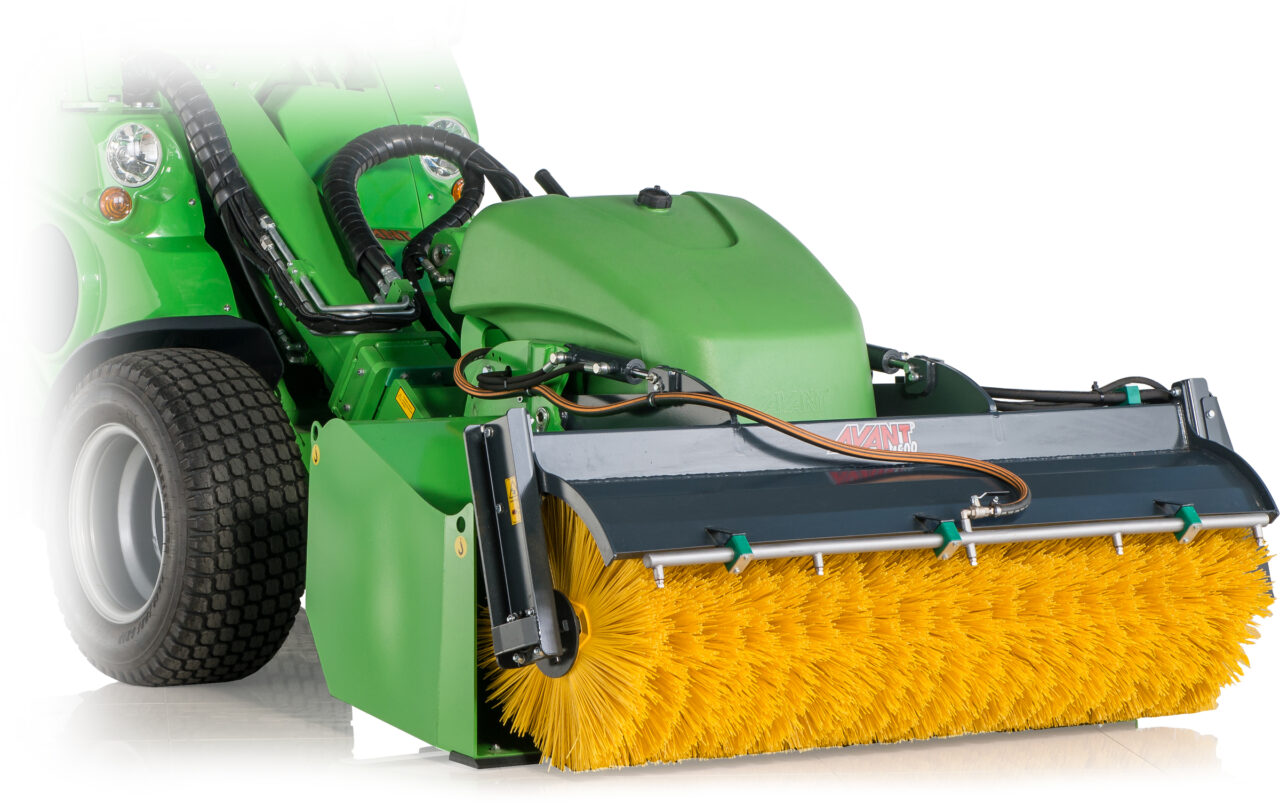

BUCKET BROOM

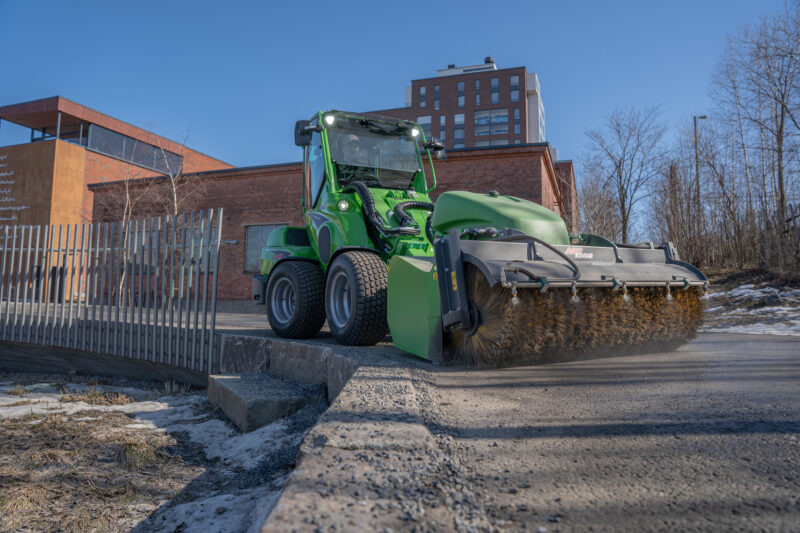

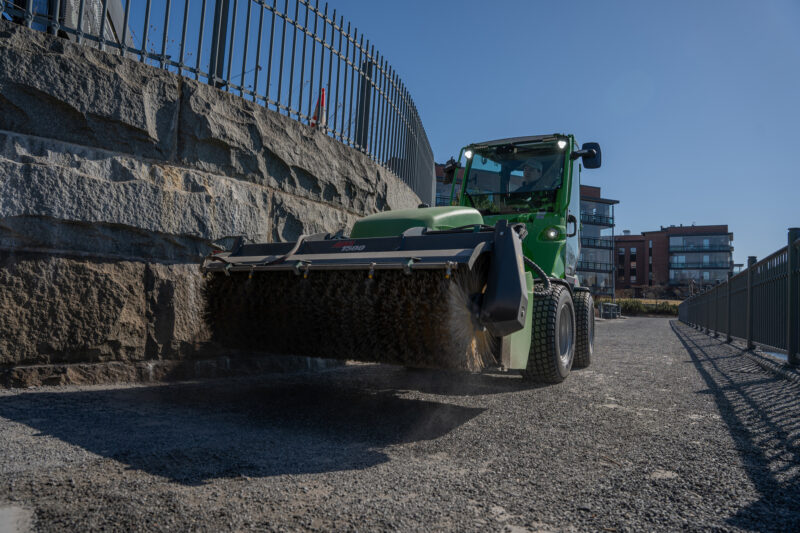

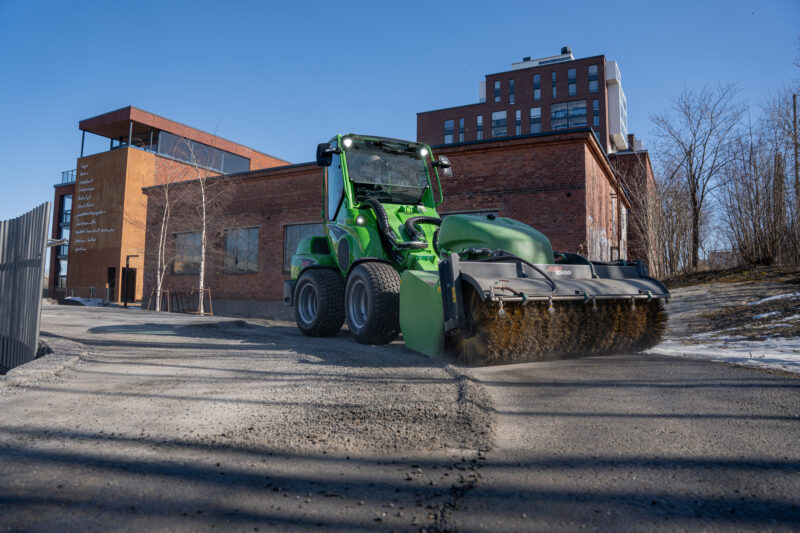

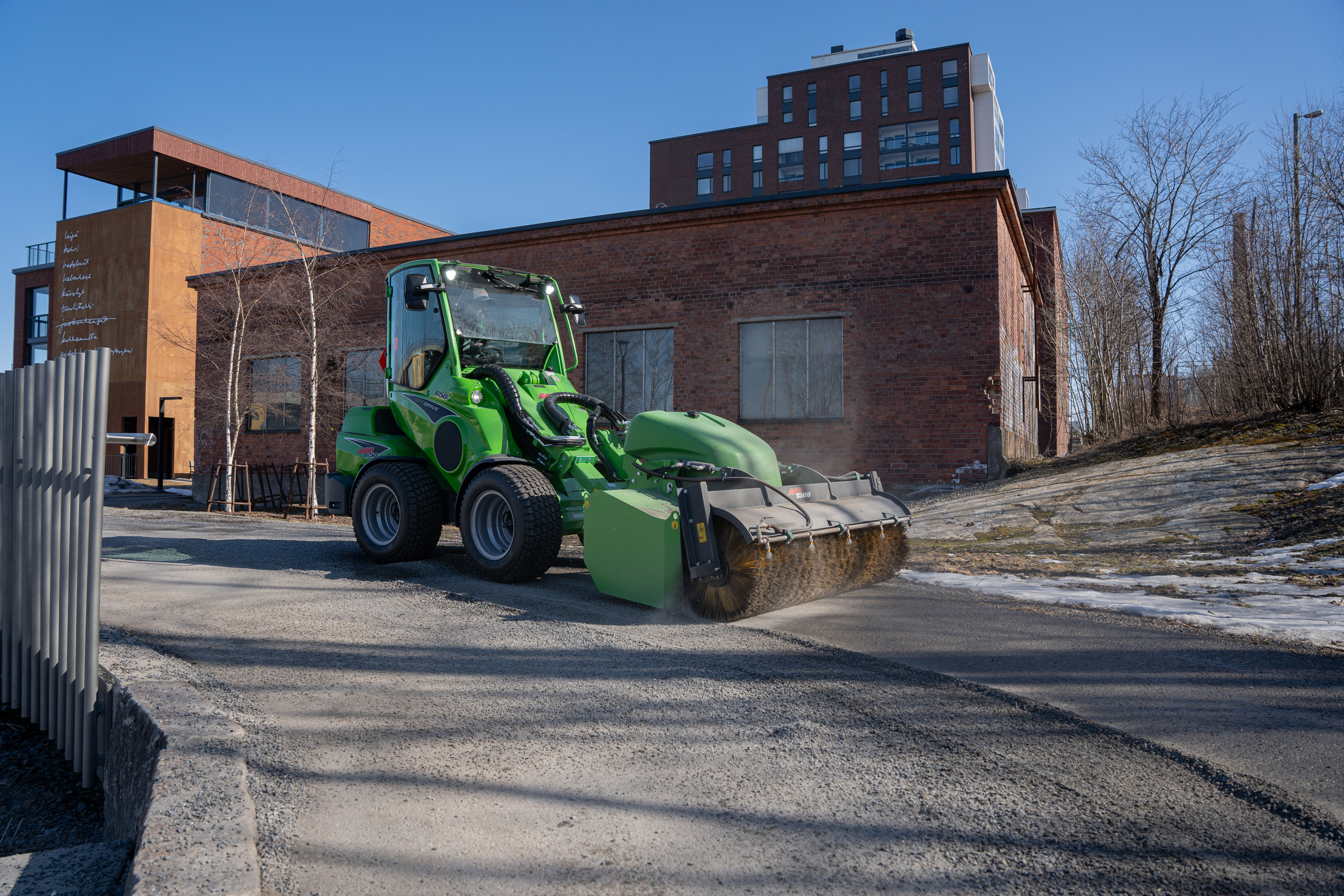

Completely new bucket broom which collects the waste in a large bucket shaped box. The broom gives best sweeping result when reversing, but it also works when driving forward. Forward sweeping is especially recommended when the waste is larger in dimensions, for instance construction waste, beverage cups, tree leaves etc.

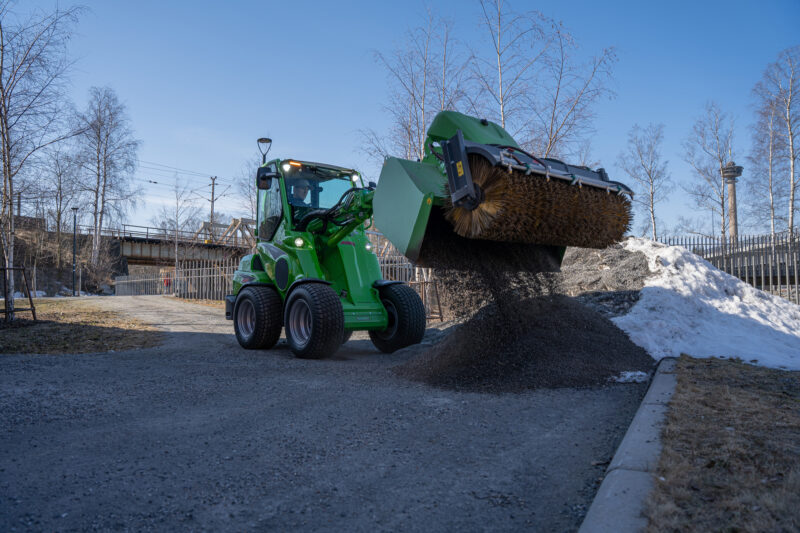

The bucket broom is equipped with a floating mechanism which allows the bucket lip to rest against ground freely. This means that the loader must not necessarily be equipped with boom floating when working with the bucket broom. Emptying of the collector happens by first lifting the broom up hydraulically, after that the collector box can be emptied by tilting it down like a normal bucket. Brush axle is equipped with a simple quick locking system for adjusting the sweeping height.

Water spraying system for dust binding is also available. It minimizes dust build up when brushing dry waste.

  • Excellent sweeping result when driving backwards
  • Suitable for collecting larger waste as well
  • Large bucket shaped collecor box
  • Quick, hydraulic emptying

TECHNICAL INFORMATION

Model 1100 1500
Broom width 43.3 in 59.1 in
Total width 53.4 in 69.4 in
Box volume 13.1 cu ft 17.7 cu ft
Boom diameter 19.7 in 19.7 in
Water tank volume 4.2 cu ft 4.2 cu ft
Product no A35945 A35689
Product no. with water spraying system A36023 A36024



Options

Product 1100 1500
Water spraying system A35956 A35807

COMPATIBLE MODELS

Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
1100
1500
Very compatible
Compatible
Incompatible
