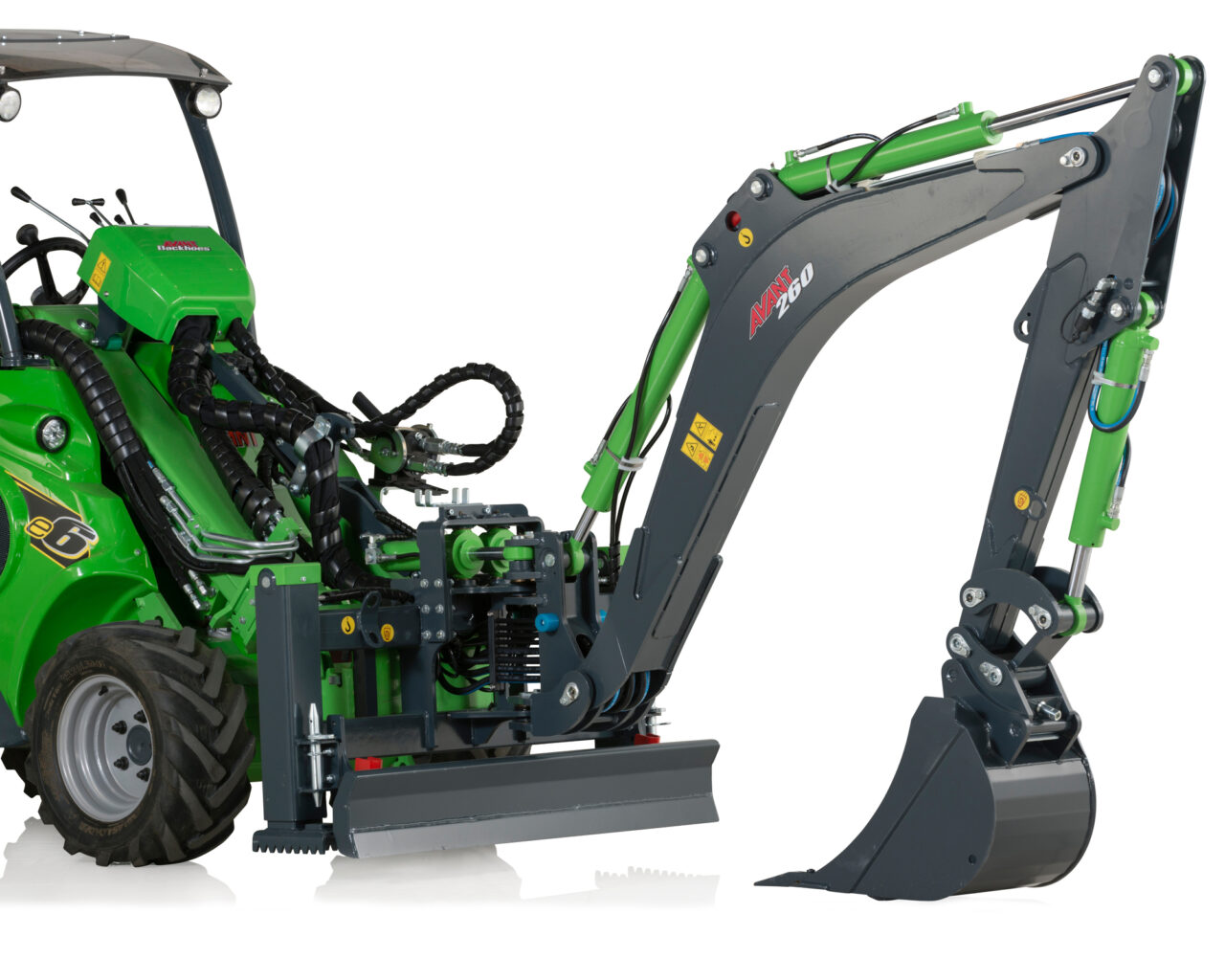

BACKHOE 260

Backhoe 260 has many improved features: Boom swing happens with two hydraulic cylinders, instead of the single cylinder and chain drive in the old models. The new system gives more exact boom movements when swinging and requires less service. Swing angle is 170 degrees. Backhoe 260 is equipped with hydraulic outriggers as standard. The operator can easily adjust the outriggers with the lever on the backhoe control valve. This allows quick and easy set up also on uneven terrains. Changing of bucket is easy thanks to the quick attach mechanism. Mounting the backhoe on Avant is very fast, and the new foldable control valve bank and locking system on the boom make it even easier.

  • Powerful and professional backhoe with good outreach
  • Hydraulic outriggers
  • Bucket quick attach system
  • 170 degree boom swing angle with consistent speed
  • Dozer blade on front frame
  • Several bucket options
  • Bucket sideways tilt adapter availabe as an option

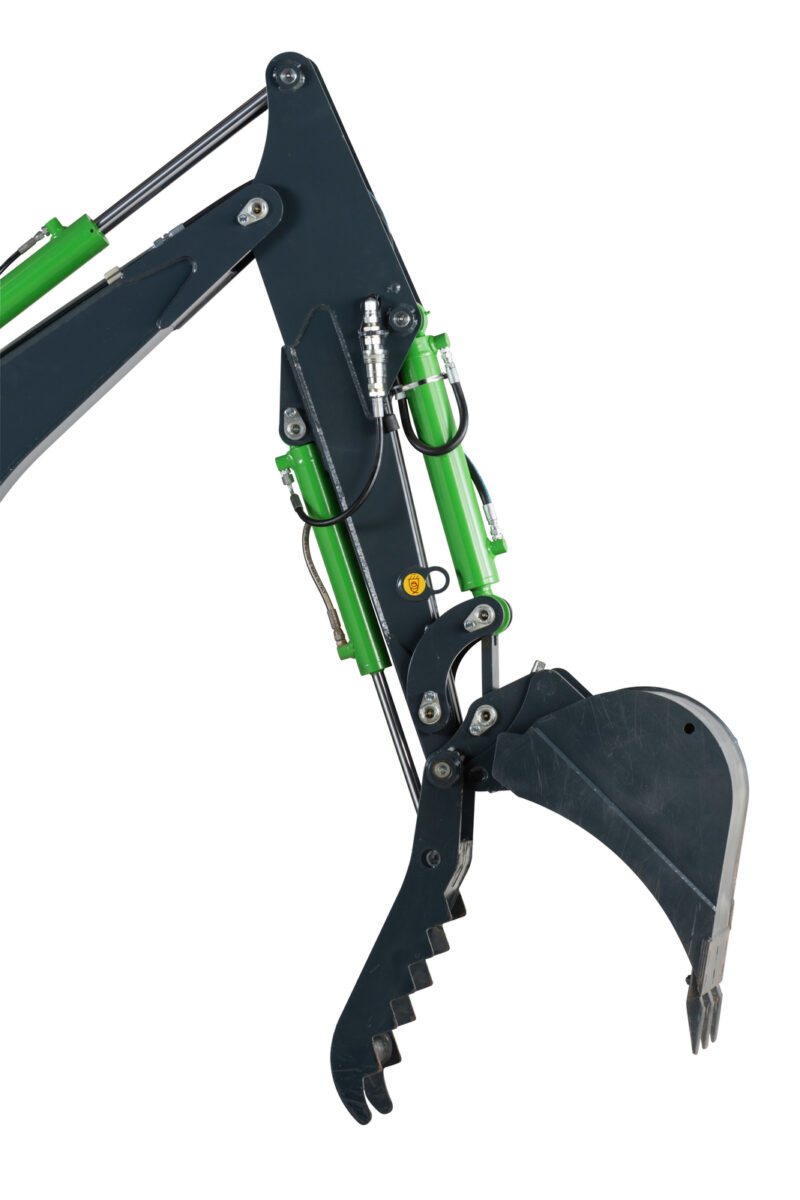

  • Thumb gram available as an option, for handling stones etc. objects

TECHNICAL INFORMATION

Max. digging depth 102 in
Width 51.2 in
Boom swing angle 170 º
Standard bucket 15.7 in/A414304
Weight 925 lb
Product no A37510



OPTIONS

Product Product no
Bucket 9.8 in A414301
Bucket 29.5 in A35230
Bucket 39.4 in A35383

Quick attach adapter S30-150 with sideways tilt

(not when bucket tilt adapter A35249)

A35249
Trapezoidal bucket 25.6 in A21638
Trapezoidal bucket 35.9 in A36374

Thumb grab

(not when bucket tilt adapter A35249)

A435527



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
