AUGER

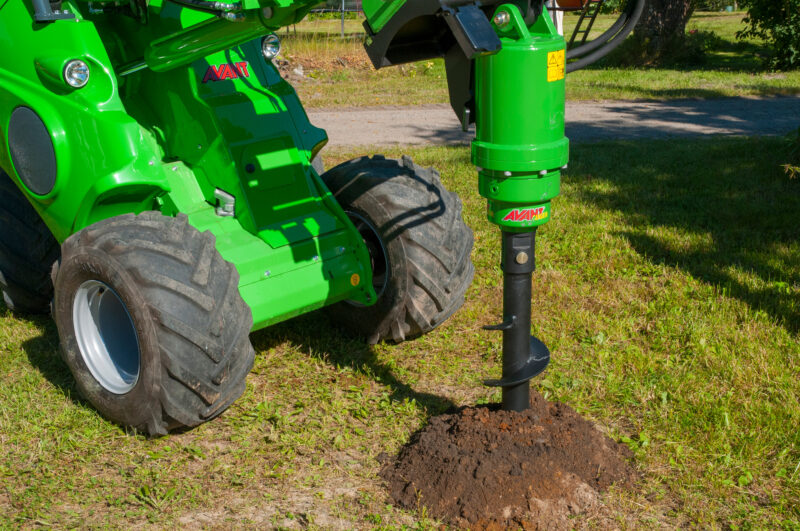

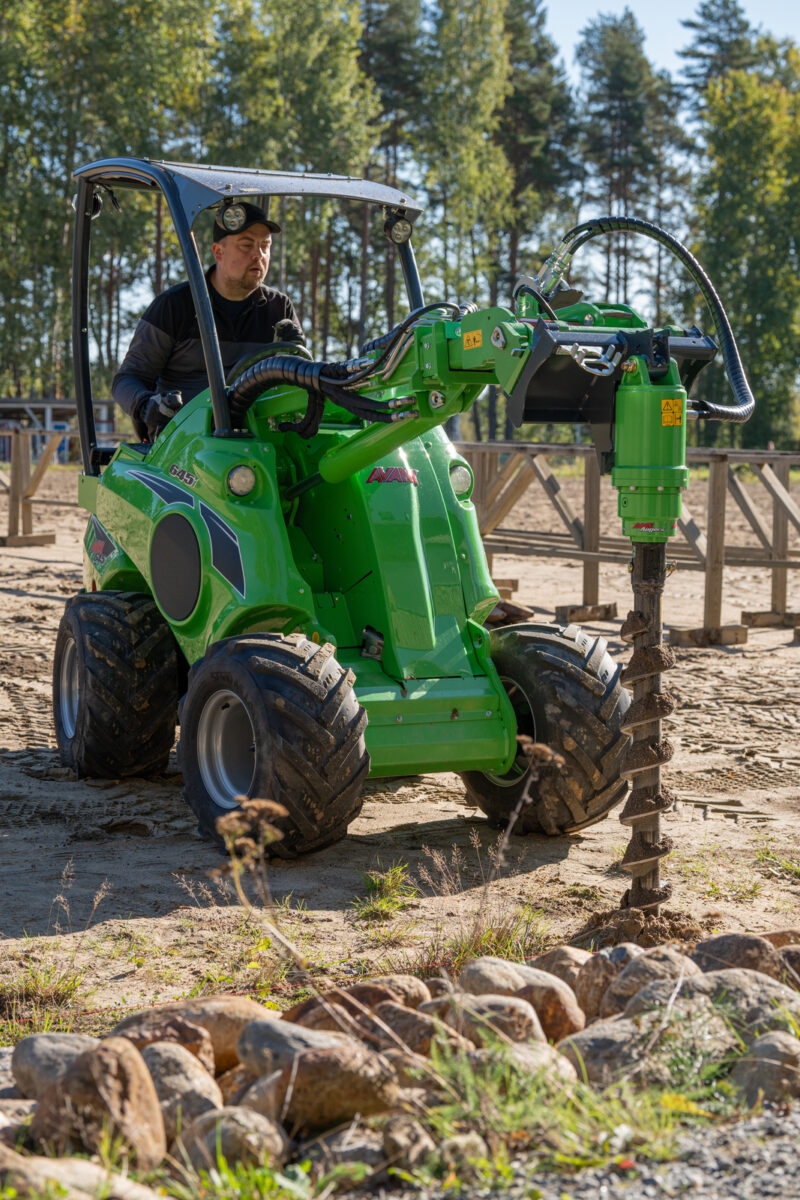

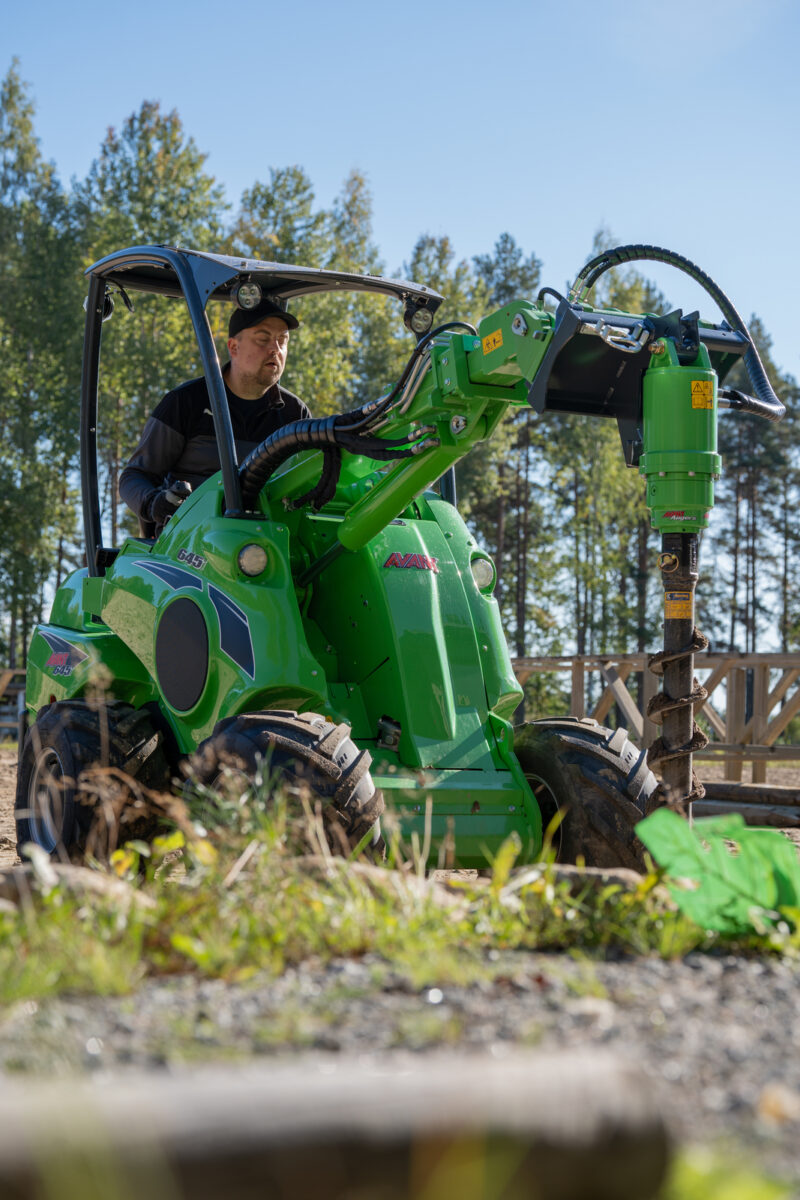

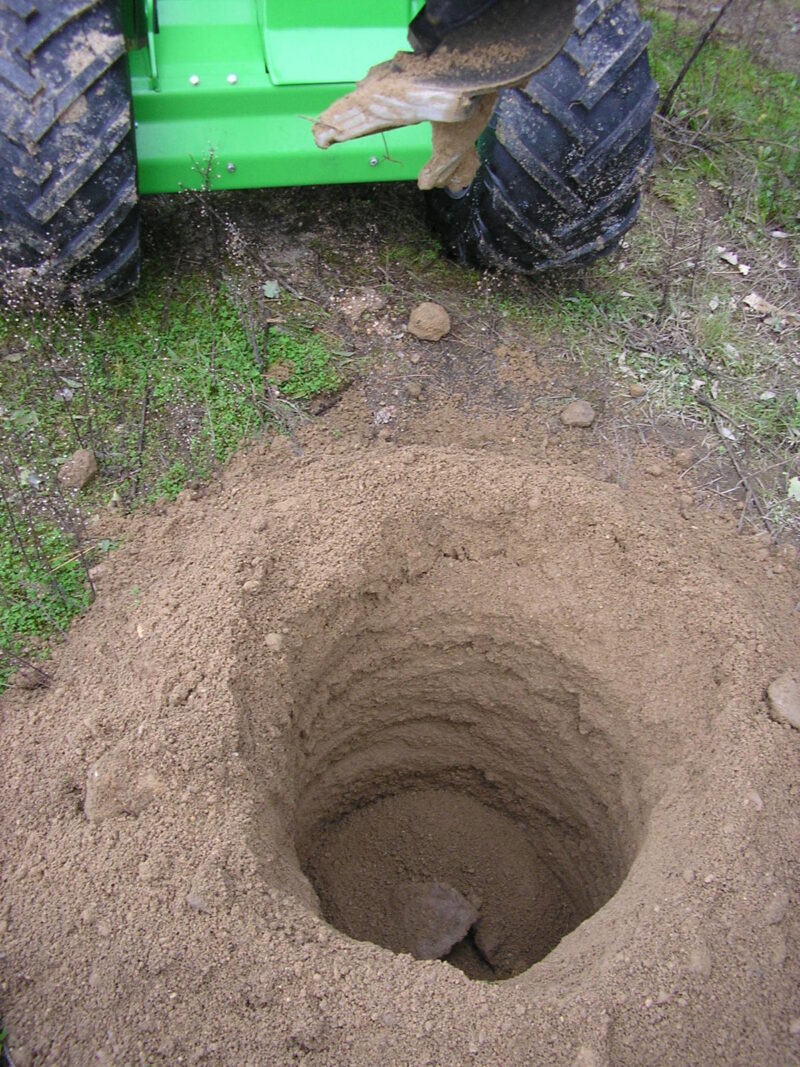

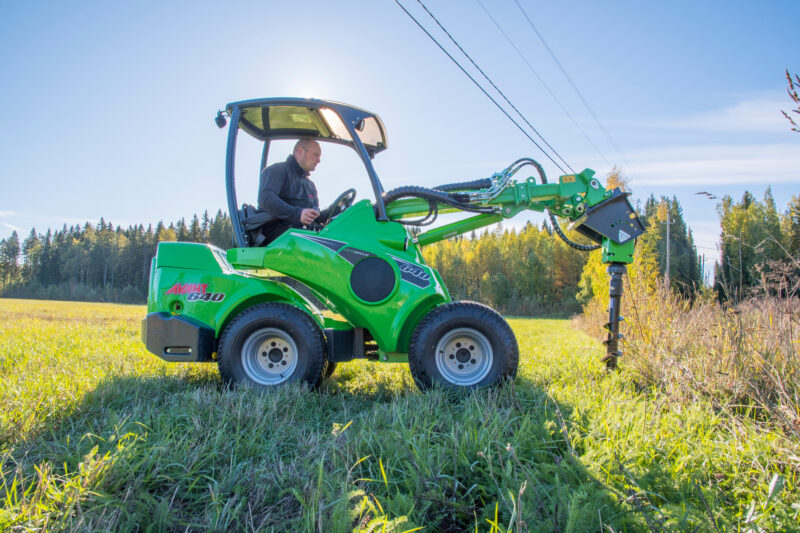

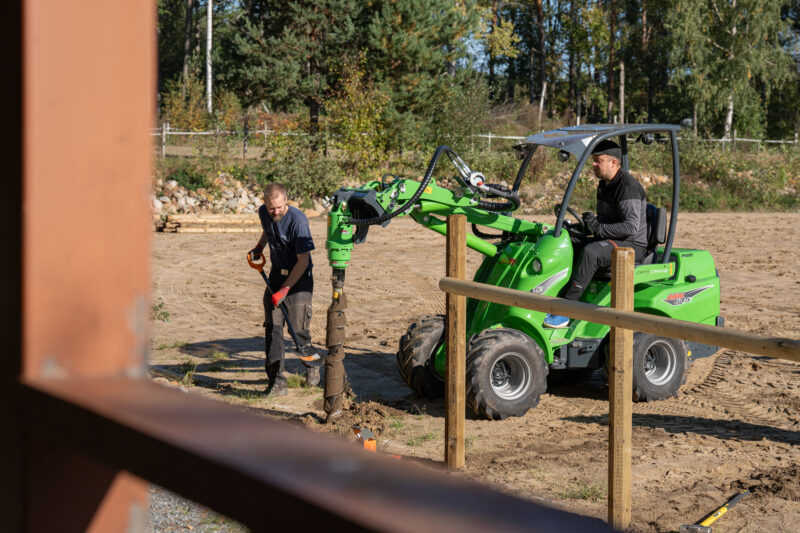

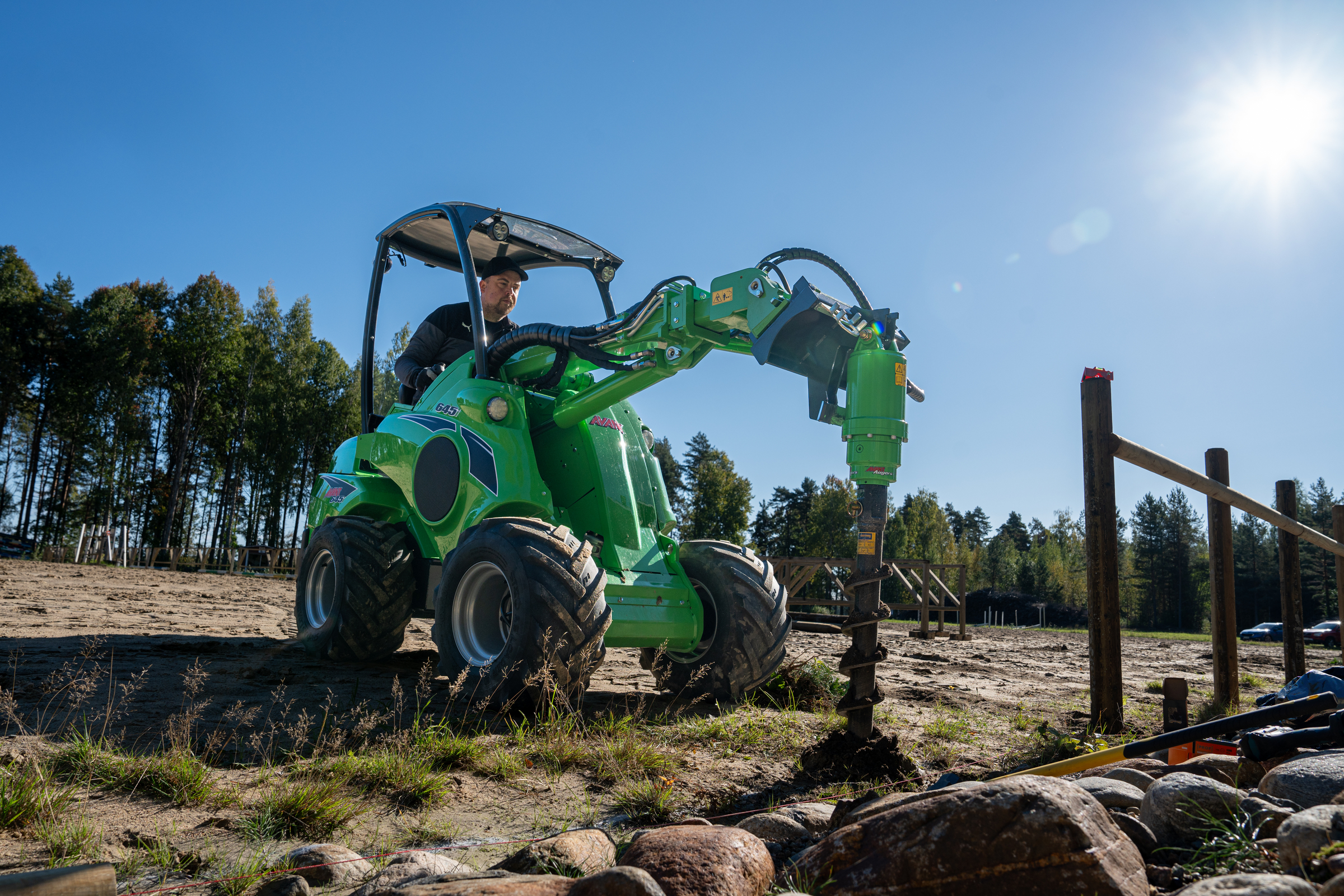

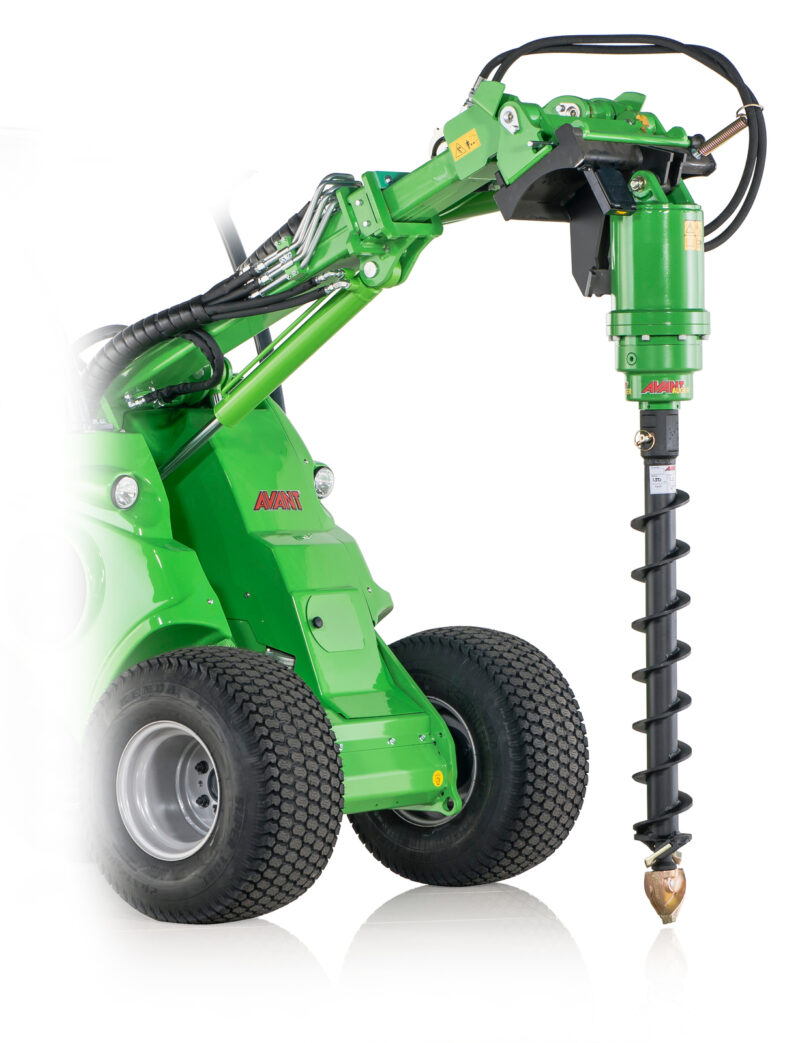

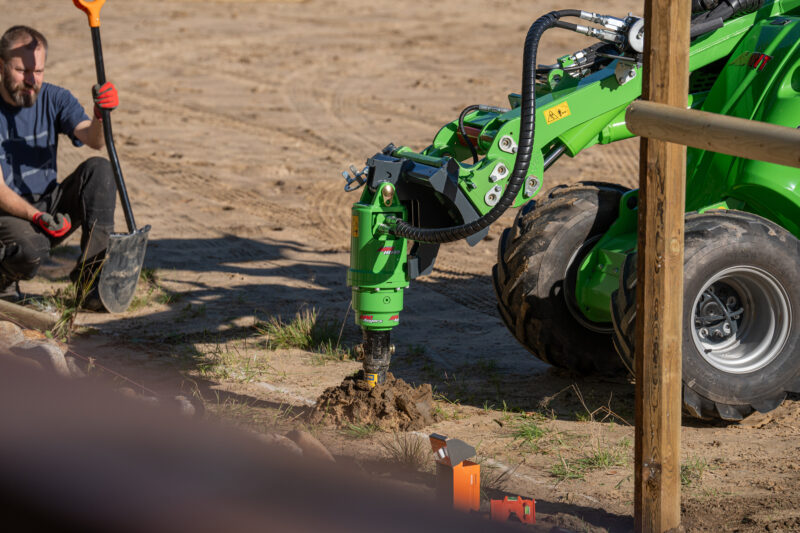

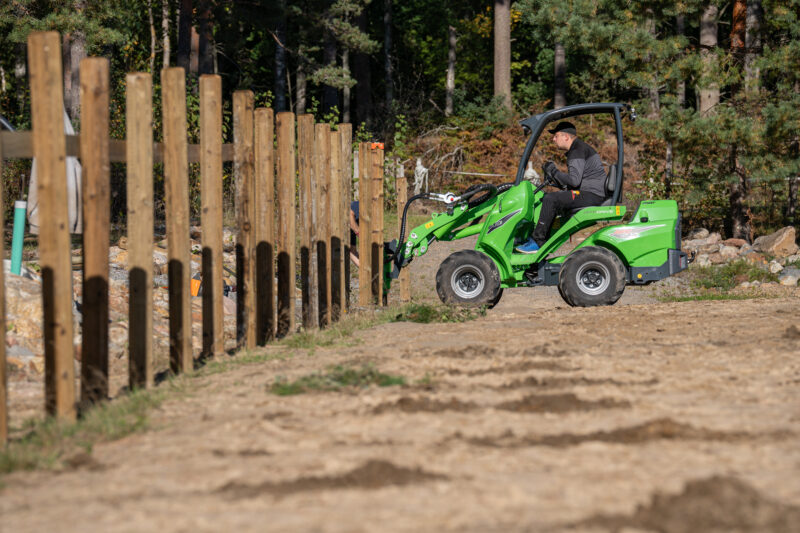

Powerful hydraulic auger with many different auger diameters to suit various tasks, be it post hole boring, tree transplanting etc. Standard drive unit has hydraulic motor and direct drive to the auger. Heavy duty drive unit is equipped with planetary drive to increase torque, needed especially in hard ground conditions or when using large diameter augers. Replaceable tungsten teeth and pilot head are a standard feature in the auger drills. This enables drilling in hard ground as well as in sandstone. Combination of an articulated Avant and auger offer excellent visibility and minimum ground damage

  • Wide range of auger drive units with different torques enables efficient use of 3.0” to 35.4” auger drills

  • The right drive unit for your work depends on the maximum drill diameter needed. Choose the drive unit from the table below.

  • The replaceable tungsten teeth on all auger drills ensure long lifespan also on professional day to day use

  • NEW: 2 way swing adapter to HD auger drives, allows the auger and auger drive to swing sideways as well



TECHNICAL INFORMATION

Model Auger Torque Product no
Direct drive 6 - 12 in 1000 lb/ft A37190
DG1DSS 6 - 24 in 1467 lb/ft DG1DSS
DG3DSS 6 - 36 in 2829 lb/ft DG3DSS



OPTIONS

Product Product no
Auger 6 in DGO6RT
Auger 8 in DGO8RT
Auger 9 in DGO9RT
Auger 10 in DG10RT
Auger 12 in DG12RT
Auger 14 in DG14RT
Auger 16 in DG16RT
Auger 18 in DG18RT
Auger 20 in DG20RT
Auger 24 in DG24RT
Auger 30 in DG30EA
Auger 36 in DG36EA



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
A37190
HD 45-72
