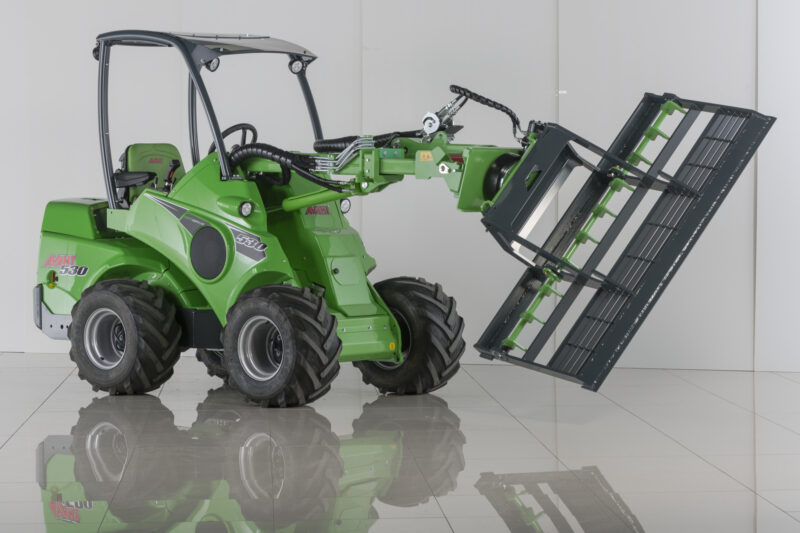

The attachment rotator makes it possible to rotate the attachment 360° continuously (endlessly) in both directions. This is useful in many jobs, for instance when emptying boxes which need to be turned upside down.

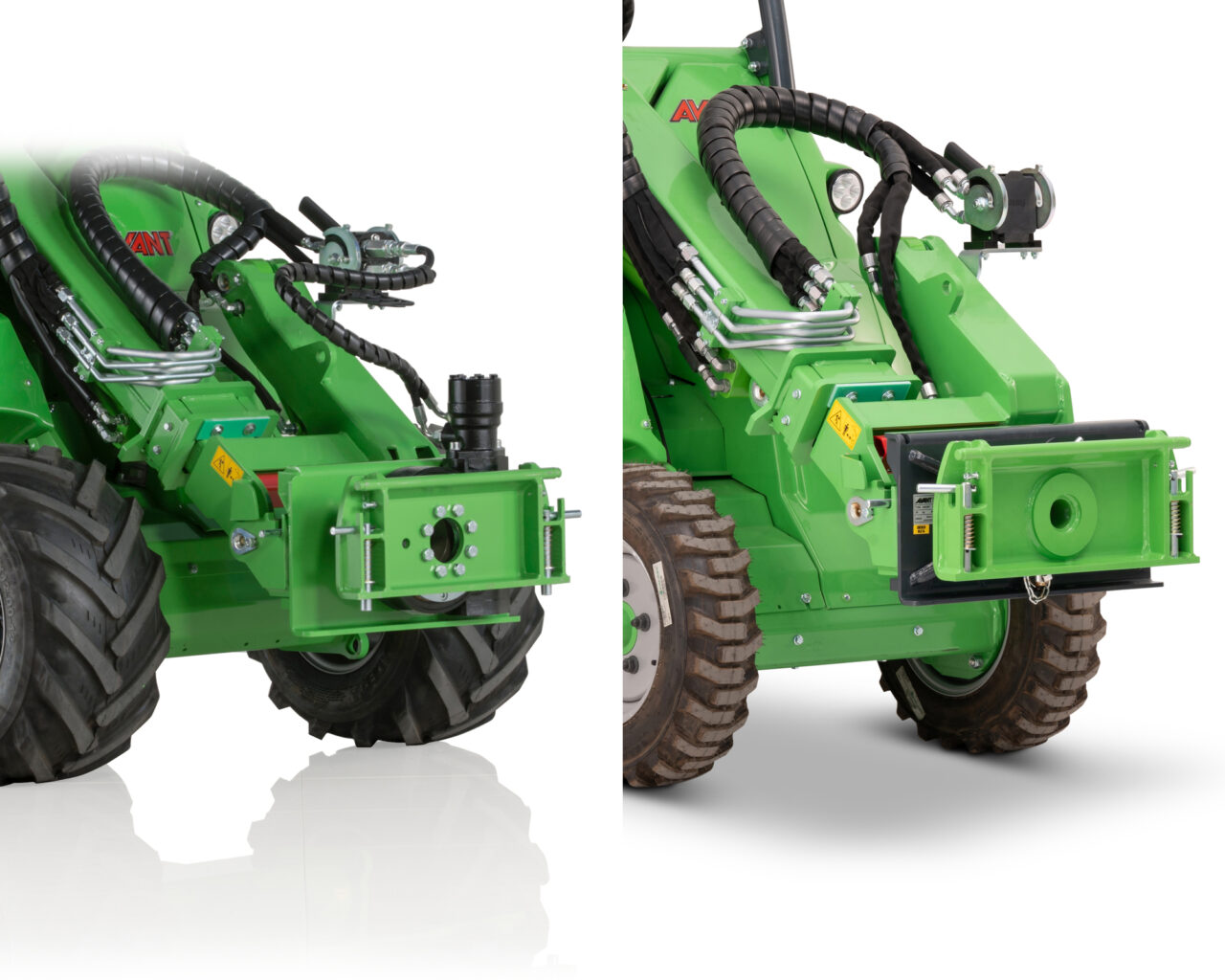

Like the tilt adapters, the rotator mounts between the attachment and the loader’s attachment coupling plate. It is equipped with a hydraulic motor and a slewing ring which allow the 360° rotation. Load capacity is 1.200 kg, and when mounted on the rotator the attachment is 195 mm further away from the loader’s attachment coupling plate .

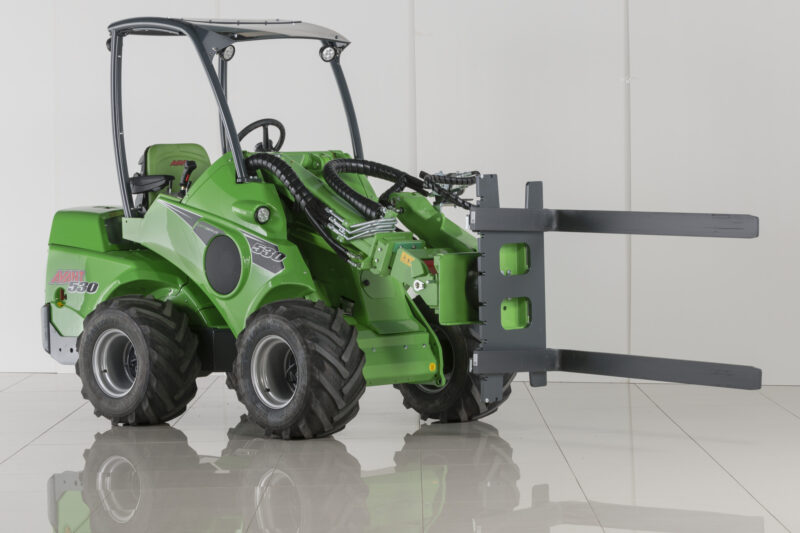

Attachment rotator is basically intended to be used with non-hydraulic attachments like pallet fork and it is equipped with the multi connector as standard, but also a hydraulically driven attachment (4 in 1 bucket, grabbing tool etc.) can be mounted. In this case the loader must be equipped with the optional second auxiliary hydraulics front outlet. Hydraulic hoses of the attachments are mounted on the standard multi connector, and the rotator hoses on the extra front outlet.
|Rated max load||1.200kg|
|Recomented oil flow||10-30 l/min|
|Max. oil flow||50 l/min / 225 bar|
