TECHNICAL FEATURES - LEGUAN 135 NEO

MAX. WORKING HEIGHT

13.4 m

MAX. SIDE REACH

7.1 m

MAX. LIFT CAPACITY

250 kg

MAX. PLATFORM HEIGHT

11.4 m

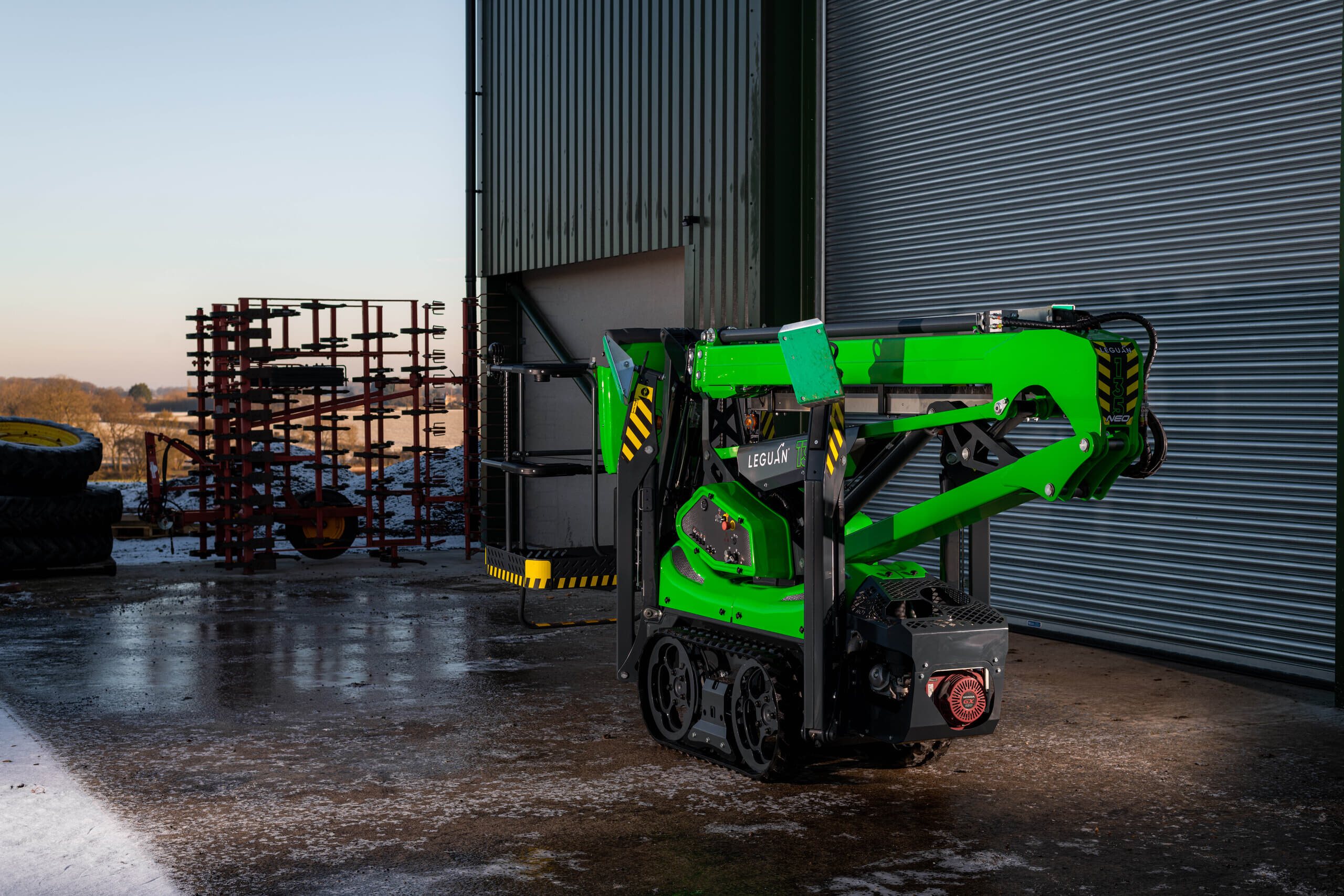

USER-FRIENDLY AND VERSATILE JOYSTICK-CONTROLLED SPIDER LIFT

LEGUAN 135 NEO represents new generation of spider lifts combining easy-to-use interface, heavy lifting capacity, and efficiency-enhancing technology. The state-of-the-art joystick control allows simultaneous use of multiple boom movements with just one hand. Setting up or finishing the operation is efficient with the help of the smart automatic levelling function and the home function that brings booms automatically back to transport position.

Transitioning the Leguan 135 NEO through tight entrances is easy due to smooth drive control and small width of the spider lift. The new innovative boom structure helps the operator to maintain distance to the walls and the unparalleled user interface makes controlling the spider lift easier than ever before. The Leguan 135 NEO is a great fit for rental use and all kinds of facility maintenance and installation work both indoors and outdoors.



TECHNICAL FEATURES

Max. lift capacity 250 kg (2 persons)
Max. working height 13.40 m
Max. platform height 11.40 m
Max. outreach 7.1 m (120 kg) –
6.6 m (250 kg)
Transport dimensions, L x W x H 4.58 x 1.33 x 1.93 m
Platform dimensions 1.33 x 0.75 m
Rotation of THE PLATFORM 80º (±40º)
Slewing 360º
Gradeability 40% (22º)
Dimensions w/o platform, L x W 3.91 x 0.89 m
Outrigger support dimensions 3.27 x 3.29 m
Max. slope for outriggers 21% (12º)
weight 1.650 kg
Engine Honda 13 hp petrol or
230 V / 2.2 kW electric
Drive system: hydraulic 4WD / tracks
Max. Drive speed 2.5 km/h



Standard features

  • 13 hp Honda petrol engine + 230 V electric motor
  • 230 V and 12 V power outlets on platform
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home function / Back to work position function
  • Electric and hand pump powered emergency lowering
  • Lower controls
  • 12 V booster points

Optional features

  • Platform control panel lighting and LED spotlights
  • Remote control for driving and outriggers
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Signal horn
  • Larger plates for outriggers
  • Non-marking tracks / tyres
  • Narrow single person platform
  • Leguan special trailer

Measurements

Leguan 135 NEO
