Vacuum brush

More images

plus

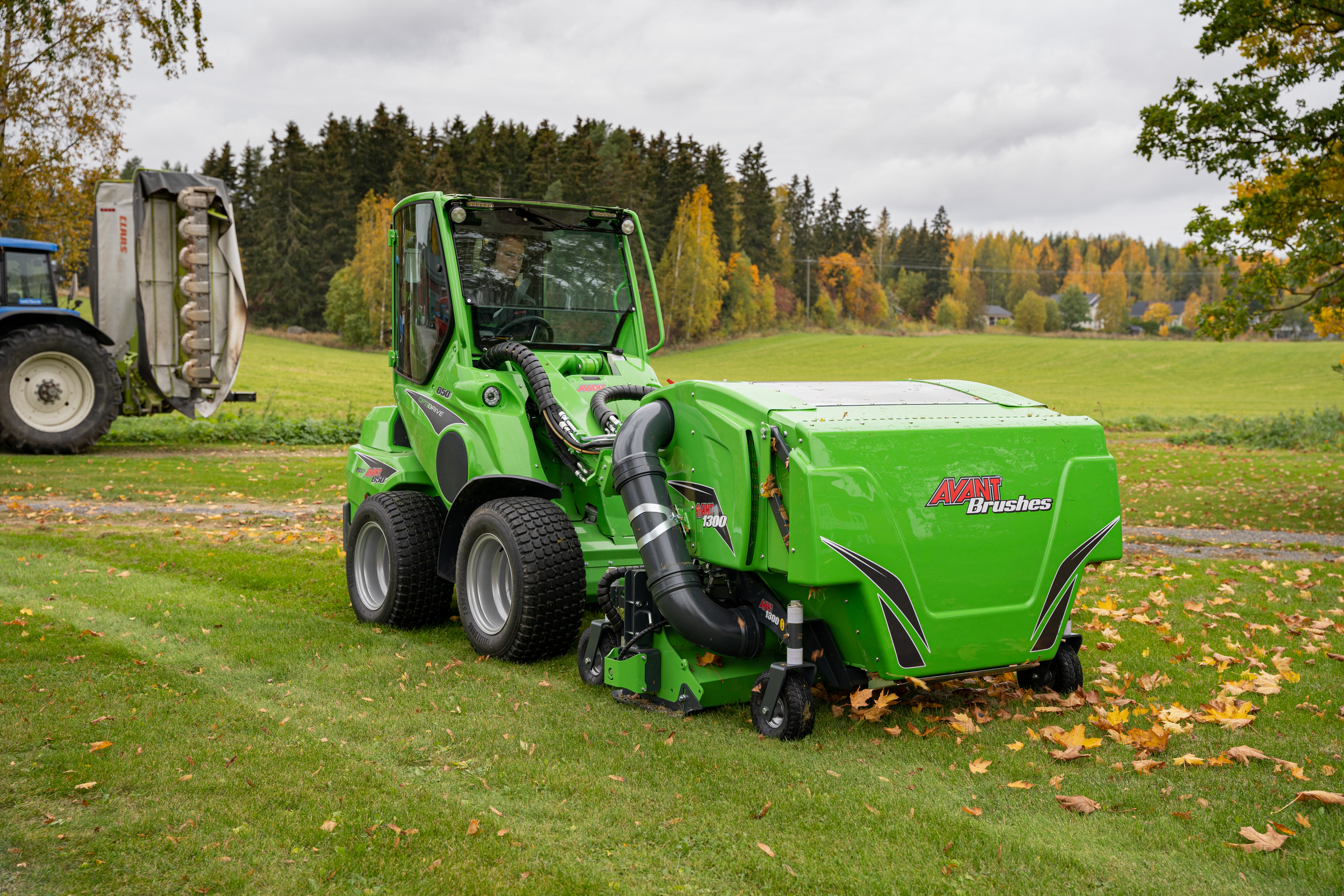

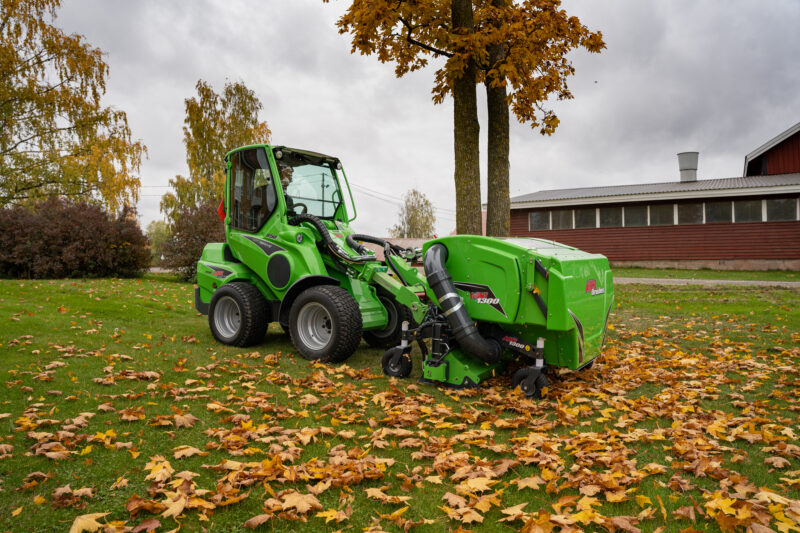

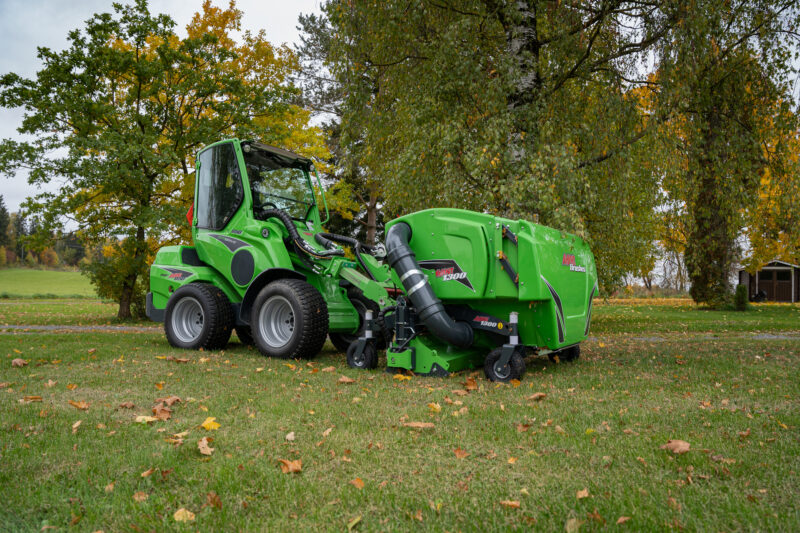

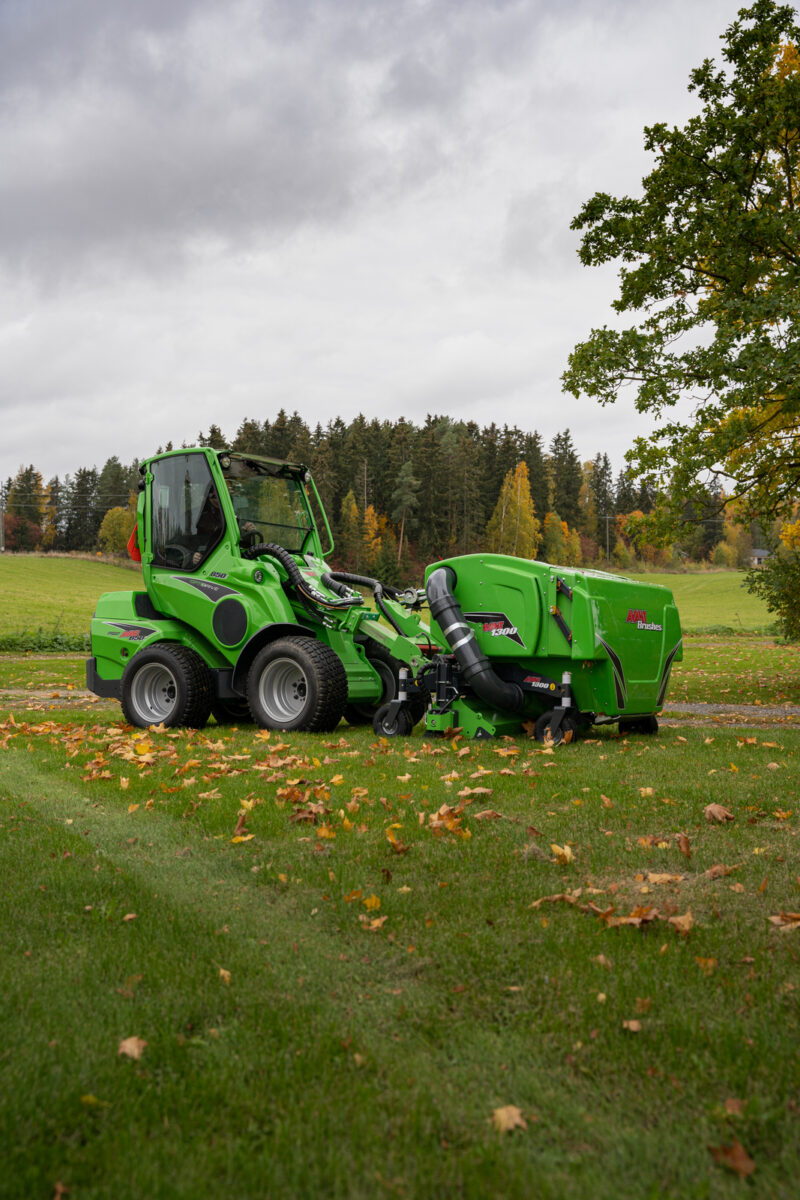

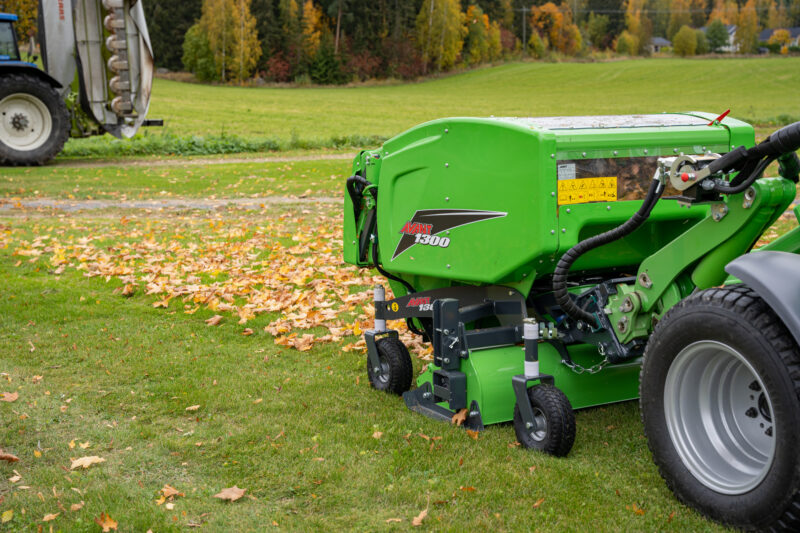

The vacuum brush is intended mainly for collecting tree leaves in parks, lawns, yards, etc. The powerful vacuum unit sucks the waste first into the vacuum on the bottom of the collector box and then into the box, compacting everything into a tight package.

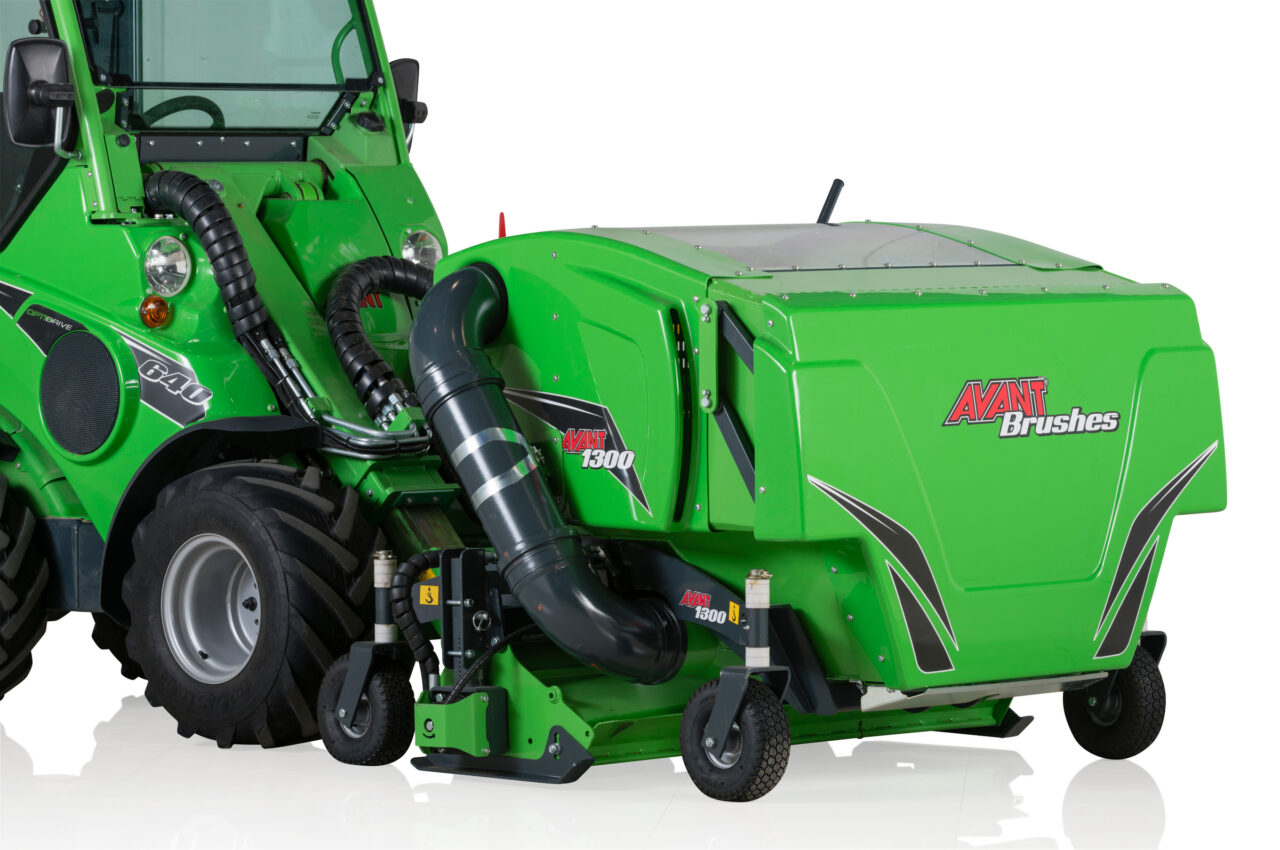

The mouthpiece on the vacuum is equipped with a 1300 mm wide rotary brush which loosens also more compacted and wet leaves and waste. Brush rotation speed can be adjusted steplessly.

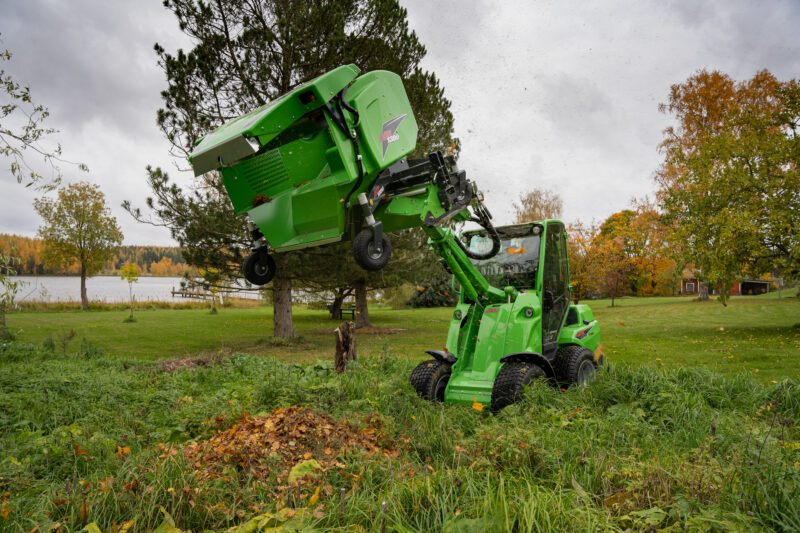

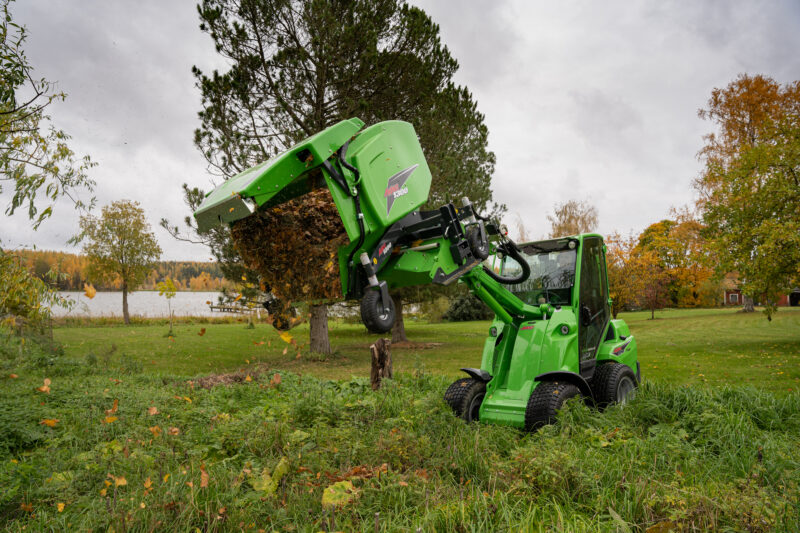

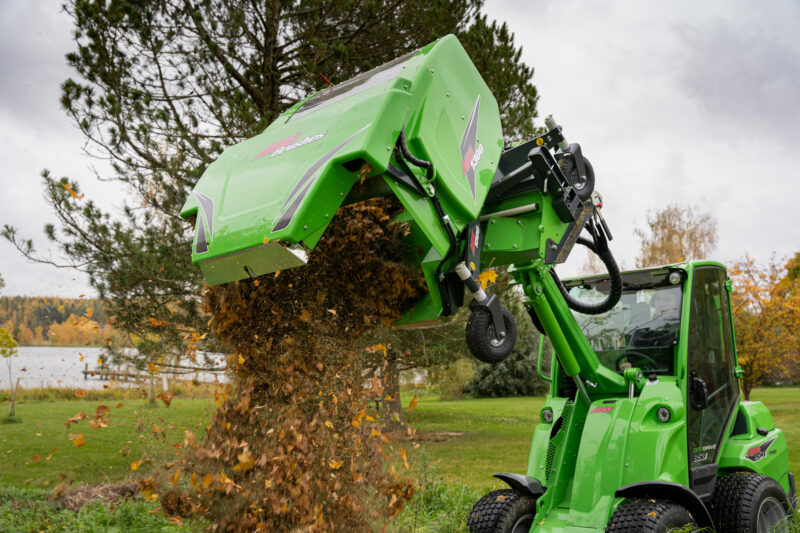

The collector box (same box as on A37411 Collecting lawn mower 1500) is mounted on top of the vacuum unit. It is equipped with large transparent plastic windows so that you can easily monitor how the box is filling up. The box is emptied by opening the lid (powered by a hydraulic cylinder) from Avant’s driver seat and by lifting the boom the collected waste can be tipped into a container, skip etc.

  • Efficient leaf collector
  • Large volume collector box allows fast collecting
  • Equipped with Optifloat™ system, works well on uneven surfaces also
  • Fast and easy floating adjustment with indicator arrows on the Optifloat™
  • Easy emptying thanks to hydraulic lid opening from Avant’s driver seat

TECHNICAL INFORMATION

Working width 1300 mm
Total width 1590 mm
Collector box volume 800 l
Length 1540 mm
Height 1190 mm
Weight 435 kg
Product no A428800

Option

Handheld vacuuming tube A431787



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
