Timber grab HD

More images

plus

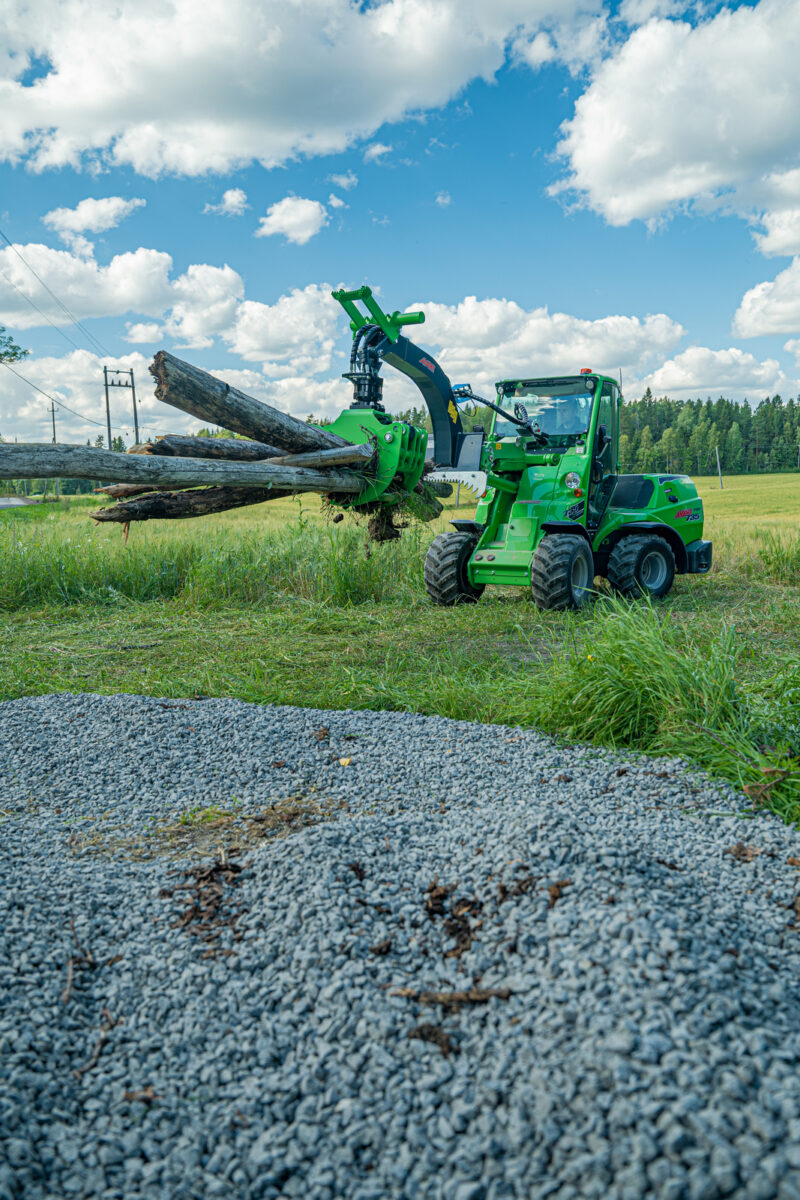

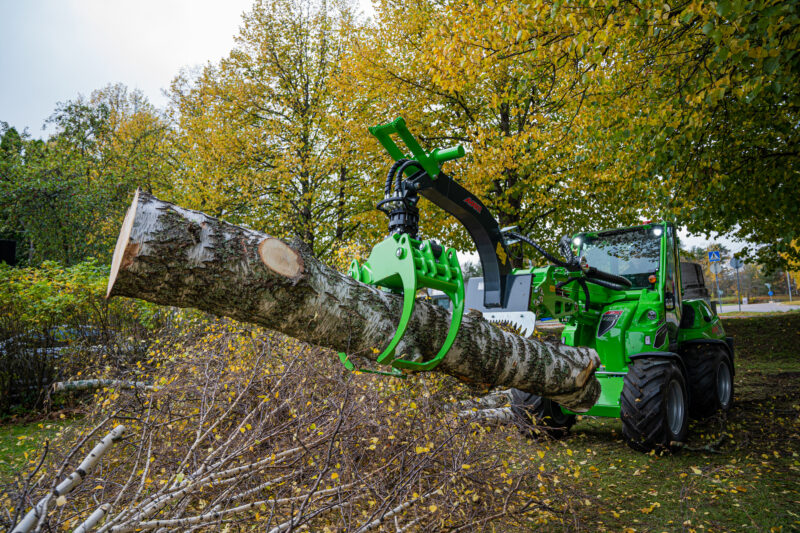

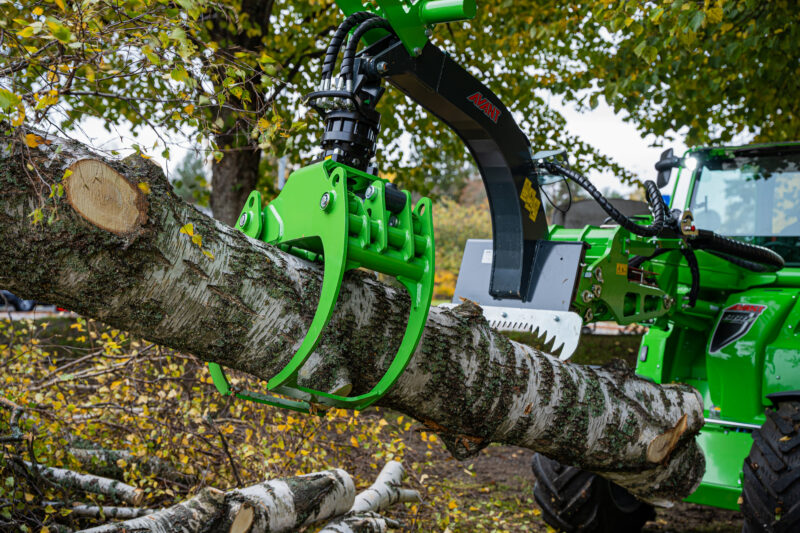

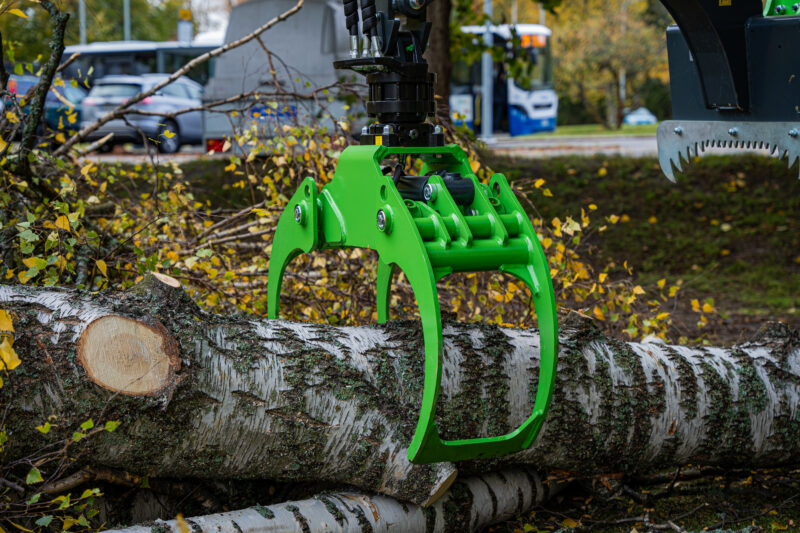

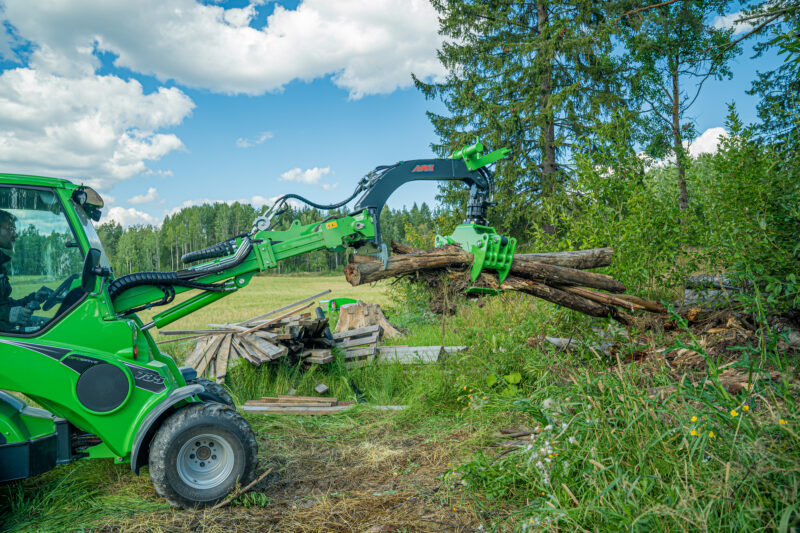

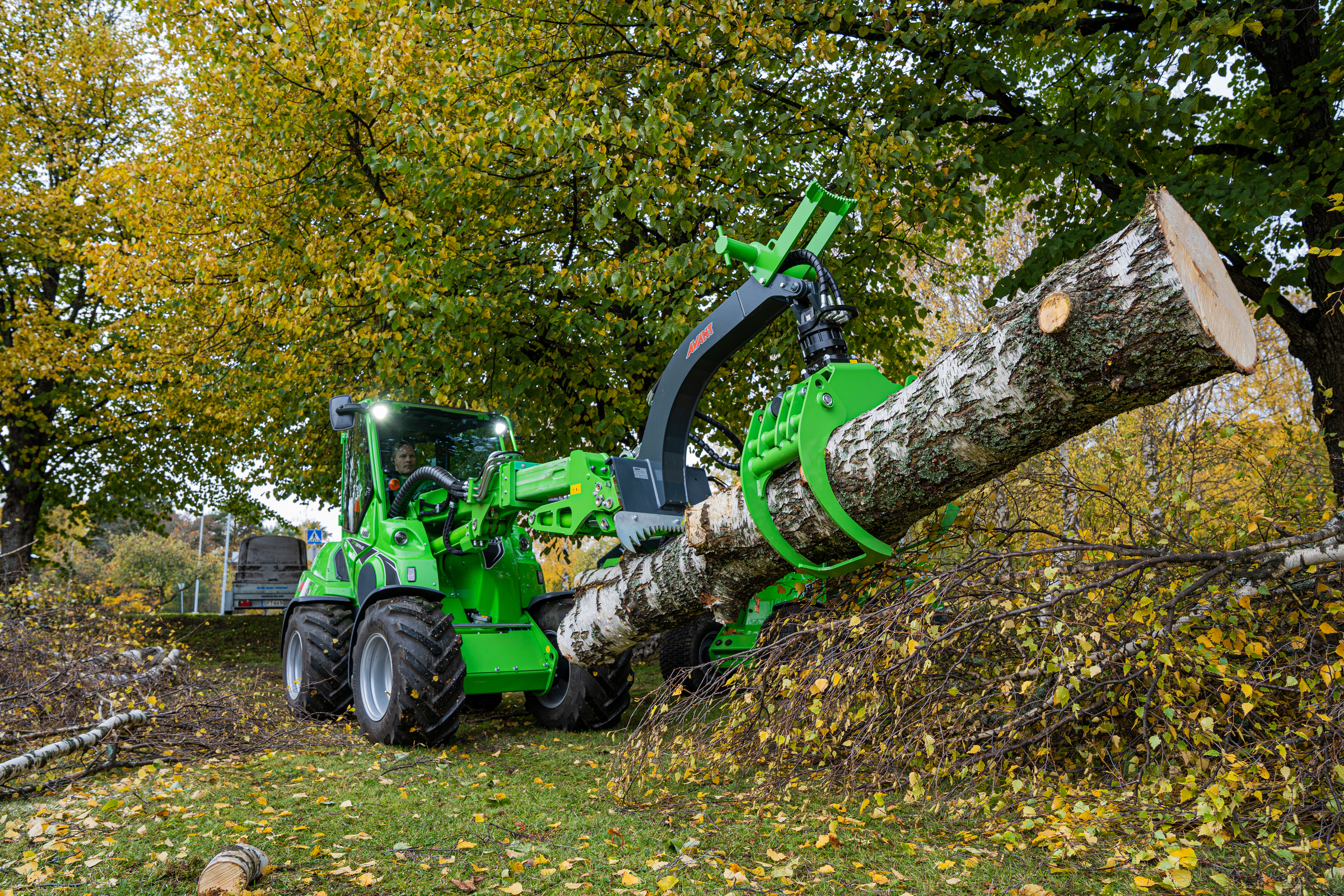

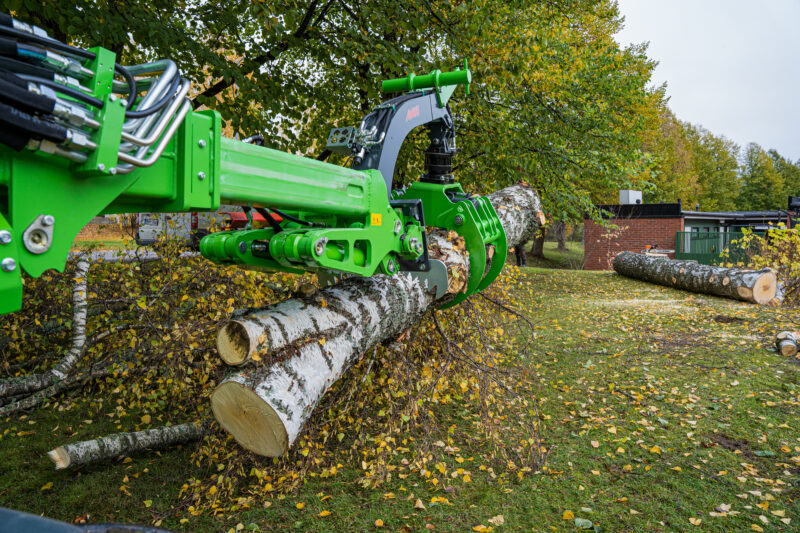

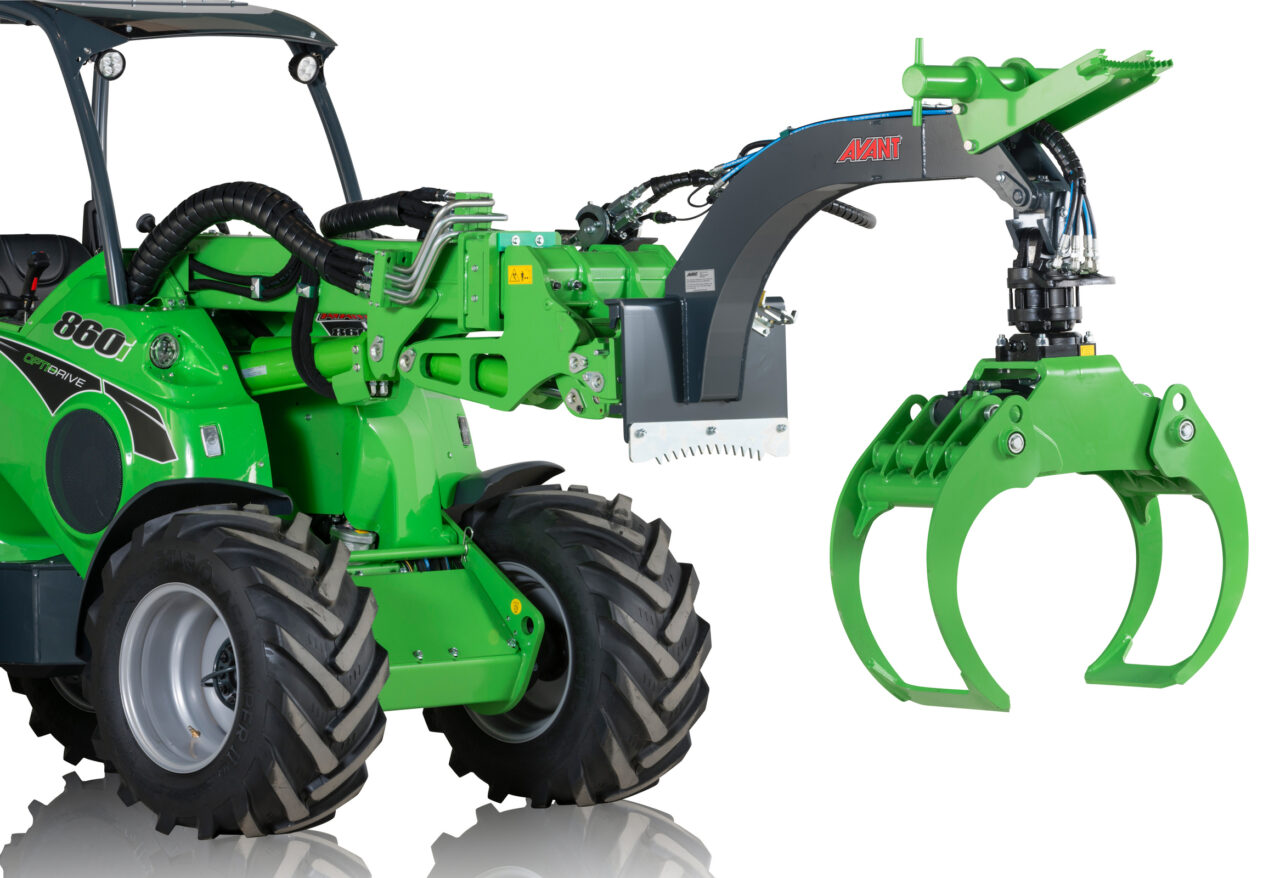

The heavy-duty timber grab is equipped with a stronger boom and hydraulic rotator and larger grapple. It is intended especially for Avant 700 and 800 series.

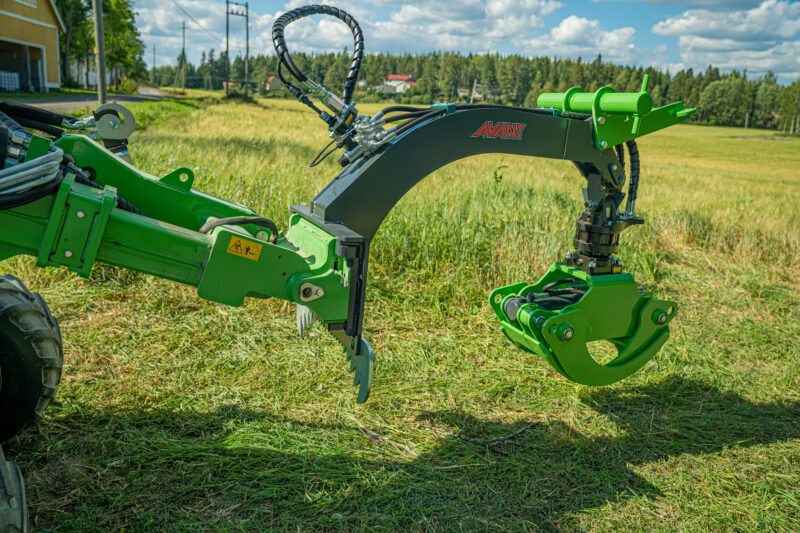

The arborist kit which mounts on the boom is also a standard feature.

When cutting a tree you can push the tree down with it if necessary, instead of pushing by hand. It is also possible to attach a rope on the bracket on the kit, which enables towing the logs by pulling them with the loader.

  • HD grab with stronger boom and rotator and larger grapple
  • Arborist kit as standard
  • Intended especially for 700 and 800 series

TECHNICAL INFORMATION

Rotation type Hydraulic
Grapple opening diameter 1340 mm
Grip area 0,2 m2
Weight 280 kg
Product no. A438973



The optional Opticontrol is recommended with a grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).

There are also two timber grab models that mount directly on the attachment coupling plate of the loader: one with hydraulic rotator and one without a rotator. They are equipped with the same grapple as the A438973 HD grab.

Mounting on loader's quick attach plate

Rotation type No rotation Hydraulic
Grapple opening diameter 1340 mm 1340 mm
Grip area 0,2 m2 0,2 m2
Weight 160 kg 210 kg
Product no. A436473 A437203

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
w/ boom
w/o boom
