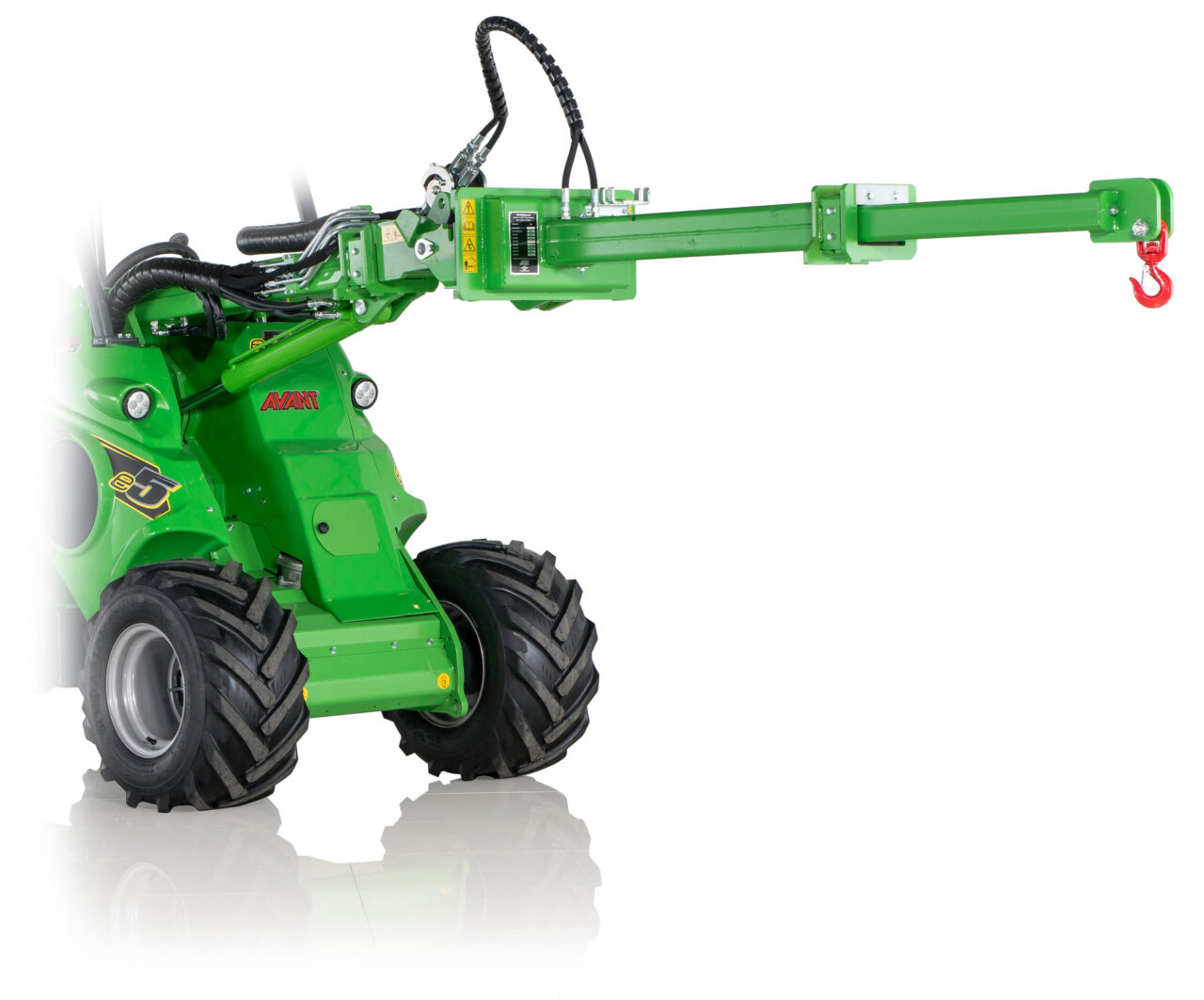

The hydraulically telescoping jib boom is a very efficient and versatile tool in all lifting jobs on the work site. The steplessly extending and retracting boom allows lifting to places that would otherwise be very hard to reach. Compact design with telescoping cylinder inside the boom makes work safe and easy.
The jib boom is equipped with a rotating lifting hook and durable wear pads on the outer boom.
|Max. boom length||1900 mm|
|Min. boom length||1300 mm|
|Max. Lifting height*||5,22 m|
|Max load Avant 800 ser*||500kg|
|Max load Avant 700 ser*||400 kg|
|Max load Avant 600 ser*||300 kg|
|Max load Avant 500 ser*||250 kg|
|Max. outreach*||3,05 m|
* Both the telescopic boom of the loader and the jib boom extended to maximum outreach.
