Up
Digging and construction

Tarbox

plus

Buckets, material handling

GENERAL BUCKET

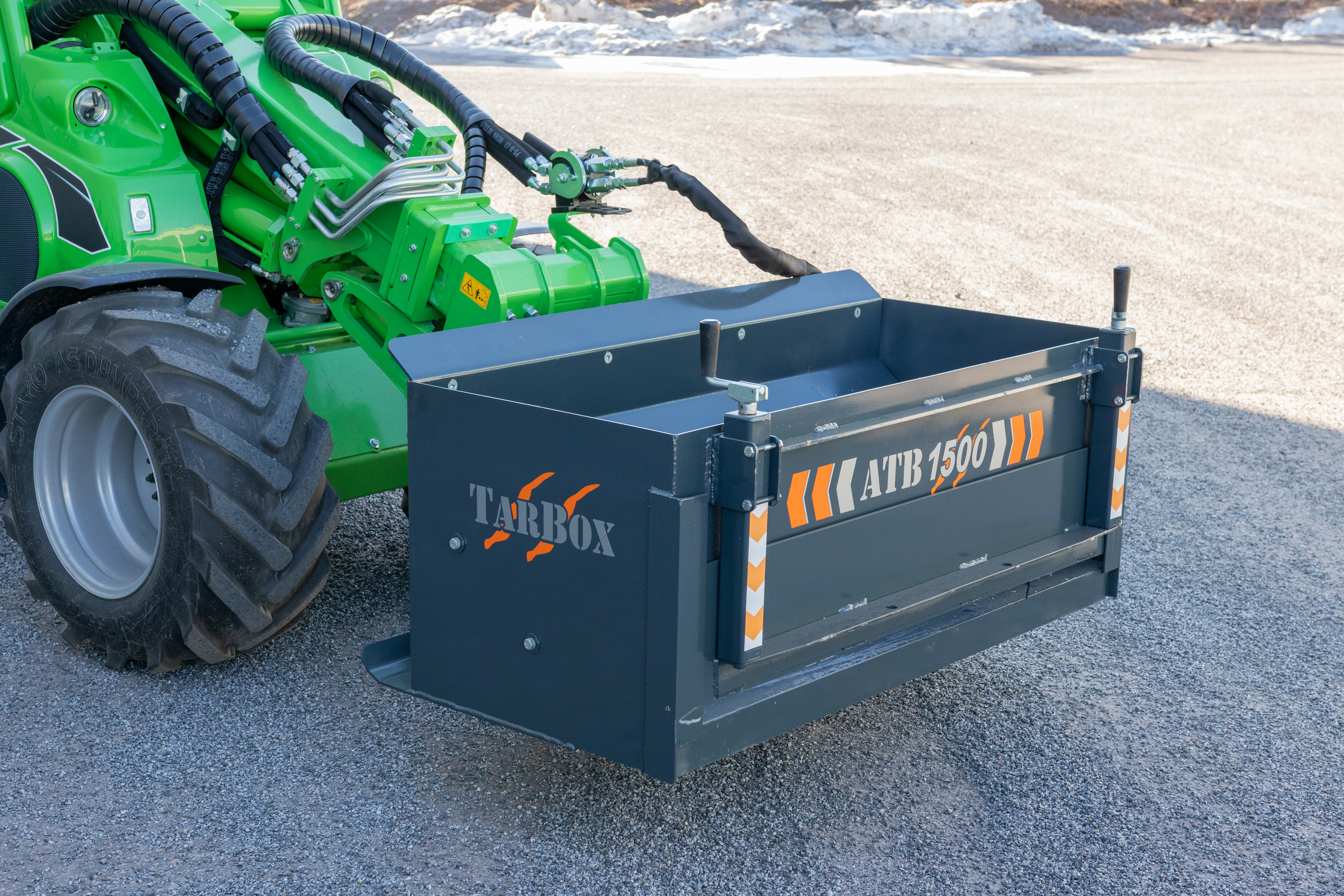

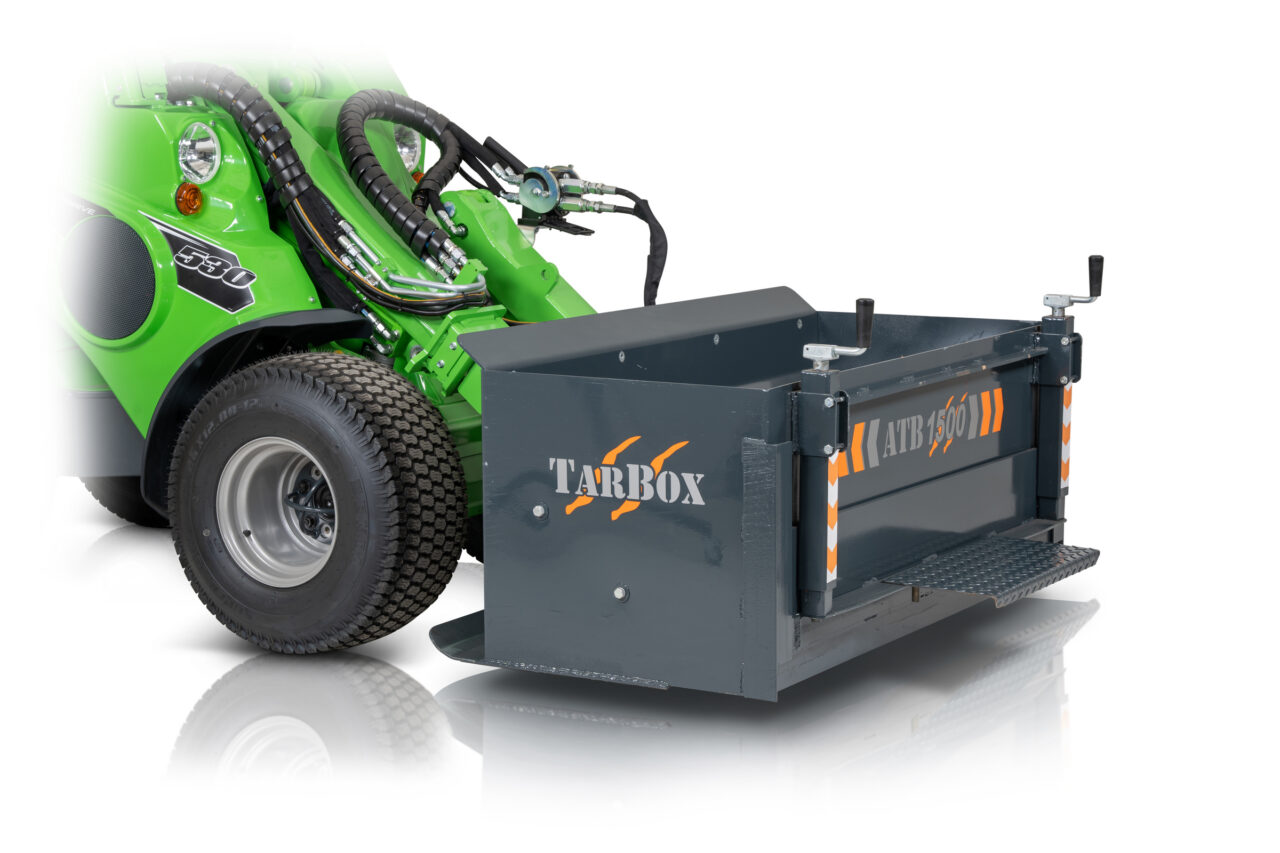

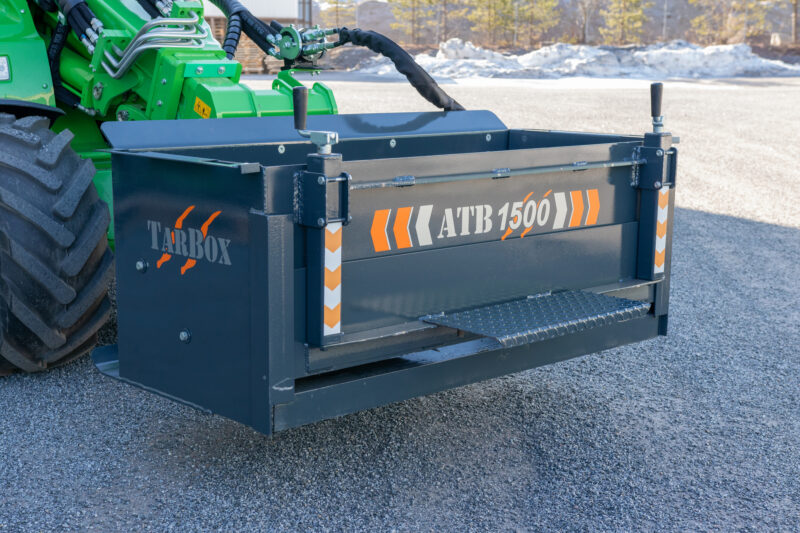

An economic attachment for placing Asphalt, Tar or any Screed materials. Ideal for pathways and areas that a placer machine cannot gain access. The AVANT Tarbox is available in 1500 mm width with 200 mm offset to both sides. A width reducing plate allows narrow trenches or strips to be filled. Material depth control is via screw control. The easy to operate TarBox will increase productivity on any job.



  • Fill via Truck chutes
  • Simple Hydraulic Discharge
  • Adjustable Strike plate for easy depth control





TECHNICAL INFORMATION

Working width 1500 mm (can be reduced with the width reducing plate)
Volume 315 l
Weight 350 kg
Product no A438861

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
