SNOW PLOW

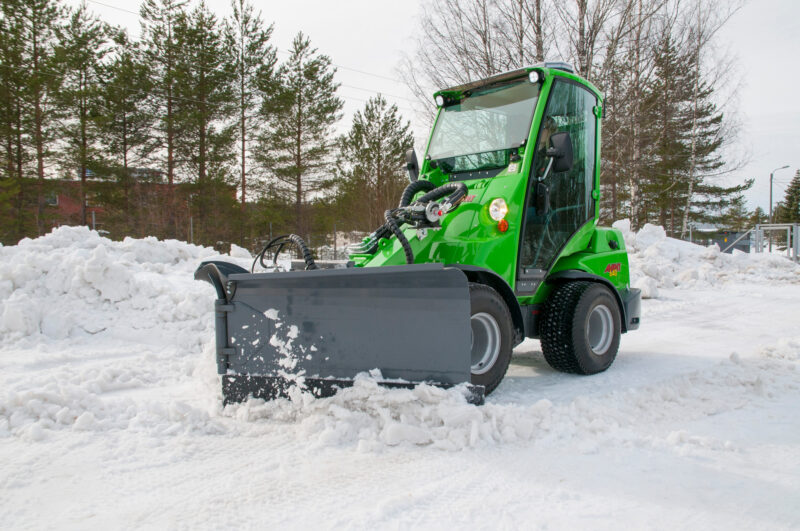

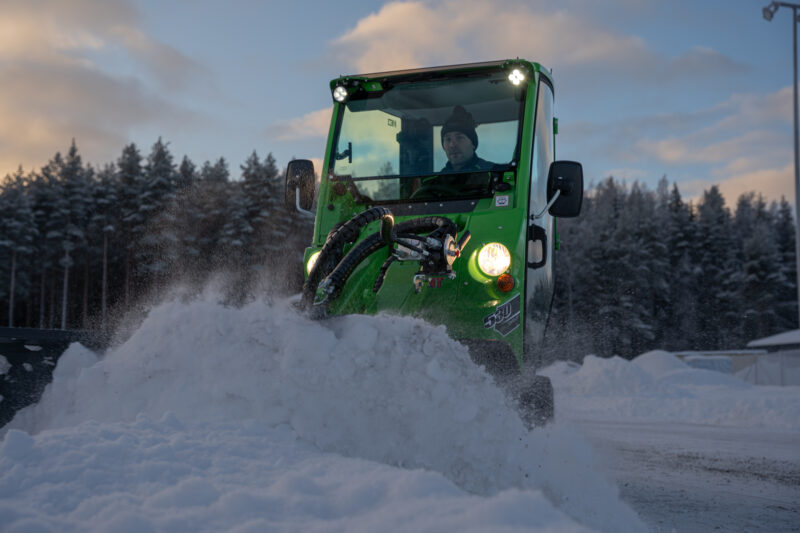

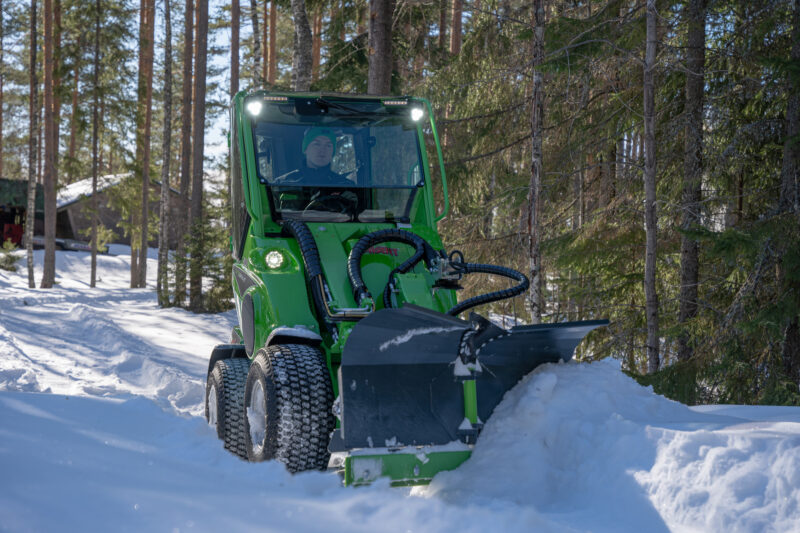

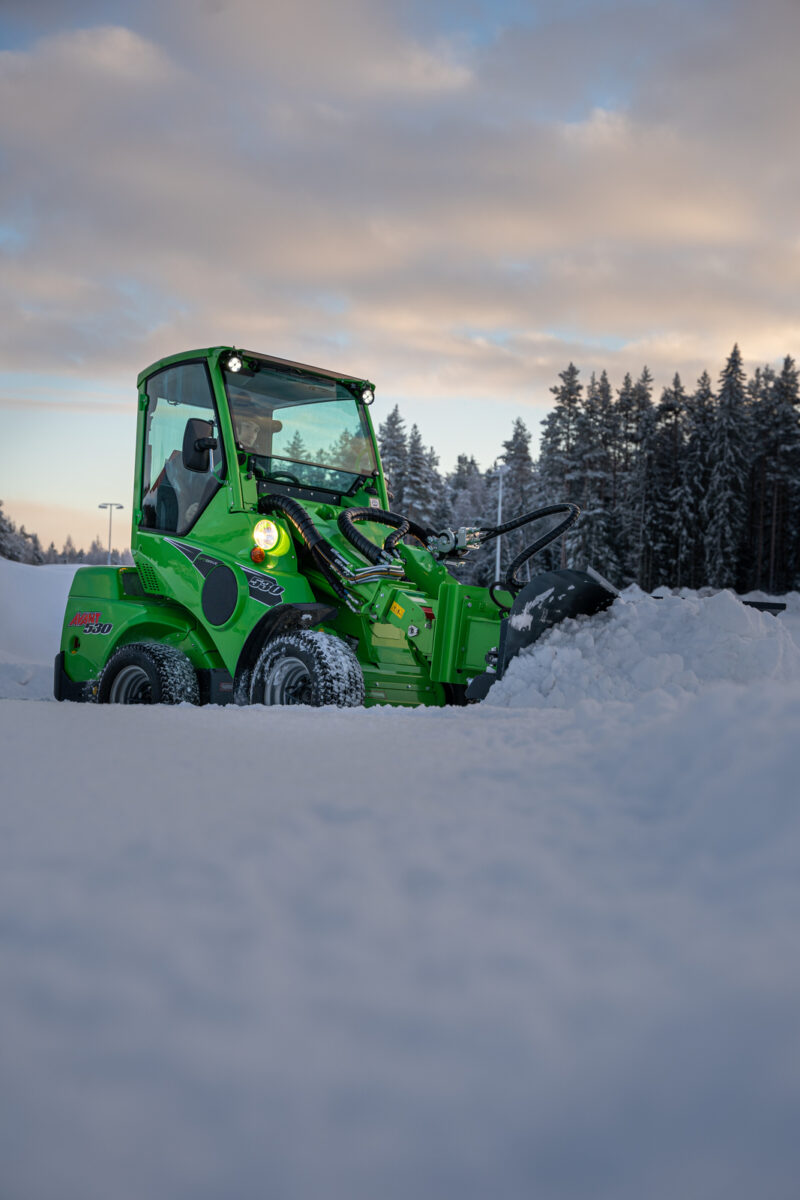

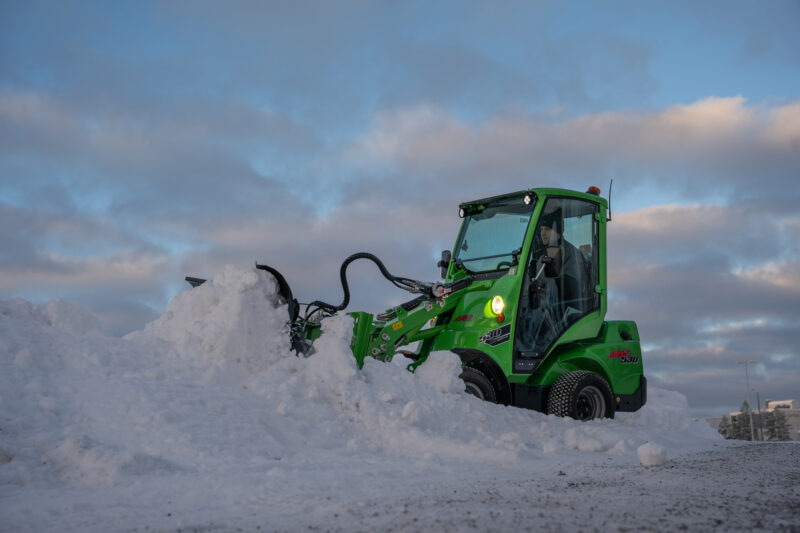

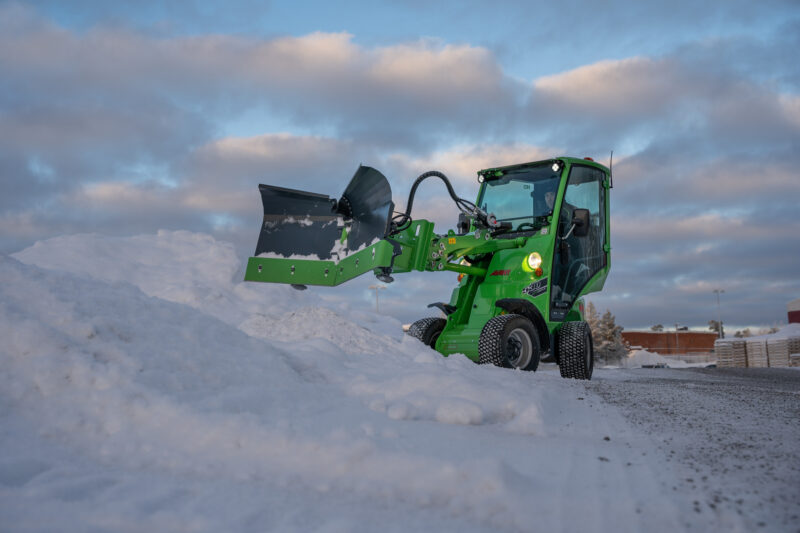

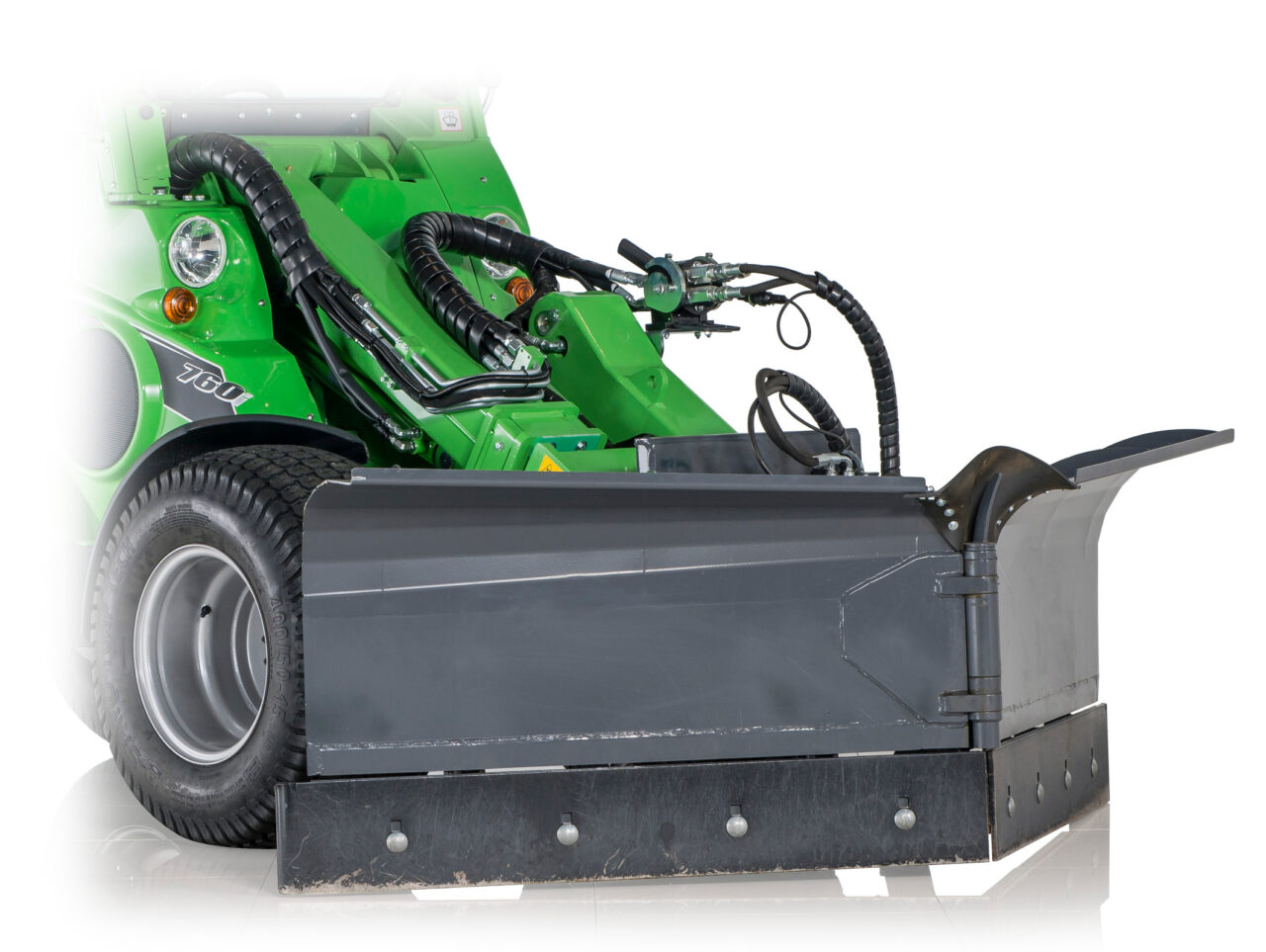

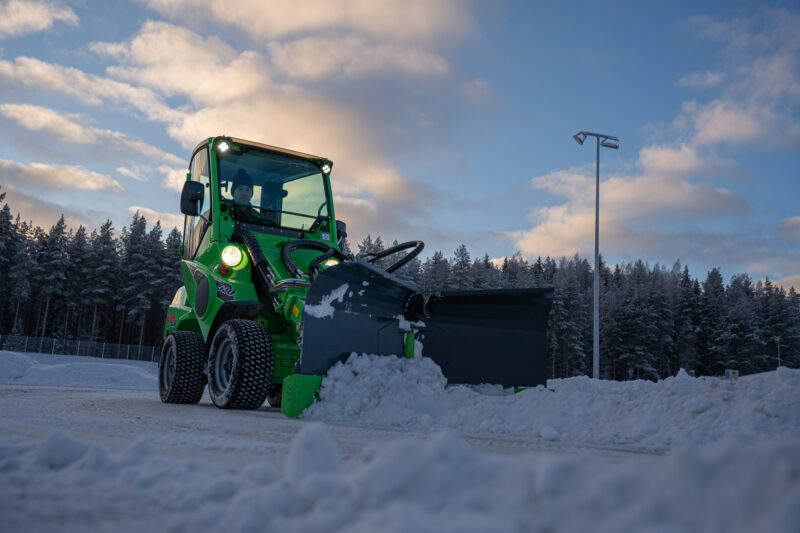

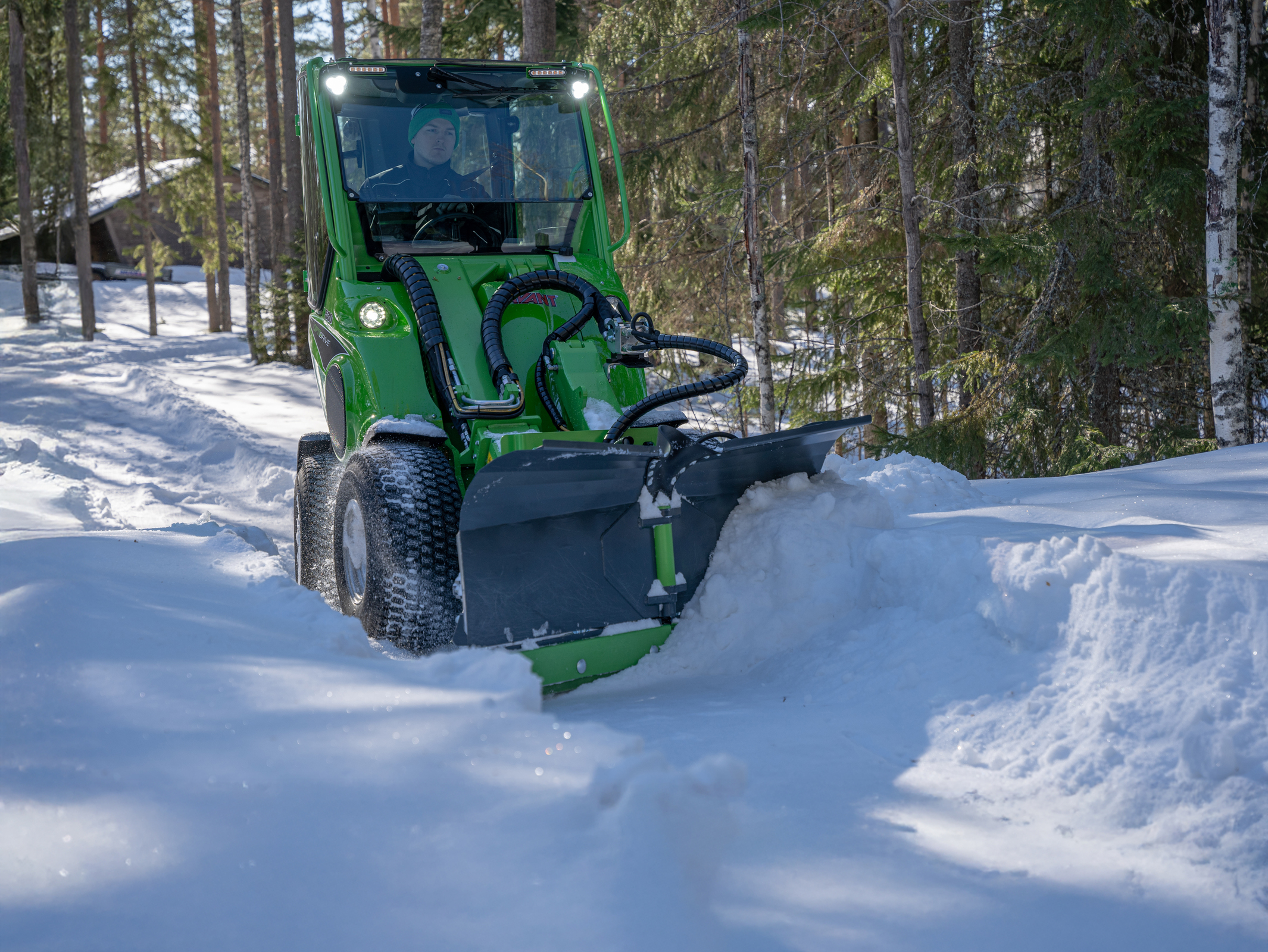

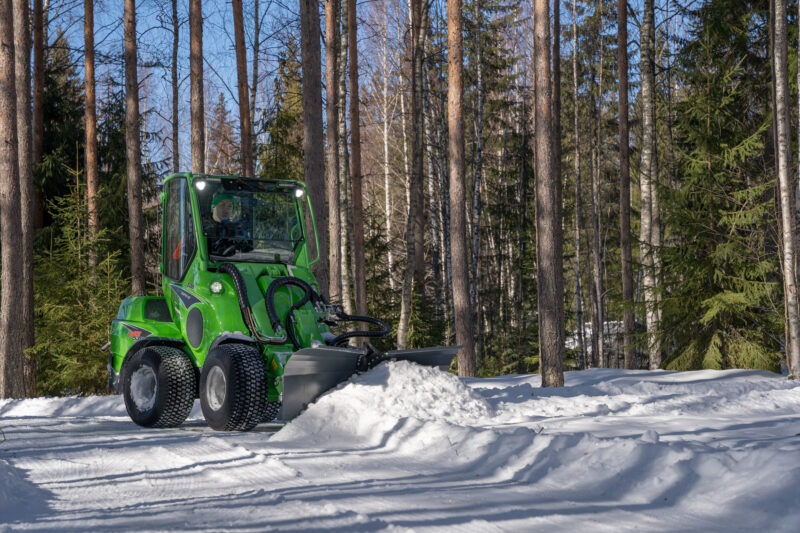

Avant snow plow is a versatile attachment for snow removal. It consists of two independently hydraulically adjustable blades. The angle of the blades is adjusted with a switch from the driver’s seat. Both blades have a spring release mechanism in the lower part of the blade to prevent any sudden stop should the blade hit an obstacle. The floating mechanism on the mounting bracket guarantees that the blade follows the ground as well as possible.

The new V1800 and V2400 snow plows feature:

  • New vertical floating system (better than old quadrangular floating system)
  • Significantly more curved blade – moves snow more efficiently to the side
  • Support legs with skid shoes as standard
  • Curved flat cutting edge with standard 305 mm hole distance; made of high tensile, abrasion resistant wear steel

TECHNICAL INFORMATION

Model V1800 V2400
Blade width 1510–1840 mm 2020–2450 mm
Total width (with curved-end flat edge/ scraper blade) 1570–1900 mm 2080–2510 mm
Blade turning angle ±35 deg ±35 deg
Weight 330 kg 390 kg
Blade height 770 mm 770 mm
Product no A36795 A36796
  • Versatile snow removal tool for professional use

  • Two independently controllable blades: can be adjusted in straight, V or Y position
  • Advanced floating system allows working on uneven surfaces as well

OPTIONS

Ice scraper edges snow plow V1800 A36817
Ice scraper edges snow plow V2400 A36818
Rubber edges snow plow V1800 A37173
Rubber edges snow plow V2400 A37171

Requires attachment control switch pack on the loader.

COMPATIBLE MODELS

Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
1800
2400
Very compatible
Compatible
Incompatible
