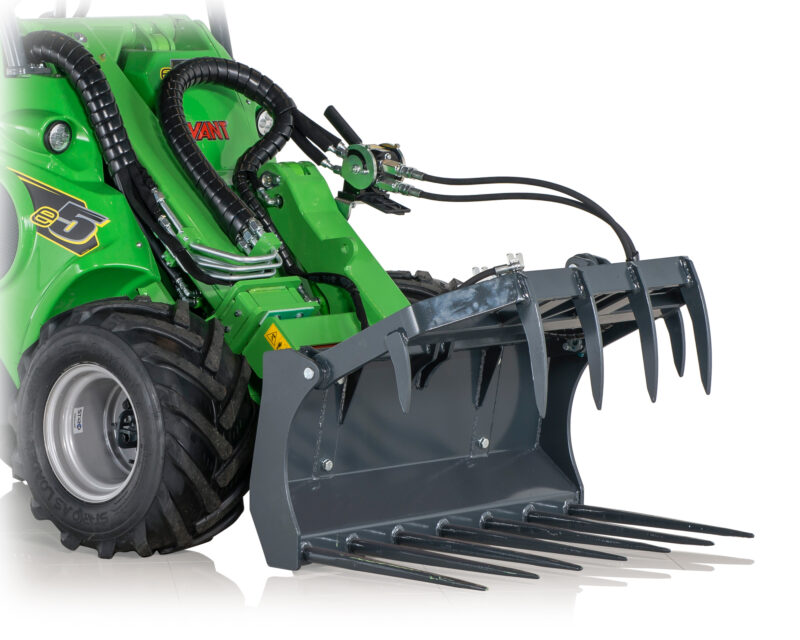

SILAGE FORK

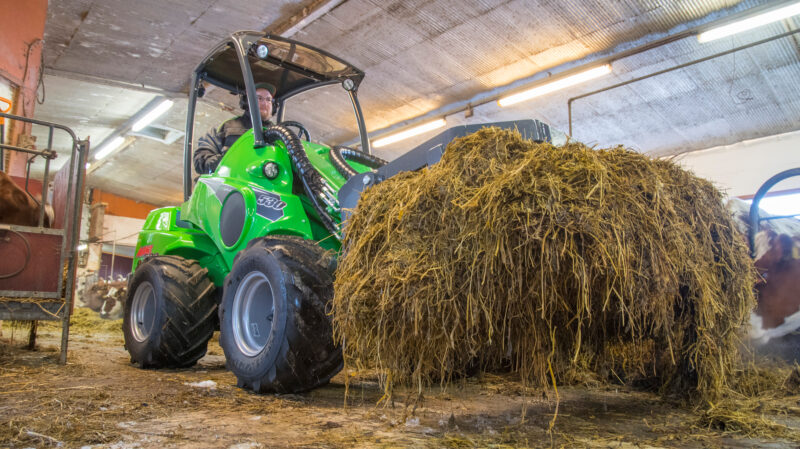

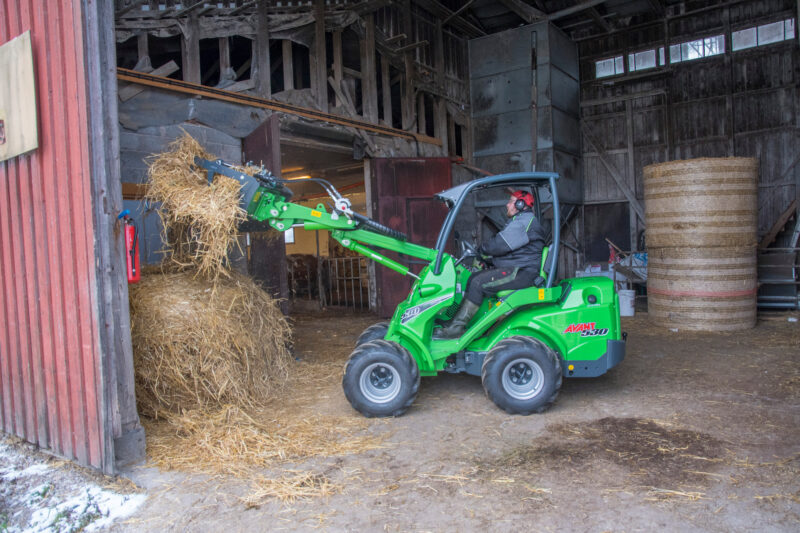

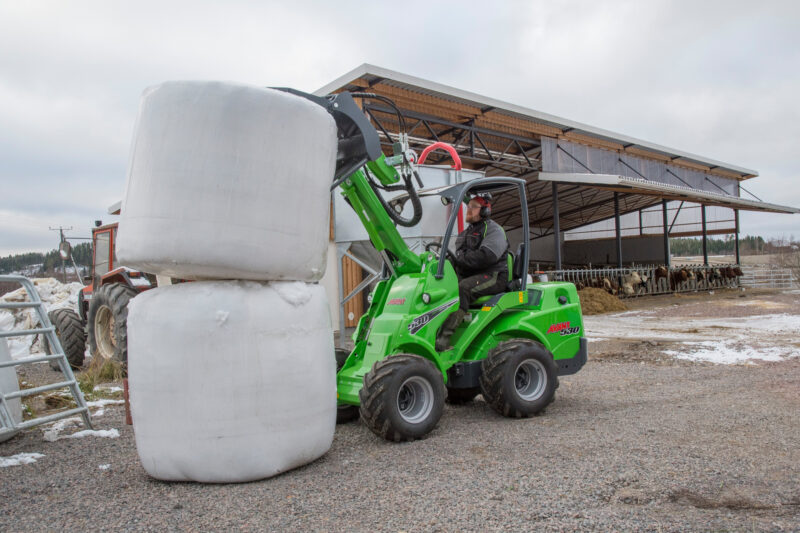

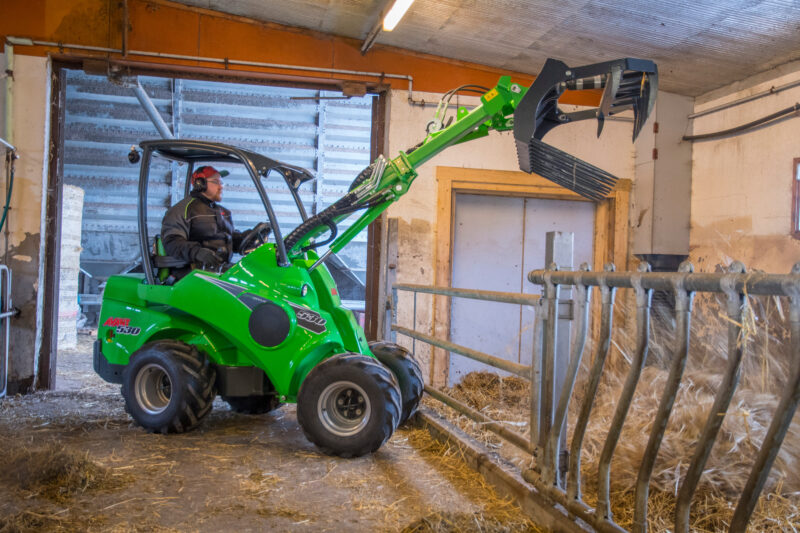

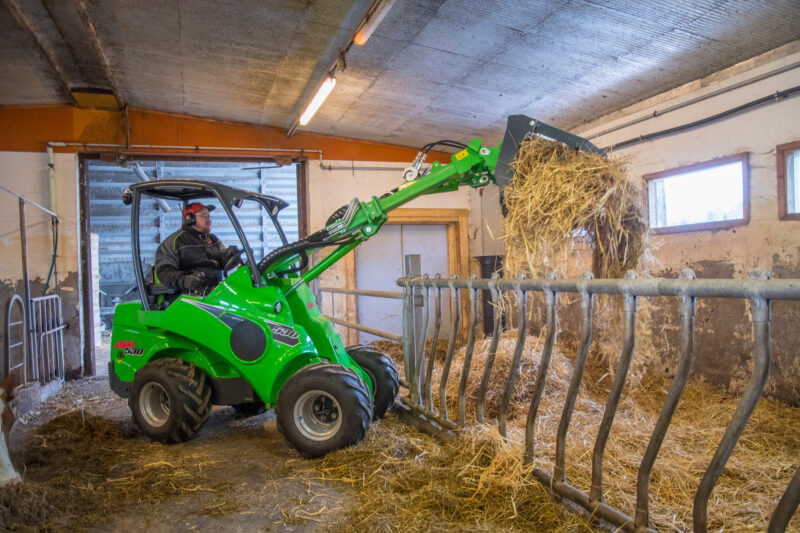

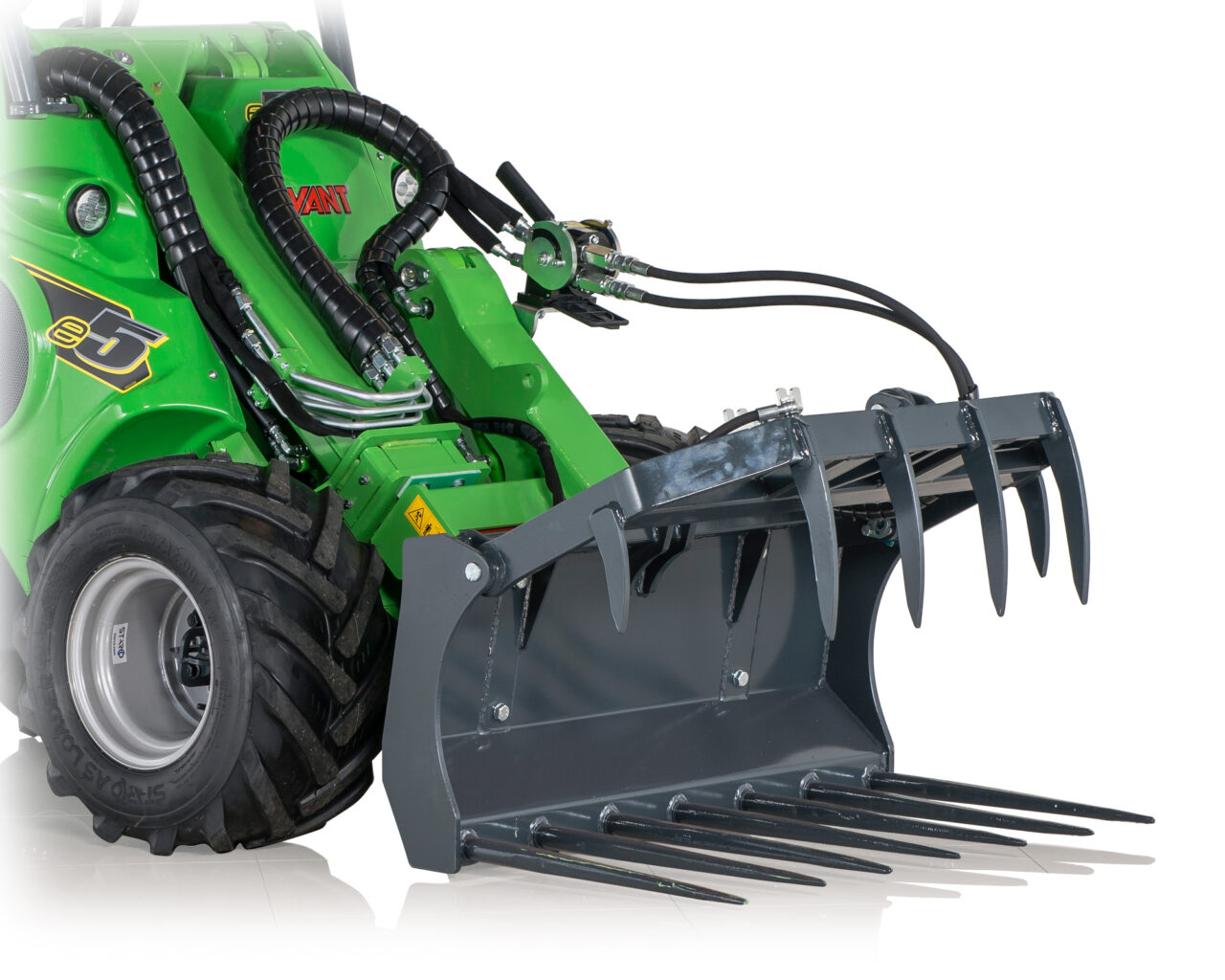

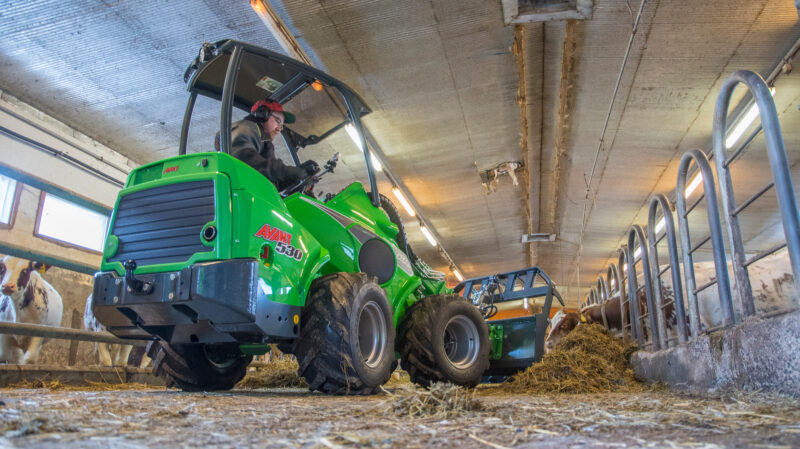

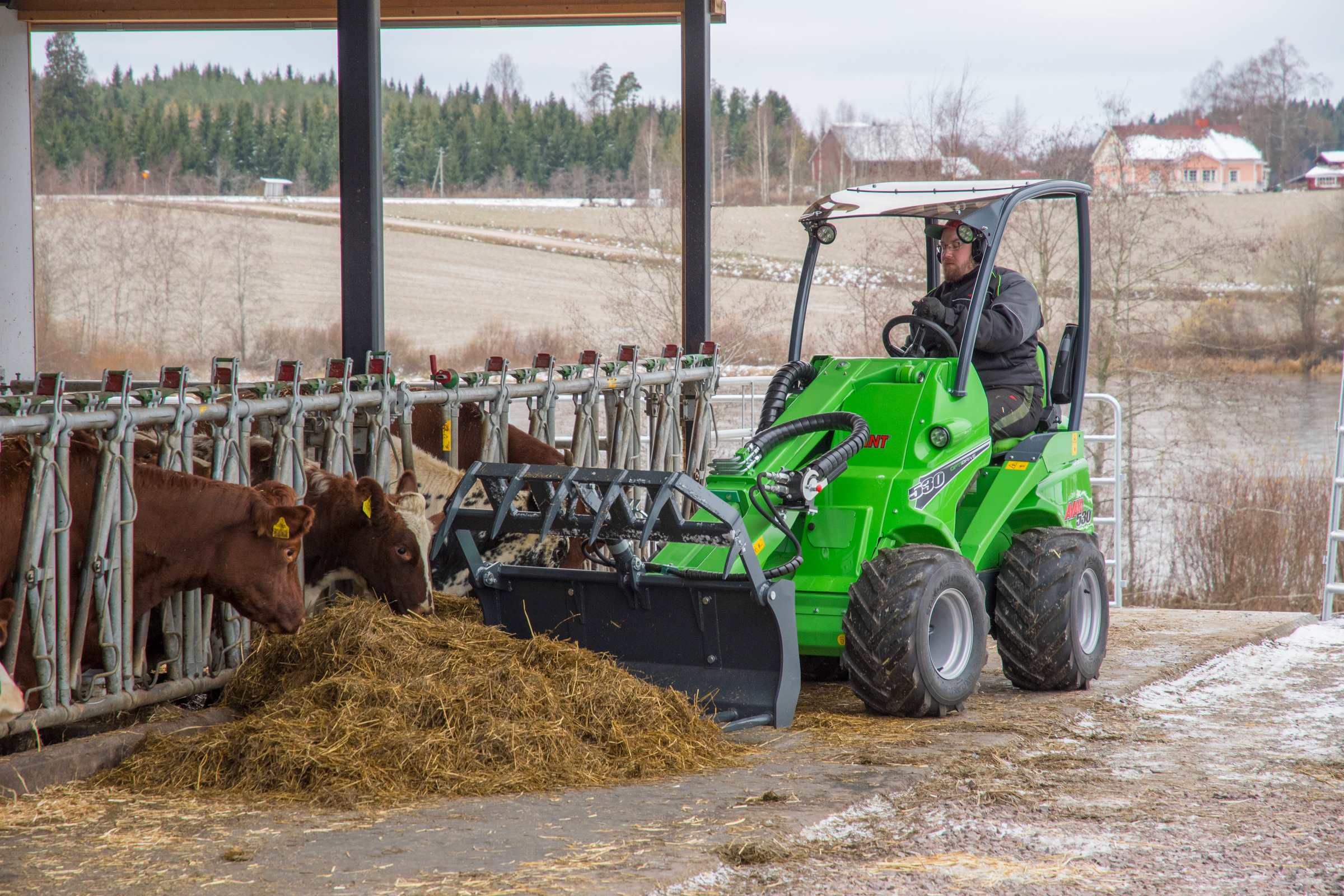

A robust silage fork equipped with a powerful hydraulic cylinder can be fitted on all Avant loader models. The strong blade type pins of the grapple penetrate into all types of feed. The fork has replaceable lower tines made of reinforced steel. The grapple goes up to vertical position and this, together with the powerful cylinder enables easy grabbing e.g. on a round bale.

  • Compact model, which is well suited for silage distributing in small and confined places

  • The front edges on the forks are rounded, which offers a smaller turning diameter

  • Renewed 800-1300 mm models: tipping angle smaller as standard - mounting plate which increases tipping angle by 17 degrees is available as an option

TECHNICAL INFORMATION

Width Weight Product no
800 mm 120 kg A428328
900 mm 126 kg A36299
1050 mm 138 kg A36313
1300 mm 160 kg A36319



Option:
Mounting plate which increases tipping angle by 17 degrees A36337
(only for special applications, risk of puncturing the front tyres)

COMPATIBLE MODELS

Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
Very compatible
Compatible
Incompatible
