SILAGE DISPENSER

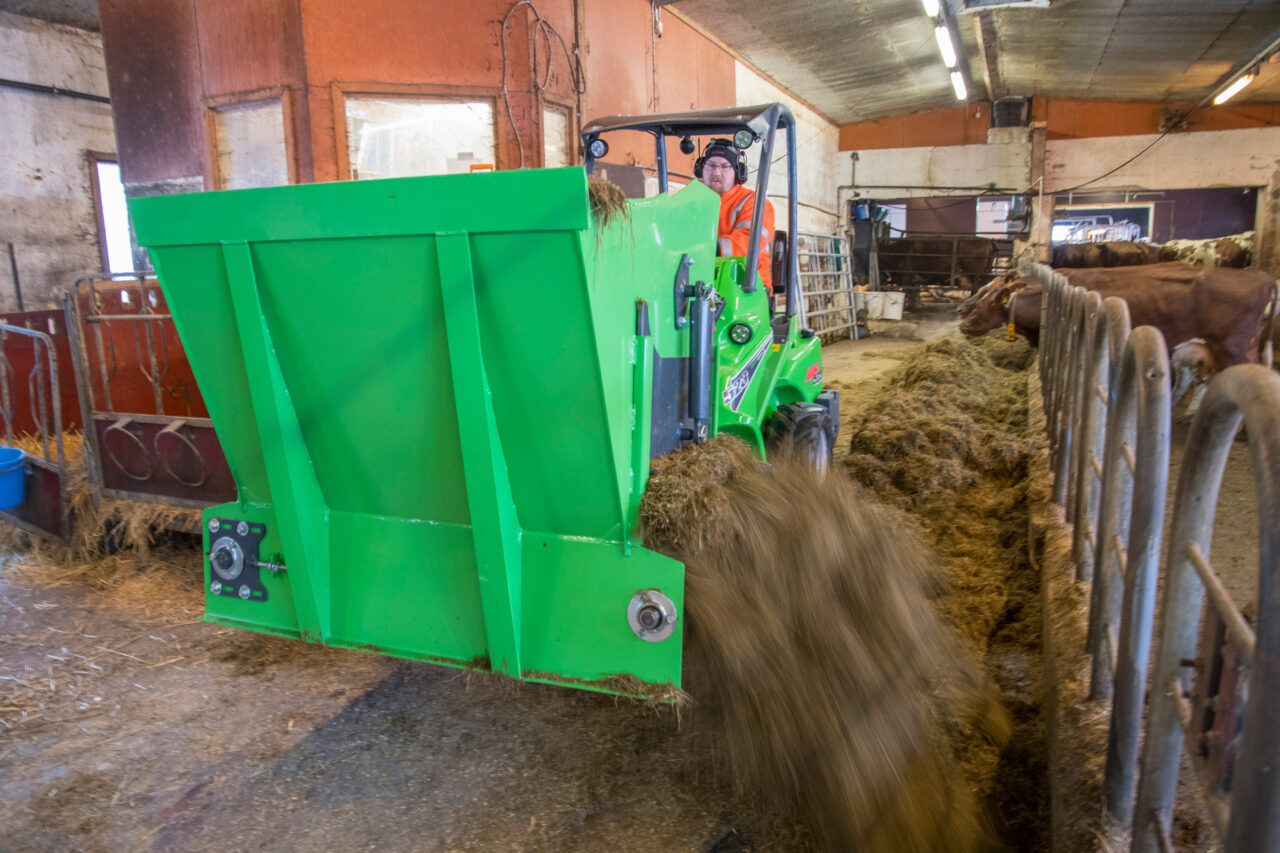

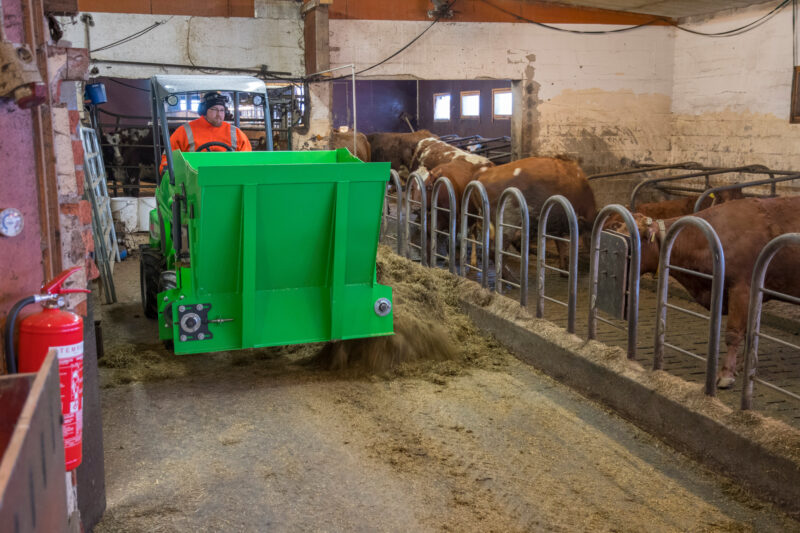

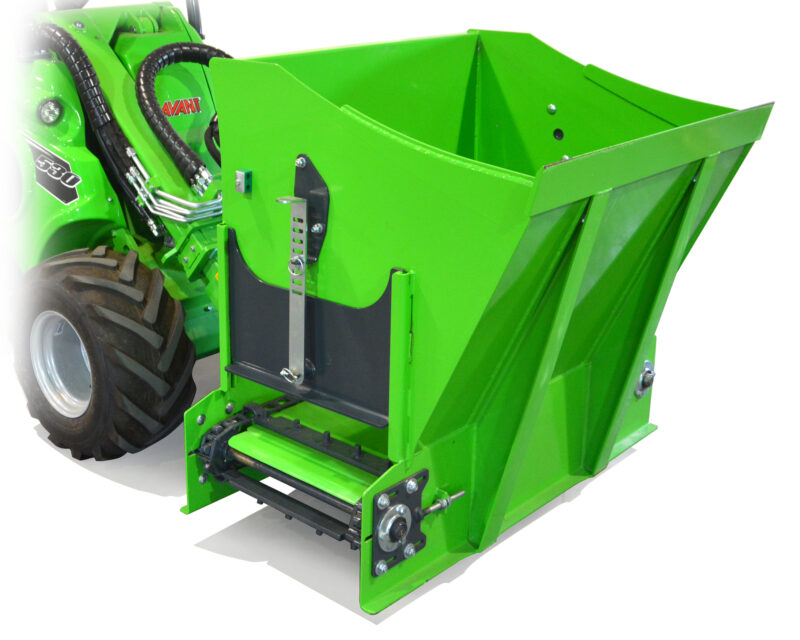

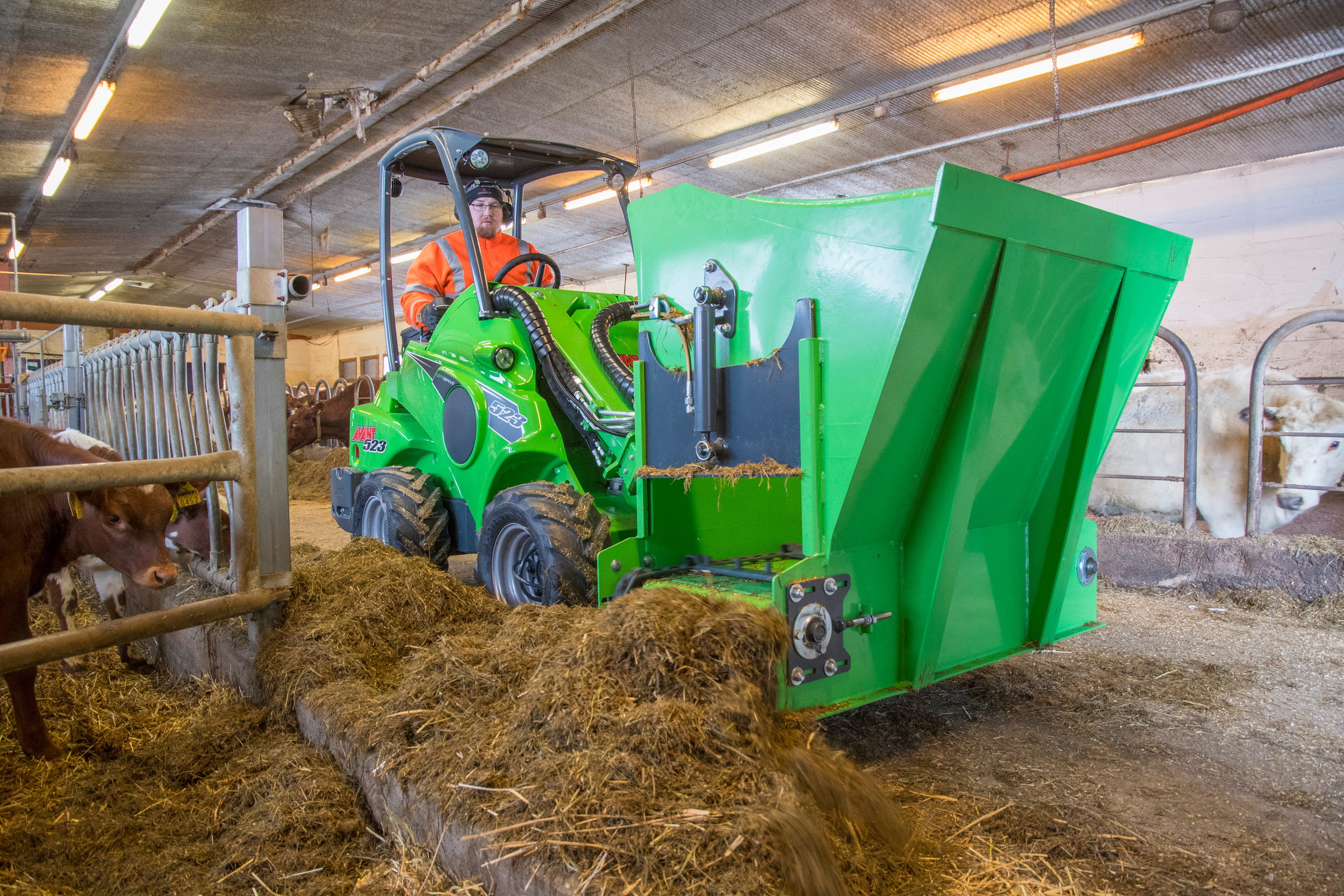

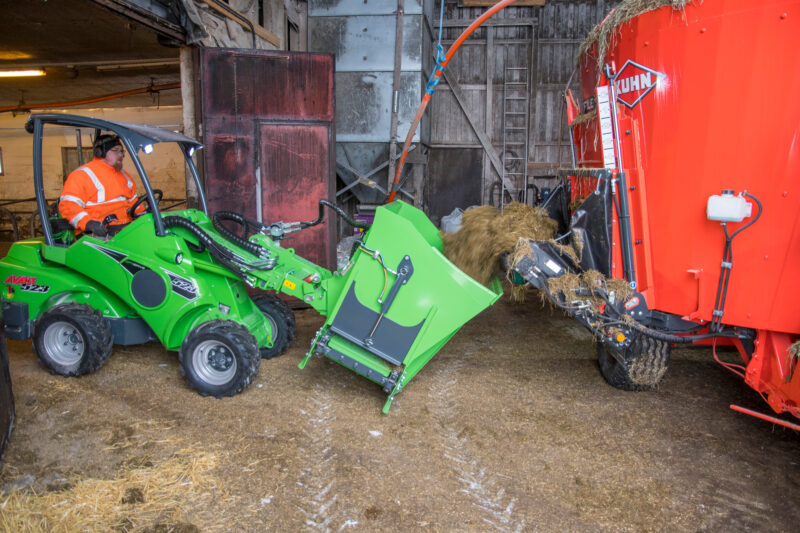

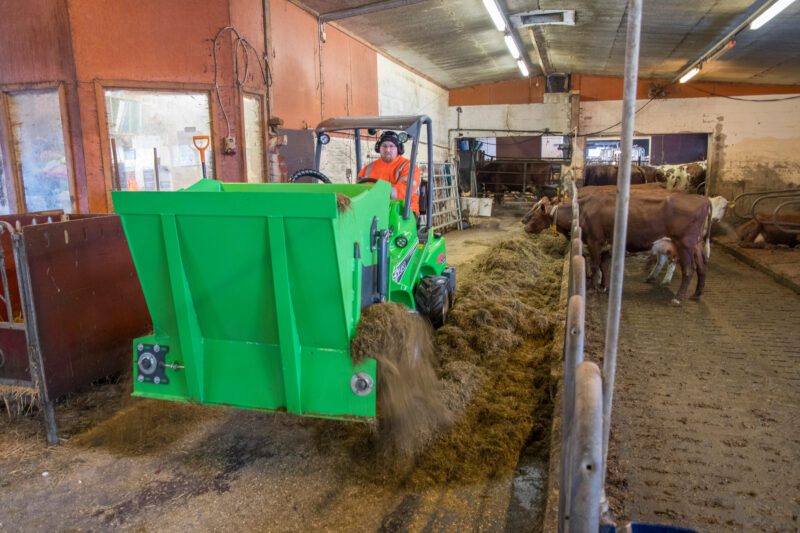

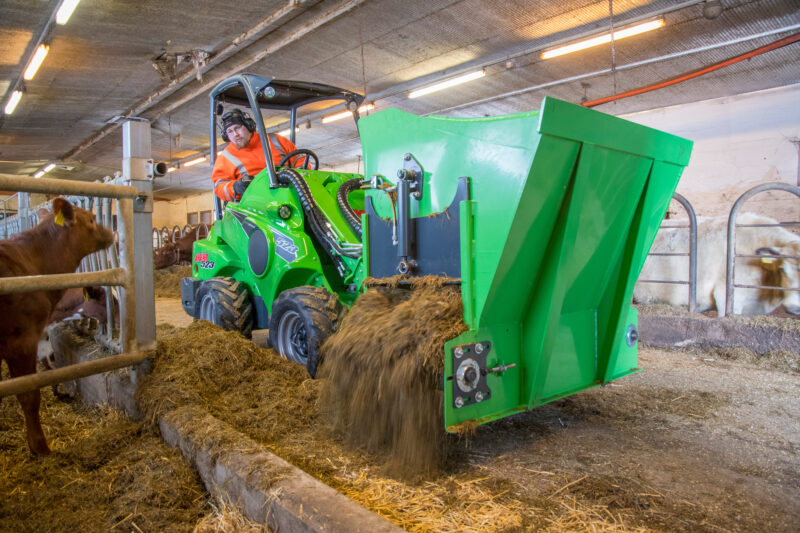

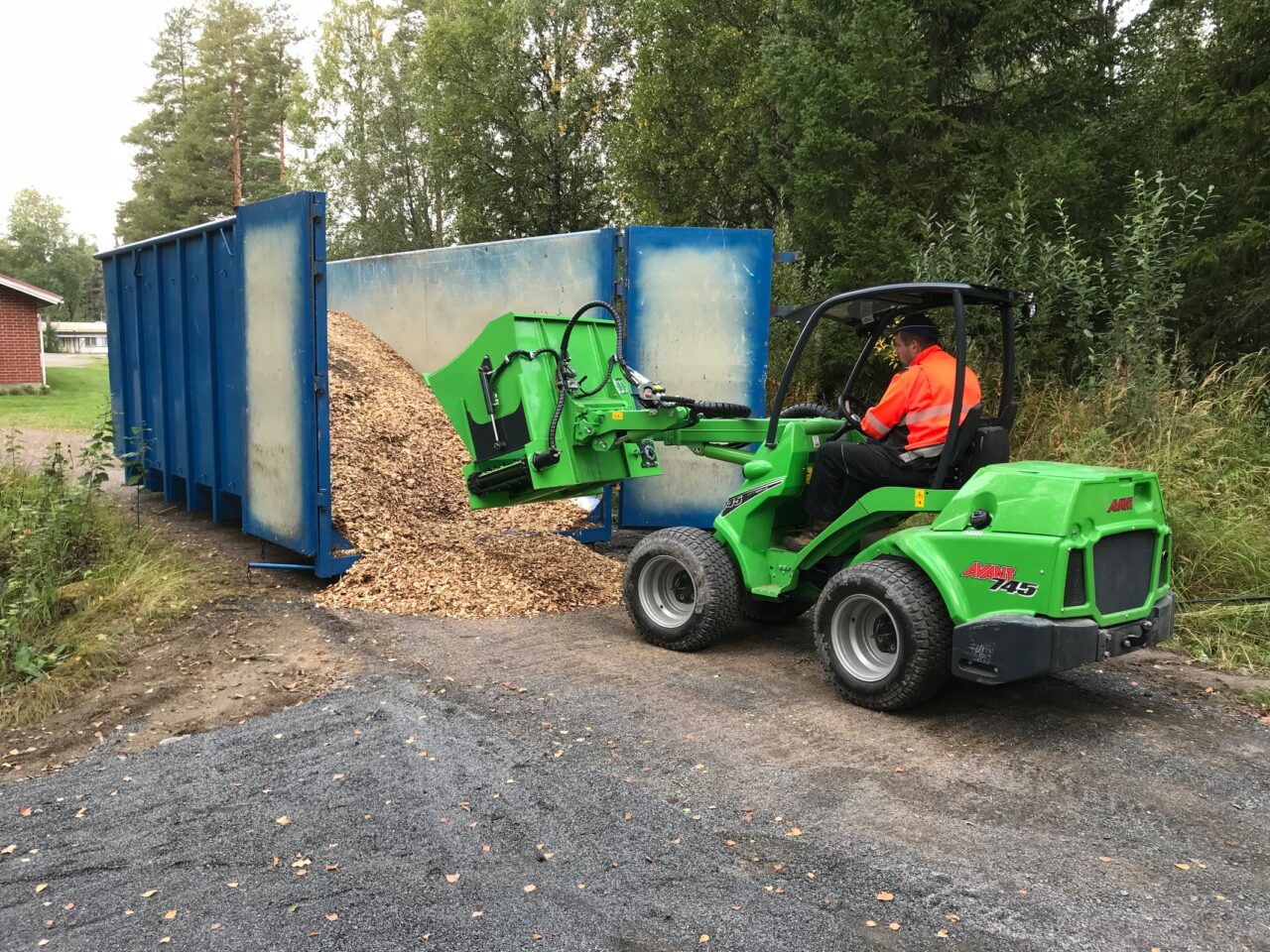

The robust dispenser bucket is equipped with a hydraulically driven elevator in the bottom and discharging to both the right and left side. Especially recommended for precision chopped silage and feeding stuff made with feeder mixers. Adjustable side hatches allow controlled distribution of looser materials like crushed grain as well.

The dispenser bucket is equipped with a straight edge that can be filled like a normal bucket directly from floor level. Distributes silage to about 10 cows/fill - it takes approx. 10 minutes to distribute silage to 50 cows. Manual side hatch adjustment is a standard feature, hydraulic side hatch operation is available as an option.

  • A quick and easy way to distribute silage
  • Silage can be distributed to the left or the right side

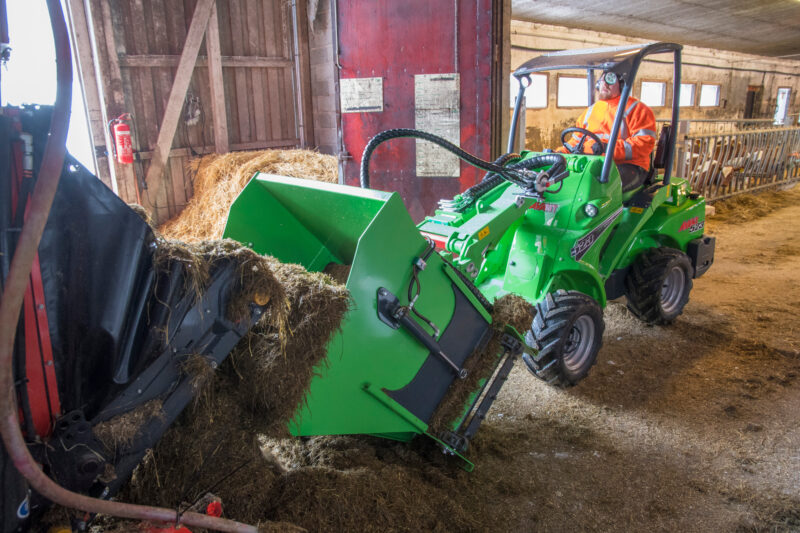

  • Can be tilted down to ground level and filled like a normal bucket
  • Manual side hatch adjustment as standard, hydraulic side hatch operation available as an option

TECHNICAL INFORMATION

Volume 650 l
Bucket width 1100 mm
Total width 1360 mm
Height 1200 mm
Weight 328 kg
Product no A424013



The optional Opticontrol® is required on the loader with hydraulic side hatch operation

Options

Option Product no.
Hydraulic side hatch operation A429734



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
