Landscaping

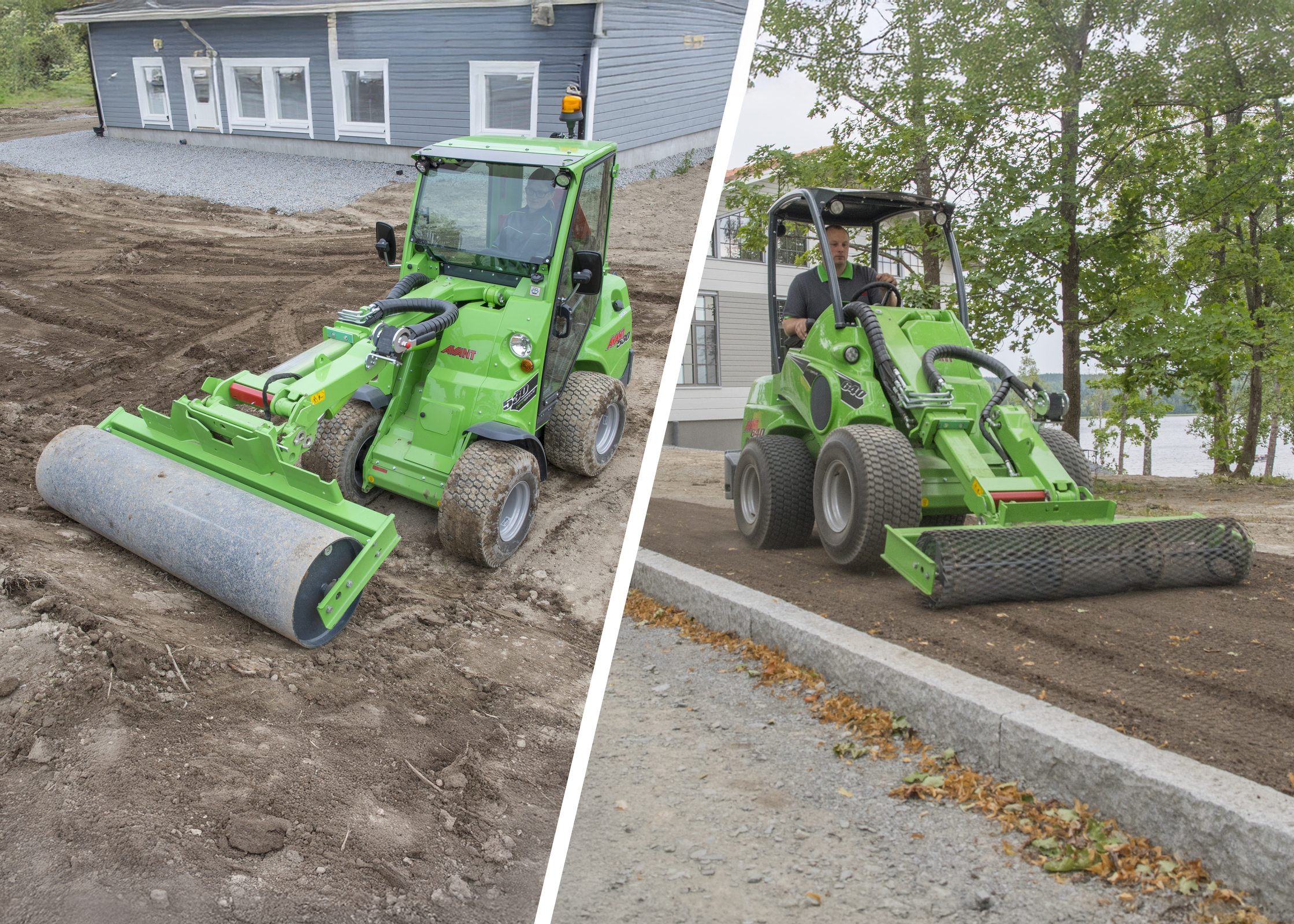

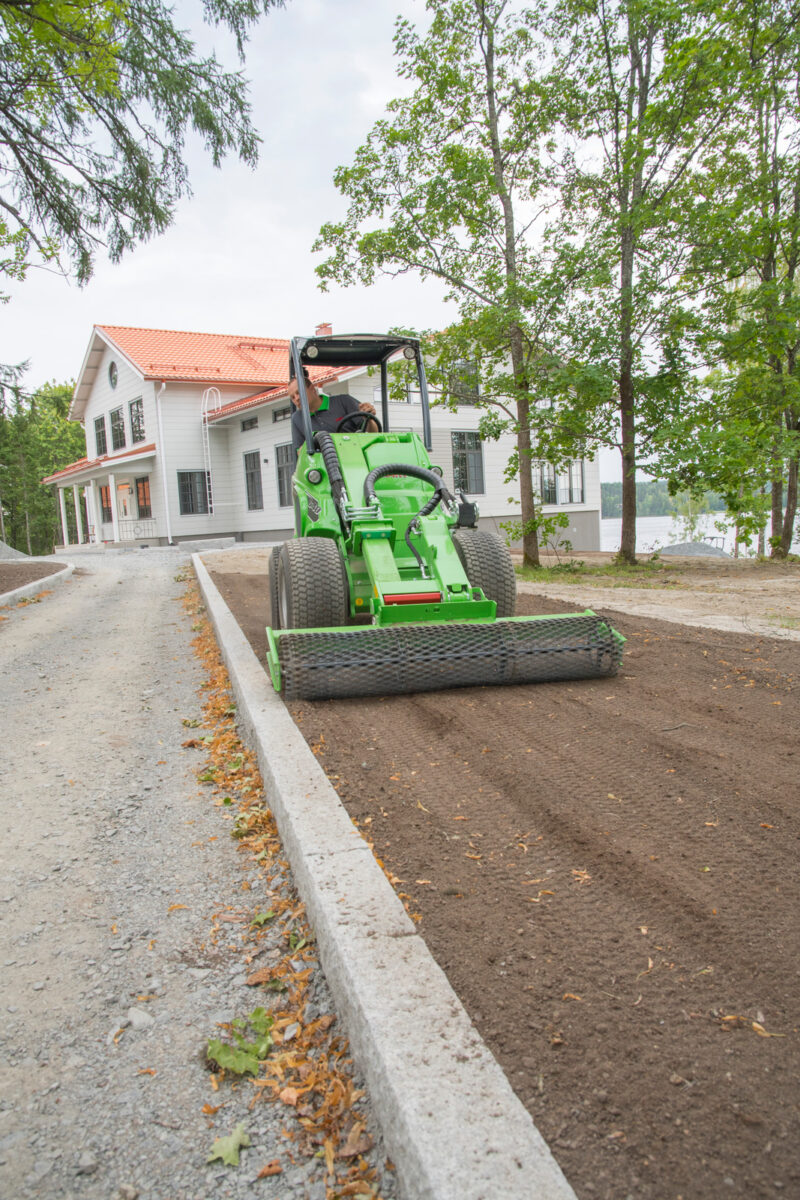

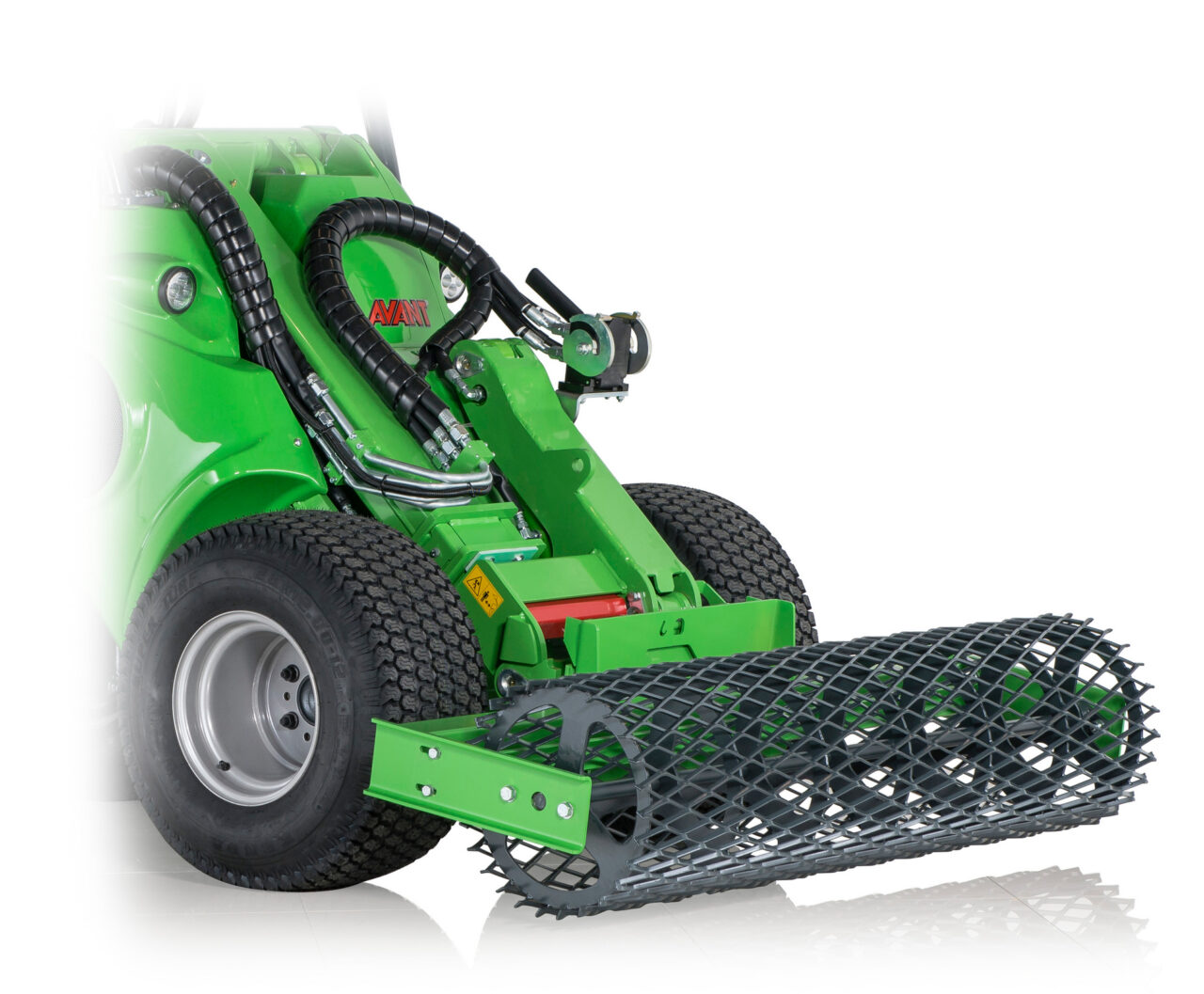

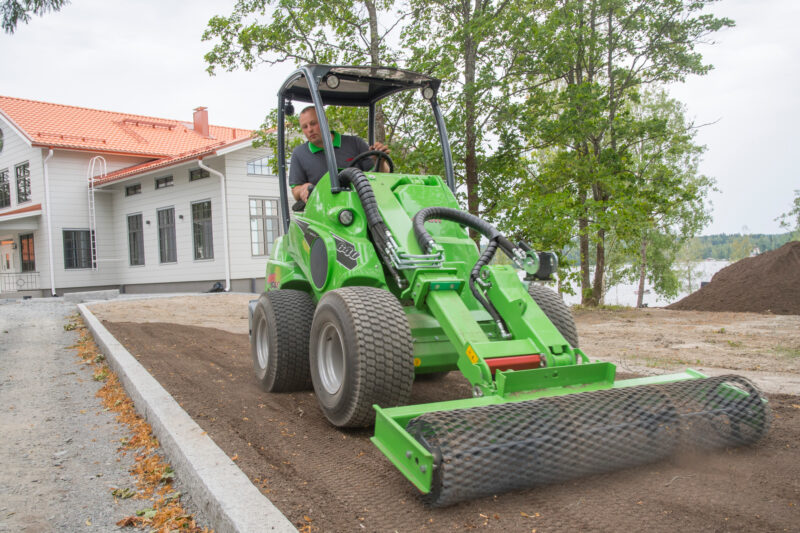

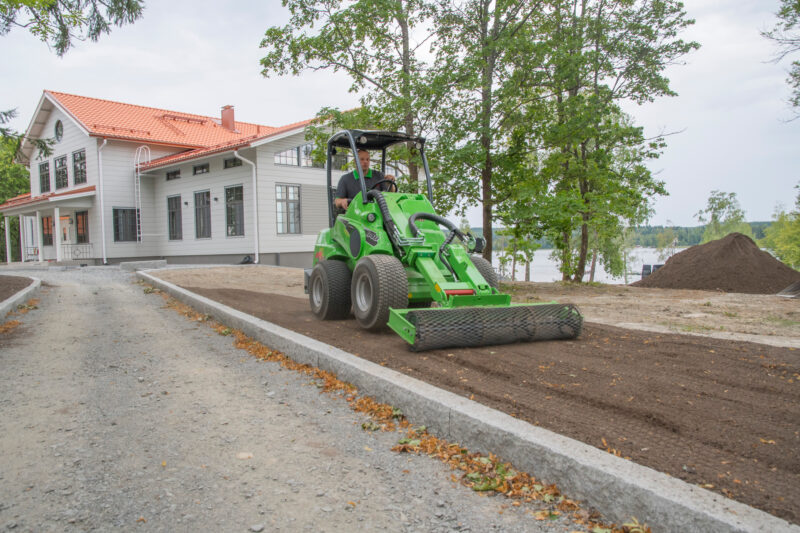

ROLLER COMPACTOR

Roller compactor is a simple, inexpensive and effective tool for finishing lawn construction. It compacts the seeded soil effectively. Can be mounted on all articulated Avant loaders. The compactor can also be fitted with max. 4 pcs of Avant 29 kg back weights.

  • Effective and inexpensive soil compactor
  • Can be mounted on all articulated Avant loaders

TECHNICAL INFORMATION

Working width

1500 mm

Total width

1605 mm

Roller diameter

400 mm

Length

610 mm

Weight (without extra weights)

100 kg

Product no

A37064

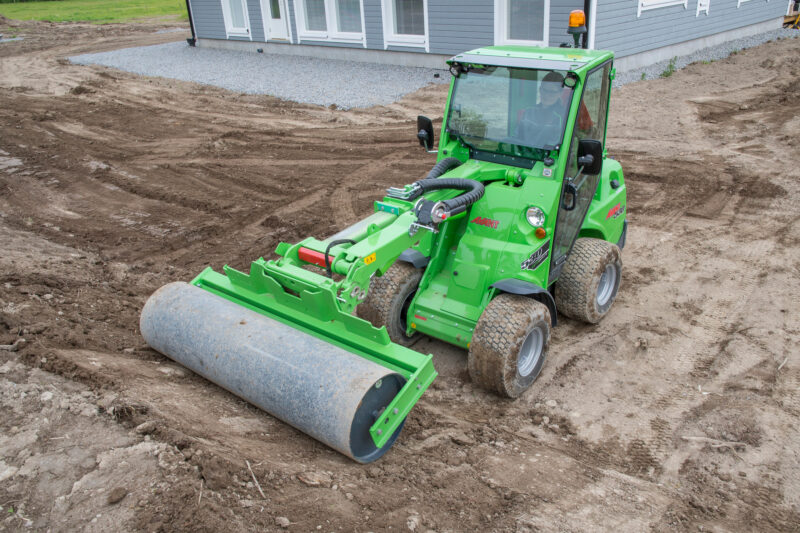

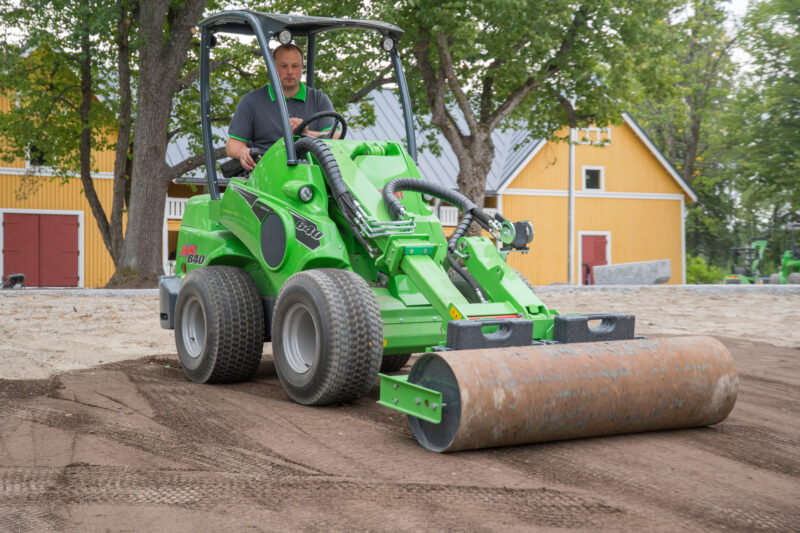

ROLLER COMPACTOR, PLAIN

The new roller compactor model is equipped with a plain, hollow roller which can be filled with water (max. 167 l). It is useful for compacting a newly installed sod and similar surfaces where a plain roller is a must and mesh rollers cannot be used. The compactor can also be fitted with max. 4 pcs of Avant 29 kg back weights.

  • Equipped with a plain, hollow roller which can be filled with
    water (167 l)

  • Can also be fitted with max. 4 pcs of Avant 29 kg back weights A35957

TECHNICAL INFORMATION

Working width

1500 mm

Total width

1605 mm

Roller diameter

406 mm

Length

610 mm

Height

485 mm

Weight, without extra weights & water

196 kg

Water volume

167 l

Product no.

A37488



COMPATIBLE MODELS

Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
Very compatible
Compatible
Incompatible
