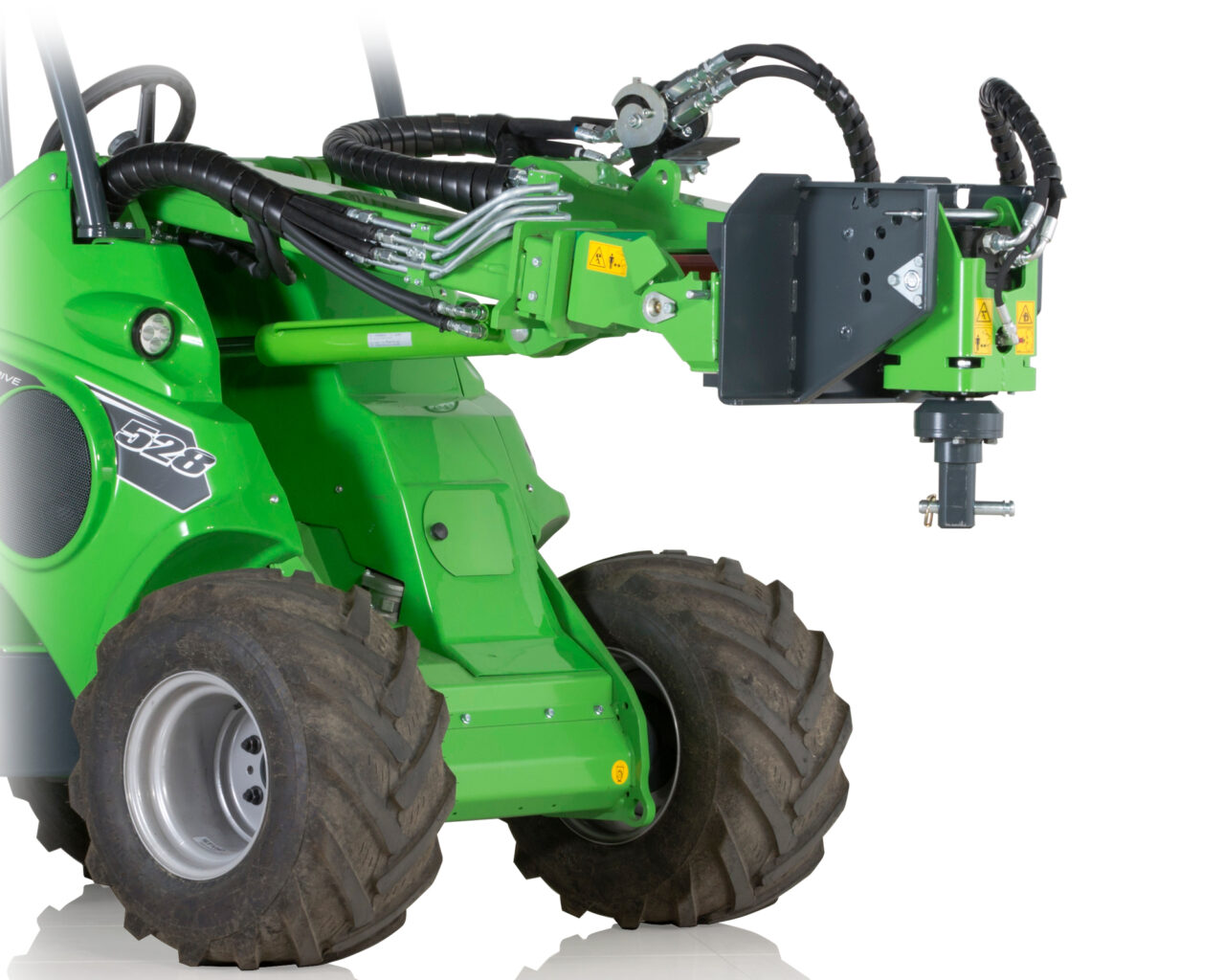

MULTI FUNCTION DRIVE UNIT

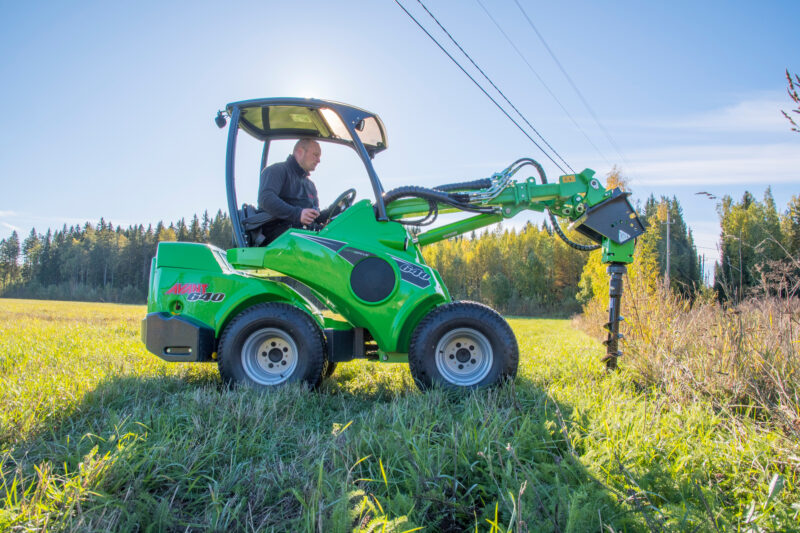

The multi function drive unit can be fitted with auger drills and screw pile adapter as always; in addition there are several other attachments available: concrete mixing drum, screw cone log splitter, screening drum, cable/hose reel, carousel broom, rotary hoe, XL weed brush and XL wire rope brush.

There is also a 90 degree angle adapter available as an option, on which the drive unit can be mounted. It turns the the drive unit 90° to the left or right. This means that for instance the carousel broom sweeps on the left/right side of the loader, and the cable/hose reel is crosswise to the loader and winds the cable longitudinally (in parallel to the loader).

  • Torque 1355 Nm
  • Auger drills and screw pile adapter are mounted on the drive unit like before, in addition following attachments can be fitted: Concrete mixing drum, Screw cone log splitter, Screening drum, Cable/hose reel, Carousel broom, Rotary hoe, Angle adapter 90°, XL weed brush, XL wire rope brush

TECHNICAL INFORMATION

Width 550 mm
Height 560 mm
Length 405 mm
Weight 85 kg
Product no. A37190

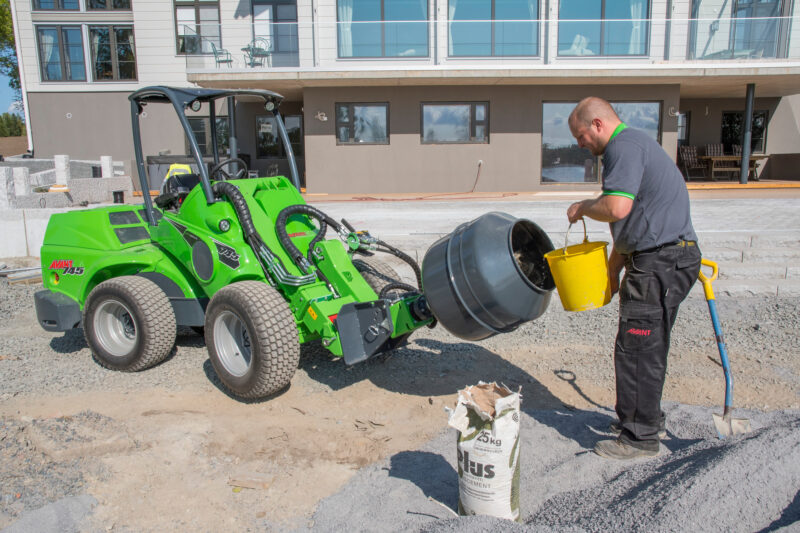

A37395 Concrete mixing drum

Volume 140 l water,
  90 l ready concrete
Length 760 mm
Width 600 mm
Weight 50 kg

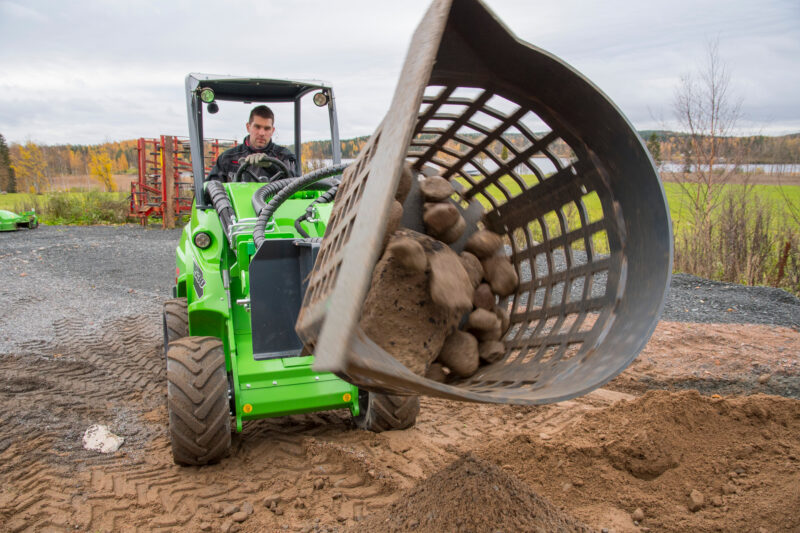

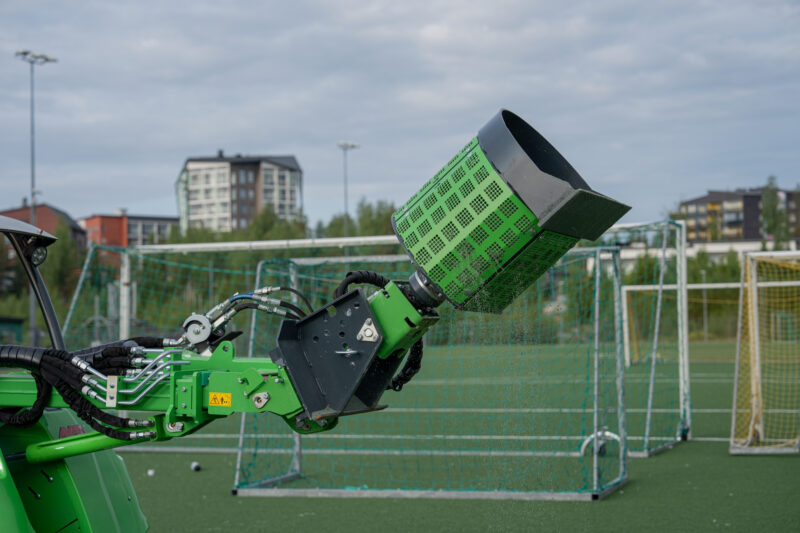

A37207 Screening drum

  • Intended for screening of soil, gravel and sand<
  • Screening sieve with 50x50 mm holes – included also a separate 22x22 mm sieve, which is bolted on the drum when finer screening is required
Volume 90 l
Length 605 mm
Width 500 mm
Height 461 mm
Weight 75 kg

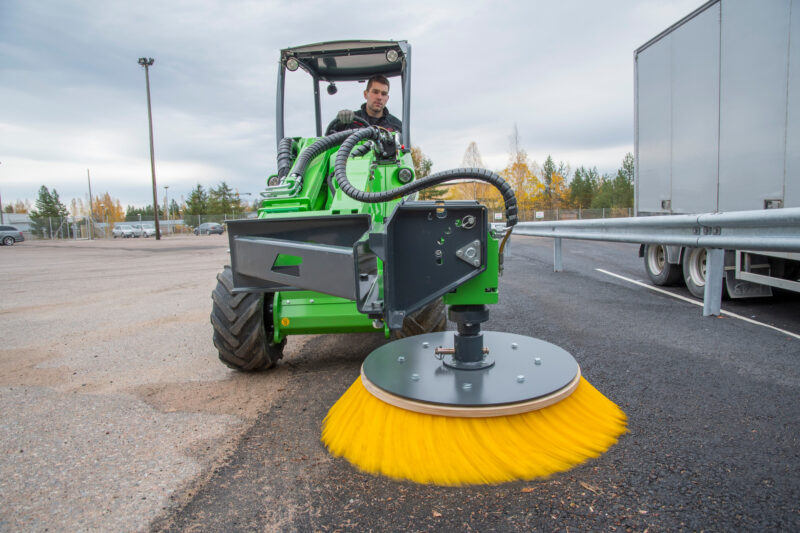

A37317 Carousel broom

  • Same Ø 1000 mm replaceable brush as on A2971 Carousel broom, part no. A32698
  • Weight 67 kg

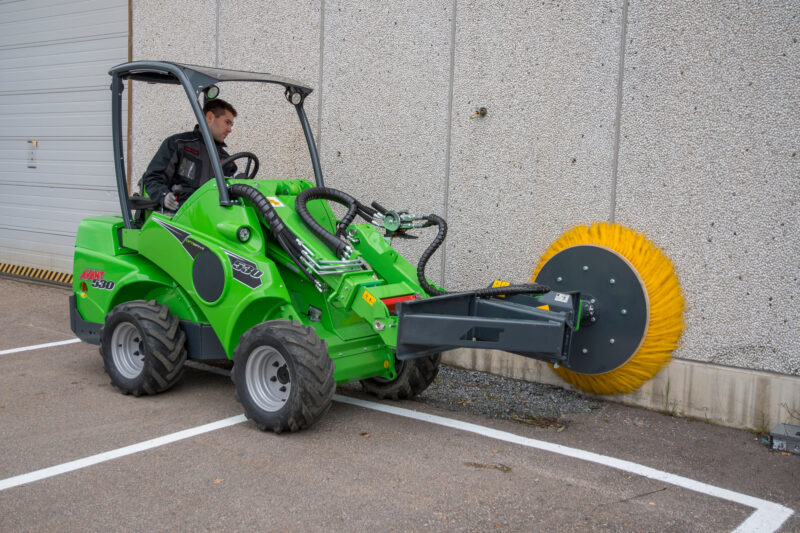

  • Can also be mounted on the A37323 Angle adapter 90° > sweeps on the left side of the loader

A418530 Screw pile adapter

  • Easy way of making screw pile foundations, saves a lot of manual work
  • Mounts on any Avant auger drive unit
  • Fits on Ø 60 mm screw piles

_JRS1458 irti rajattu.jpg

A429932 XL Weed brush

  • Efficient weed remover
  • Consists of 3 pcs Ø 600 mm steel brushes mounted together
  • Max. diameter 1240 mm
  • Height 375 mm
  • Weight 64 kg

_JRS1456 irti rajattu.jpg

A431157 XL wire rope brush

  • Brush with 32 pcs heavy duty wire rope bundles
  • Max. diameter 990 mm
  • Height 370 mm
  • Weight 36 kg

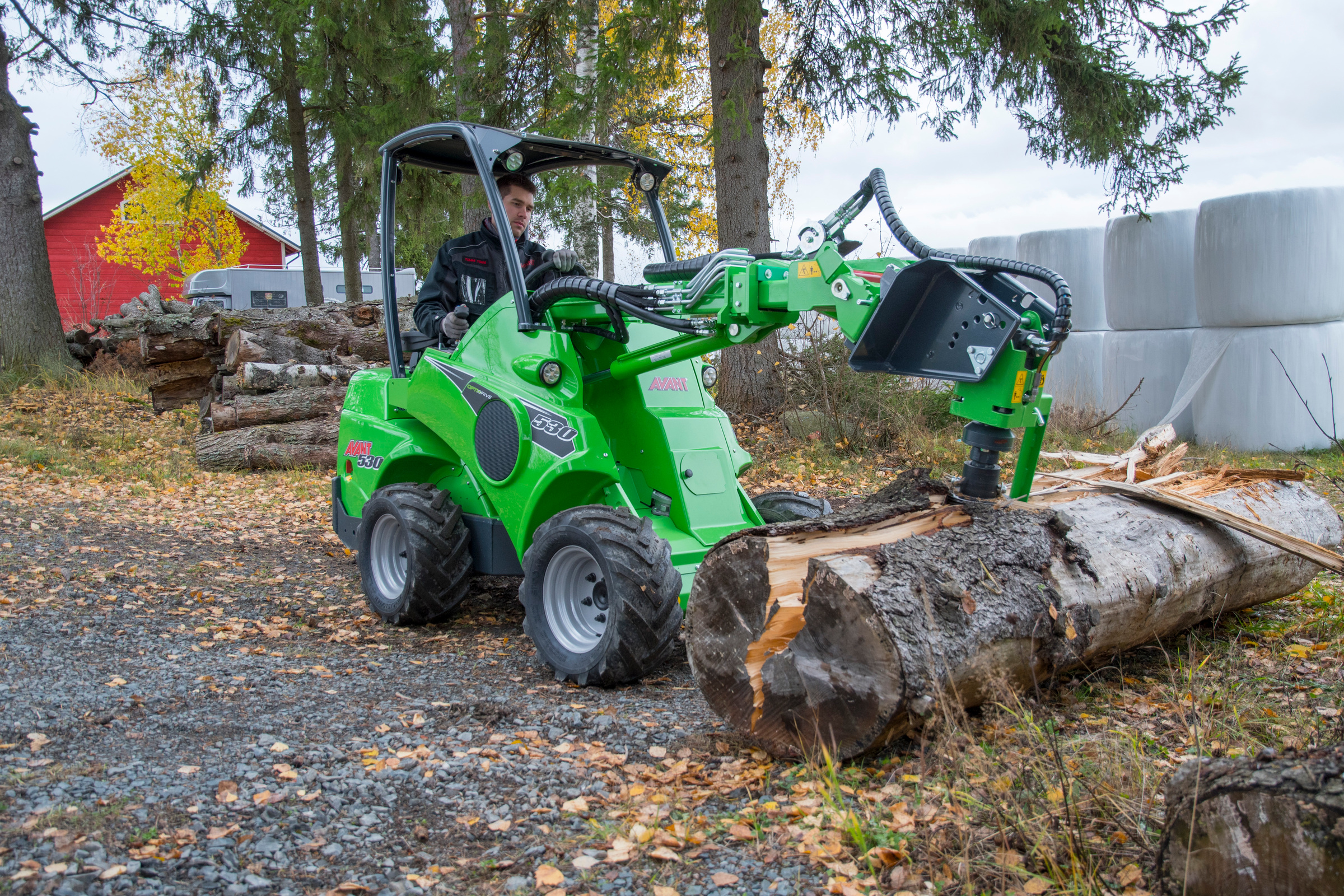

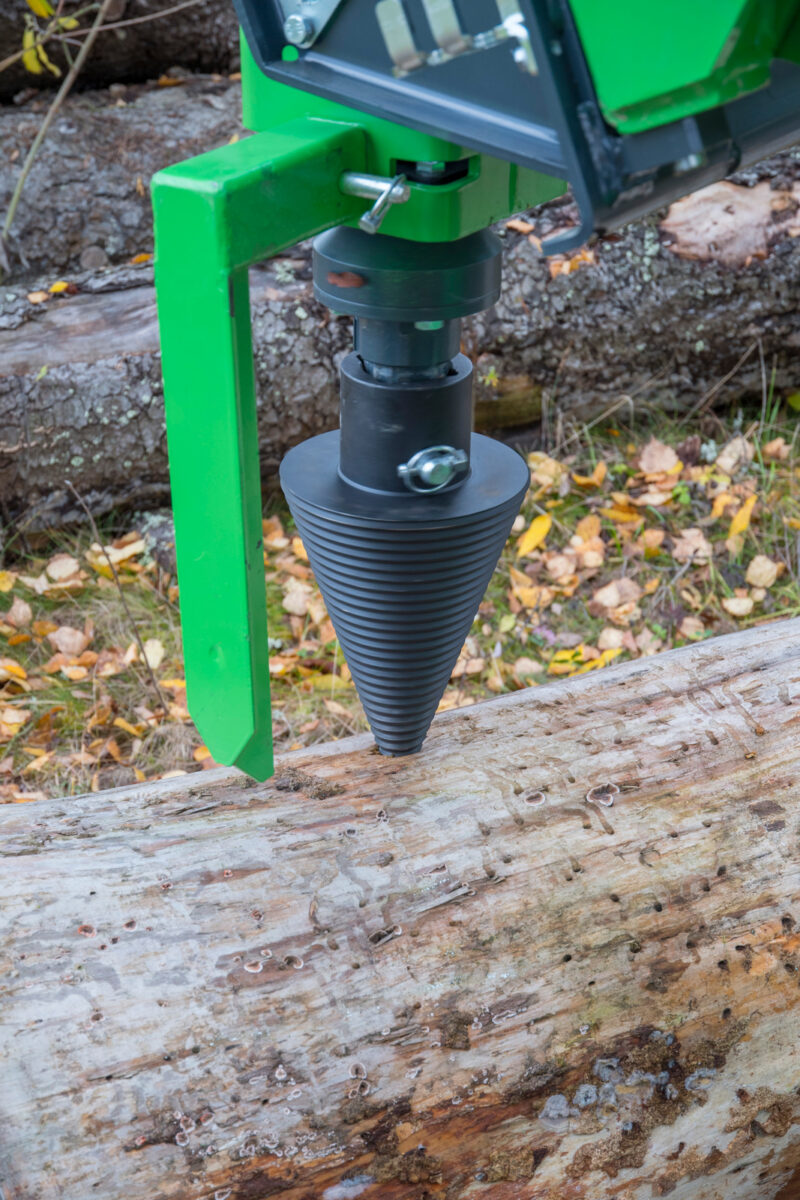

A37500 Screw cone log splitter

  • Log splitter with a conical splitting screw

  • Splitting screw equipped with a replaceable tip

  • Also equipped with a log holder bar which prevents the log from rotating during splitting

  • Weight 30 kg

A37311 Cable/hose reel

Inside width 400 mm
Total width 558 mm
Reel diameter 190 mm
End plate diameter 500 mm
Weight 25 kg

Can also be mounted on the A37323 Angle adapter 90° => winds the cable in parallel to the loader

A37491 Rotary hoe

  • For small scale soil cultivating
  • Equipped with two knife type blades
Cultivating depth max. 160 mm
Length 531 mm
Width 156 mm
Height 283 mm
Weight 15 kg

A37323 Angle adapter 90°

  • Turns the drive unit 90° to the right or to the left beside the loader
Length 630 mm
Width 651 mm
Height 300 mm
Weight 41 kg

A433646 Carousel broom, steel

  • Ø 1000 mm brush with steel bristles
  • Weight 67 kg

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
