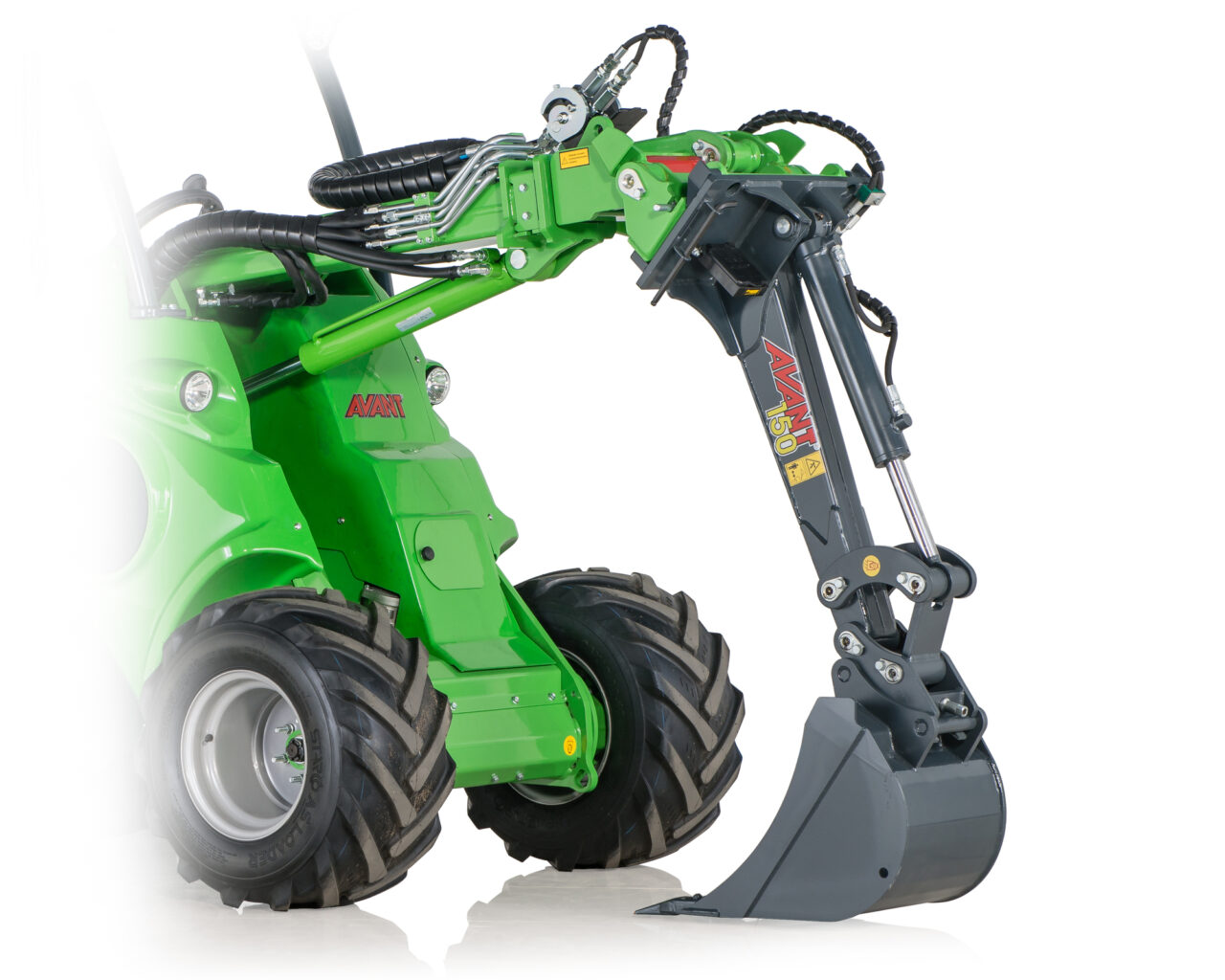

MINI DIGGER 120 and 150

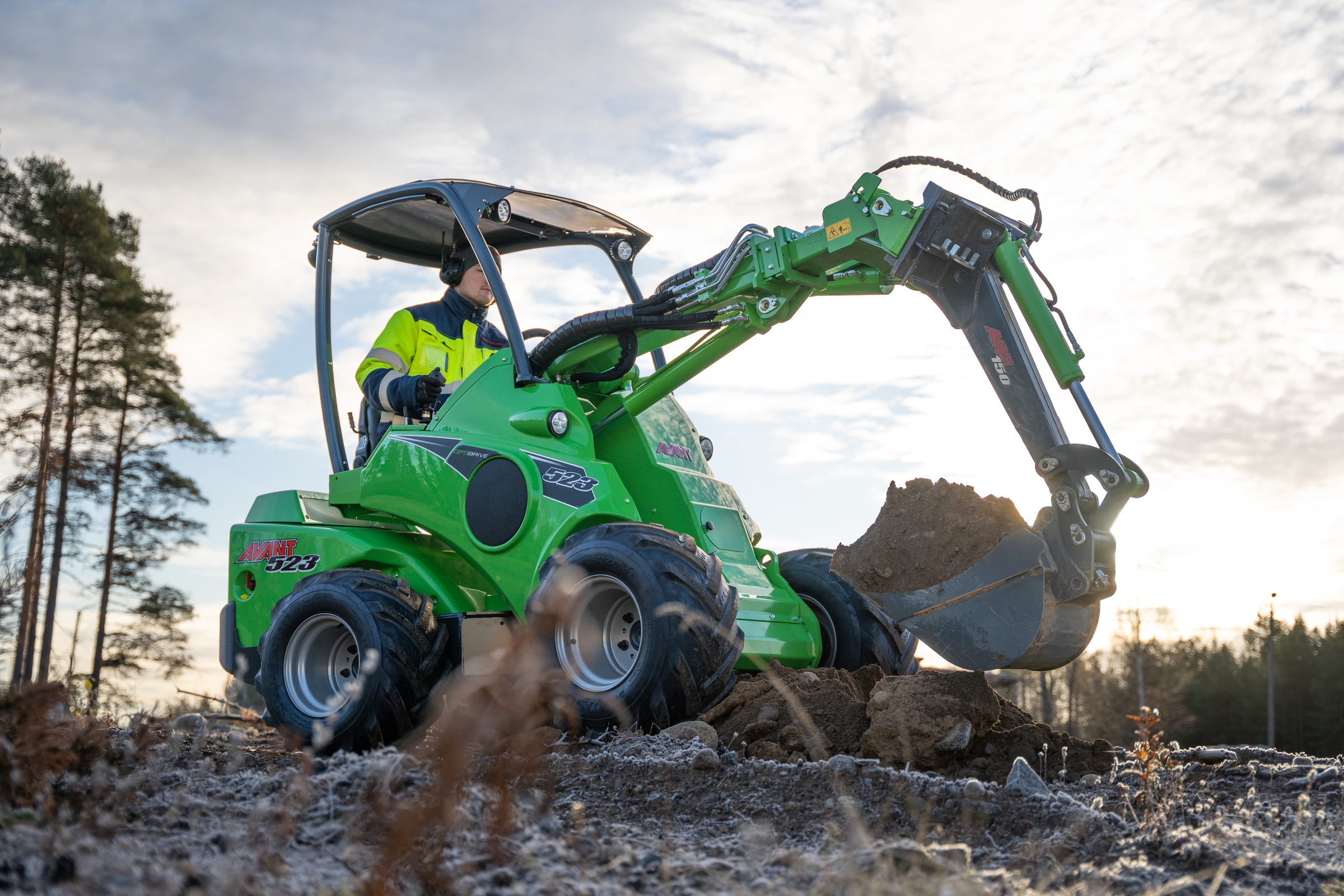

Avant mini digger is an efficient solution for small digging operations where the maximum digging depth of 1200 mm or 1500 mm is enough and digging is not everyday work. It mounts directly on the quick attach plate of the loader and is operated with the auxiliary hydraulics control lever, or with the buttons of the joystick if fitted.

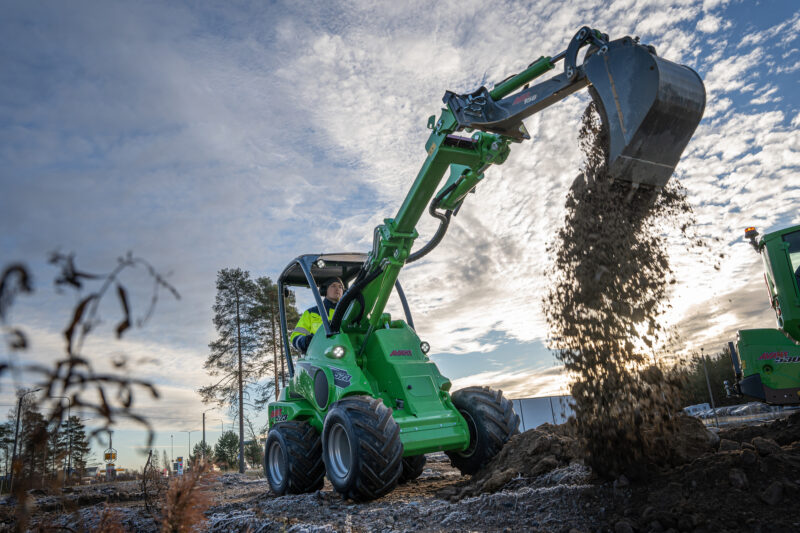

Dumping to the side happens by turning the steering wheel of the Avant.

Mini digger 150 is equipped with the S30 bucket quick attach system (same as on backhoe 260), which makes changing of bucket fast and easy - and the bucket can also be mounted pointing forward if necessary.

Bucket tilt adapter for mini digger 150 is available as an option.

  • Efficient and economical solution for smaller digging jobs
  • Very fast to mount on Avant
  • Simple and light to transport from job site to another
  • High unloading height
  • The material can easily be transported further away
  • Bucket tilt adapter available as an option for mini digger 150

TECHNICAL INFORMATION

Model 120 150
Max. digging depth 1200 mm 1500 mm
Standard bucket 250 mm -
Weight 70 kg 85 kg
Product no A36822 A36856



Buckets available

Model 120 150
250 mm A415232 A414301
400 mm A415230 A414304
750 mm A35564 A35230
1000 mm - A35383
Trapezoidal bucket 650 mm - A21638
Trapezoidal bucket 912 mm - A36374

Option

Bucket tilt adapter (Mini digger 150)* A35320
Thumb grab (Mini digger 150)** A444174


*) not when thumb grab A444174
**) not when bucket tilt adapter A35320



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
120
150
