LOG CUTTER/SPLITTER

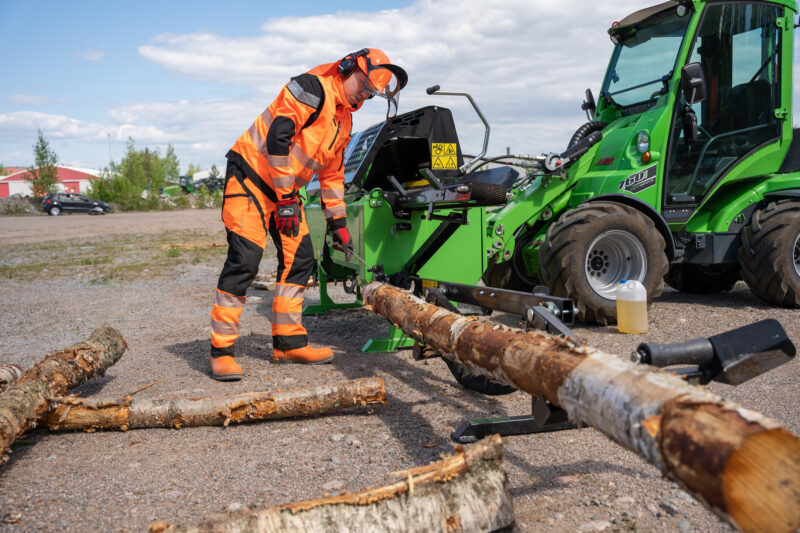

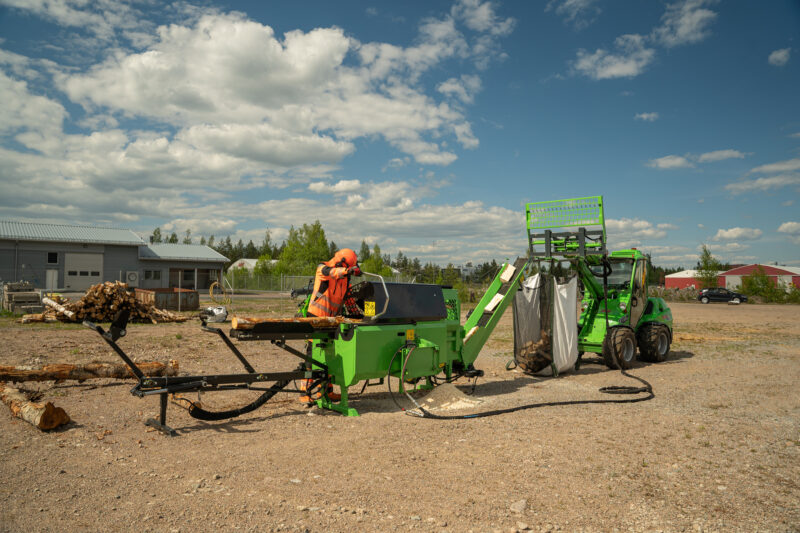

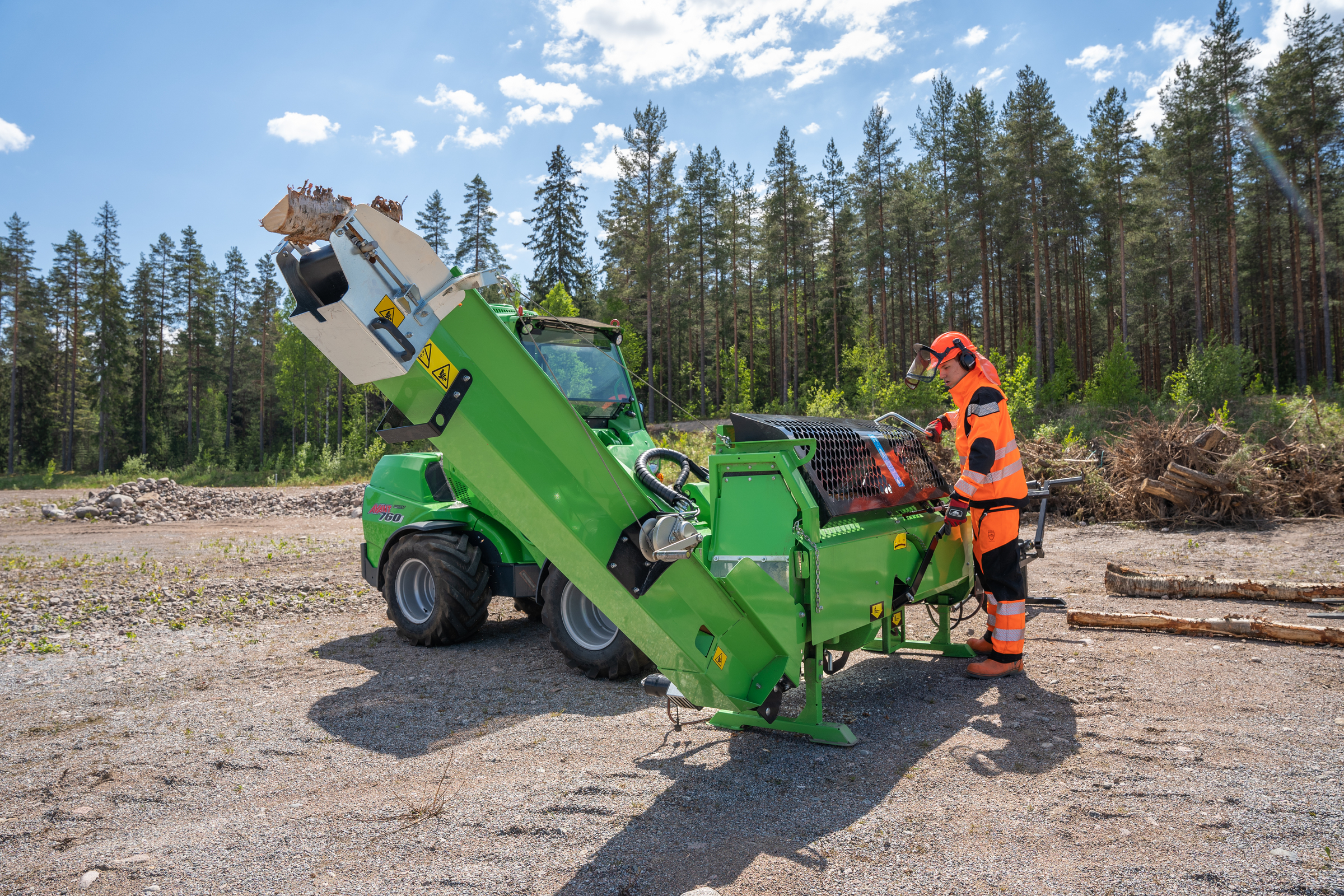

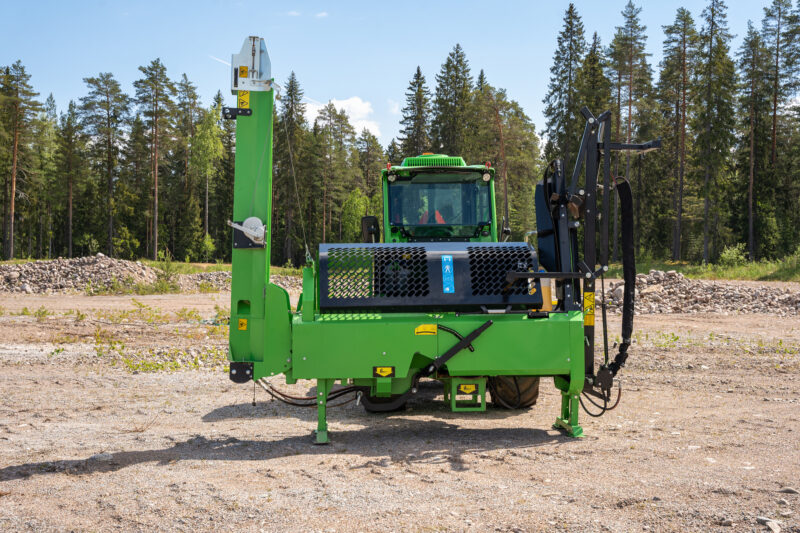

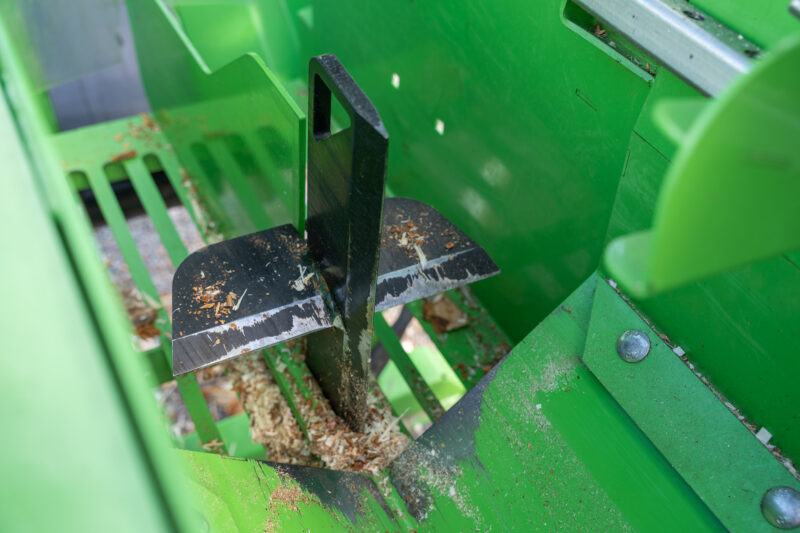

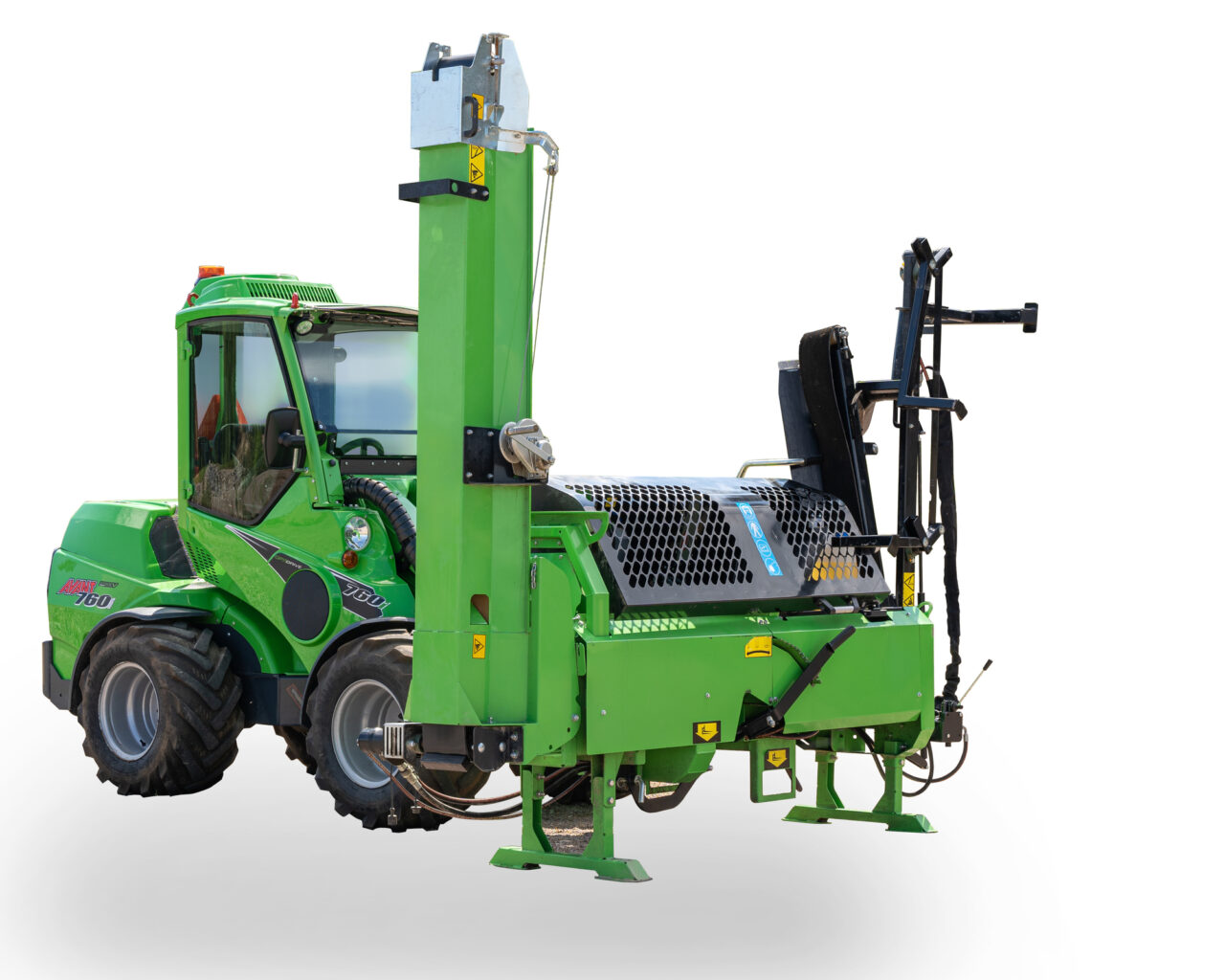

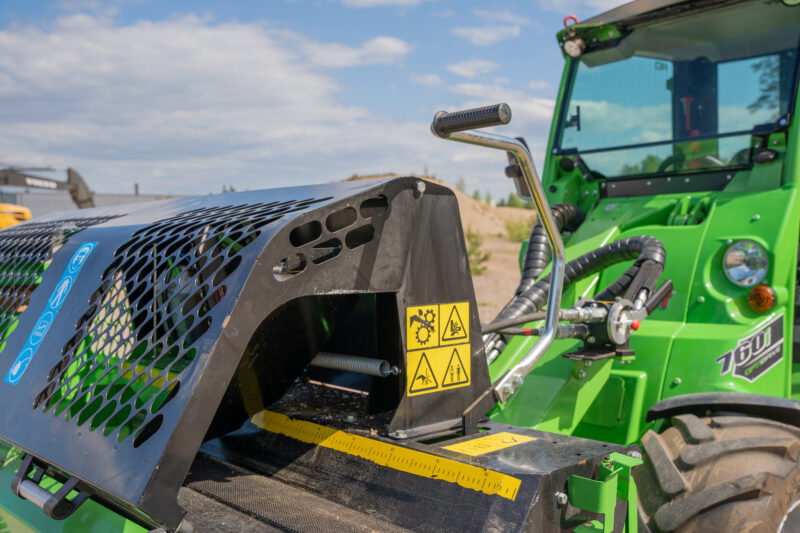

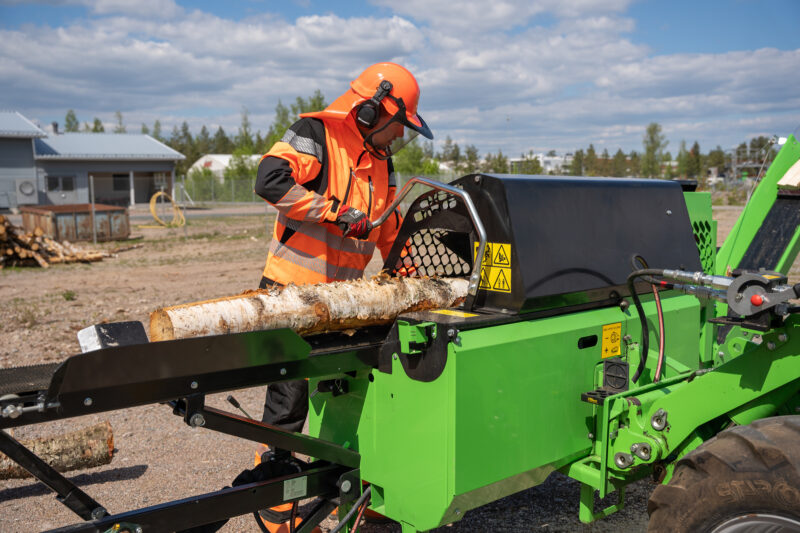

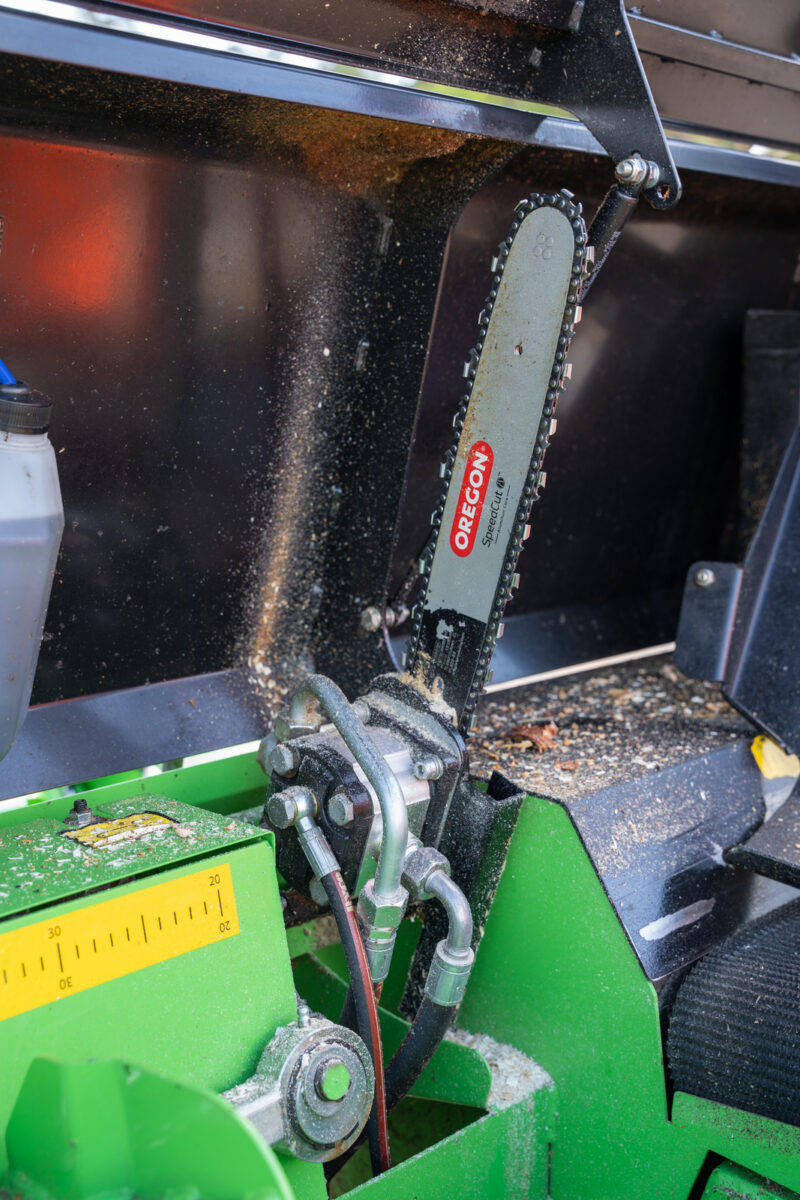

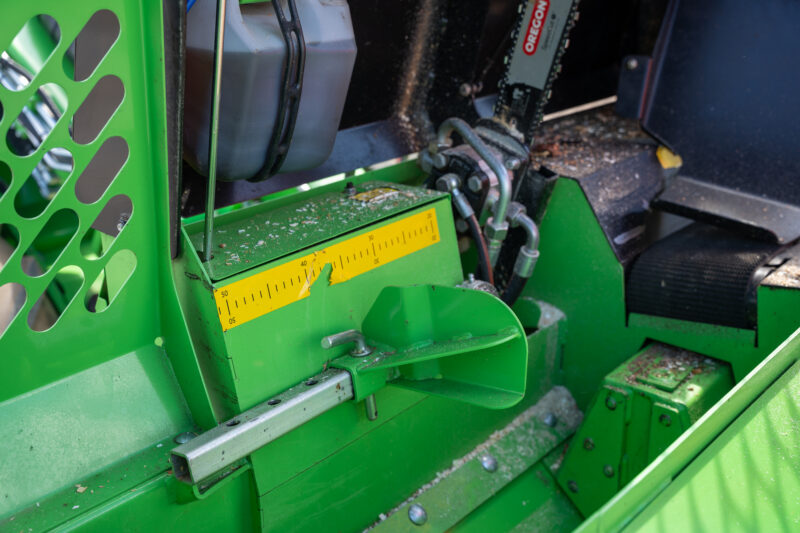

Avant log cutter/splitter is very efficient firewood making machine. It combines a chain saw and a hydraulic log splitter. The hydraulically driven chain saw cuts the log, after cutting the log drops automatically on the splitting table where a hydraulic cylinder pushes the log against the splitting blade. The position of the splitting blade can be adjusted, according to the log diameter. The new model is equipped with a separate system with own oil tank for lubricating the saw chain. Available with a catcher tray for the split logs or with a discharge conveyor (for 400-800 series). Discharge conveyor can also be retrofitted. Discharge conveyor is available as an option (for 400-800 series).

  • Powerful and safe log processor
  • Automated functions make work safe and efficient
  • Available with a catcher tray or with a discharge conveyor

TECHNICAL INFORMATION

Max. log diameter

300 mm

Max. log length

450 mm

Saw flange

13"

Max. splitting force

5,6 tons
conveyor belt lenght 2,3 m

Weight

310 kg

Weight, discharge conveyor

75 kg

Product no with collector bucket

A441909
product no with conveyor A441910





OPTIONS:

Feed conveyor A444471
Discharge conveyor(retrofit kit) 65673



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
