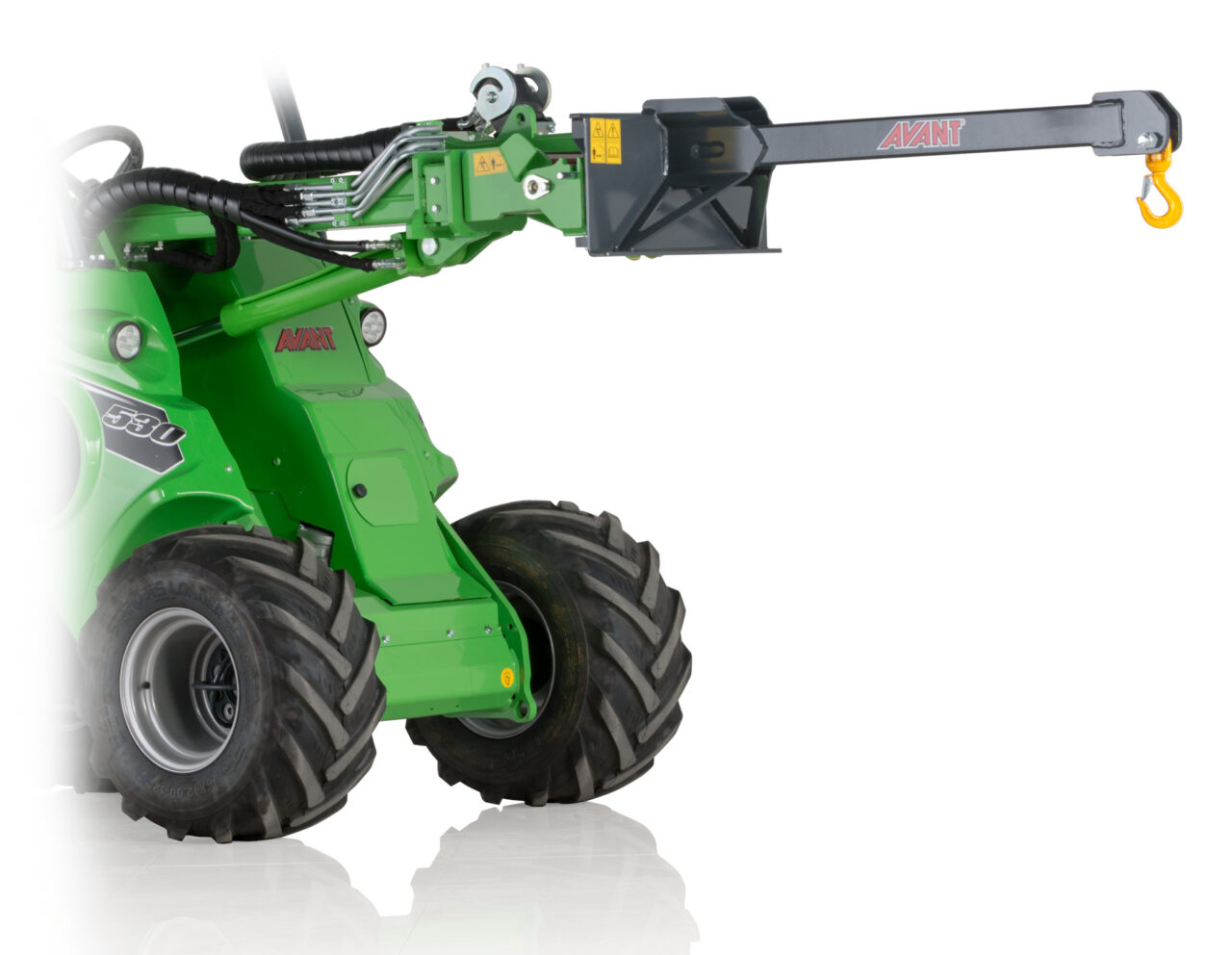

JIB BOOM

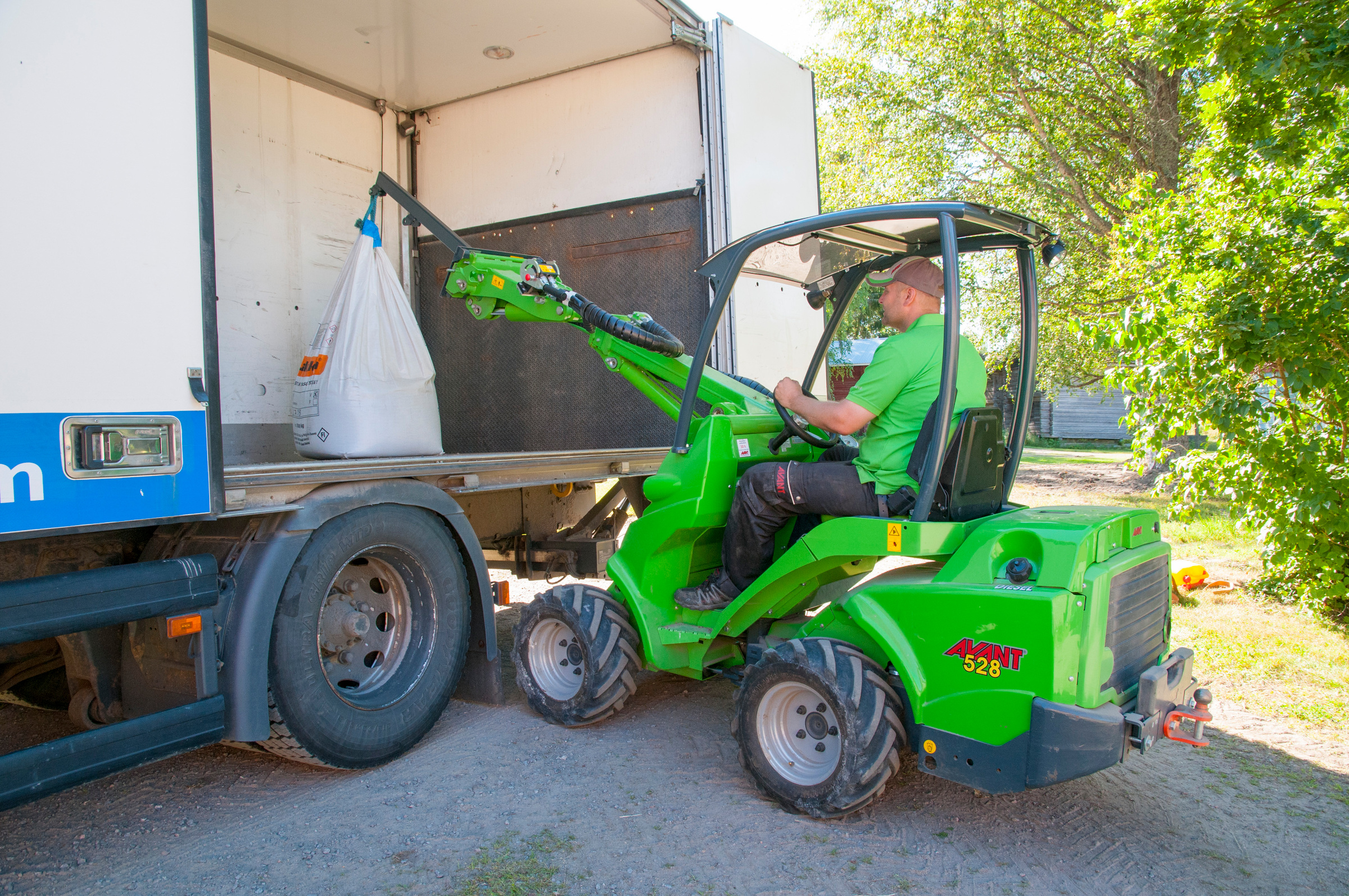

Avant jib boom is a simple and ingenious attachment: lifting and moving heavier loads in tight situations are not a problem anymore when you have this jib boom on your Avant.

The jib boom is equipped with two connecting points, one at the tip of the boom, equipped with a pin, and one 400 mm lower. Maximum lifting height to the tip of the jib boom, with the telescopic boom of the loader extended, is about 4 meters.

  • Economical attachment, suitable for many different lifting jobs
  • Connecting points on the boom increase lifting safety

TECHNICAL INFORMATION

Lifting point distance from the attachment plate 1200 mm
Total length 1300 mm
Width 550 mm
Height 315 mm
Weight 34 kg
Rated max. load 500 kg
Product no A428481

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
