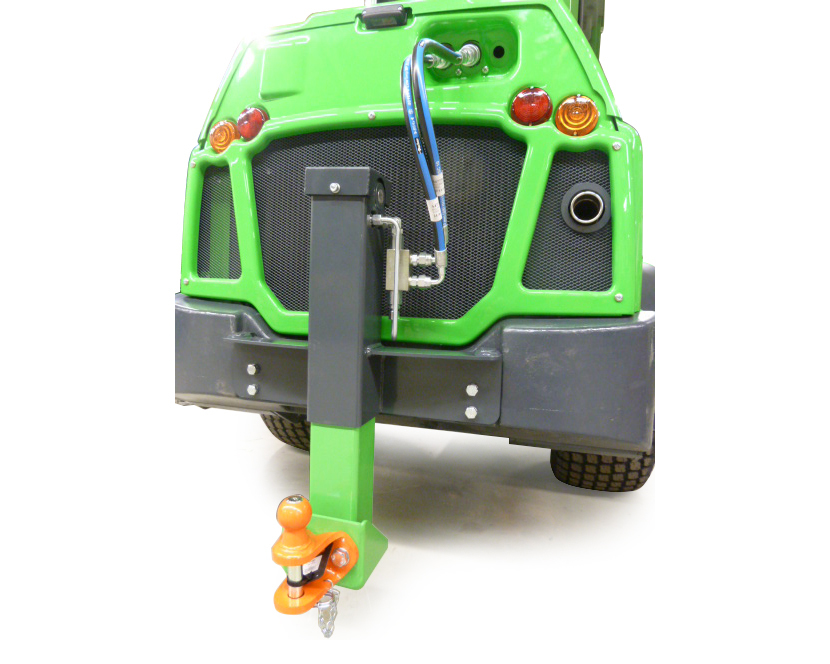

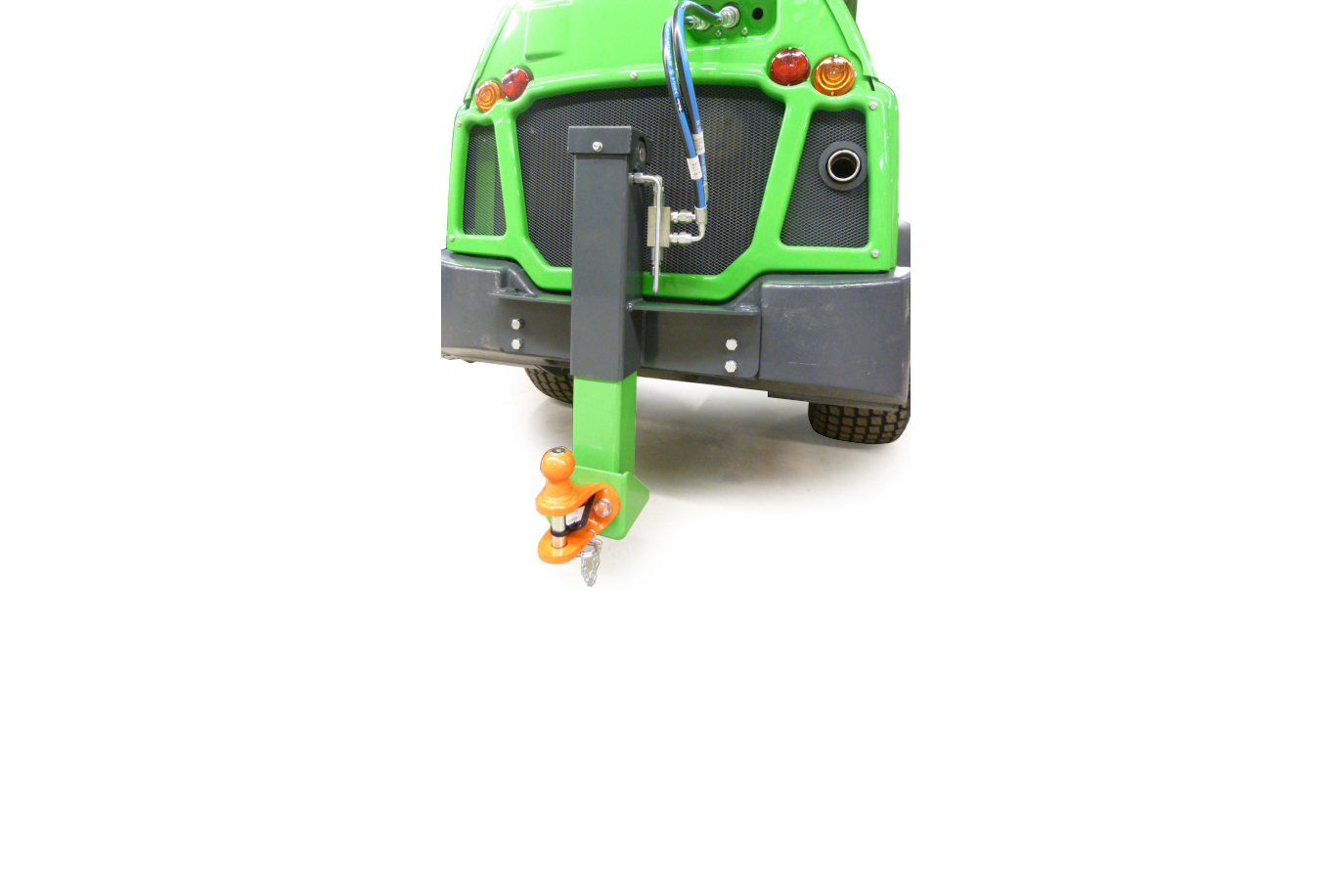

HYDRAULIC TRAILER HITCH

The hydraulic trailer hitch features hydraulic height adjustment of the 50 mm ball hitch, which makes it easier to connect trailers in varying heights and ground conditions. The hitch is equipped with both 50 mm ball and a towing pin.

Attention: Requires double acting rear auxiliary hydraulics outlet on the loader.

  • Equipped with 50 mm ball hitch/towing pin
  • 250 mm vertical hitch height adjustment
  • Hydraulic cylinder equipped with lock valve
  • Can be mounted on 400-800 series

TECHNICAL INFORMATION


Height adjustment hydraulic, 250 mm
Weight 30 kg
Product no. A36518

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
