Property maintenance

HIGH PRESSURE WASHER

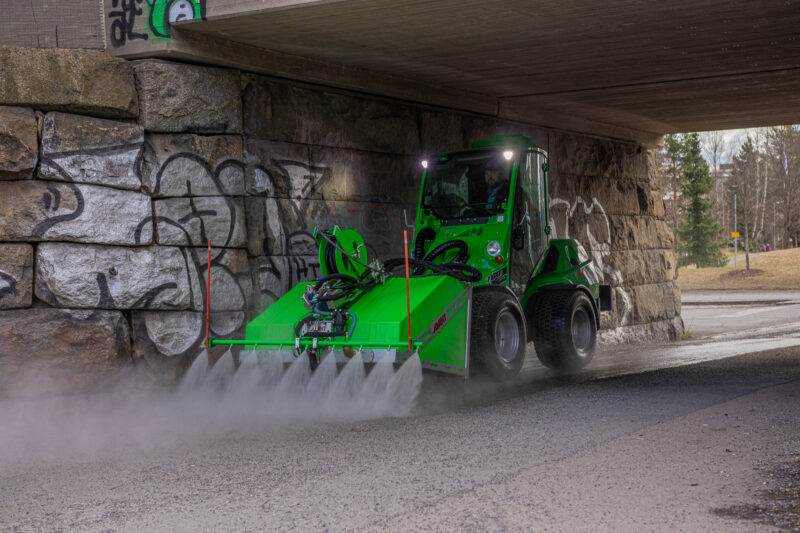

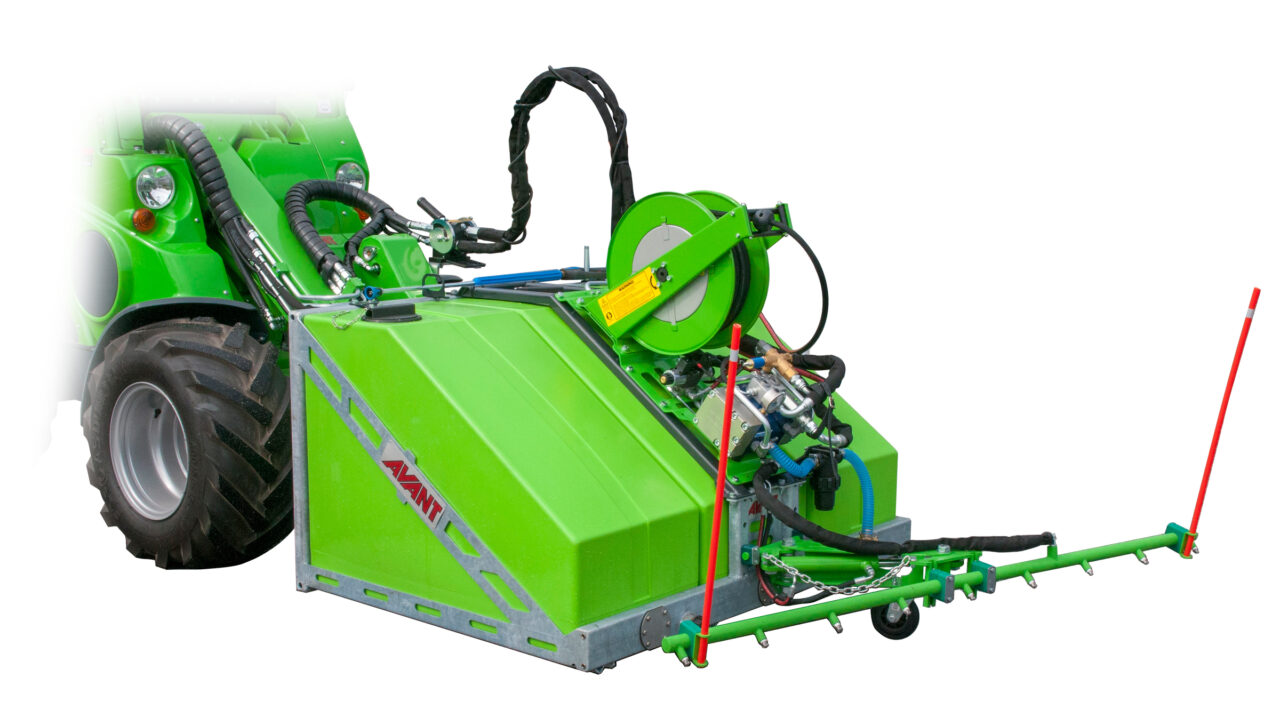

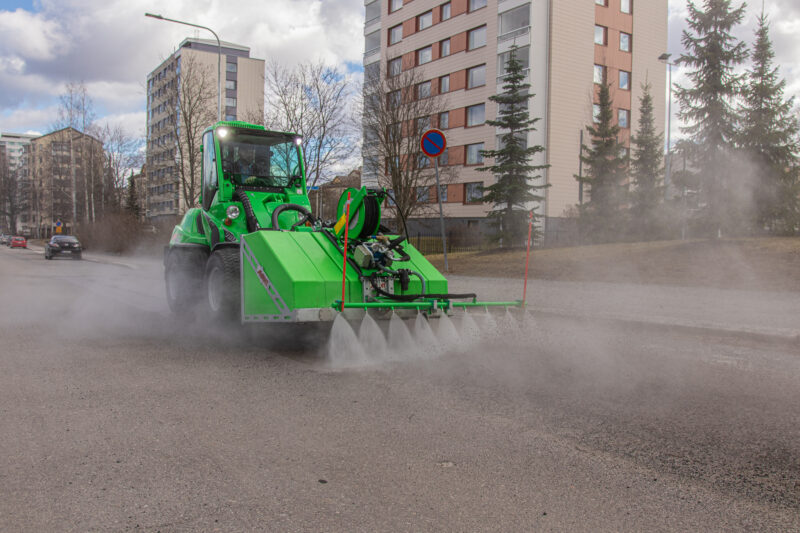

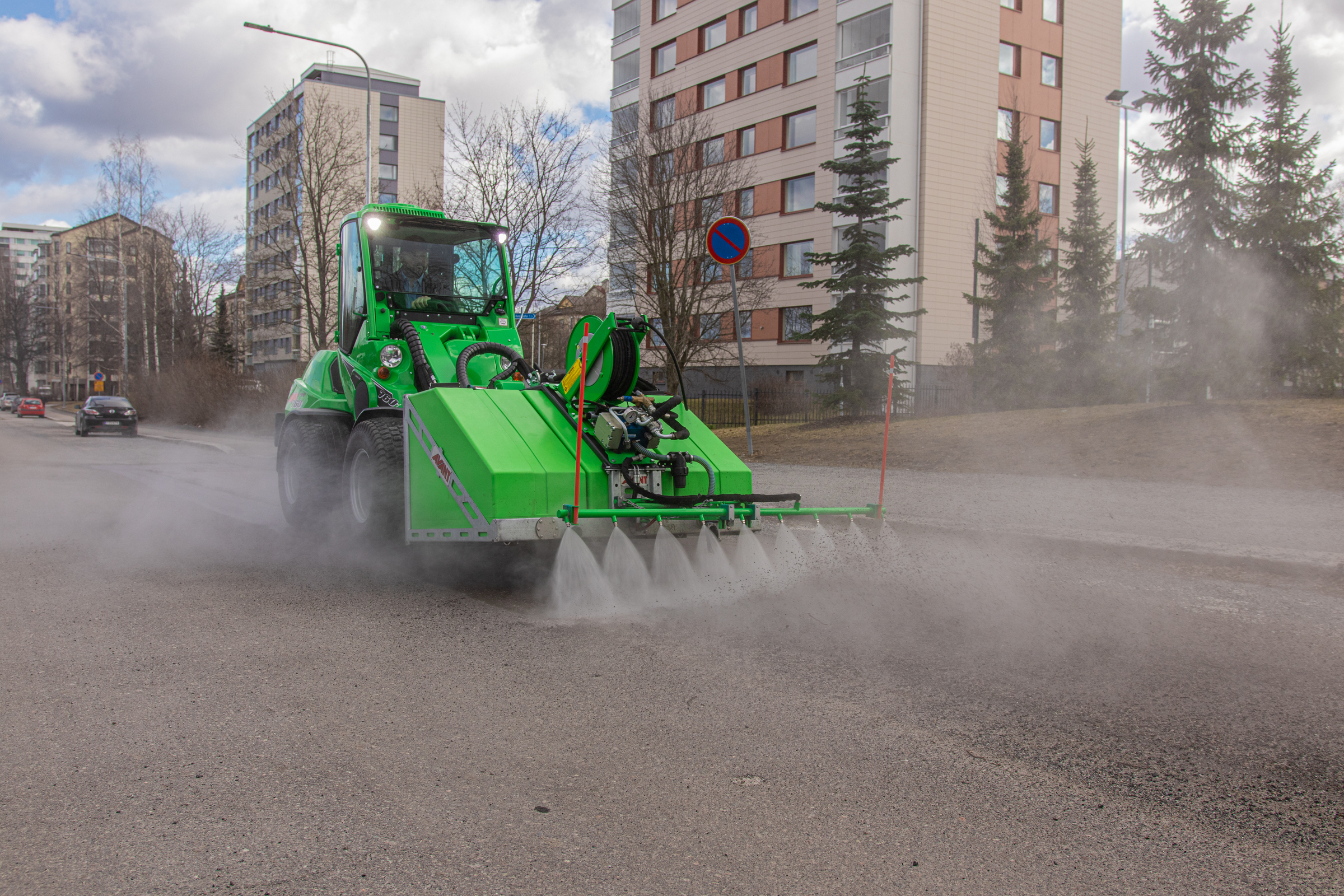

The high pressure washer makes your Avant a moving washing unit – it is a powerful street cleaner, and you can wash your loader, equipment, car, etc. easily and efficiently as well.

The washers combine low water consumption and high water flow and pressure. High pressure water takes dust, sand, and debris out of asphalt, concrete and similar surfaces and doesn’t, therefore, emit dust after drying. Low water consumption makes it possible to clean larger areas with a single pass.

The new washer series features three models with different water tank volumes: 280 l on model S, 560 l on model M and 840 l on model L.  All washers are equipped with both a turnable nozzle bar for street cleaning and a handheld washing gun with 20 m hose roll.

Max. water flow and pressure on models S and M are as high as 30 l/min and 200 bar and on the largest model L the 50 l/min max. water flow and 220 bar pressure make it a very efficient street cleaning machine on Avant 700 series.

Nozzle bar turning is hydraulic on models M & L, operated from the driver’s seat. Model S is equipped with manual turning.

  • Efficient high-pressure washers, equipped with both a nozzle bar for street cleaning and with a handheld washing gun
  • Three models: S, M and L with water tank volumes of 280 l, 560 l and 840 l respectively
  • Models M & L equipped with hydraulic nozzle bar turning for professional street cleaning

TECHNICAL INFORMATION

  S M L
Max. water flow 30 l/min 30 l/min 50 l/min
Max. water pressure 200 bar 200 bar 220 bar
Water tank volume 280 l 560 l 840 l
Working width 1500 mm 1800 mm 2000 mm
Nozzle bar turning manual hydraulic hydraulic
Nozzles 8 pcs 9 pcs 9 pcs
Water hose length 20 m 20 m 20 m
Width 1250 mm 1650 mm 1850 mm
Height 1143 mm 1100 mm 1100 mm
Length 960 mm 1655 mm 1655 mm
Weight 95 kg 228 kg 277 kg
Product no A37012 A37013 A37014

The optional Opticontrol is recommended for washers M & L, for operating the hydraulic nozzle bar turning.

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
S
M
L
