GRAPPLE BUCKET

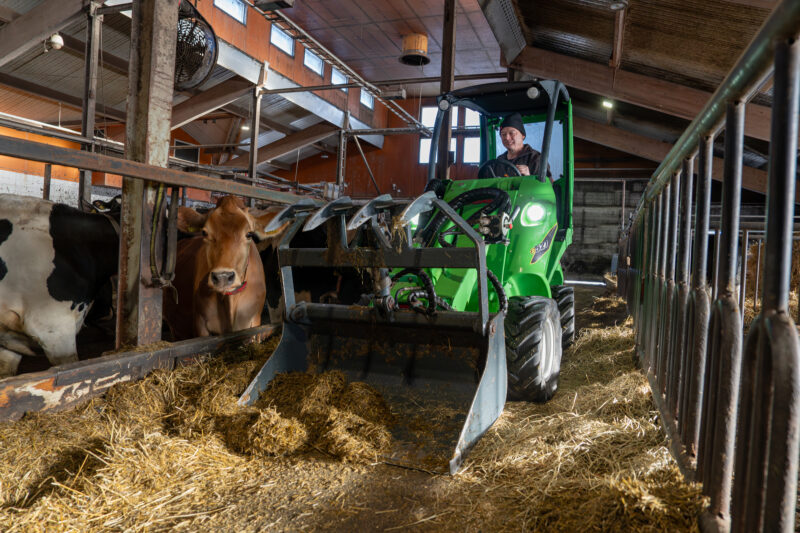

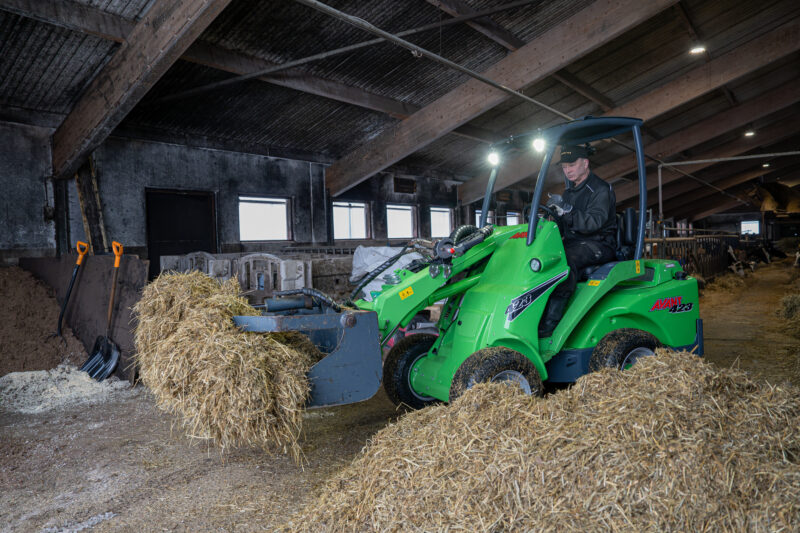

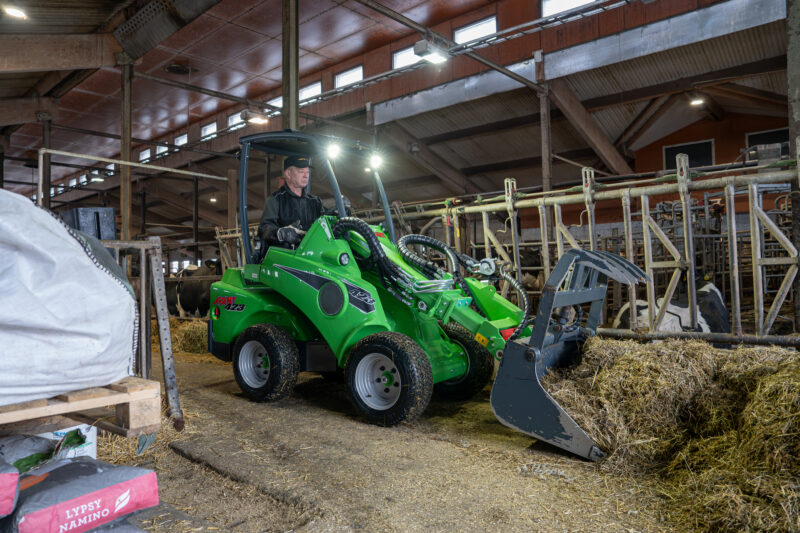

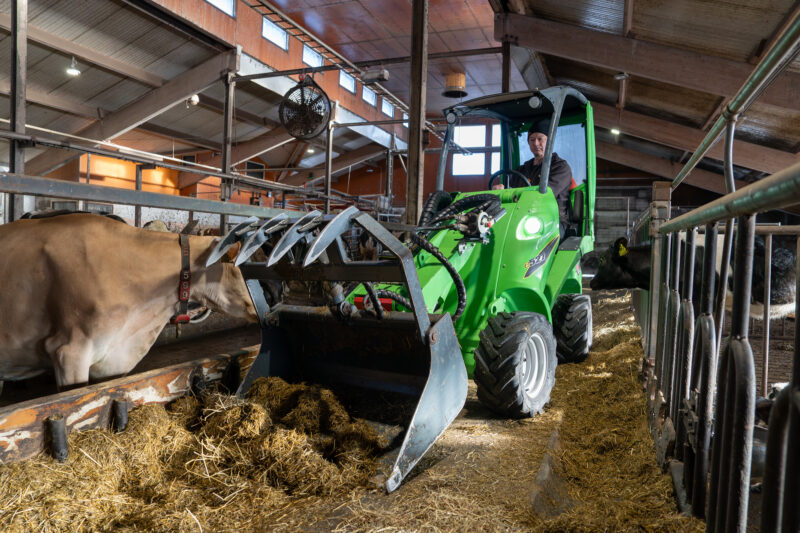

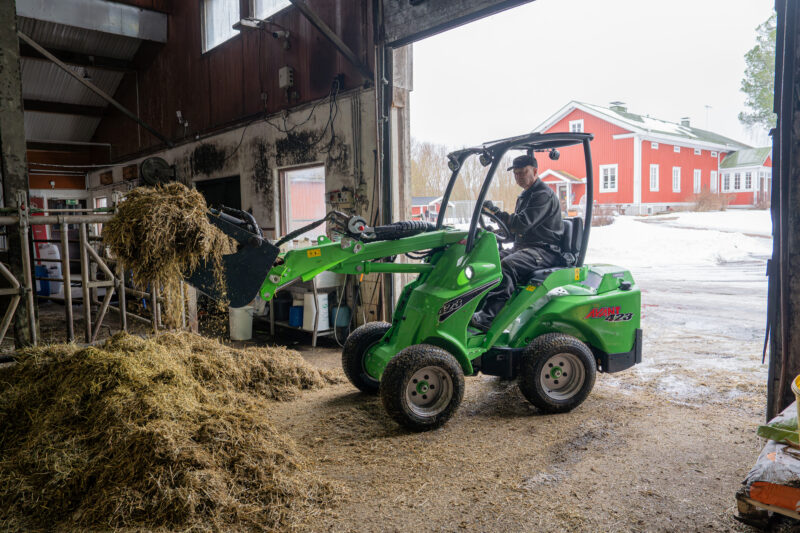

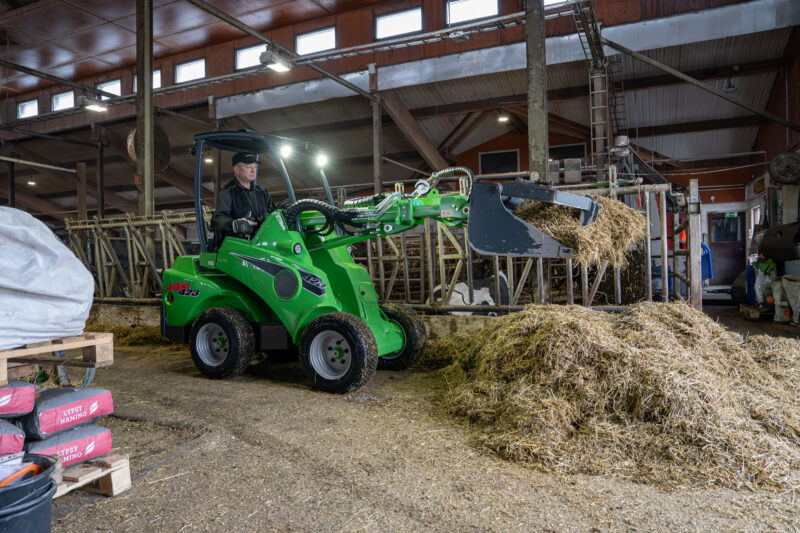

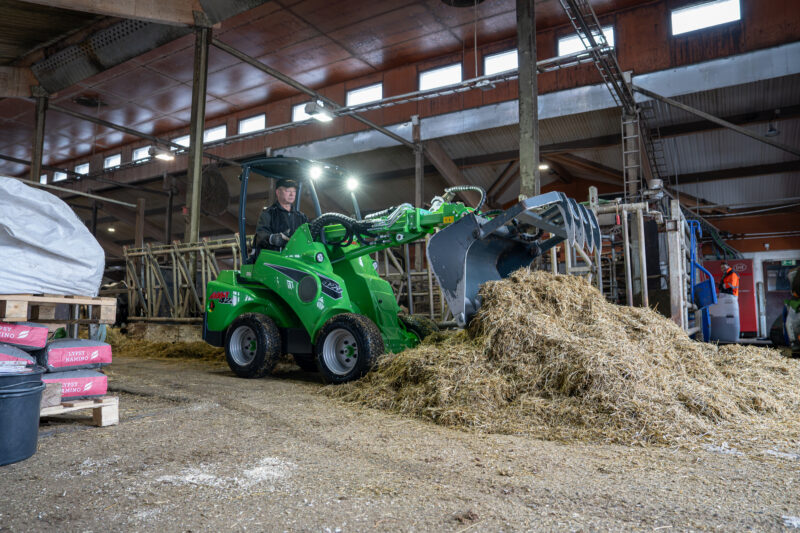

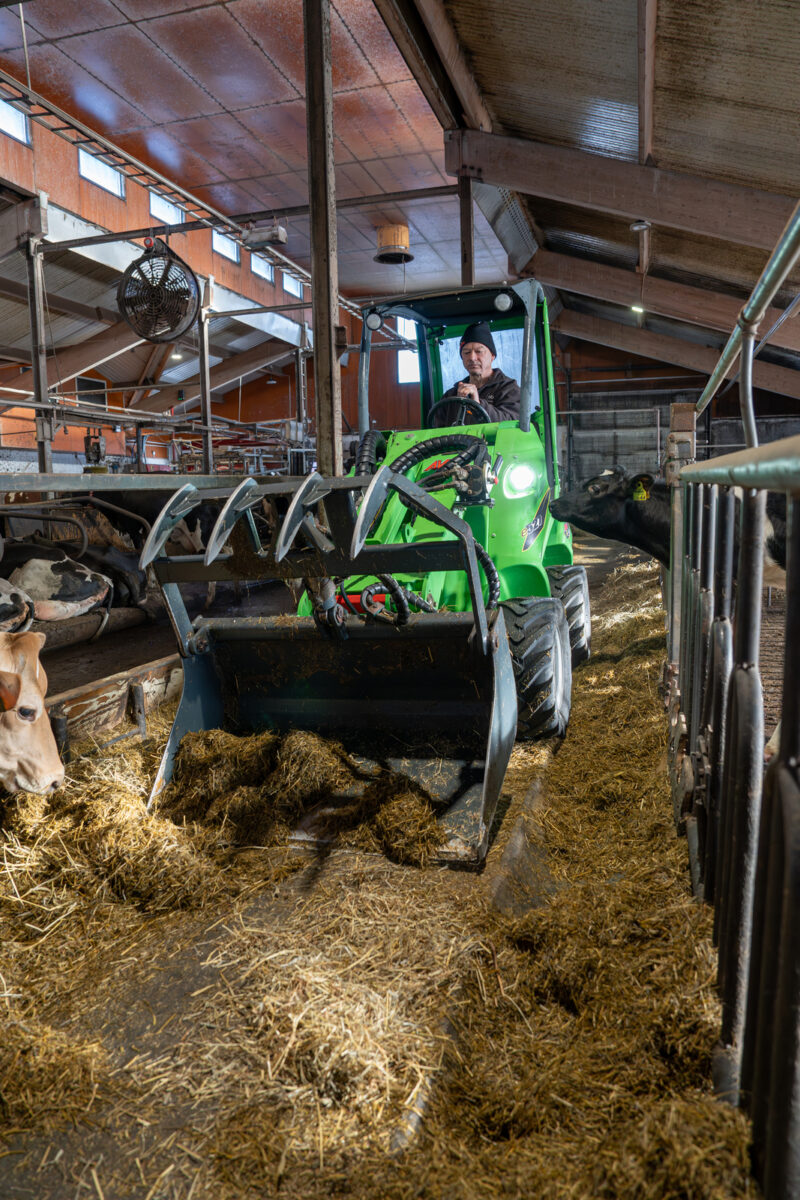

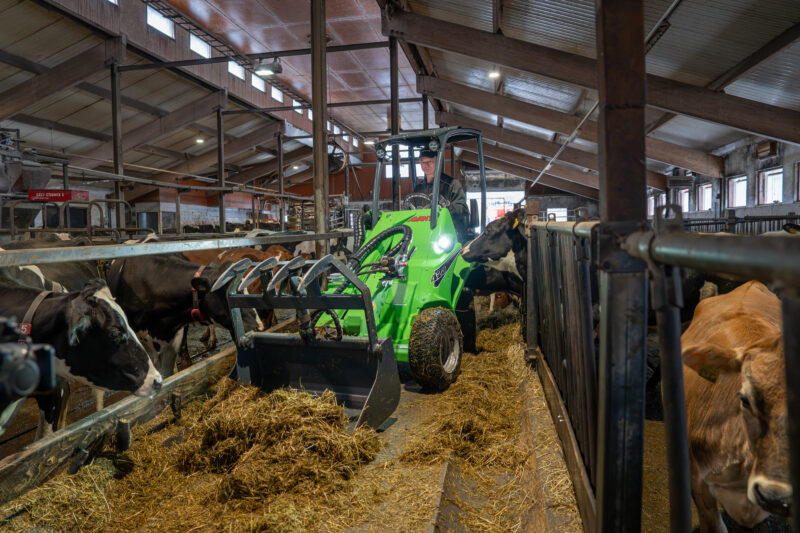

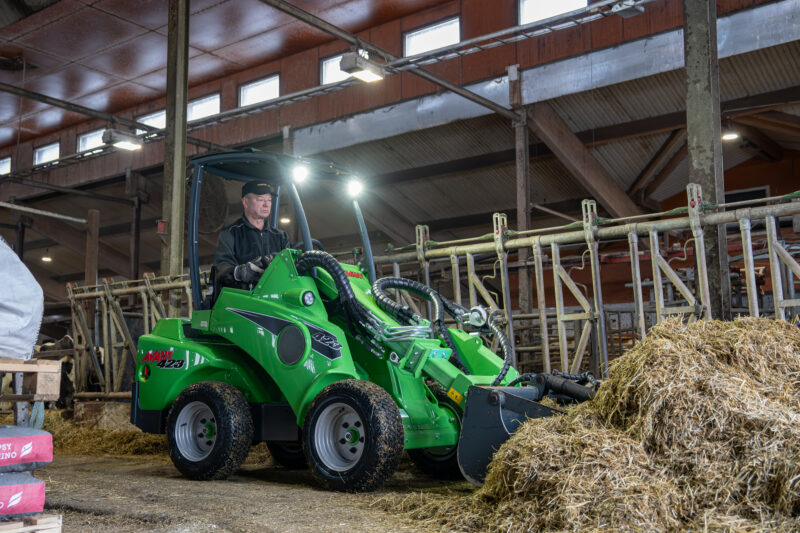

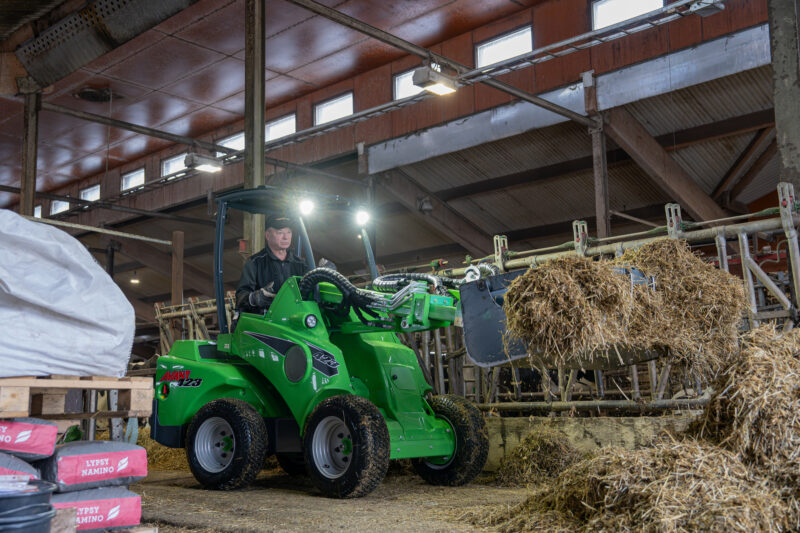

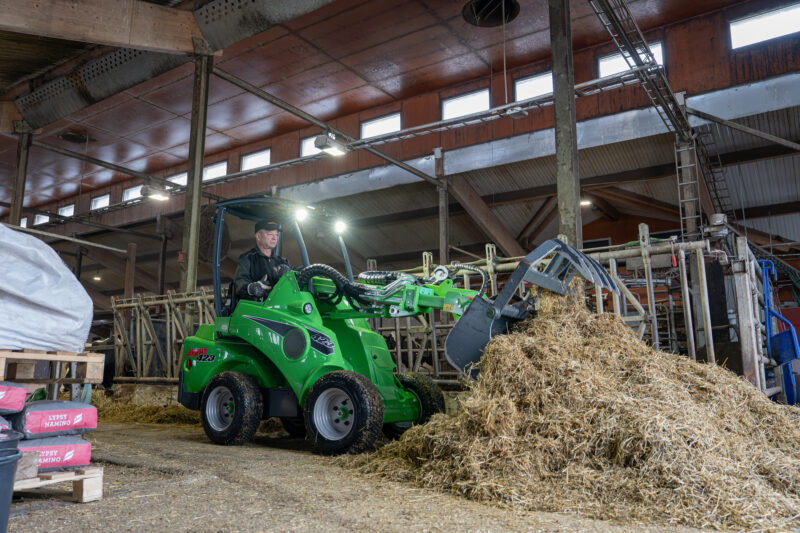

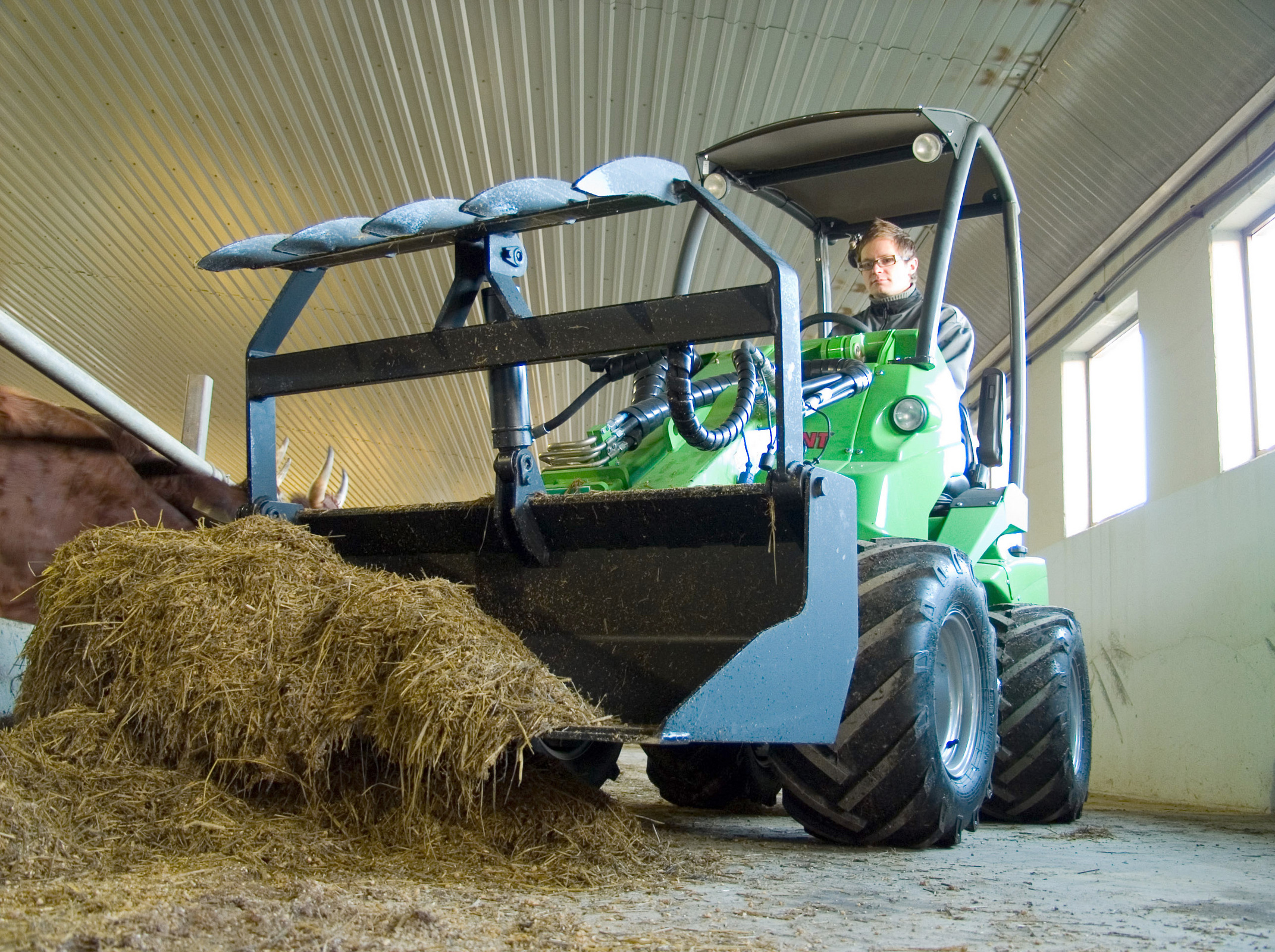

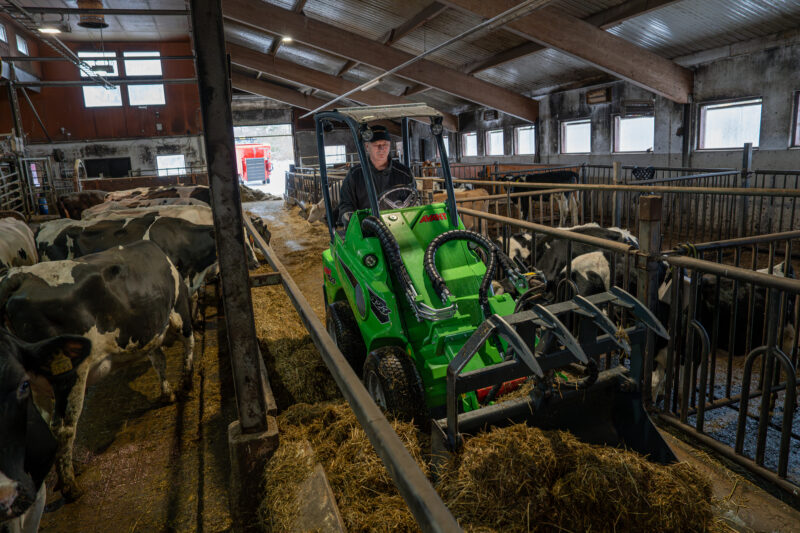

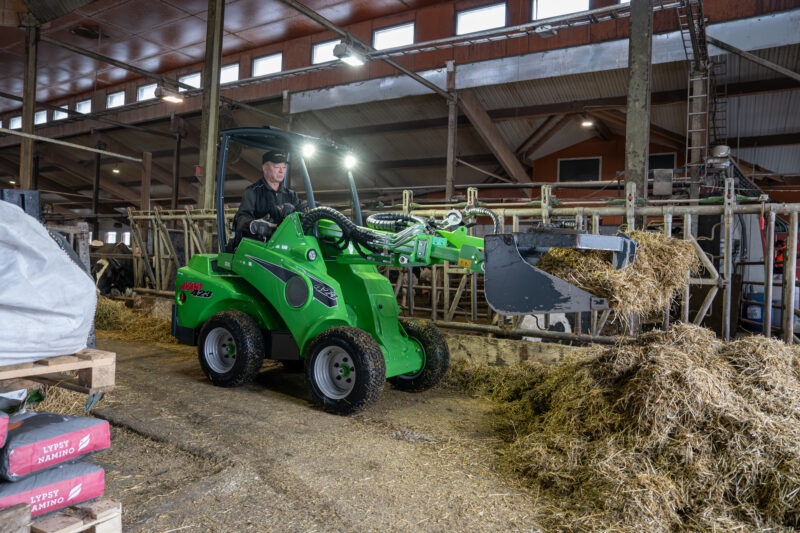

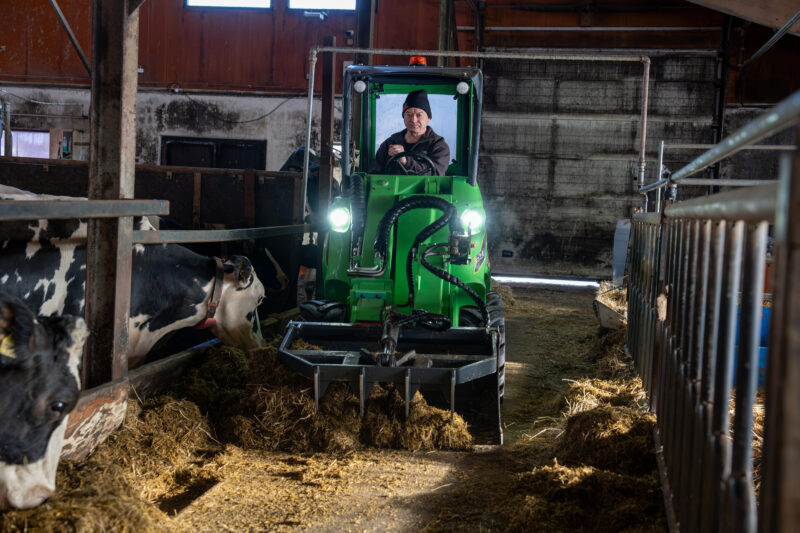

Grapple bucket combines a normal bucket and a grapple and is, therefore, suitable for a multitude of jobs. It can be used for transporting and loading of branches, wood chips, compost, straw, manure, construction waste, etc. It can also be used as a normal bucket with the grapple in the upright position.

  • Versatile bucket for the handling of loose materials

  • Larger XL models with two cylinders intended especially for 700 and 800 series

TECHNICAL INFORMATION

Width Weight Product no
900 mm 130 kg A36304
1050 mm 146 kg

A36316

1300 mm 168 kg A36323

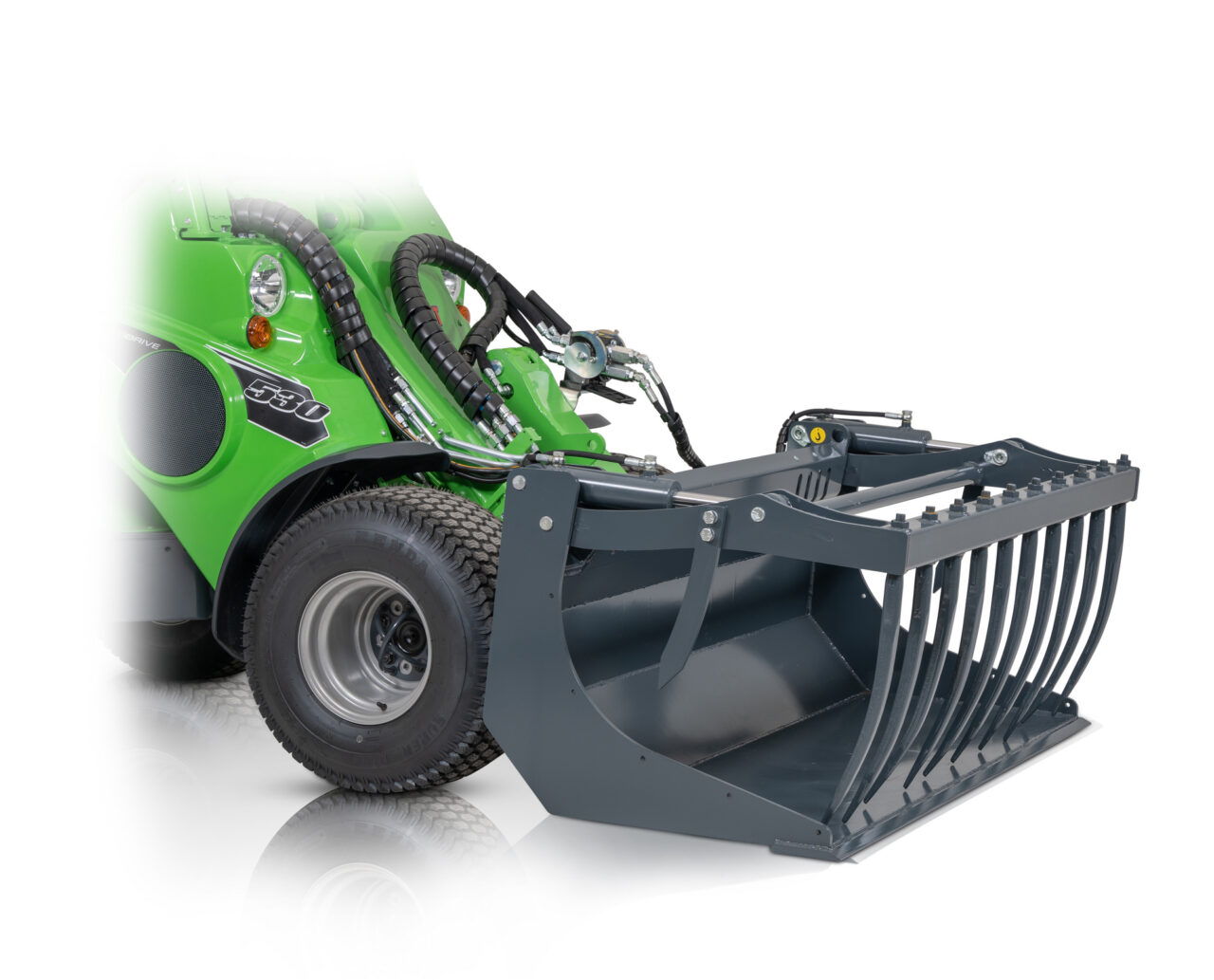

XL grapple bucket for 700 and 800 series:

width weight product no.
1300 mm 270 kg A441963
1450 mm 288 kg A441946
1600 mm 305 kg A439086



Option:

Side plates, kit, for XL grapple buckets A439112

XL grapple bucket:

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
