Landscaping

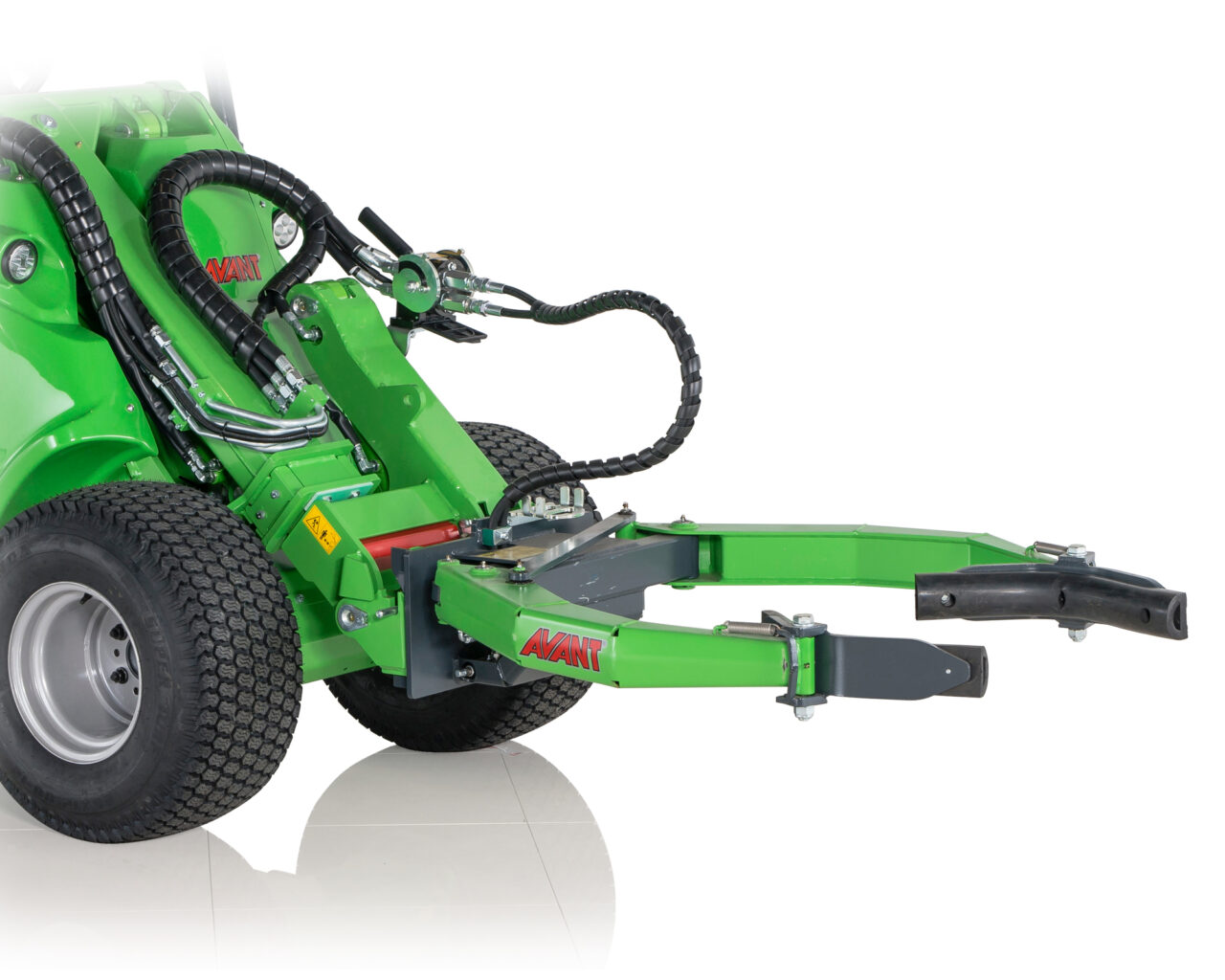

GRABBING TOOL

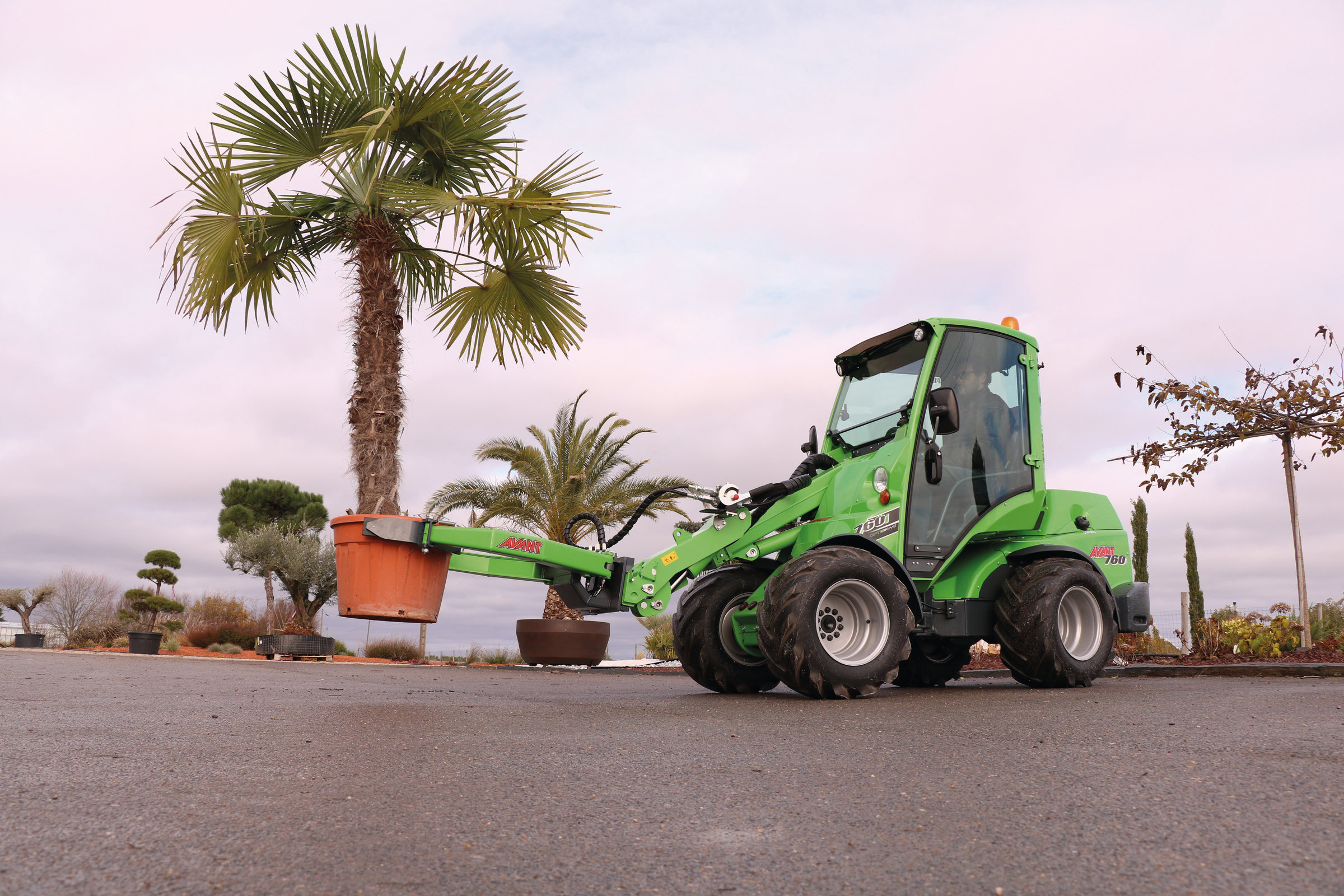

Grabbing tool is mainly intended for lifting and handling of round objects. It is especially suited for lifting barrels and plant and tree pots. Grabbing force can be adjusted, which means all kinds of objects can be handled without damaging them.

Grabbing tool is equipped with two smaller, rubber padded grabs which allow handling of smaller and more fragile objects as well. When the grab is opened completely it can take larger objects like barrels, bigger plant pots etc.

  • The easiest way to lift and transport plants, trees, barrels, etc. without damaging them
  • Excellent tool for nurseries and landscapers
  • With the optional tilt adapter or attachment rotator mounted on the grabbing tool, it is also possible to rotate the objects

TECHNICAL INFORMATION

Min. grab diameter

250 mm

Max. grab diameter

1200 mm

Max. load

650 kg

Weight

95 kg

Product no

A34290

OPTIONS

Conical grabbers - for objects with a conical shape like plant pots A421030
Barrel grabbers - for completely round objects like barrels A421031
Tilt adapter 90 degrees A36505
Attachment rotator (requires second auxiliary hydraulics outlet in the front) A424406

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
