FLAIL MOWER

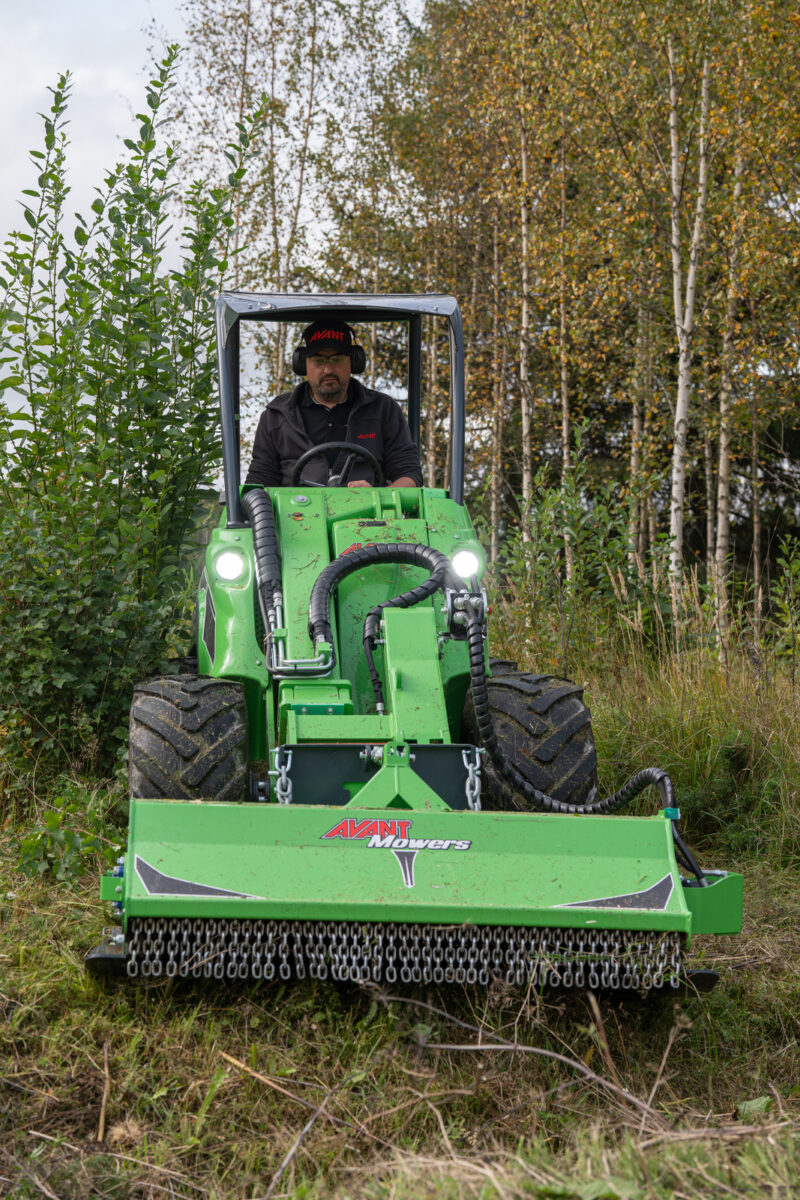

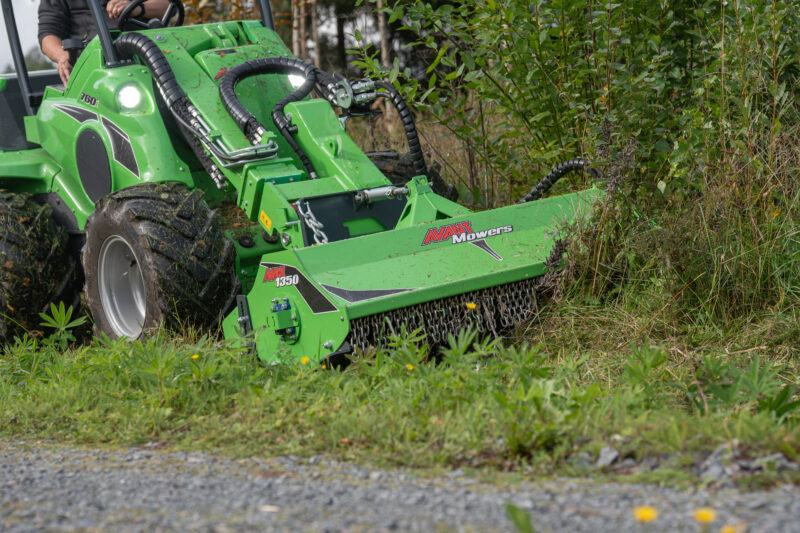

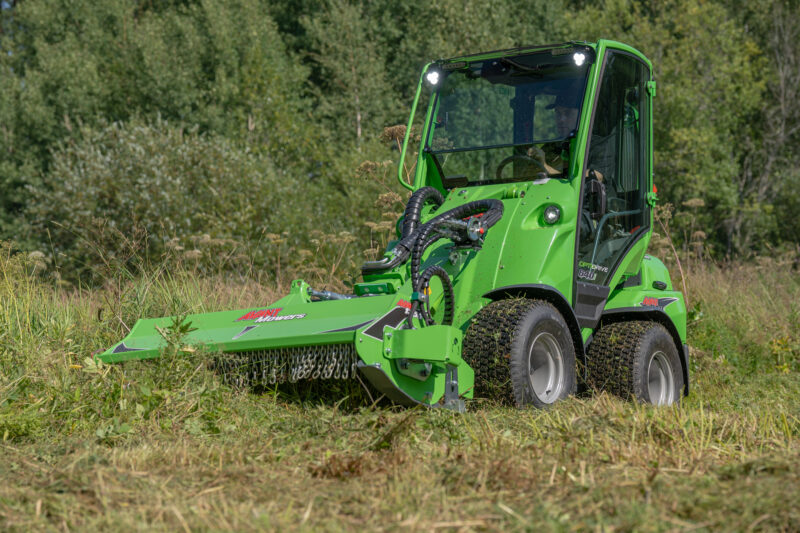

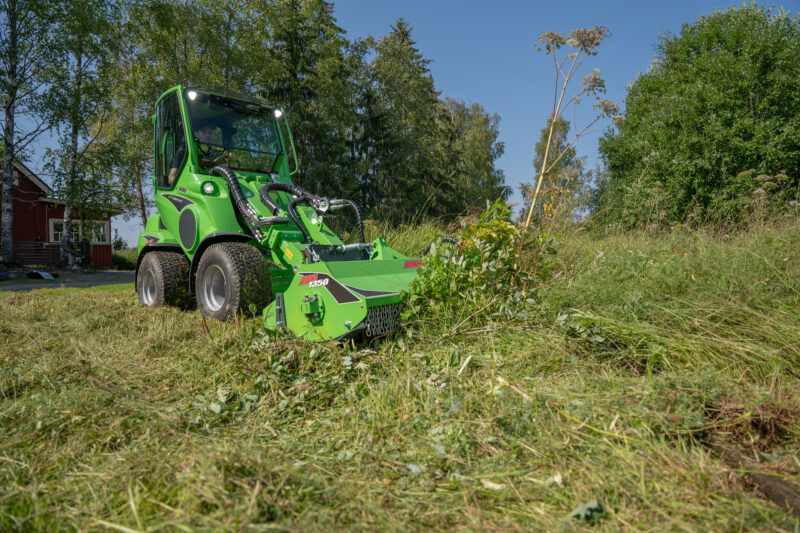

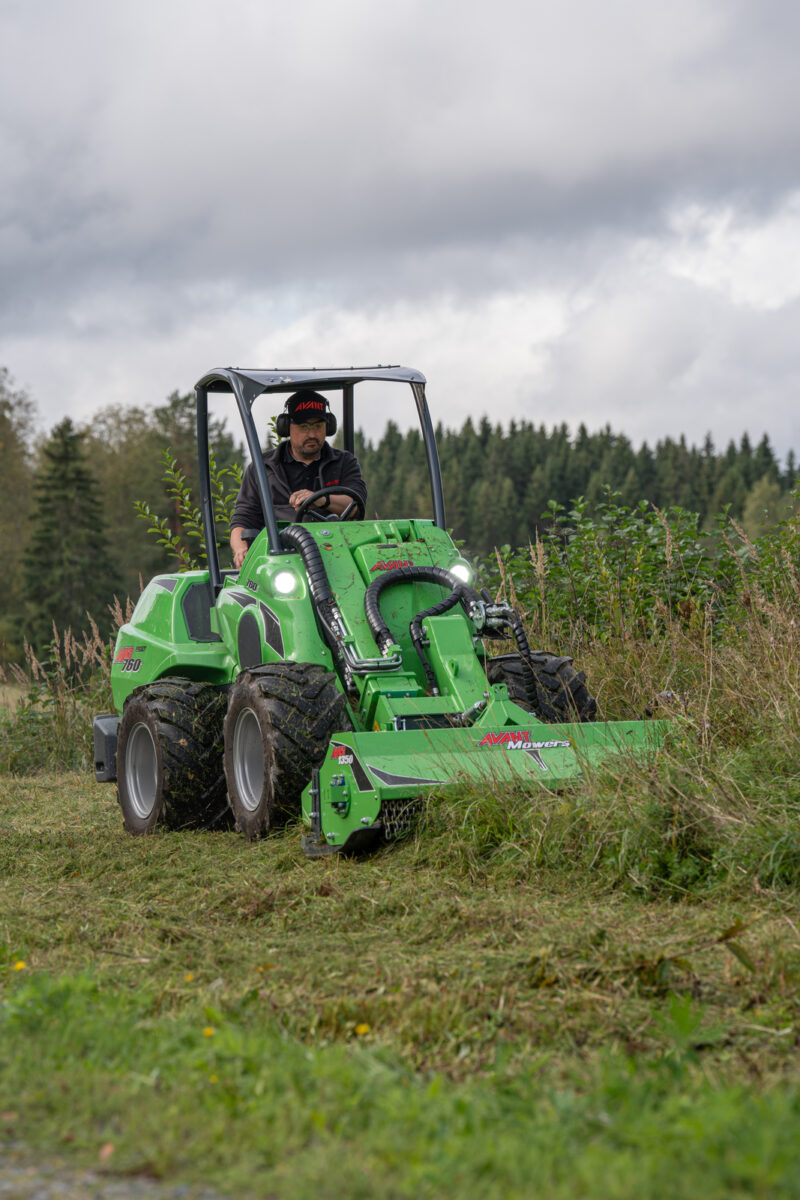

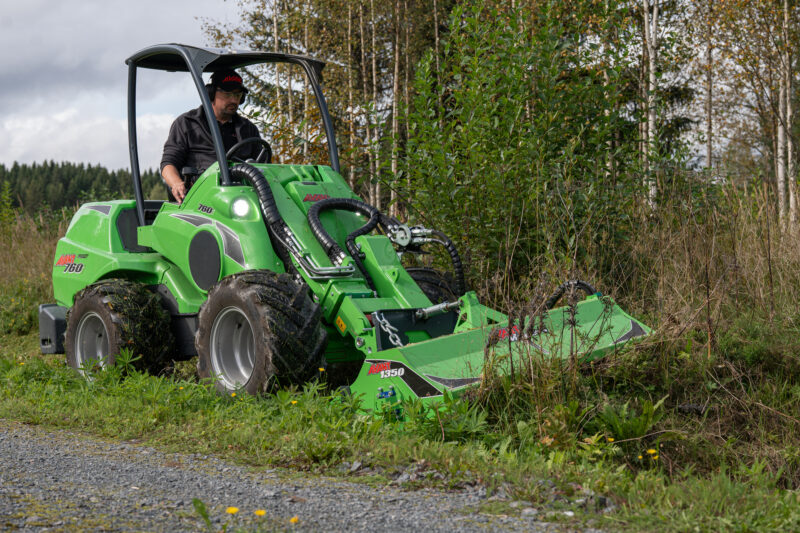

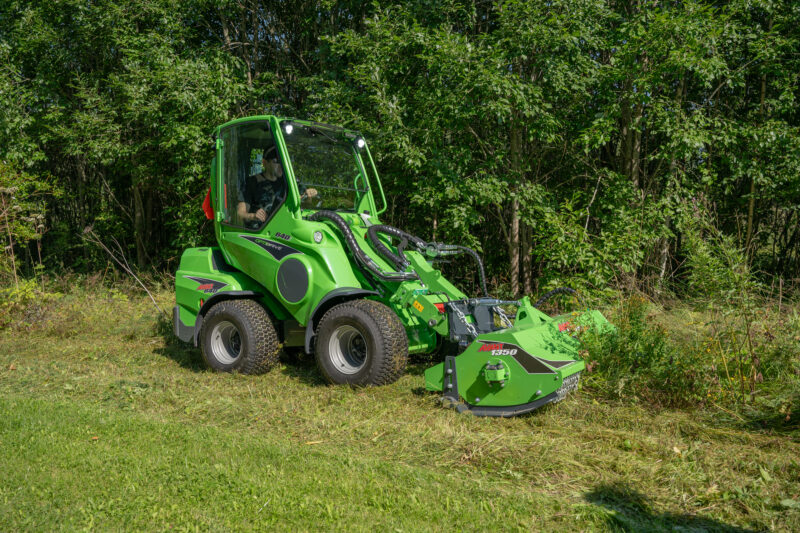

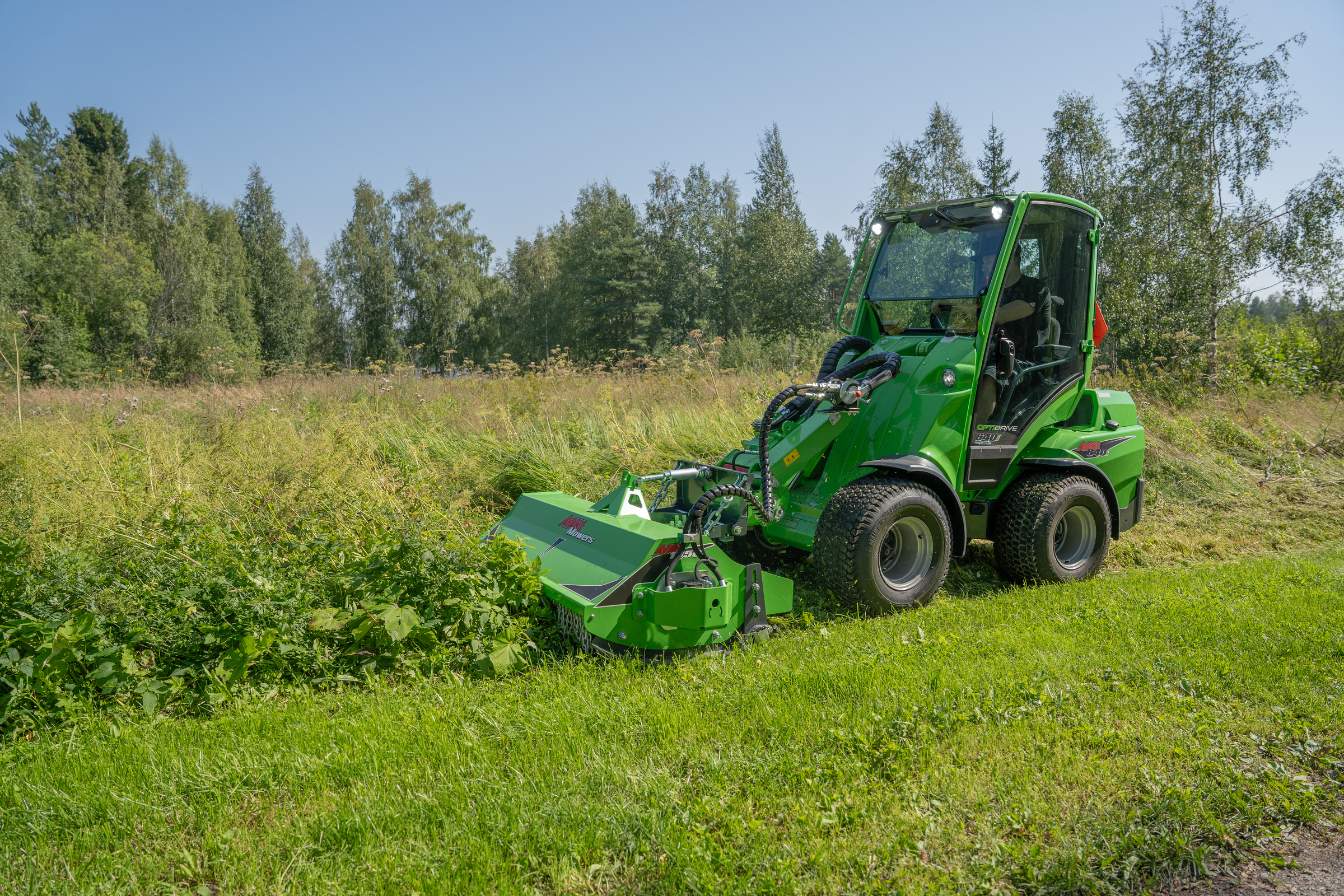

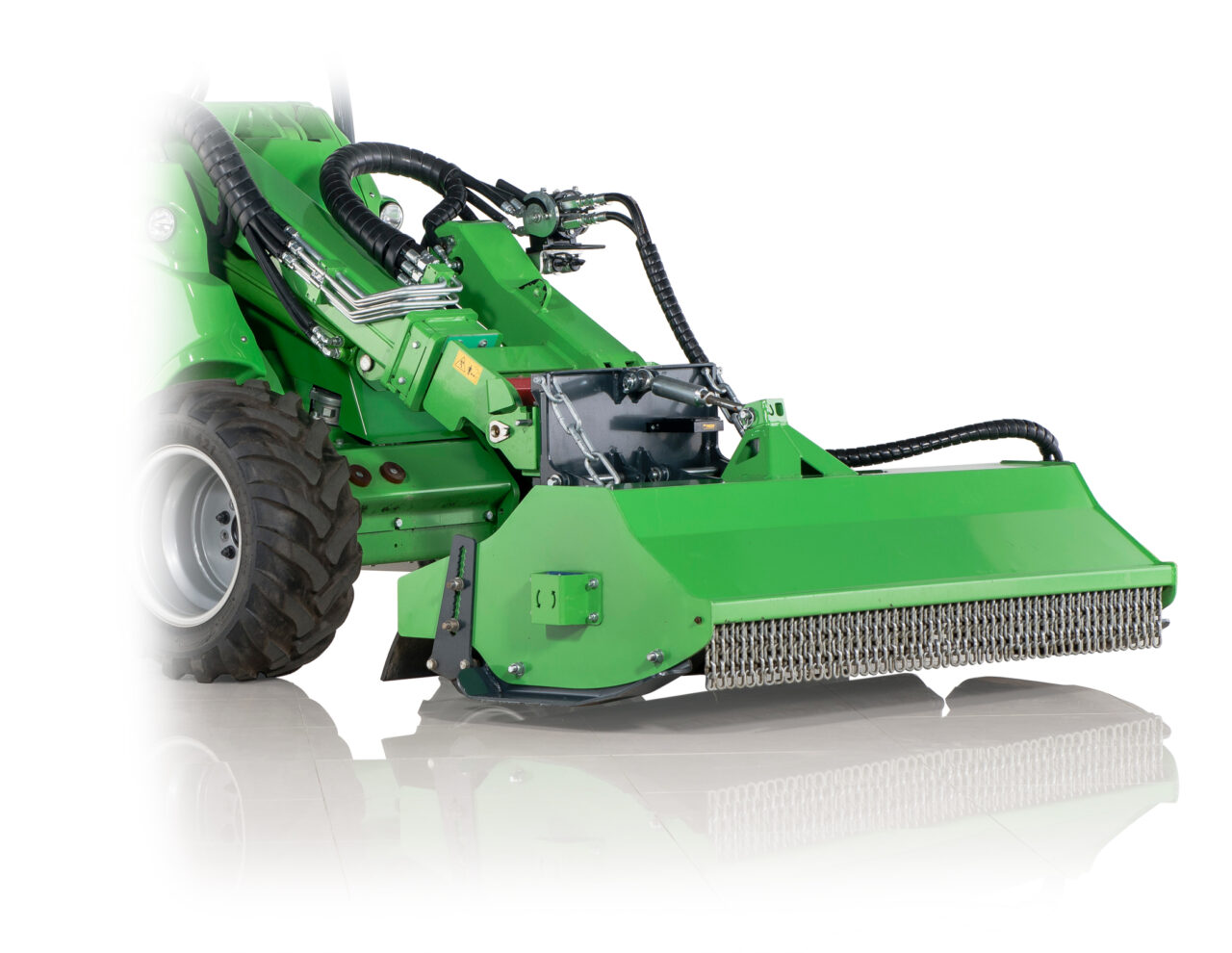

Flail mower is a drum-type cutter, intended for cutting of long grass, scrub, bush and similar vegetation. It will cut up to 20 mm thick tree branches with ease.

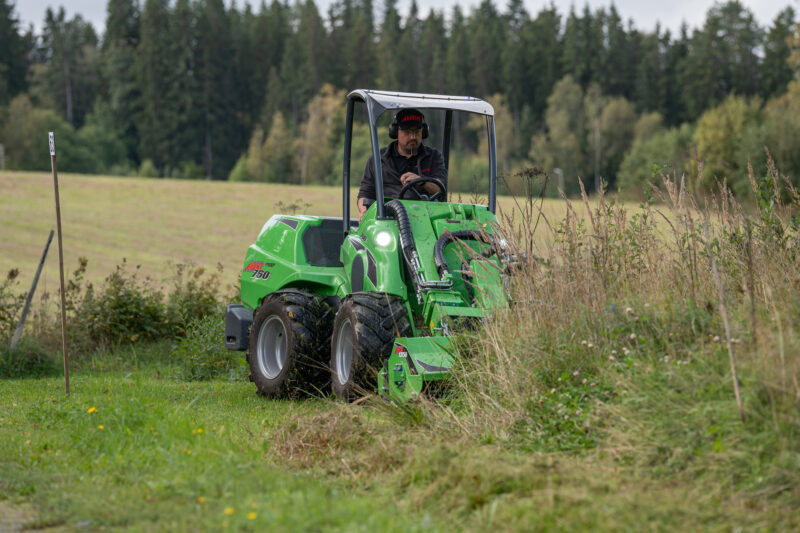

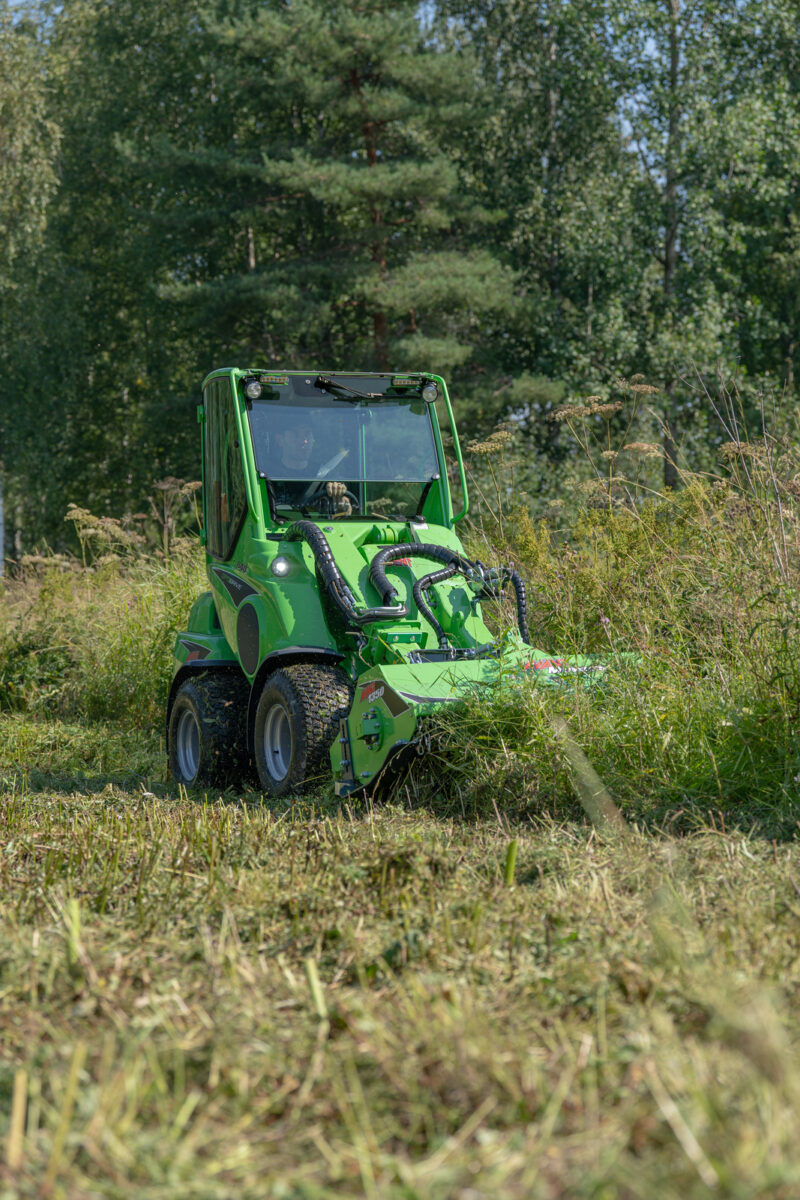

Flail mower is the optimal cutting device for places where you need a lot of cutting power and a rougher cut will do. The most common applications for flail mower are places with taller vegetation like meadows, road banks, yard areas, etc.

  • Cutting deck design improves cutting result and requires less power from the engine and hydraulics
  • Flails are mounted in spiral on the
    shaft which makes cutting more
    efficient
  • Direct drive: hydraulic motor mounted directly on the shaft
  • Floating system allows free vertical movement, and the floating can be set so that the mower can tilt freely forward and backward as well
  • Bigger roller in the rear – better stability and less resistance when mowing
  • Long and wide skid shoes on the sides
  • Both models equipped as standard with hammer type flails – Y and L type flails are available as an option

TECHNICAL INFORMATION

Model 1200 1350 1500

Cutting width

1200 mm 1350 mm 1500 mm

Total width

1580 mm 1730 mm 1880 mm

Cutting height

25 - 100 mm 25-100 mm 25 - 100 mm

Std. flails type/pcs

hammer 16 pcs hammer 18 pcs hammer 20 pcs

Weight

240 kg 260 kg 270 kg

Product no

A36730 A441550 A36015

Optional flail types:

A419931 Y-flails, pair (16 pcs / 1200 mm mower, 18 pcs / 1350 mm mower, 20 pcs / 1500 mm mower)
A420305 L-flails, pair (16 pcs / 1200 mm mower, 18 pcs / 1350 mm mower, 20 pcs / 1500 mm mower)



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
1200
1350
1500
