Groundcare

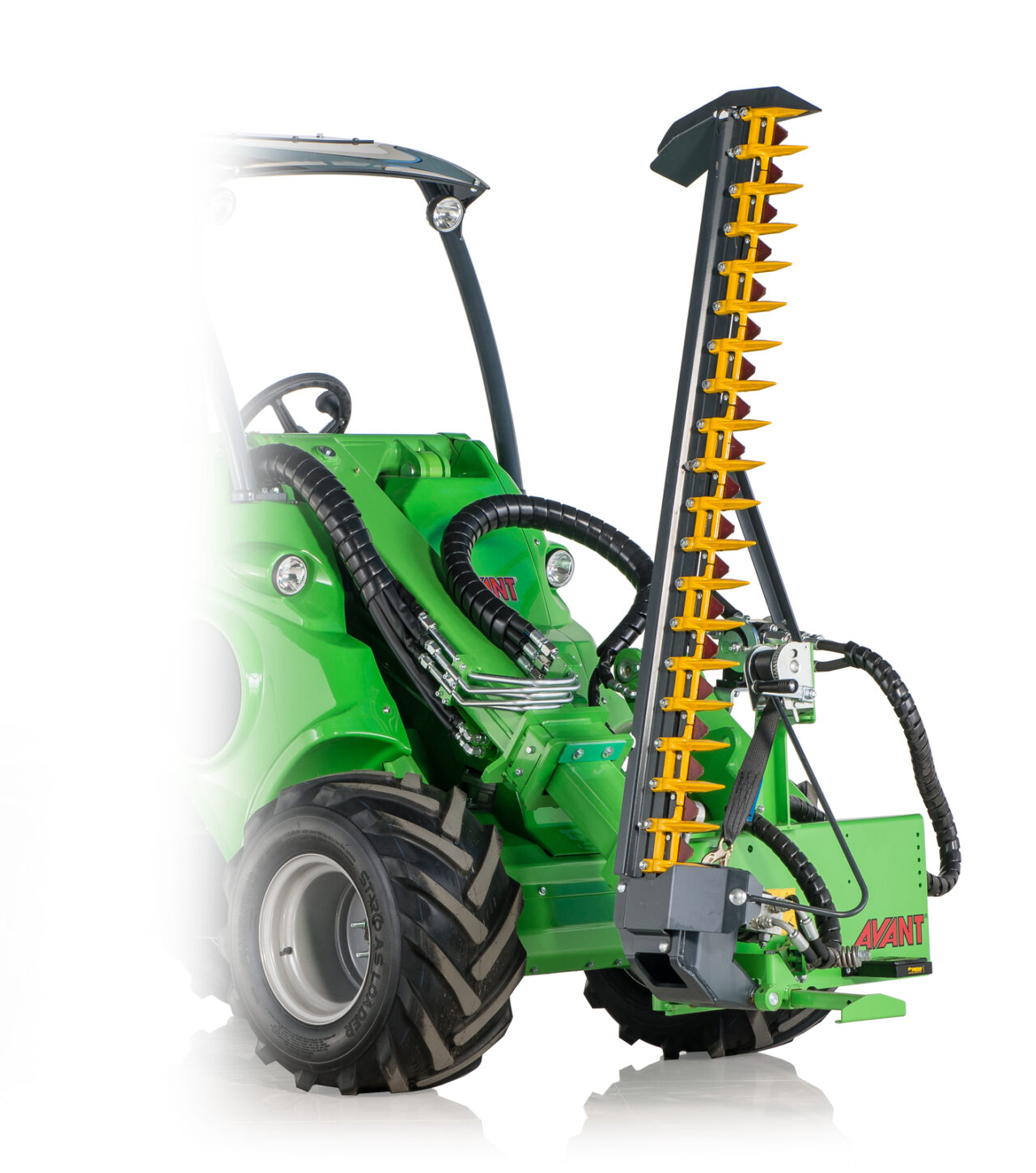

CUTTING BAR

An uncomplicated cutting bar for the mowing of hay, grass, and trimming of bushes and hedges. Thanks to the side mounting and angle adjustment below ground level mowing of slopes is also possible. Guide plates under the bar support the cutting blades when mowing. The spring-loaded release mechanism allows the bar to move backwards if it hits an obstacle. Cutting angle can be adjusted manually with the hand winch. Electric cutting angle adjustment is available as an option.

  • Robust and economical long hay cutter and hedge trimmer

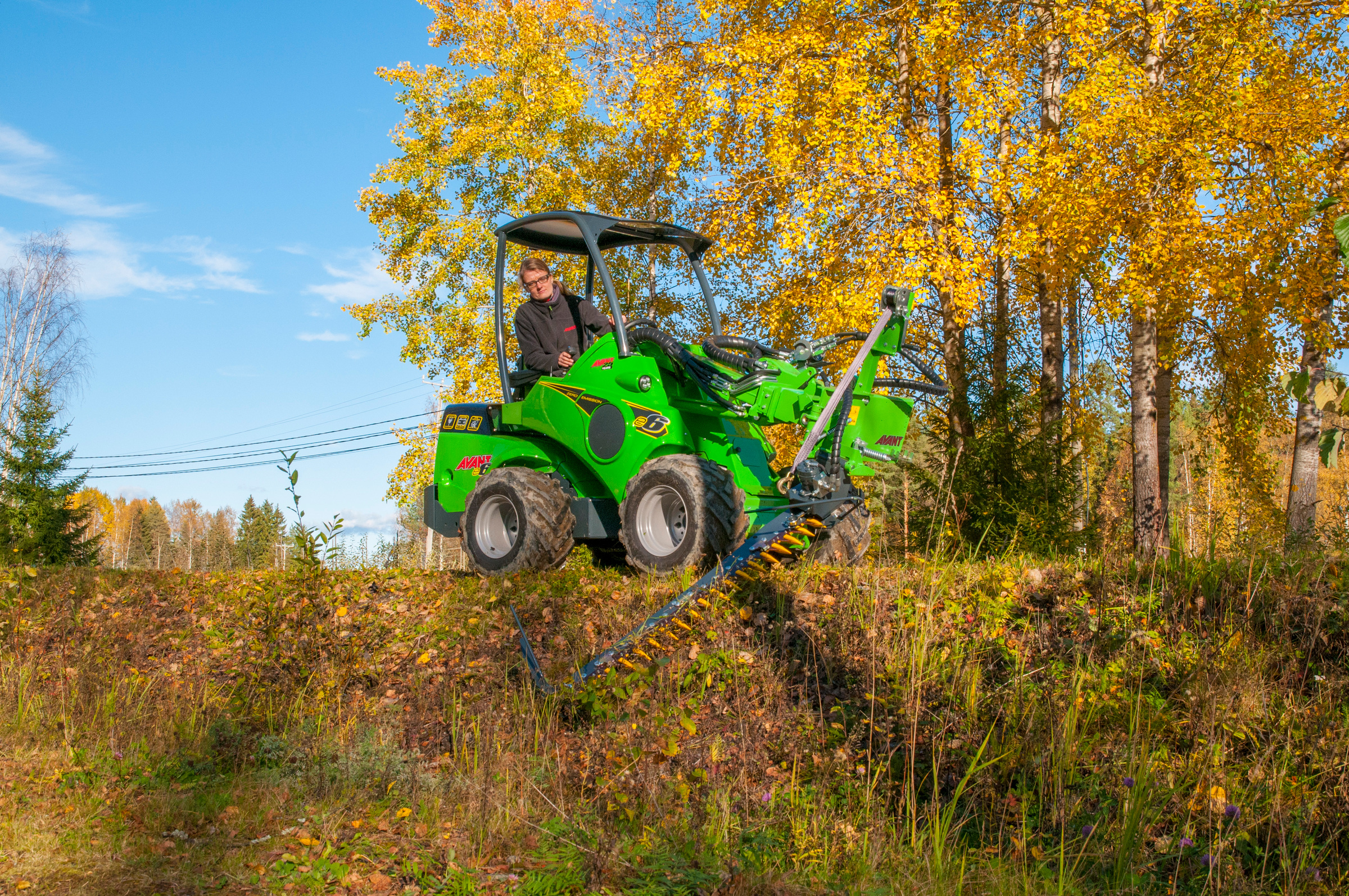

  • Cutting angle adjustment below ground level – mowing of slopes also possible
  • Spring loaded release mechanism for increased safety – cutting bar gives in when hitting an obstacle
  • Electric cutting angle adjustment available as an option

TECHNICAL INFORMATION

Cutting width

1450 mm

Transport width

2540 mm

Transport height

1765 mm

Weight

100 kg

Product no

A35676



OPTIONS

Electric cutting angle adjustment

A35975





COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
