CONCRETE MIXING BUCKET

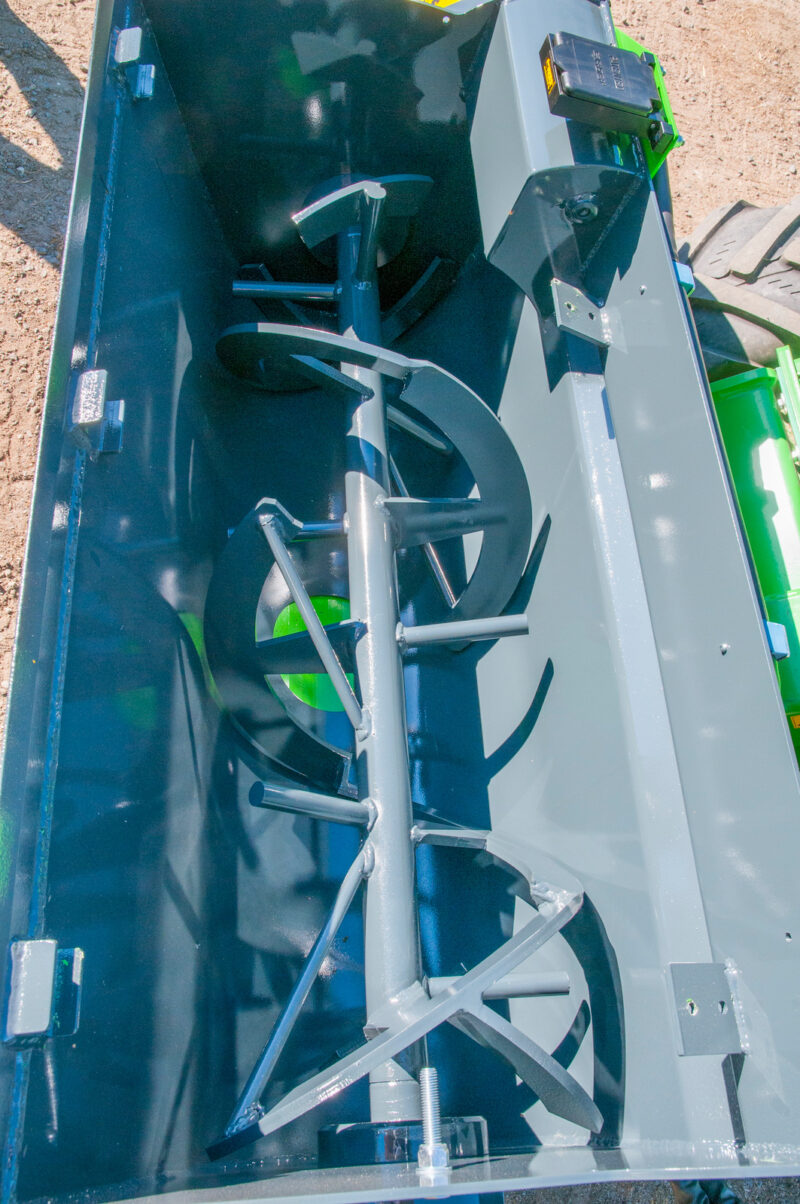

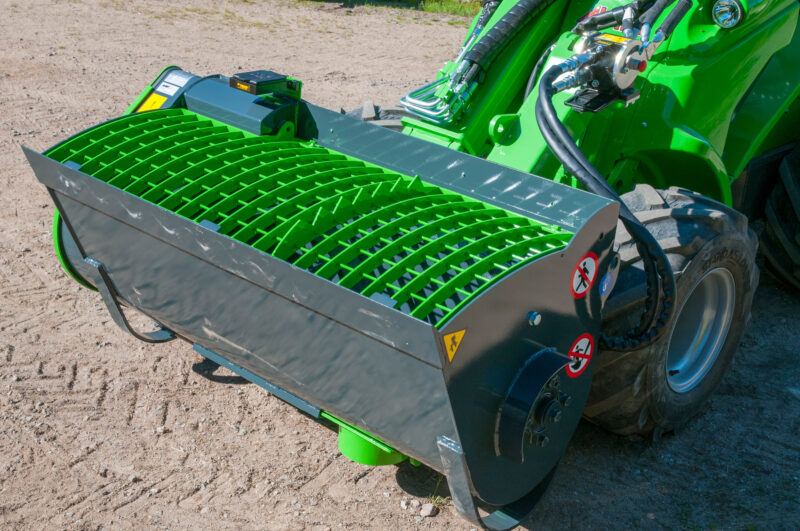

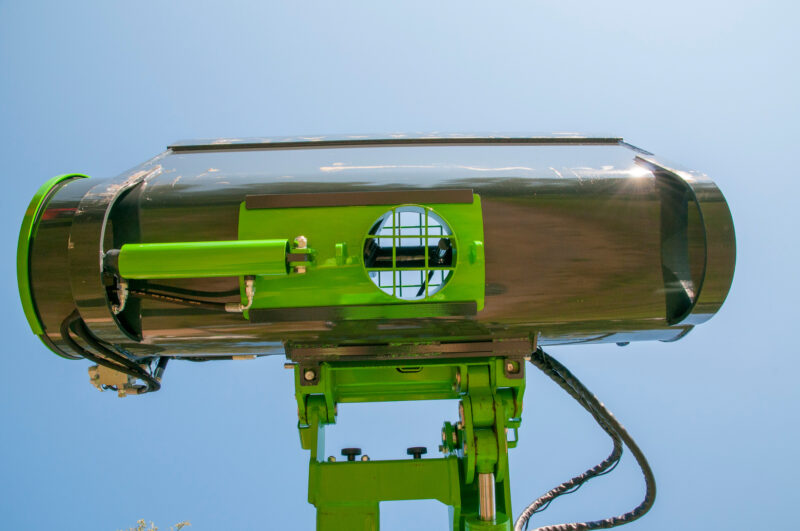

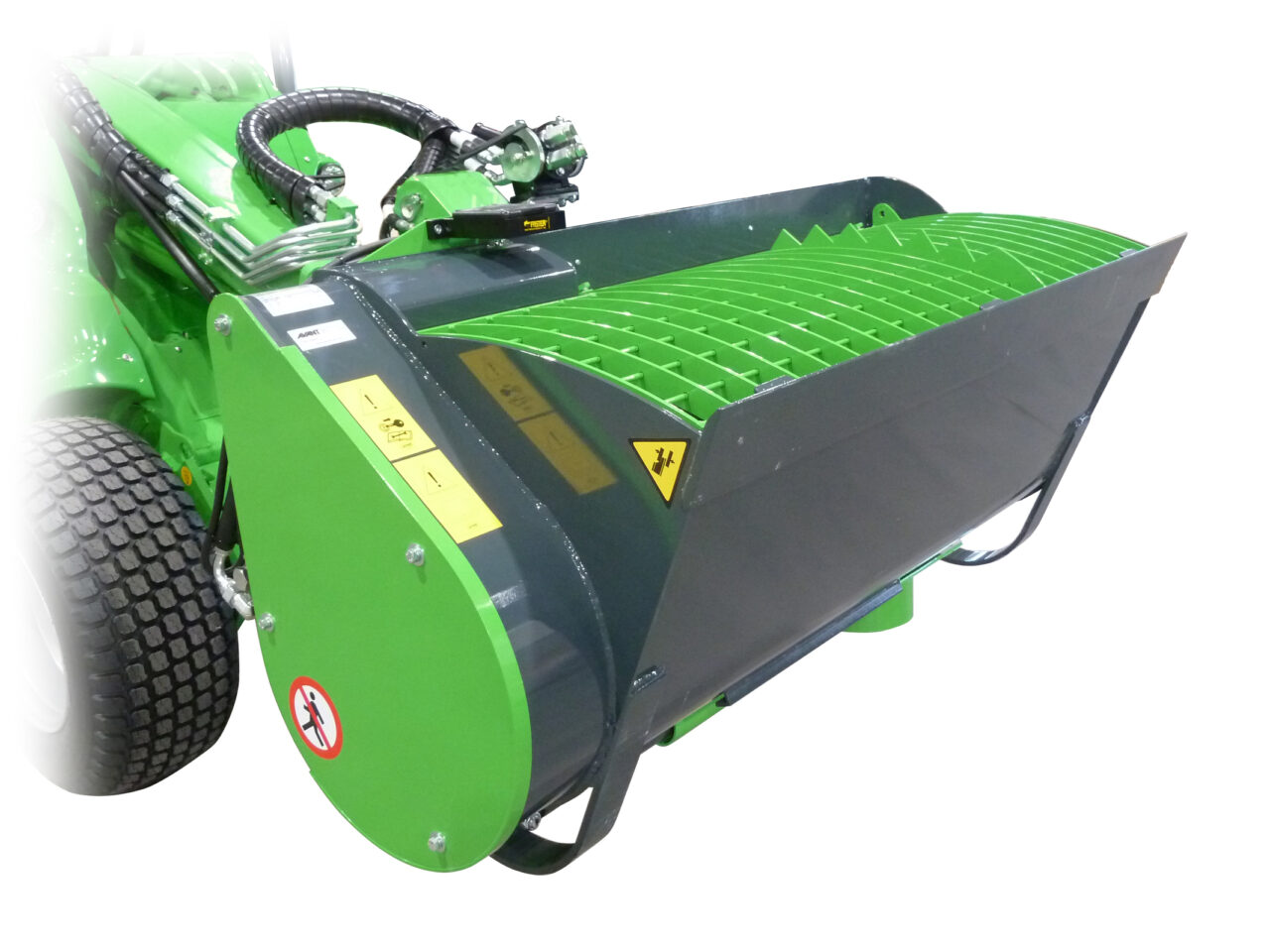

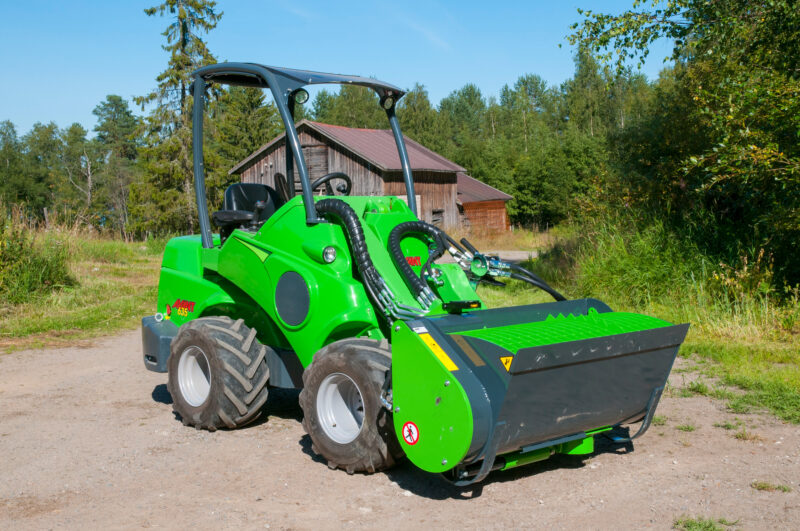

Concrete mixing bucket is a handy tool when you need to make concrete without electricity or when you need to transport or lift the concrete to a place hard to access. The new model is equipped with a 400 mm screw shaft and a guard grill on the bucket. Two versions available: the bucket is emptied from the bottom hatch in the middle of the bucket, or on the left of the bucket. Hatch opening is powered by a hydraulic cylinder controlled with an electric directional valve, operation from driver’s seat with an electric switch. The bucket is also equipped with a flexible 1350 mm emptying tube which mounts on the bottom hatch. This enables pouring of the concrete further away from the bucket.

  • Easy and efficient way to make concrete in places where electricity is not available

  • The mixed concrete is easy and effortless to transport and pour into the desired place

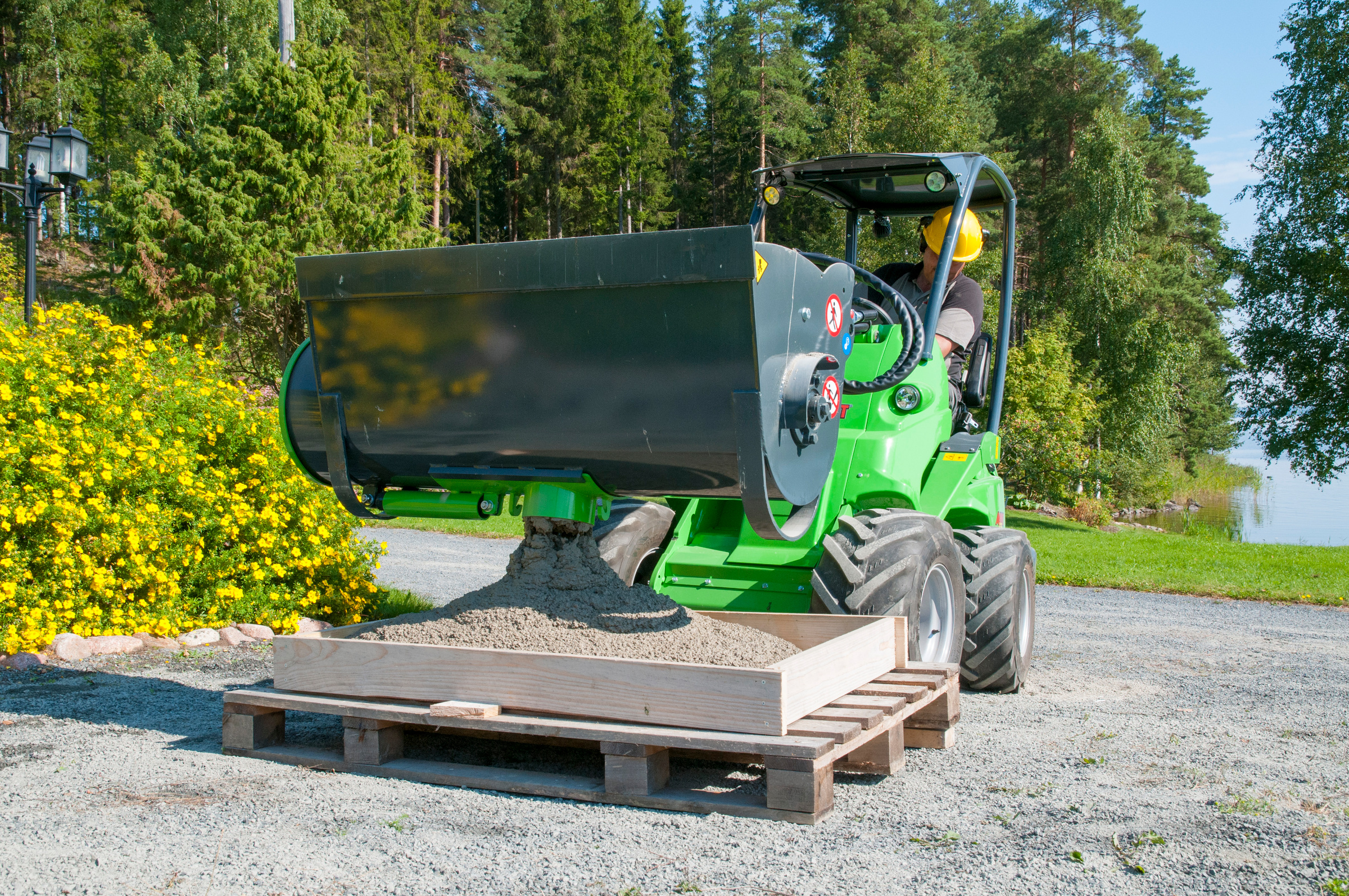

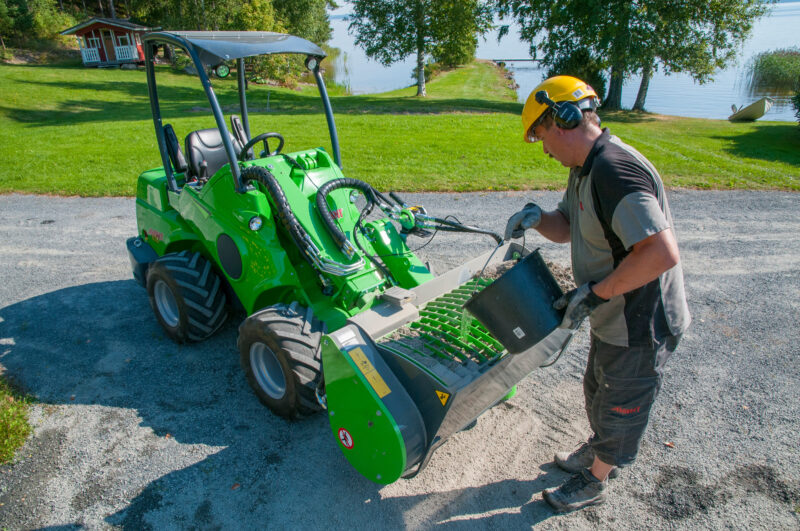

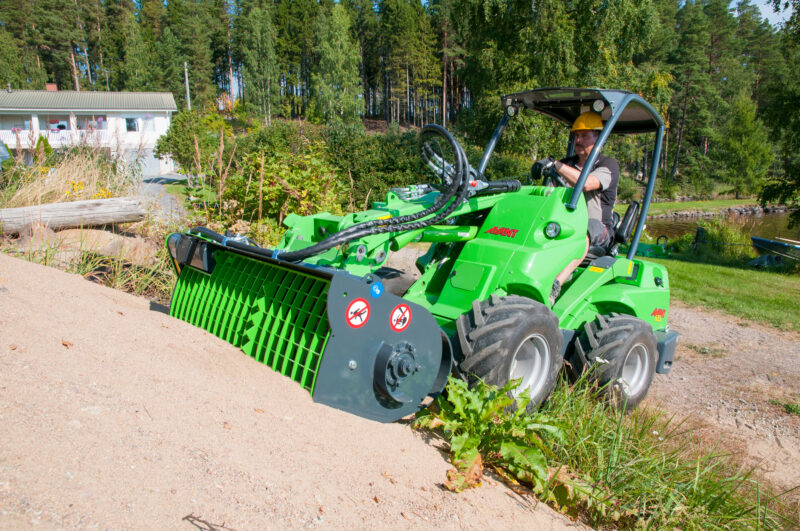

  • Self loading - sand can be taken to the bucket directly from the pile
  • Concrete can be poured to over 2m height

TECHNICAL INFORMATION

Total width 1490 mm
Screw shaft diameter 400 mm
Volume 210 l
Empty weight 299 kg
Weight at max. capacity 794 kg
Unloading hatch diameter 180 mm
Emptying tube length 1350 mm
Product no, discharge in the middle A36473
Product no, discharge on the left A37241







COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
