Property maintenance

BUCKET BROOM

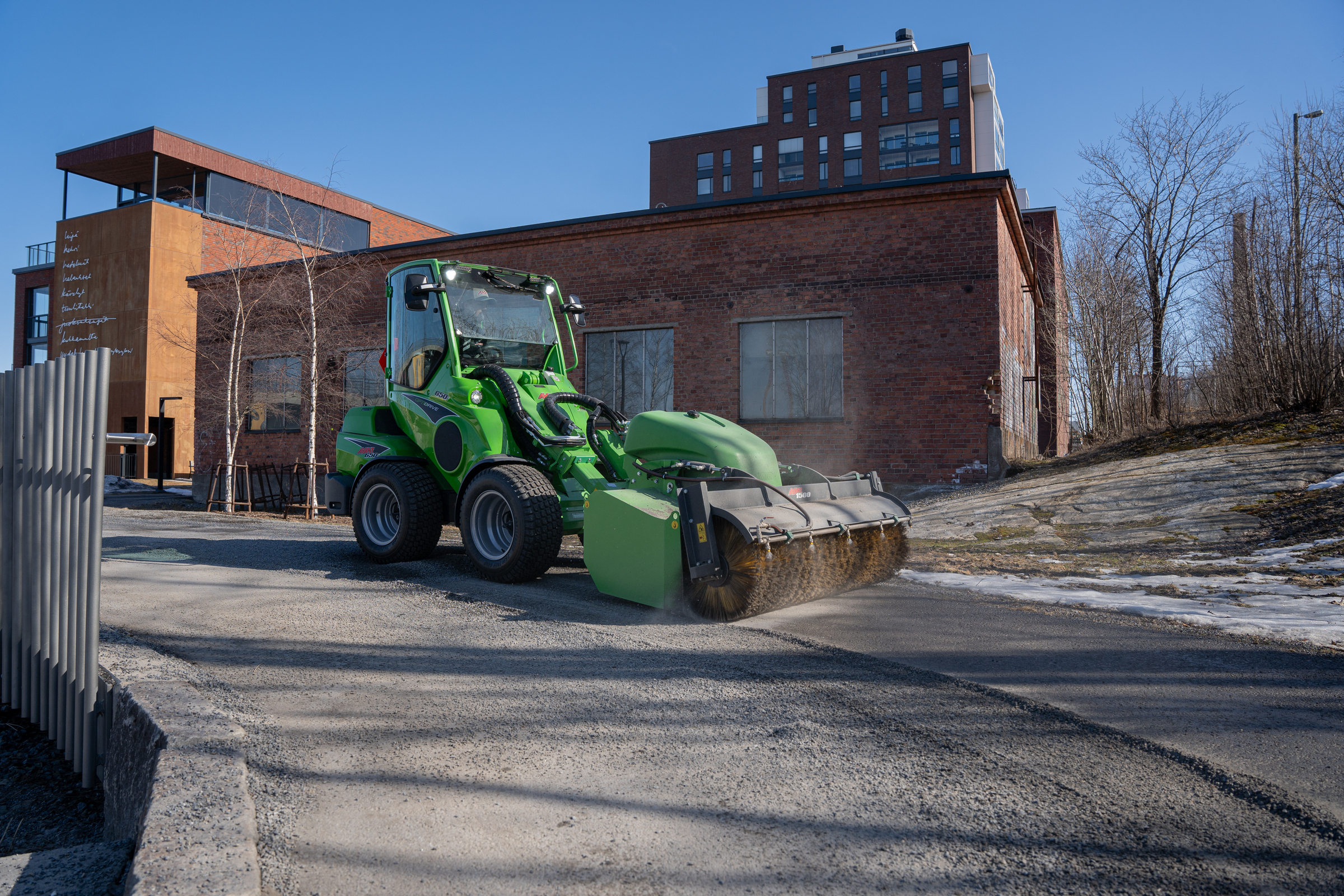

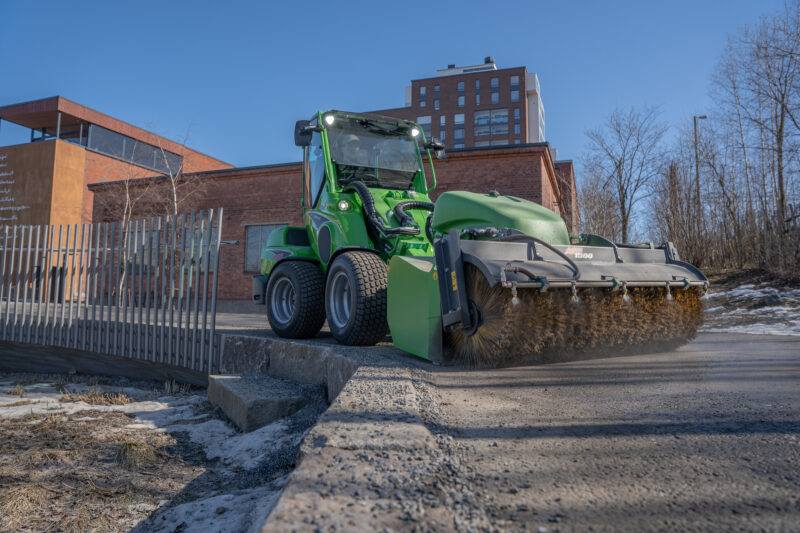

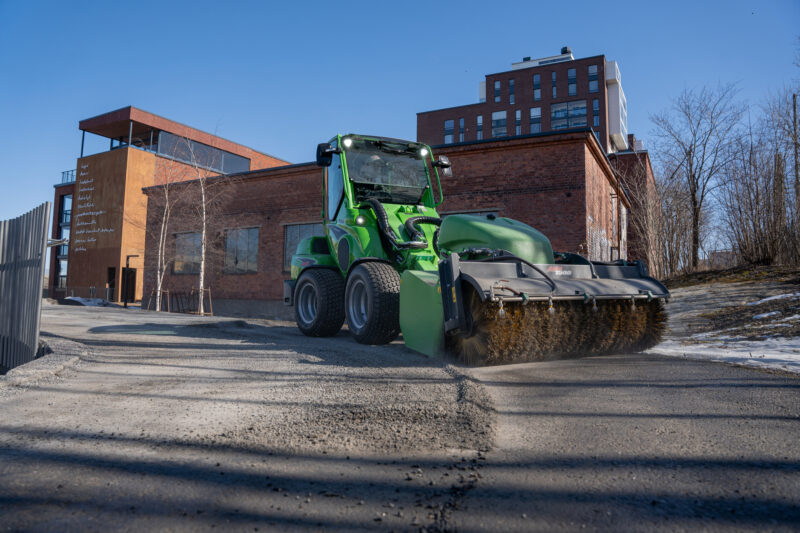

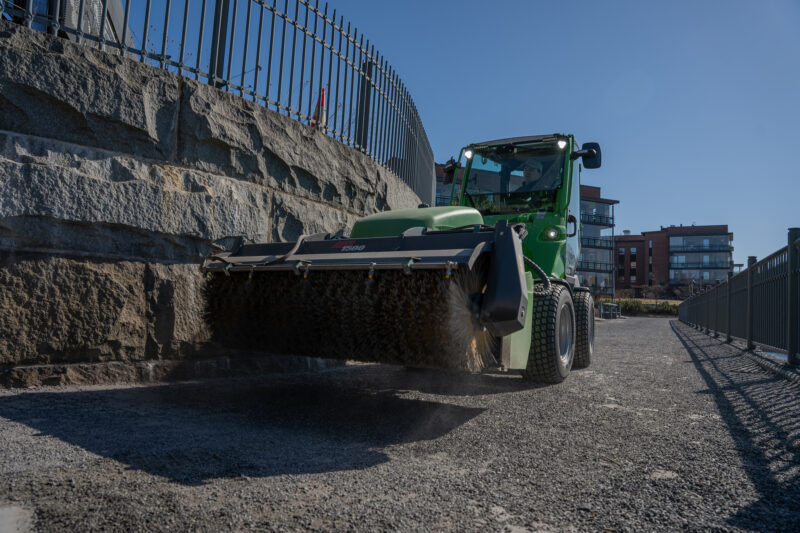

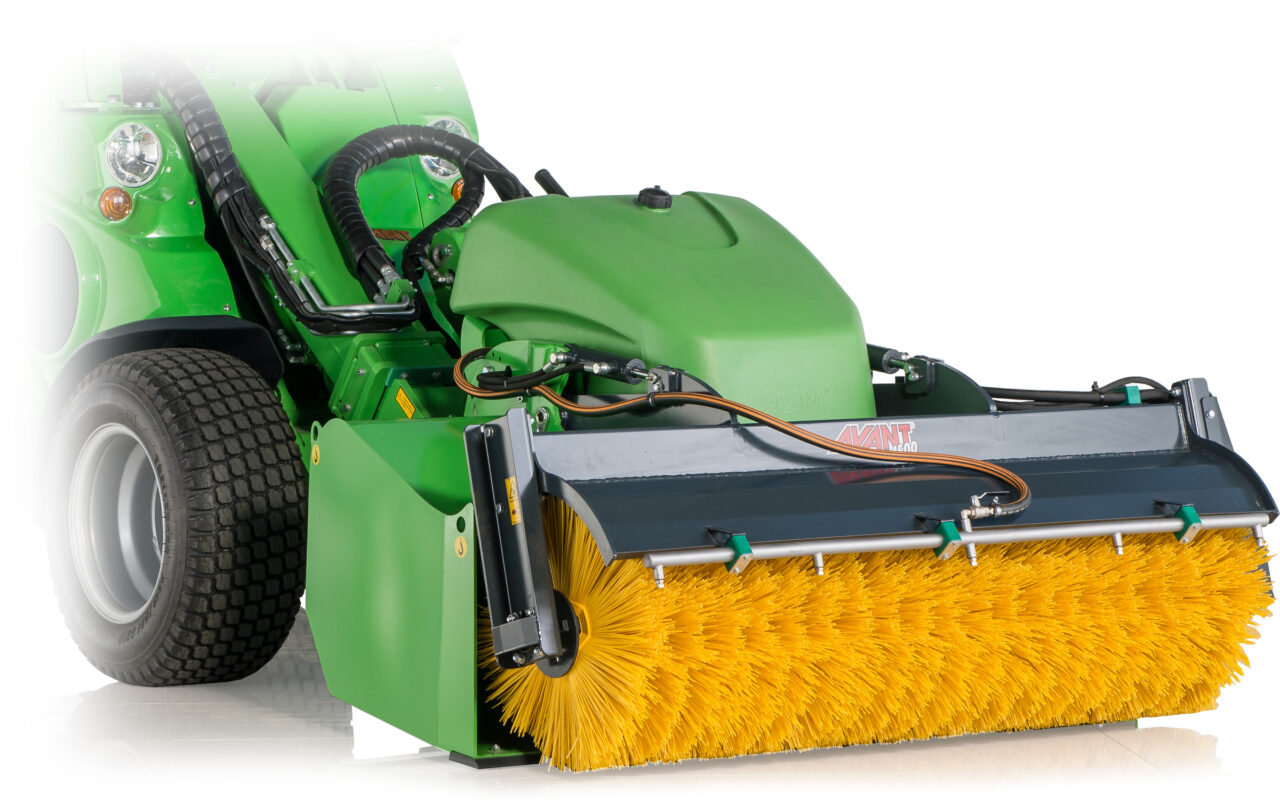

Bucket broom collects the waste in a large bucket shaped box.
The broom gives best sweeping result when reversing, but it also
works when driving forward. Forward sweeping is especially
recommended when the waste is larger in dimensions, for instance
construction waste, beverage cups, tree leaves etc.


The bucket broom is equipped with a floating mechanism which
allows the bucket lip to rest against ground freely. This means that
the loader must not necessarily be equipped with boom floating

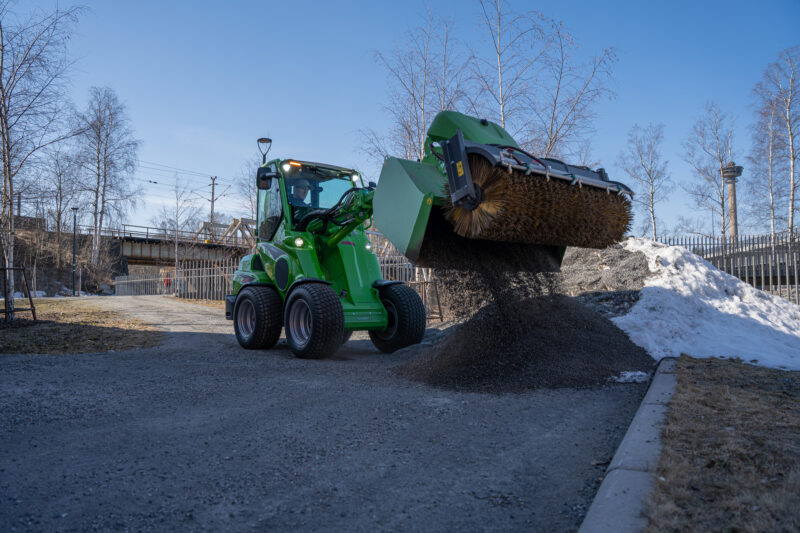

when working with the bucket broom. Emptying of the collector
happens by first lifting the broom up hydraulically, after that the
collector box can be emptied by tilting it down like a normal
bucket. Brush axle is equipped with a simple quick locking system
for adjusting the sweeping height.

Water spraying system for dust binding is also available. It minimizes dust build up when brushing dry waste.

  • Excellent sweeping result when driving backwards
  • Suitable for collecting larger waste as well
  • Large bucket shaped collector box
  • Quick, hydraulic emptying
  • Rubber blade brush available as an option, for collecting horse manure and similar material

TECHNICAL INFORMATION

Model 1100 1500
Broom width 1100 mm 1500 mm
Total width 1356 mm 1764 mm
Box volume 370 l 500 l
Boom diameter 500 mm 500 mm
Water tank volume 120 l 120 l
Product no A35945 A35689
Product no. with water spraying system A36023 A36024

option

Product 1100 1500
Water spraying system A35956 A35807
Rubber blade brush A436108 A433868

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
1100
1500
