BACKHOE 260

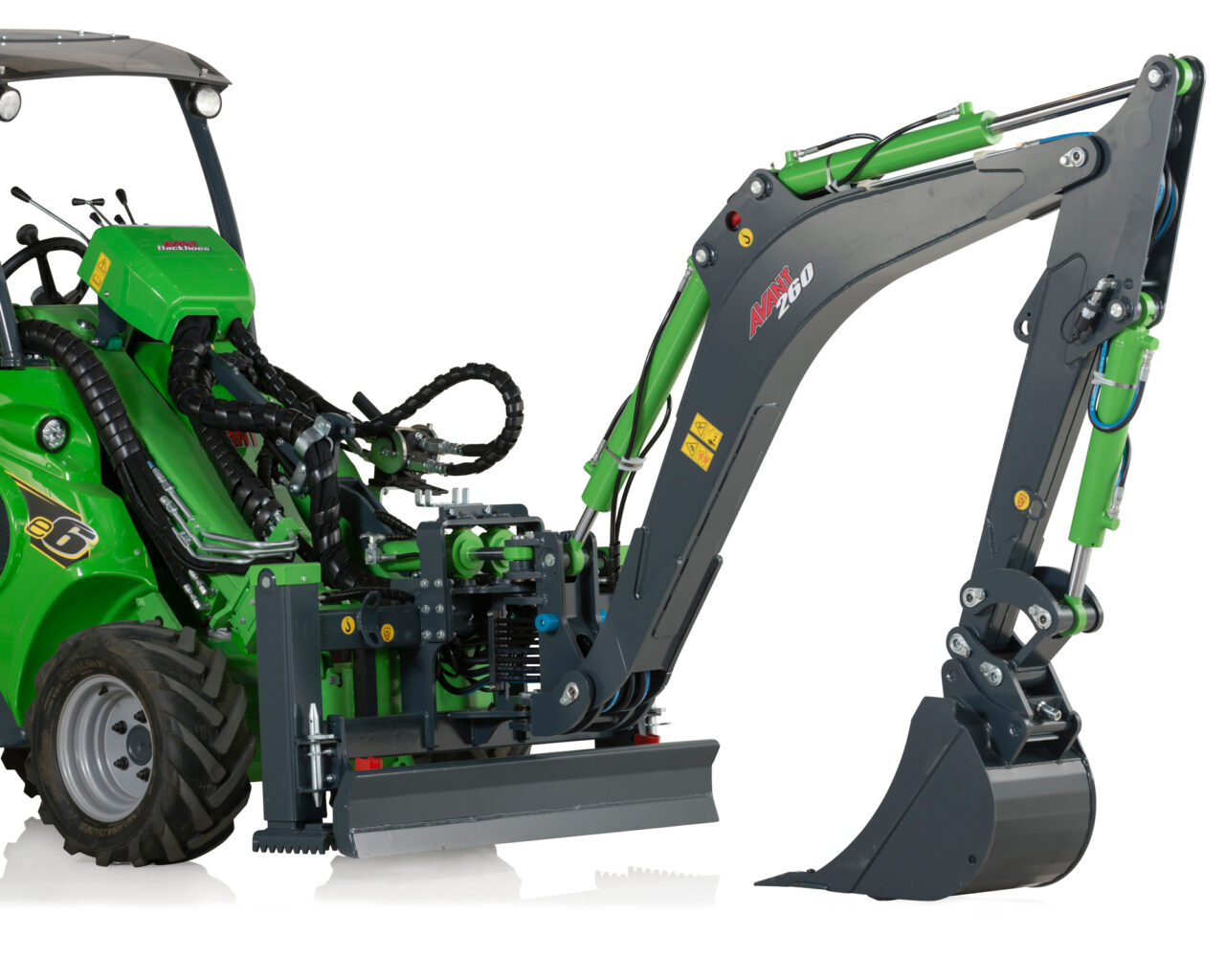

Backhoe 260 has many improved features: Boom swing happens with two hydraulic cylinders, instead of the single-cylinder and chain drive in the old models. The new system gives more exact boom movements when swinging and requires less service. The swing angle is 170 degrees.

The backhoe 260 is equipped with hydraulic outriggers as standard. The operator can easily adjust the outriggers with the lever on the backhoe control valve. This allows quick and easy set up also on uneven terrains. Changing of the bucket is easy thanks to the quick attach mechanism.

Mounting the backhoe on Avant is very fast, and the new foldable control valve bank and locking system on the boom makes it even easier.

  • Powerful and professional backhoe with good outreach
  • Hydraulic outriggers
  • Bucket quick-attach system S30-150
  • 170-degree boom swing angle with consistent speed
  • Dozer blade on the front frame
  • Several bucket options
  • Bucket sideways tilt adapter available as an option

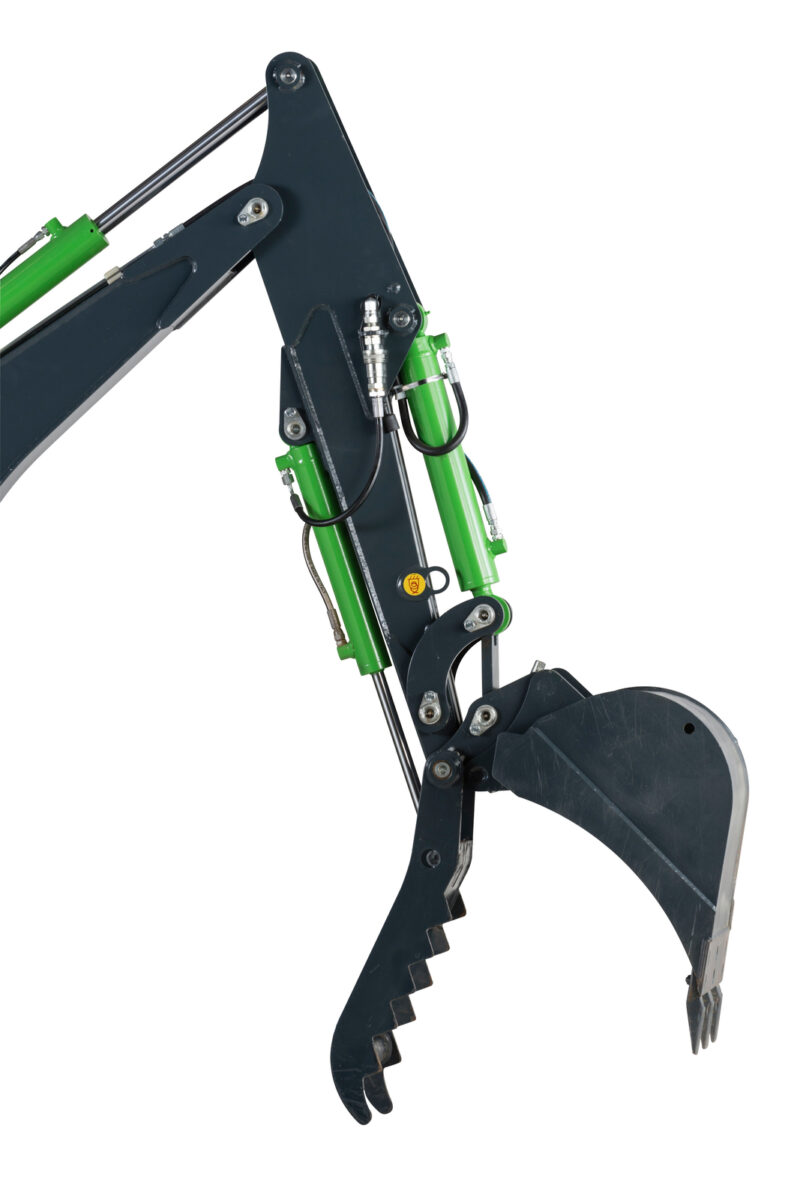

  • Thumb grab available as an option, for handling stones, etc. objects

technical information

Max. digging depth

2600 mm

Width

1300 mm

Boom swing angle

170°

Standard bucket

400 mm

Weight

420 kg

Product no

A37510

OPTIONS

Product

Product no

Bucket 250 mm A414301
Bucket 750 mm A35230
Bucket 1000 mm A35383
Bucket tilt adapter S30-150 with sideways tilt
(not with a thumb grab)
A35249
Trapezoidal bucket 650 mm A21638
Trapezoidal bucket 912 mm A36374
thumb grab
(not with a bucket tilt adapter)
A435527

THUMB GRAB

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
