Attachment rotator

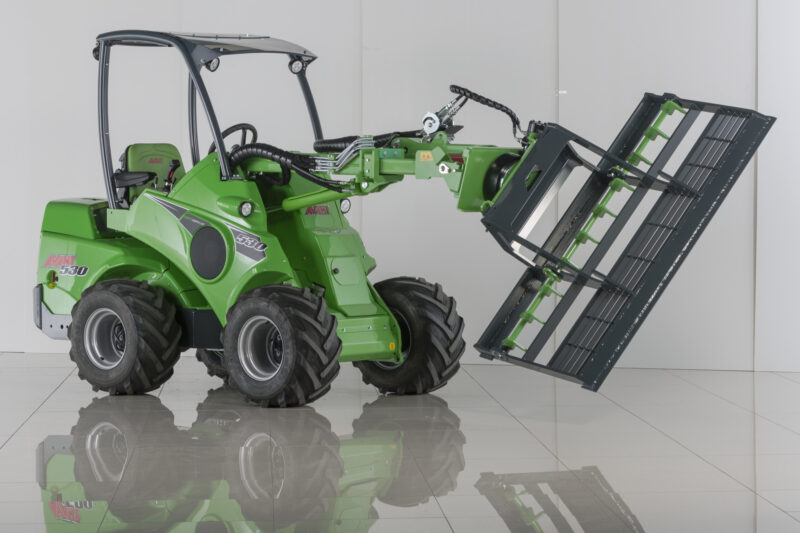

The attachment rotator makes it possible to rotate the attachment 360° continuously (endlessly) in both directions. This is useful in many jobs, for instance when emptying boxes that need to be turned upside down.

Like the tilt adapters, the rotator mounts between the attachment and the loader’s attachment coupling plate. It is equipped with a hydraulic motor and a slewing ring that allow the 360° rotation. Load capacity is 1.200 kg, and when mounted on the rotator the attachment is 195 mm further away from the loader’s attachment coupling plate.

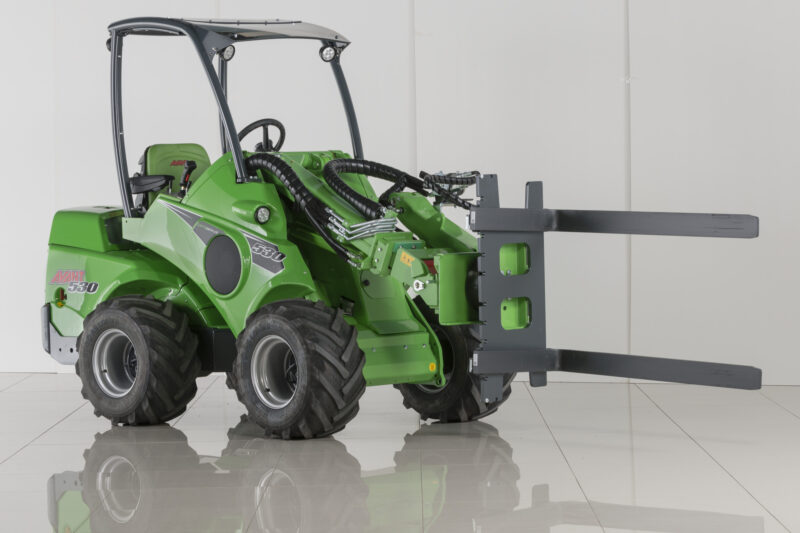

The attachment rotator is basically intended to be used with non-hydraulic attachments like pallet fork and it is equipped with the multi-connector as standard, but also a hydraulically driven attachment (4 in 1 bucket, grabbing tool, etc.) can be mounted. In this case, the loader must be equipped with the optional second auxiliary hydraulics front outlet. Hydraulic hoses of the attachments are mounted on the standard multi-connector and the rotator hoses on the extra front outlet.

  • Hydraulic rotator makes it possible to empty boxes by turning them upside down, lifting of pallets on uneven ground, turning the attachment 360°, etc.

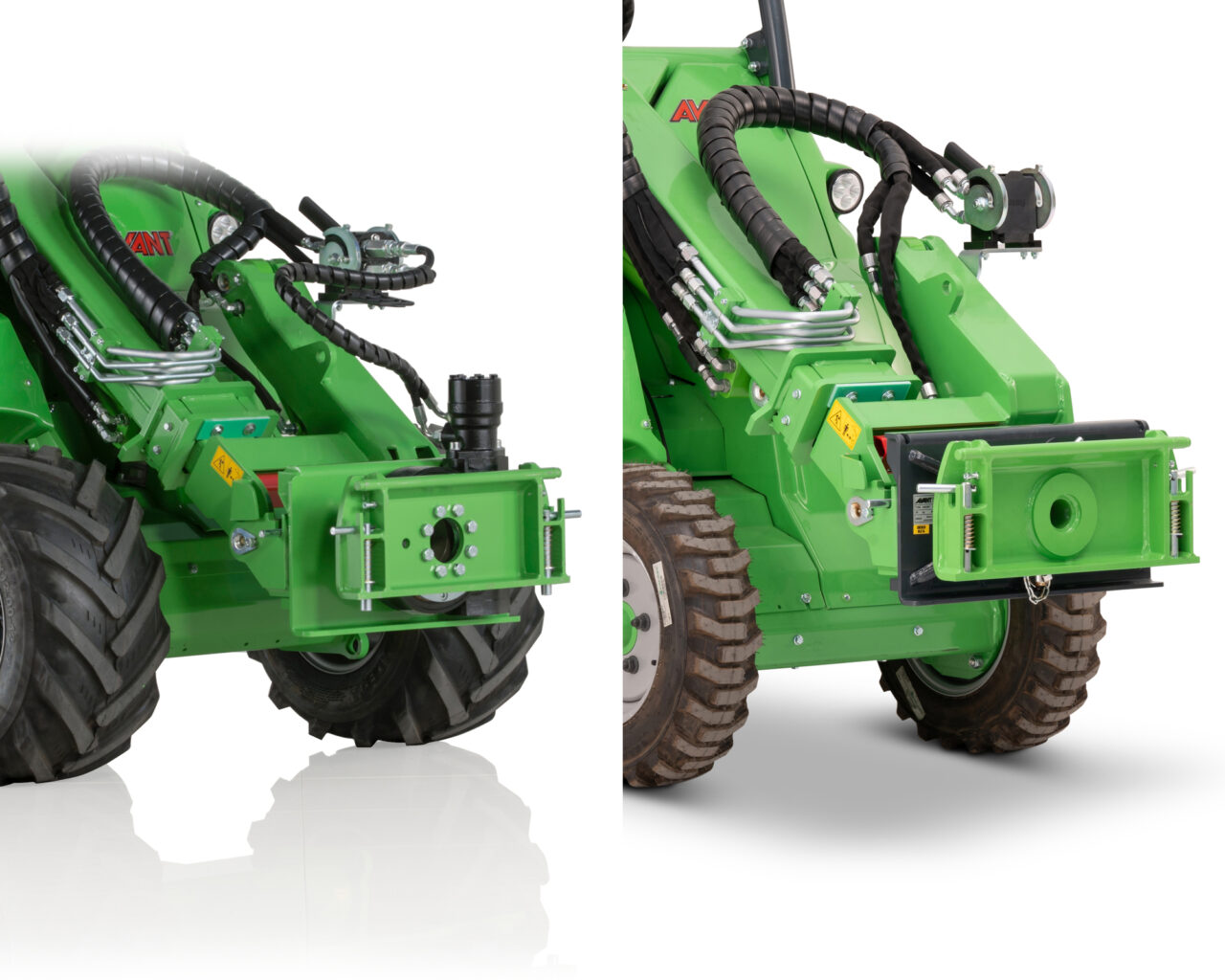

  • Mounts between the attachment and the quick attach plate of the loader

Technical INFORMATION

Rotation 360° continuous
Rated max load 1200 kg
Weight 96 kg
Product no. A424406

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
745
750
755i
760i
850
860i
e5
e6
