Buckets, material handling

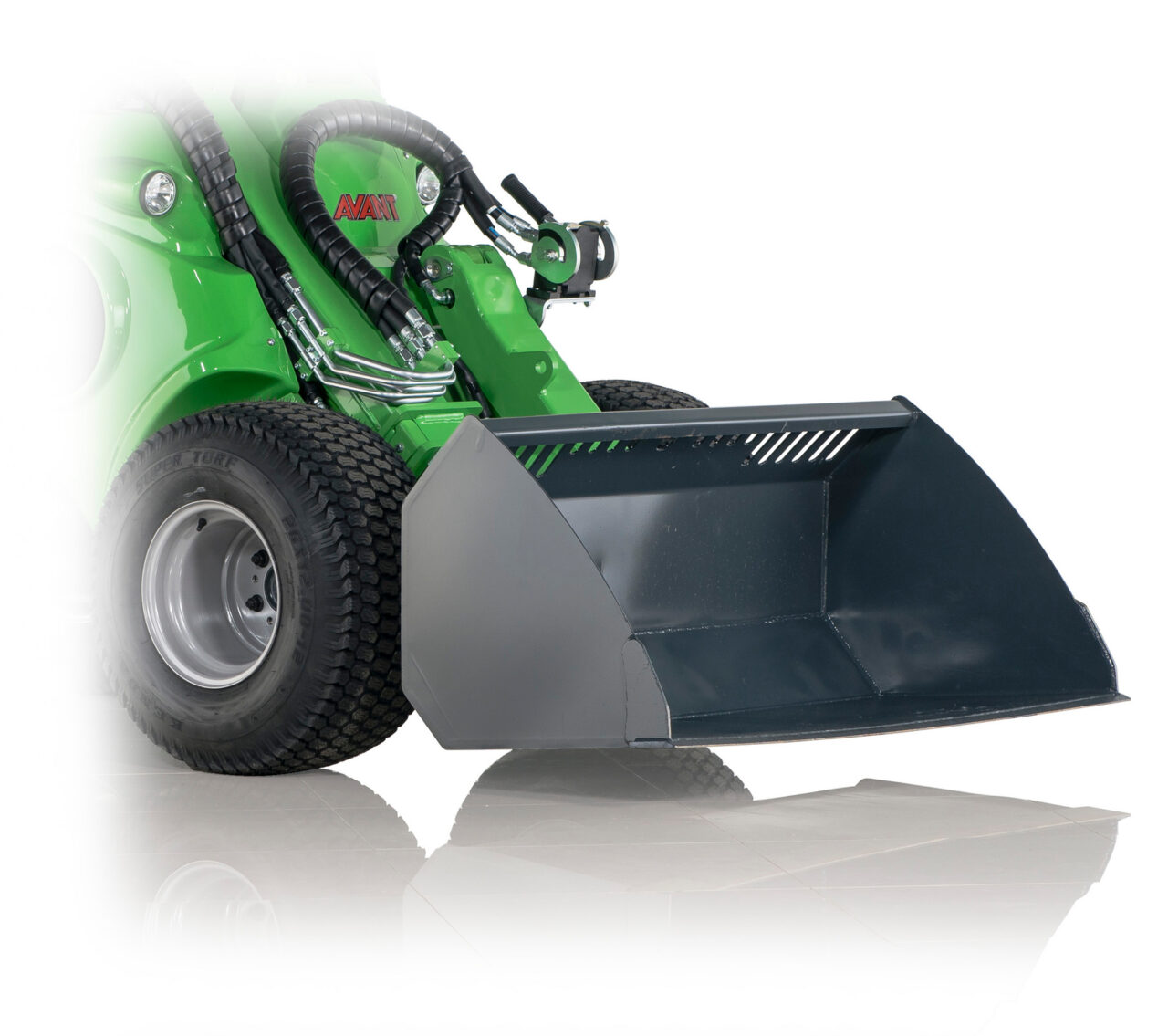

GENERAL BUCKET

Avant general buckets are designed so that the operator can see the front edge of the bucket from the driver’s seat, which means quick and easy loading and emptying. There are no reinforcement plates inside the bucket which would interfere when loading and emptying, and the sides open forward in a slight angle which guarantees easy and complete emptying of all kinds of materials.

Length of the bucket has been optimized in order to give the best possible breakout force. Sides open forward in a slight angle which guarantees easy and complete emptying of all kinds of materials.

There are narrow holes at the upper end of the bucket which improve visibility and prevent stones from falling towards the operator.
Available with a straight edge and with teeth. Teeth protection plate is also available.

  • All-round bucket, suitable for almost every shoveling job
  • Excellent visibility to the edge of the bucket
  • No reinforcement plates inside the bucket – easy filling and emptying
  • High breakout force
  • Strong cutting edge made of high tensile, abrasion resistant wear steel

TECHNICAL INFORMATION

Width Edge Volume Weight Product no
900 mm Straight 190 l 62 kg A36711
900 mm Teeth 190 l 72 kg A36716
1050 mm * Straight 150 l 50 kg A36702
1050 mm Straight 240 l 73 kg A36710
1050 mm Teeth 240 l 83 kg A36780
1150 mm Straight 260 l 78 kg A36709
1150 mm Teeth 260 l 91 kg A36779
1300 mm Straight 300 l 86 kg A36698
1300 mm Teeth 300 l 98 kg A36778
1350 mm Straight 310 l 90 kg A36996
1350 mm Teeth 310 l 102 kg A36997

*) Specially designed for new 200 series

SAMHÆF MODEL

Compatible
Adaptable
Incompatible
Model
220
225
225LPG
313S
320S
320S+
420
423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
