Mounting kit for stone installation clamp

More images

plus

For professional paving, a hydraulic stone installation clamp is a fast and easy way to lay paving stones. The installation clamp takes a whole layer of stones from the pallet, which then can be lifted directly to the area to be paved. Avant is an ideal machine for this job thanks to the articulated chassis which allows driving on the paved surfaces without damaging them, and thanks to the rigid articulation joint Avant loader is very stable also in paving jobs.

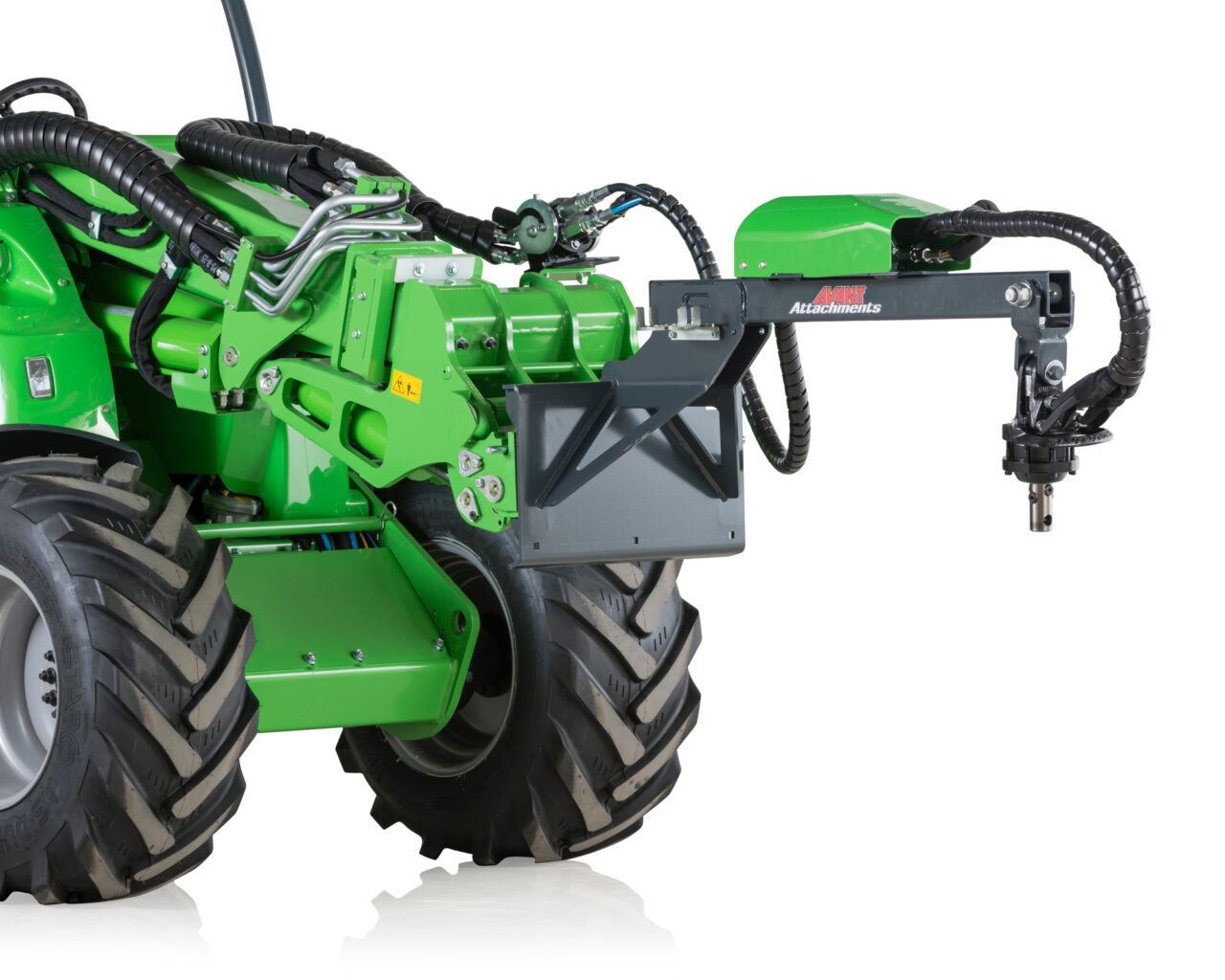

With the mounting kit, it is easy to install on Avant loader practically any hydraulic stone installation clamp available from renowned manufacturers (Hunklinger, Optimas, Probst for example). The mounting kit is a complete ”plug and play” kit which includes lifting boom, hydraulic rotator with continuous 360° rotation and electrically controlled hydraulics.

The stone installation clamp is mounted on the shaft of the mounting kit’s hydraulic rotator and the clamp’s hydraulic hoses are connected in the ports on the rotator. All functions of the stone installation clamp (rear/front grabbers, side grabbers, rotation) are operated with the Opticontrol attachment control system on the loader. Because the mounting kit already includes the rotator and control valve, they are not needed in the stone installation clamp itself. The mounting kit is CE marked and comes with operating and installing instructions.

  • CE marked “plug and play” mounting kit for hydraulic stone installation clamps
  • Includes hydraulic rotator and electric control valve
  • Operated with the Opticontrol attachment control system on Avant loader

TECHNICAL INFORMATION

Lift capacity, stone installation clamp + load 800 kg
Weight 66 kg
Product no A436347



The optional Opticontrol is required on the loader.

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Product no
220
225
225LPG
313S
320S
420
423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
A436347
