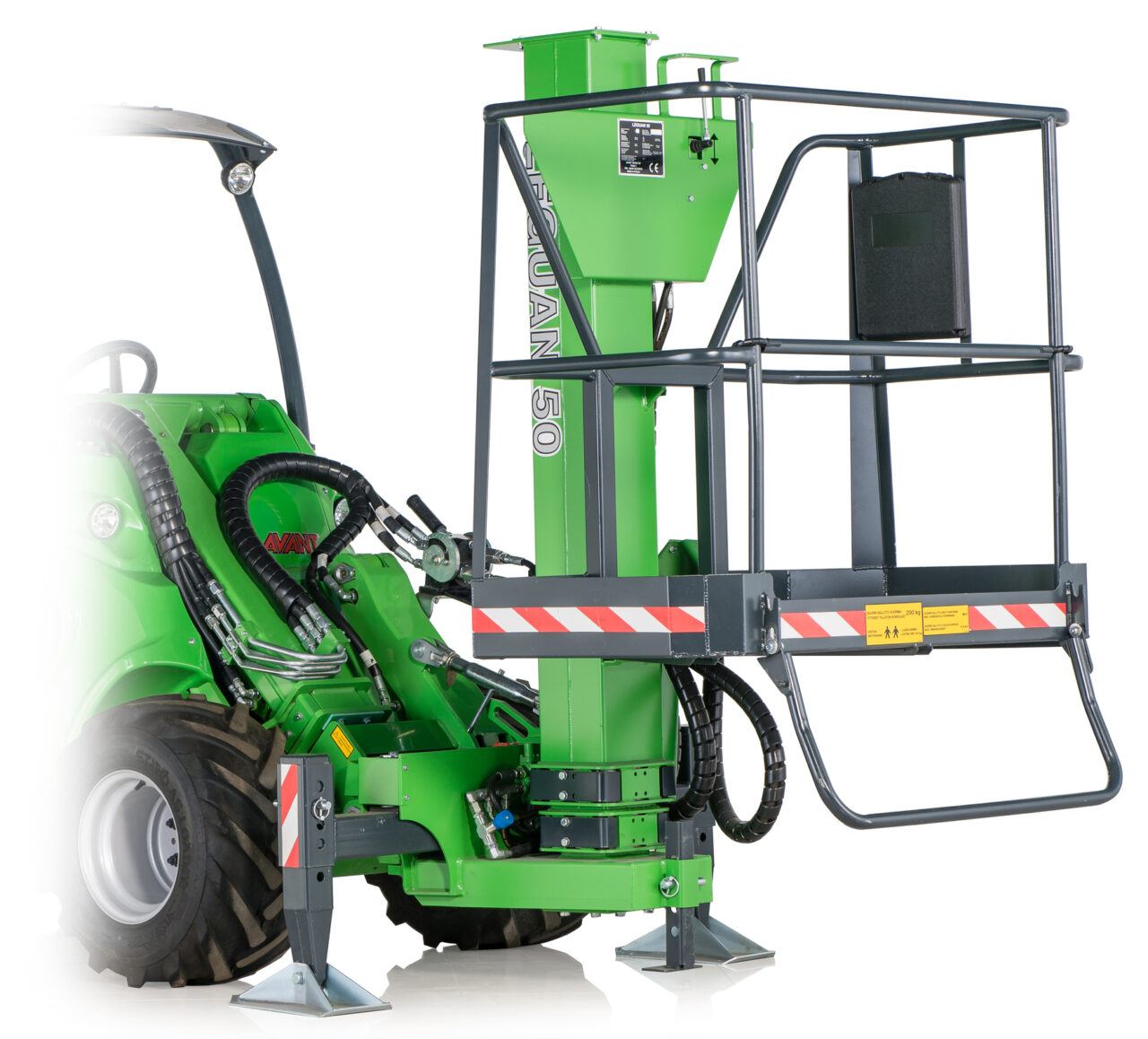

LEGUAN 50 ACCESS PLATFORM

Avant and its daughter company Leguan Lifts have joined their
forces and created an access platform which is mounted directly
into Avant loaders quick attach plate. The result is an inexpensive, handy and easy to use access platform. With the help of this lift Avant’s versatility is further increased on the job sites.


The Leguan 50 is mounted directly on to loader’s quick attach plate quick attach plate like any other Avant attachment. This makes it fast and easy to mount it on and take it off.


Leguan 50 is designed in accordance with access platform standards and it is CE certified. Safe working load is 200 kg - that is two persons or one person with a considerable amount of equipment and tools.

  • An inexpensive access platform with 5 meters working height
  • The safe and legal way to do building repairs, painting, light bulb changes, etc.
  • The maximum allowed load on the basket is 200 kg and you are able to use the lift alone
  • Leguan 50 is attached to Avant which makes it easy to set it up in virtually all kinds of terrains
  • The Leguan 50 access platform gives even further possibilities to use your Avant on work sites.

TECHNICAL INFORMATION

Max. allowed load 200 kg
Max. working height 5,0 m
Height (with lowered platform) 1900 mm
Width 1300 mm
Weight 435 kg
Product no A34812



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e5
e6
