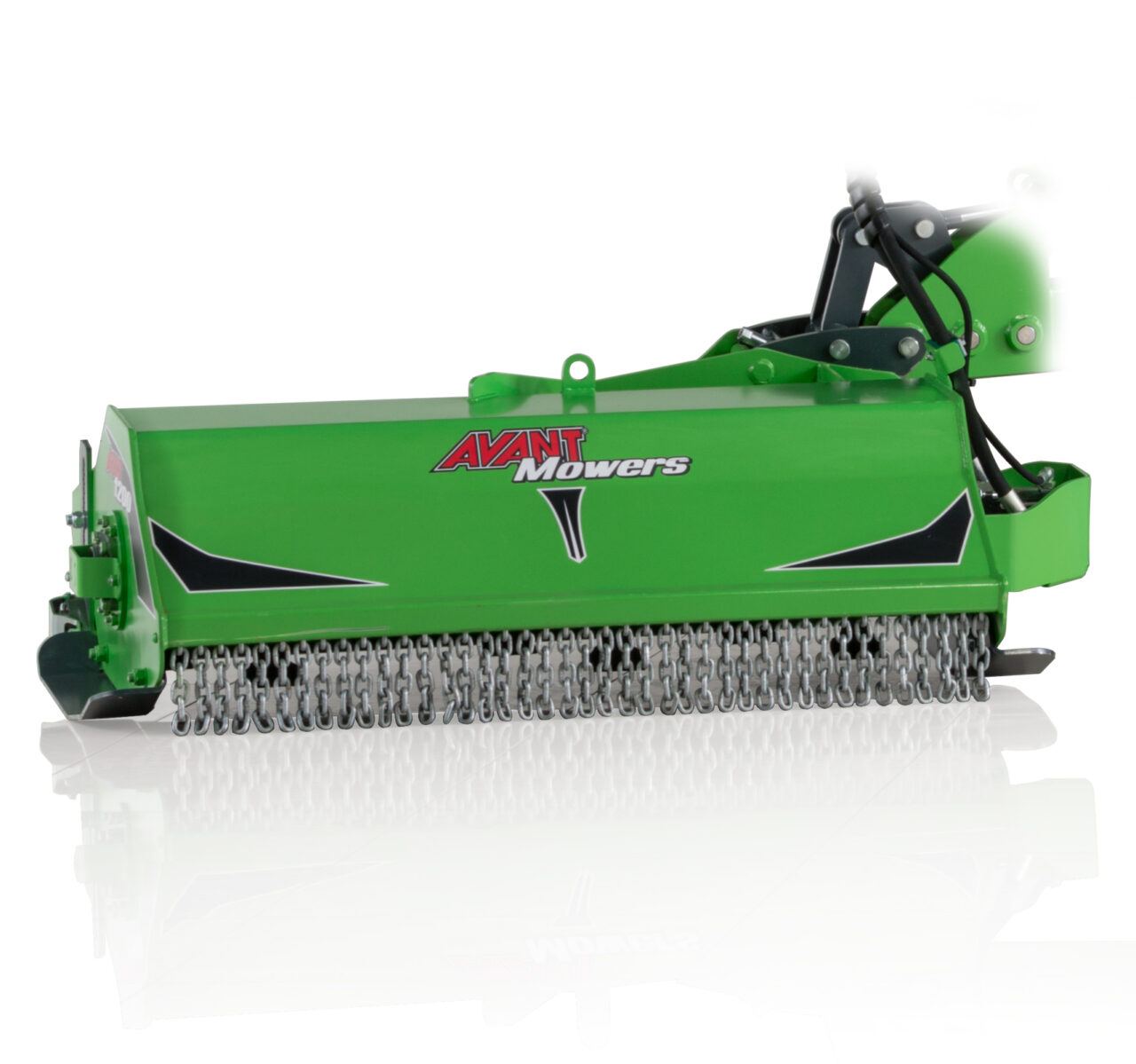

The 1200 mm flail mower with S30 quick attach bracket mounts only on the hydraulic side arm A424552. It cannot be mounted on the attachment coupling plate of the loader or on the A431070 S30 mechanical side arm – and on the other hand the normal flail mowers A36730 and A36015 cannot be mounted on the hydraulic side arm.
The S30 mower has otherwise the same 1200 mm mower deck with hammer flails as the A36730 flail mower, but it is equipped with the high flow hydraulic motor of the 1500 mm flail mower. This gives 25% higher efficiency/working width ratio than on the 1500 mm flail mower, and 100% higher than on the standard A36730 1200 mm flail mower.
Easy mowing of road banks and gradients with the flail mower
Outreach to the side max. 2,9 m
Equipped with high flow hydraulic motor
S30 quick attach system
Multi connector on the hydraulic hoses available as an option, for mounting on the S30 side arms (side arm must also be equipped with multi connector)
A443003 Multi connector (3 connectors) + holder
|Working width||1200 mm|
|Max. outreach to the side||2900 mm|
|Max. width||1580 mm|
