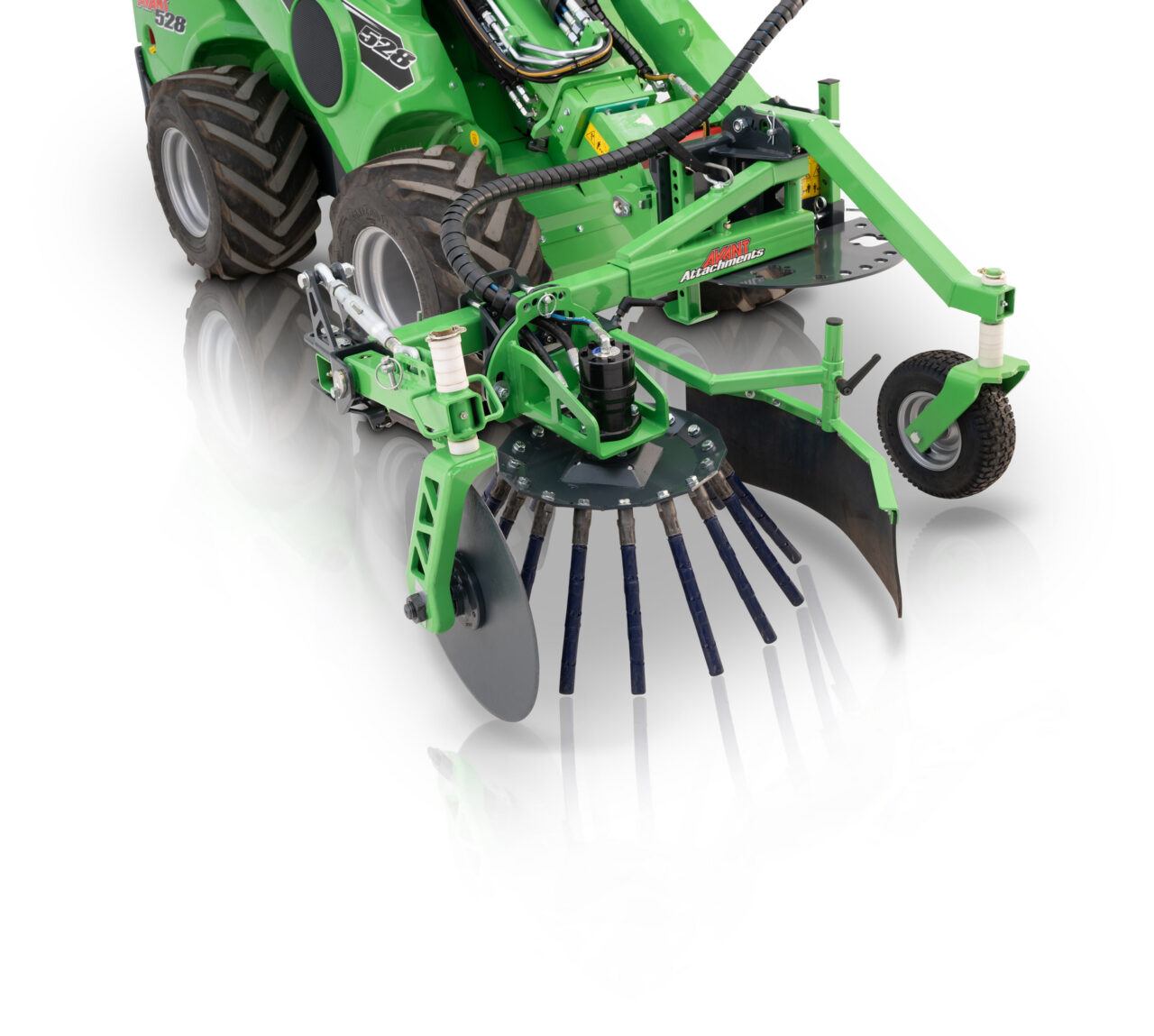

Edge trimmer with weed brush

More images

plus

The edge trimmer equipped with a weed brush allows lawn edge cutting and sweeping at the same time. It is intended for cleaning the edge between kerb stones and lawn, and it can also be used for trimming the edge between the lawn and paving, asphalt, concrete slab, etc.

Cutting disc can be lifted up so that the unit works as a weed brush only. The brush (A422665) is a heavy-duty wire rope brush, diameter 700 mm as standard. Diameter of the cutting disc is 460 mm. An adjustable and detachable splash guard and a foldable support wheel are standard equipment as well.

Working width (distance from the brush to the side from the loader’s quick attach plate) can be adjusted manually max. 180 mm, as well as the distance between the cutting disc and the brush. The cutting disc is spring loaded: the spring turns the disc parallel with the driving direction. The angle of the brush can be adjusted manually.

The unit can be mounted in three different positions: working on the right side or on the left side of the loader, or pointing to the front (transport position). Changing the working direction from the right to the left side of the loader requires tools and the left-handed mounting bracket A449096 for the cutting disc.

  • Cuts the lawn edge accurately, leaving a finished look on lawns, flower beds, driveways, walkways etc.
  • Cutting disc can be lifted up so that the unit works as a weed brush only
  • Efficient weed removal with rotating steel brush
  • Support wheel as standard

TECHNICAL INFORMATION

Cutting depth max.

150 mm

Cutting disc diameter

460 mm
Brush diameter 700 mm
Max. width in working position 1410 mm
Min. width in transport position 856 mm

Height

690 mm

Length

865 mm

Weight

160 kg

Product no

A446497



Option

Brush with steel bristles A452184
Left-handed mounting bracket for cutting disc* A449096


* allows mounting on the left side

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
645i
650i
735
745
750
755i
760i
850
860i
e513
e527
