Digging and construction

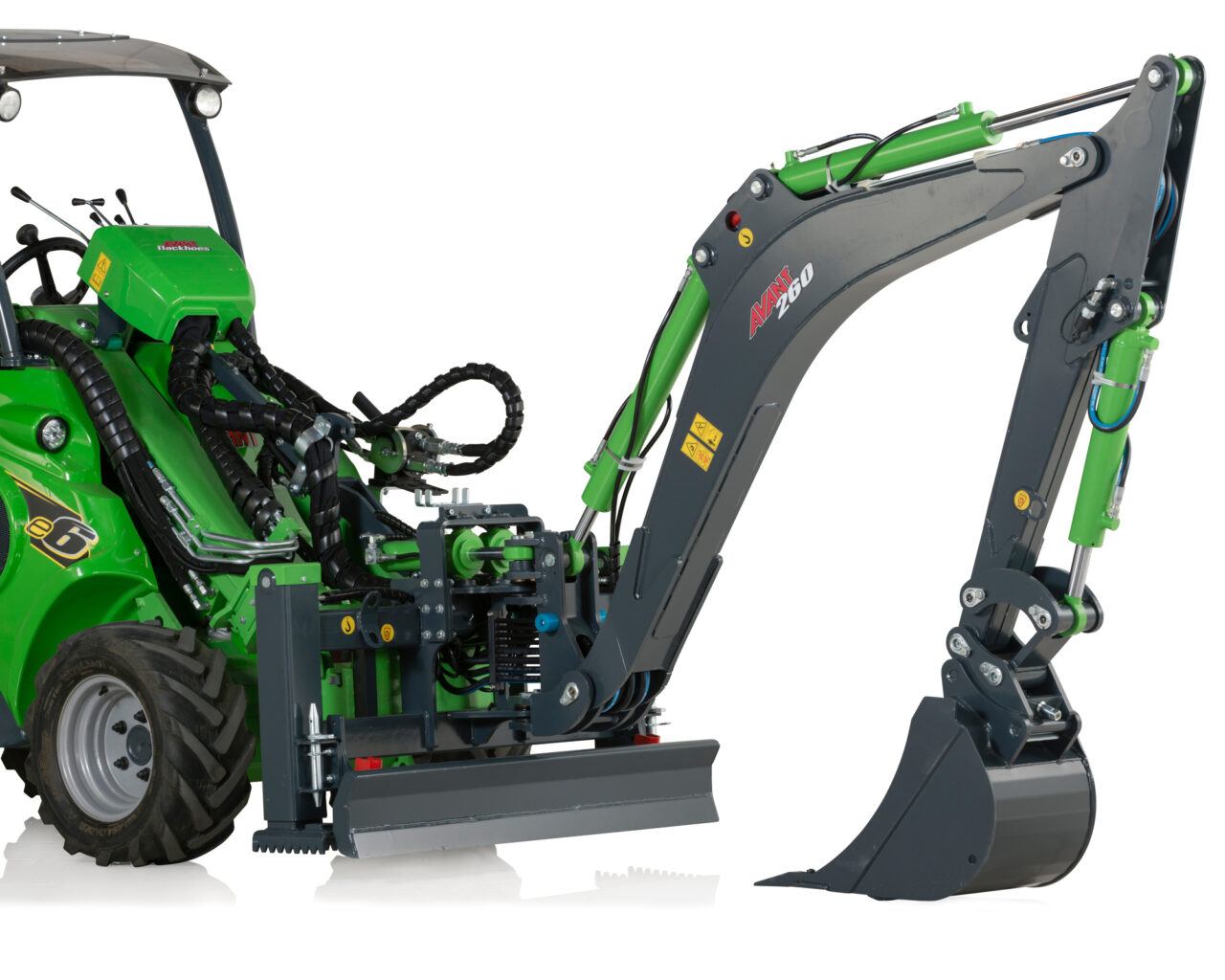

BACKHOE 260

Backhoe 260 has many improved features: Boom swing happens
with two hydraulic cylinders, instead of the single cylinder and chain
drive in the old models. The new system gives more exact boom
movements when swinging and requires less service. Swing angle
is 170 degrees. Backhoe 260 is equipped with hydraulic outriggers
as standard. The operator can easily adjust the outriggers with the lever on the backhoe control valve. This allows quick and easy set up also on uneven terrains.

Changing of bucket is easy thanks to the quick attach mechanism. Mounting the backhoe on Avant is very fast, and the new foldable control valve bank and locking system on the boom make it even easier.

  • Powerful and professional backhoe with good outreach
  • Hydraulic outriggers
  • Bucket quick attach system S30-150
  • 170-degree boom swing angle with consistent speed
  • Dozer blade on the front frame
  • Several bucket options
  • Bucket sideways tilt adapter available as an option

TECHNICAL INFORMATION

Max. digging depth

2600 mm

Width

1300 mm

Boom swing angle

170°

Standard bucket

400 mm

Weight

420 kg

Product no

A35248

OPTIONS

Product

Product no

Bucket 250 mm A414301
Bucket 750 mm A35230
Bucket 1000 mm A35383
*Quick attach adapter S30-150

A35249

Trapezoidal bucket 650 mm A21638
Trapezoidal bucket 912 mm A36374

*with sideways tilt

COMPATIBLE MODELS

Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
745
750
755i
760i
850
860i
e5
e6
Very compatible
Compatible
Incompatible
